| Scrub Head | REV |
| Scrub Path | 20 in (51 cm) |
| Solution Tank | 12 gal (45 L) |
| Recovery Tank | 12.5 gal (47 L) |
| Machine Voltage | 24 V |
| Vacuum Motor | 0.66 hp (492 W) 3-stage |
| Scrub Motor | 0.75 hp (559 W) |
| Scrub Motor RPM | 2250 |
| Low Scrub Pressure Max | 64 lb (29 kg) |
| High Scrub Pressure Max | 88 lb (40 kg) |
| Drive Motor | 0.375 hp (280 W) |
| Max Transport Speed | 3 mph (4.8 kph) |
| Max Scrub Speed | 2.6 mph (4.2 kph) |
| Max Coverage | 26,400 ft2 (2,453 m2) |
| Max Sound Pressure Level (IEC 60704-1) | 63 dB A / .029344 Pa |
| Low Flow Rate | 0.11 gal/min (0.4 L/min) or 109 minutes per solution tank |
| Medium Flow Rate | 0.16 gal/min (0.6 L/min) or 75 minutes per solution tank |
| High Flow Rate | 0.23 gal/min (0.9 L/min) or 52 minutes per solution tank |
| Minimum Aisle Turn Width | 59.5 in (151 cm) |
| Squeegee Width | 26.5 in (67.3 cm) |
| Length | 48.5 in (123.2 cm) |
| Width | 24 in (61 cm) |
| Height | 52.5 in (133.4 cm) |
| Gross Weight (standard machine w/o options; w/full solution tank, empty recovery tank and heaviest batteries installed) without rider | 719 lb (326 kg) |
| Model Numbers | 56104012 with EcoFlex, 208 Ah wet batteries |
| 56104013 with EcoFlex, 140 Ah (AGM) batteries |
Technical specs may include optional equipment that is not included with all units.

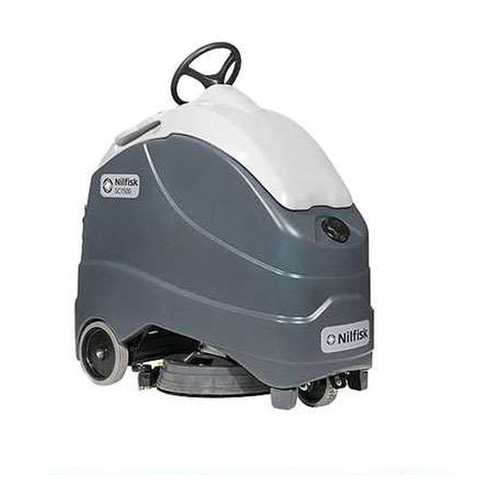

New Advance SC1500 20D REV EcoFlex Four 208 Ah wet batteries, onboard charger and pad holder
Special Discounts Available
- We will beat any competitor's advertised price by 5%!
- Additional discounts are available on this product for qualifying government and education institutions. Please call us for additional details at 1-800-440-6723.
Features
- Simple, intuitive controls minimize operator training
- Safety dead-man switch and GO pedal provides easy-to-control operation
- Quiet mode for daytime cleaning and cleaning of noise-sensitive areas
- EcoFlex onboard detergent system provides flexible cleaning performance
- Large recovery tank opening, complete draining and smooth interior for easy cleaning
