| Scrub System | |
| Scrub Head Type | Disc |
| Scrub Path | 26 in (66 cm) |
| Productivity | |
| Theoretical Max. @ 3.4 mph (5.5 kph) | 38,900 ft2/hr (3,600 m2/hr) |
| Est. Coverage @ 2.3 mph (3.7 kph) | 26,300 ft2/hr (2,400 m2/hr) |
| Brush Pad/Driver Assembly | (2) 13 in (33 cm) |
| Scrub Pressure | |
| Regular Scrub | 80 lb (36.3 kg) |
| Extreme Scrub | 170 lb (77.1 kg) |
| Scrub Disc/Brush Speed | 270 rpm |
| Onboard Detergent | EcoFlex Optional (N/A on ST Models) |
| Solution Flow Rate/Operating Time | |
| Low | 0.25 gal/min (0.98 L/min) - 91 minutes |
| Medium | 0.50 gal/min (1.93 L/min) - 42 minutes |
| High | 0.65 gal/min (2.46 L/min) - 32 minutes |
| Solution Tank | 21 gal (80 L) |
| Solution Control | |
| Standard Models | Gravity feed with pulsating solenoid technology and liquid level sensing |
| ST Models | Gravity feed with pulsating solenoid technology |
| Recovery System | |
| Recovery Tank | 21 gal (80 L) |
| Vacuum Fan | |
| Motor | 0.66 hp (490 W) |
| Stages | 3-Stage |
| Waterlift | 51.2 in (130 cm) |
| Propulsion and Power System | |
| Speed Control | |
| Standard Models | Standard Models - Safety paddle system infinity variable with maximum speed limiter settings |
| ST Models | ST Models - ON/OFF palm switches with maximum speed limiter settings |
| Propel Speed | |
| Transport | 3.6 mph (5.8 km/hr) |
| Scrubbing | 3.4 mph (5.5 km/hr) |
| Gradeability | |
| Scrubbing & Transport - (Full) | 8.5 / 14.9% |
| Trailer Ramp (Empty) | 10.0 / 17.6% |
| Batteries (24 V System) | (4) 6 V batteries: 242 Ah Wet or 310 Ah Wet or 312 Ah maintenance-free (AGM) |
| Battery Charger | |
| Standard Models | 24 Volt Shelf or Onboard Charger |
| ST Models | Shelf Charger Only |
| Drive Wheels | (2) 10 in (25.4 cm) diameter solid, gray - non-marking polyurethane |
| Dimensions / Weight / Sound | |
| Length Standard Model | 58.4 in (148 cm) |
| Length ST Model | 56.6 in (144 cm) |
| Width Without Squeegee | 28.8 in (73 cm) |
| Width With Squeegee | 35.5 (90 cm) |
| Height Standard Model | 45.1 in (115 cm) |
| Height ST Model | 44.5 in (113 cm) |
| Max Dry Weight Without Batteries | 347 lb (158 kg) |
| Max Dry Weight Including Std. Batteries | 615 lb (280 kg) |
| Minimum Aisle Turn | 62 in (1.57 m) |
| Sound Level (IEC 60704-1) | 61 dB (A) @ Operators position |
Technical specs may include optional equipment that is not included with all units.

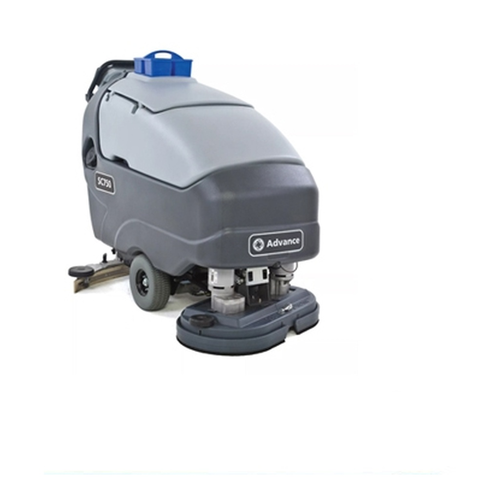

New Advance SC750 ST 26D Four 242 Ah wet batteries, shelf charger, pad holders
Special Discounts Available
- We will beat any competitor's advertised price by 5%!
- Additional discounts are available on this product for qualifying government and education institutions. Please call us for additional details at 1-800-440-6723.
Features
- Smart Solutions or EcoFlex on all machines
- Green cleaning and high productivity technology
- SC750 with 21 gallon (80 L) solution and recovery tanks
- Self adjusting skirt on disc machines
- SC800 with 25 gallon (95 L) solution and recovery tanks
- Heavy duty scrubbing performance
