| Scrub System | |
| Scrub Head Type | Disc |
| Scrub Path | 34 in (86 cm) |
| Productivity | |
| Theoretical Max. @ 3.4 mph (5.5 kph) | 50,900 ft2/hr (4,730 m2/hr) |
| Est. Coverage @ 2.3 mph (3.7 kph) | 34,400 ft2/hr (4,000 m2/hr) |
| Brush Pad/Driver Assembly | (2) 17 in (43.0 cm) |
| Scrub Pressure | |
| Regular Scrub | 80 lb (36.3 kg) |
| Extreme Scrub | 170 lb (77.1 kg) |
| Scrub Disc/Brush Speed | 270 rpm |
| Onboard Detergent | EcoFlex Optional (N/A on ST Models) |
| Solution Flow Rate/Operating Time | |
| Low | 0.25 gal/min (0.98 L/min) - 101 minutes |
| Medium | 0.50 gal/min (1.93 L/min) - 54 minutes |
| High | 0.65 gal/min (2.46 L/min) - 40 minutes |
| Solution Tank | 25 gal (95 L) |
| Solution Control | |
| Standard Models | Gravity feed with pulsating solenoid technology and liquid level sensing |
| ST Models | Gravity feed with pulsating solenoid technology |
| Recovery System | |
| Recovery Tank | 25 gal (95 L) |
| Vacuum Fan | |
| Motor | 0.66 hp (490 W) |
| Stages | 3-Stage |
| Waterlift | 51.2 in (130 cm) |
| Propulsion and Power System | |
| Speed Control | |
| Standard Models | Standard Models - Safety paddle system infinity variable with maximum speed limiter settings |
| ST Models | ST Models - ON/OFF palm switches with maximum speed limiter settings |
| Propel Speed | |
| Transport | 3.6 mph (5.8 km/hr) |
| Scrubbing | 3.4 mph (5.5 km/hr) |
| Gradeability | |
| Scrubbing & Transport - (Full) | 8.5 / 14.9% |
| Trailer Ramp (Empty) | 10.0 / 17.6% |
| Batteries (24 V System) | (4) 6 V batteries: 242 Ah Wet or 310 Ah Wet or 312 Ah maintenance-free (AGM) |
| Battery Charger | |
| Standard Models | 24 Volt Shelf or Onboard Charger |
| ST Models | Shelf Charger Only |
| Drive Wheels | (2) 10 in (25.4 cm) diameter solid, gray - non-marking polyurethane |
| Dimensions / Weight / Sound | |
| Length Standard Model | 63.3 in (161 cm) |
| Length ST Model | 61.5 in (156 cm) |
| Width Without Squeegee | 36.8 in (93 cm) |
| Width With Squeegee | 41.5 in (105 cm) |
| Height Standard Model | 45.1 in (115 cm) |
| Height ST Model | 44.5 in (113 cm) |
| Max Dry Weight Without Batteries | 375 lb (170 kg) |
| Max Dry Weight Including Std. Batteries | 643 lb (292 kg) |
| Minimum Aisle Turn | 65 in (1.65 m) |
| Sound Level (IEC 60704-1) | 61 dB (A) @ Operators position |
Technical specs may include optional equipment that is not included with all units.

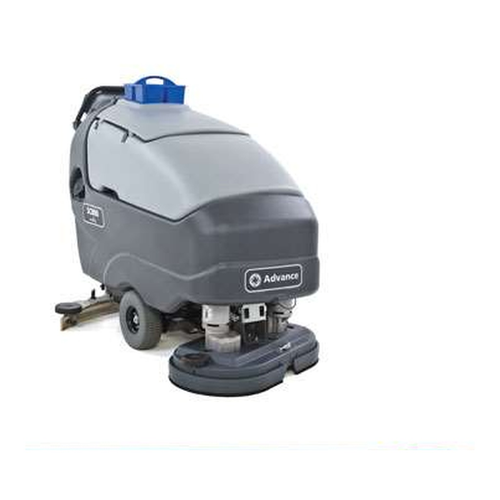

New Advance SC800 34D Four 310 Ah wet batteries, onboard charger, pad holders
Advances rugged, low-maintenance SC750 and SC800 scrubbers deliver incredible value on a walk-behind platform. High productivity per tankful allows for 84 minutes of continuous scrubbing, which reduces dump/refill cycles and helps provide fast ROI. The optional EcoFlex System offers the flexibility to clean across the entire cleaning spectrum from green to clean. At the touch of a button one can switch from chemical free cleaning to using an ultra low dilution ratio, and of course detergent can be used at full strength for the toughest of soils. The burst of power feature lets you easily apply more pressure, more solution and more detergent at the touch of a single button. With the flexibility to easily apply the right scrubbing performance for the job, youll use less detergent, minimize water use and save on cleaning costs.
Features
- Smart Solutions or EcoFlex on all machines
- Green cleaning and high productivity technology
- SC750 with 21 gallon (80 L) solution and recovery tanks
- Self adjusting skirt on disc machines
- SC800 with 25 gallon (95 L) solution and recovery tanks
- Heavy duty scrubbing performance
