| Model Numbers | 56317013 w/251 Ah wet batt. / 56317012 w/255 Ah maint-free AGM batt. |
| Solution System | |
| Solution Capacity | 20 gal (76 L) |
| Solution Pump | 100 psi diaphragm demand |
| Flow Rates | |
| Restoration Mode | 0.81 gpm (3.1 L/min) |
| LIFT Mode | 0.26 gpm (1 L/min) |
| Deep Treat Pre-Spray Mode | 0.92 gpm (3.5 L/min) |
| Recovery Capacity | 16 gal (61 L) |
| Vacuum System | |
| Vacuum Motor | Dual 3 stage bypass |
| Airflow | 93 cfm (44 L/sec) |
| Waterlift | 70 in H2O (17.4 km/hr) |
| Vacuum Shoes | Dual 13.5 in (34 cm) Dual pivoting laminar flow 45 lb down pressure |
| Brush System | |
| Brushes | Dual 24 in (61 cm) Dual counter rotating with debris hopper |
| Brush Motors | Dual 1/2 horsepower permanent magnet |
| Brush Speed | 950 RPM |
| Sound Level | 69 dB A |
| Electrical System | 24 V (4) X 6 V batteries |
| Batteries | 250 Ah wet-acid (optional 255 Ah AGM) |
| Machine Speed | |
| Transport | 220 ft/min (4 km/hr) |
| LIFT Mode | 90 ft/min (1.6 km/hr) |
| Restoration Mode | 50 ft/min (0.9 km/hr) |
| Light Deep Treat Mode | 150 ft/min (2.7 km/hr) |
| Heavy Deep Treat Mode | 100 ft/min (1.8 km/hr) |
| Coverage Rate | 10,800 ft2/hour (LIFT Mode) 6,000 ft2/hour (Restoration Mode) |
| CRI Approval | Bronze for Deep Cleaning Extractors in both Restoration Mode and LIFT Mode |
| Machine Dimensions | L = 56 in (142 cm) x W = 27 in (69 cm) x H = 43.5 in (110 cm) |
| Machine Weight | 650 lb (295 kg) with batteries / 370 lb (168 kg) without batteries |
| Shipping Weight | 680 lb (308 kg) |
Technical specs may include optional equipment that is not included with all units.

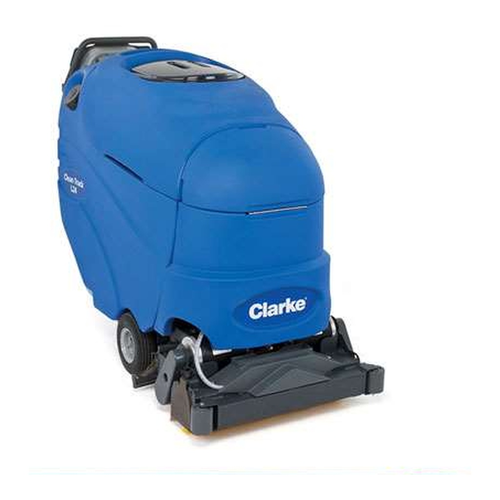

New Clarke Clean Track L24
Special Discounts Available
- We will beat any competitor's advertised price by 5%!
- Additional discounts are available on this product for qualifying government and education institutions. Please call us for additional details at 1-800-440-6723.
Features
- Consistent clean
- Simple operation
- Powerful cleaning
- Large recovery tank
- User-friendly maintenance
