| Scrub Head Type | Cylindrical with debris hopper |
| Deck Interchangeability | All deck types interchangeable |
| Scrub Path | (2) 12 in (30.5 cm) pad holders standard; brushes available |
| Drive System | 0.3 hp (200 W) variable forward and reverse. Max speed 3.5 mph (5.6 km/hr), 16% gradeability |
| Max Productivity @ 3.0 mph (4.8 km/hr) | 31,680 ft2 (2,943 m2) |
| Scrub Pressure (2 settings) | |
| Floating | 61 lb (28 kg) |
| Locked | |
| Scrub Head Speed | 230 rpm |
| EcoFlex System Available | Yes |
| Solution Flow Rates | |
| Smart Solutions | 0.15 gal/min (0.55 L/min) |
| variable up to | 0.3 gal/min (1.1 L/min) |
| Squeegee Width | 31.9 in (81.0 cm) |
| Dimensions (w/o squeegee) | L = 51.6 in (131 cm) W = 25.6 in (65 cm) H = 42.9 in (109 cm) |
| Weights | |
| Without Batteries | 243 lb (110 kg) |
| With Batteries | 374 lb (170 kg) |
| Voltage | 24 V |
| Power Source | (2) 12 V batteries (wet-acid and maintenance free available) |
| Onboard Battery Charger | 24 V wet/maintenance free compatible |
| Solution Tank | 14.5 gal (55 L) |
| Recovery Tank | 14.5 gal (55 L) |
| Scrub Motor(s) | (2) 0.47 hp (350 W) |
| Vacuum Motor | 0.44 hp (330 W) |
| Sound Level | 65.8 dB A at operator's position |
| Approvals | ETL, CSA, CE |
| Certification | NFSI |
| Model Numbers | 56317333 w/130 Ah wet-acid batt., 56317334 w/98 Ah gel batt. |
Technical specs may include optional equipment that is not included with all units.

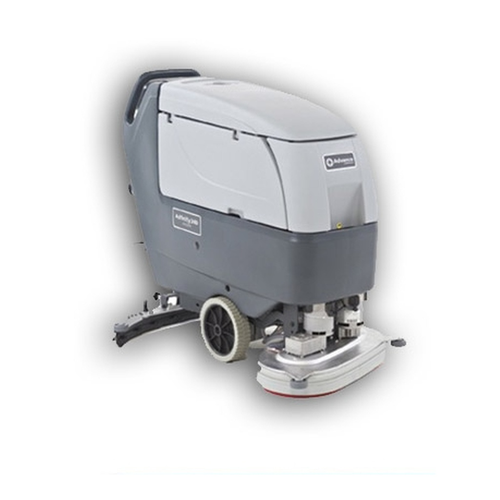

New Advance Adfinity X24D EcoFlex Small Scrubber
- We will beat any competitor's advertised price by 5%!
- Additional discounts are available on this product for qualifying government and education institutions. Please call us for additional details at 1-800-440-6723.
Features
- Large diameter non-marking tires for better traction
- Simple and intuitive operator controls minimize training
- Rugged construction with durable components assures years of reliable performance
- Easy to maintain with open access to all critical systems
- Wrap-around ergonomic handle system for operator comfort
- Center-pivot designed squeegees pick-up 100% water on turns
