| Engine | Kubota four-cylinder engine with DPF |
| Drive type | Diesel |
| Power | 48 kW (66 HP) |
| Emission standard | Tier 4 Final |
| Diesel particulate filter | Yes |
| Fuel tank | 60 l (15.8 gal) |
| Steering | Articulating |
| Speed | 40 km/h (25 mph) |
| Climbing ability | 30 % |
| Brakes | Hydraulic braking system - Hydrostatic operating brake influences two wheels. Additional mechanical brake (drum brake) working on front axle. Parking brake via hydraulic controlled spring-loaded-mechanism acting on all wheels. |
| Hydraulic reservoir | 43 l (11.4 gal) |
| Voltage | 12 volt system |
| Unladen/tare weight (empty) | 2,380 kg (5,247 lb) |
| Total permissible weight | 3,500 kg (7,716 lb) |
| Axle load | 1,120 kg (2,469 lb) |
| (L x W x H) | 3,937 mm x 1,194 mm x 1,981 mm (155" x 47" x 78") |
| Turning radius (inside) | 1,210 mm (48") |
| Turning radius (outside) | 2,455 mm (96") |
| Container capacity | 1.3 m3 (1.7 cu. yd.) |
| Standard emptying height | 1,565 mm (61") |
| Hopper liner | Stainless steel |
| Fresh water tank | 195 l (51.5 gal) |
| Recyling water | Yes |
| Tires | 195/75 R14 |
| Material | Polypropylene - steel wire |
| Working width (2-brush-system) | 2,450 mm (96") |
| Area performace (2-brush-system) | 24,500 m2h @ working speed of 10 km/h (6 mph) |
| Working width (3-brush-system) | 2,660 mm (105") |
| Area performance (3-brush-system) | 26,600 m2h @ working speed of 10 km/h (6 mph) |

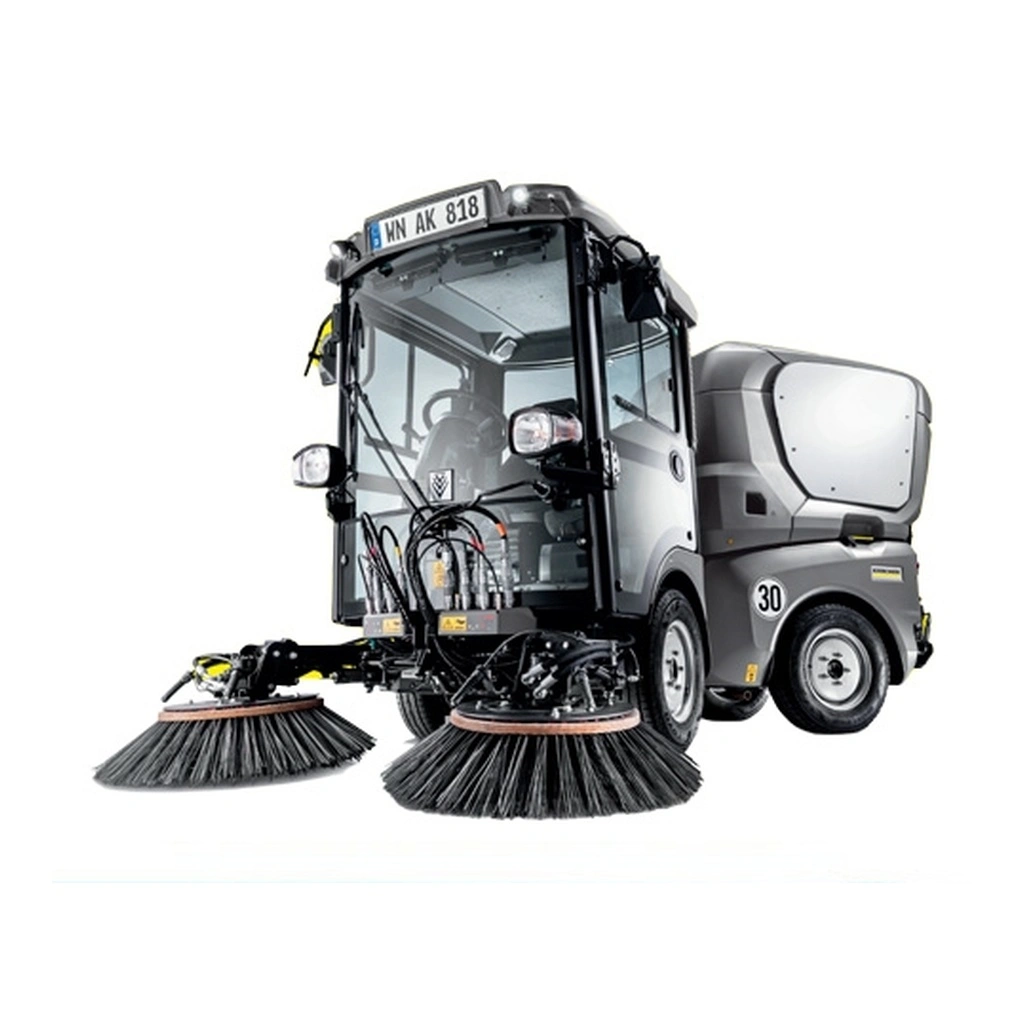

New Karcher City Sweeper MC 130
CITY SWEEPER MC 130
Compact, powerful, efficient: Our MC 130 Adv vacuum sweeper with a convenient two-seater cabin, all-wheel drive, quick-start function and unique multifunction display.
In the development of our compact MC 130 Adv vacuum sweeper, there was a special focus on optimum ergonomics, excellent cleaning performance and, simultaneously, maximum efficiency. As such, the only two-seater vacuum sweeper in the 3.5 t class on the market impresses with its particularly comfortable and ergonomic two-seater cabin. Users can easily control all functions via the unique multifunction display and the cleverly arranged control elements, while also enjoying an excellent view of their surroundings. Thanks to the powerful and efficient 32 kW diesel engine with STAGE V emissions certification from Yanmar and the integrated rear-wheel drive, the MC 130 Adv effortlessly masters cleaning tasks even in challenging terrains. In addition to the efficient engine, our patented eco!efficiency mode ensures maximum efficiency by perfectly matching the engine speed, hydraulic power and sweeping performance in automatic sweeping mode.
Features
- High Performance: 3.5 tonnes class with all-wheel drive for maximum stability and maneuverability.
- Full-Suspension Chassis: Ensures comfortable operation with independent wheel suspension.
- Spacious Cab: Air-conditioned, two-seater cabin with excellent all-round visibility.
- Versatile Brush System: Efficiently picks up cans, bottles, and larger debris.
- Eco-Efficiency Mode: Optimizes engine speed, hydraulic power, and sweeping performance for fuel efficiency.
