| Engine | Cummins four-cylinder engine (model F.38) |
| Drive type | Diesel |
| Power | 115 kW (156 HP) |
| Emission standard | Tier 4 Final |
| Diesel particulate filter | Yes |
| Fuel tank | 200 l (52.8 gal) |
| Steering | Four-wheel steering |
| Speed | 40 km/h (27 mph) |
| Climbing ability | 25 % |
| Brakes | Hydrostatic braking system + front and rear hydraulic disc brakes |
| Hydraulic reservoir | 120 l (31.7 gal) |
| Voltage | 24 volt system |
| Unladen/tare weight (empty) | 8,300 kg (18,298 lb) |
| Total permissible weight | 13,000 kg (28,660 lb) |
| Axle load | 4,700 kg (10,362 lb) |
| (L x W x H) | 5,924 mm x 2,115 mm x 2,940 mm (233" x 83" x 116") |
| Turning radius (inside) | 2,740 mm (108") |
| Turning radius (outside) | 4,850 mm (191") |
| Container capacity | 6 m3 (7.8 cu. yd.) |
| Standard emptying height | 1,340 mm (53") |
| High dump option | 2,400 mm (94") |
| Hopper liner | Stainless steel |
| Fresh water tank | 500 l (132 gal) |
| Mounted water tank option | Additional 1000 l (264 gal) |
| Tires | 295/60 R22.5 |
| Front suspension | Leaf spring suspension |
| Rear suspension | Hydraulic self-leveling |
| Material | Polypropylene - steel wire |
| Working width (2-brush-system) | 2,600 mm (102") |
| Area performace (2-brush-system) | 52,000 m2h @ working speed of 20 km/h (12.4 mph) |
| Working width (3-brush-system) | 3,600 mm (142") |
| Area performance (3-brush-system) | 72,000 m2h @ working speed of 20 km/h (12.4 mph) |

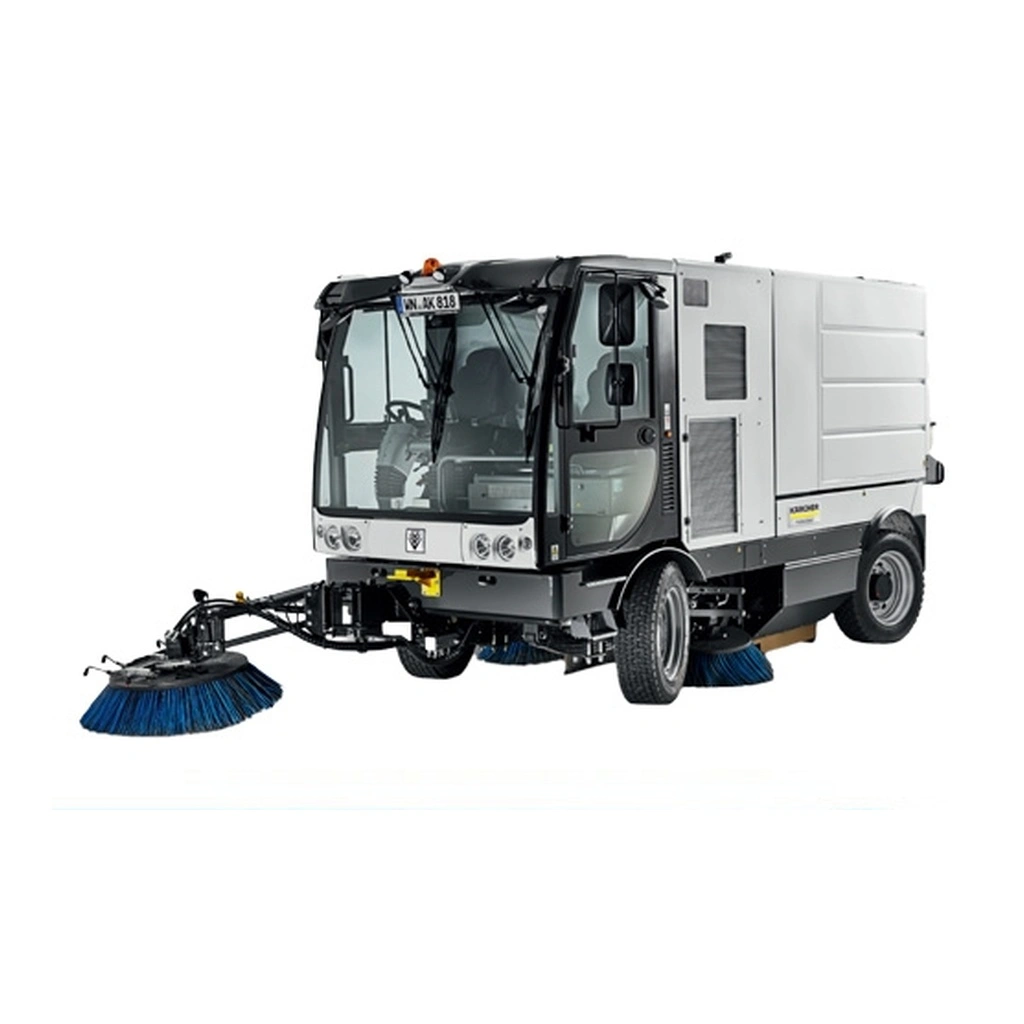

New Karcher City Sweeper MCM 600
Our Take (from the SES Sales Team)
"For the longest time, in municipal and heavy industrial environments, if you needed a high-performance outdoor sweeper, the Tennant Sentinel ruled the roost. A few years ago, when Tennant stopped producing the Sentinel, a void was left, which has now been filled by the Karcher City Sweeper MCM 600.
With its vacuum system, dual side brushes, and its 7.8 cubic yard hopper, the MCM 600 can excel in both municipal and industrial applications. The MCM 600's all-wheel steering allows it to go places that other sweepers can't, saving the end user time previously wasted in positioning and repositioning around tight areas. Lastly, the MCM 600 also has an Eco mode to optimize the performance while adding some fuel savings to the bottom line. If you are looking for a sweeper that will be able to handle your toughest environments, while also providing a more efficient and maneuverable piece of equipment, the MCM 600 is just what you need!"

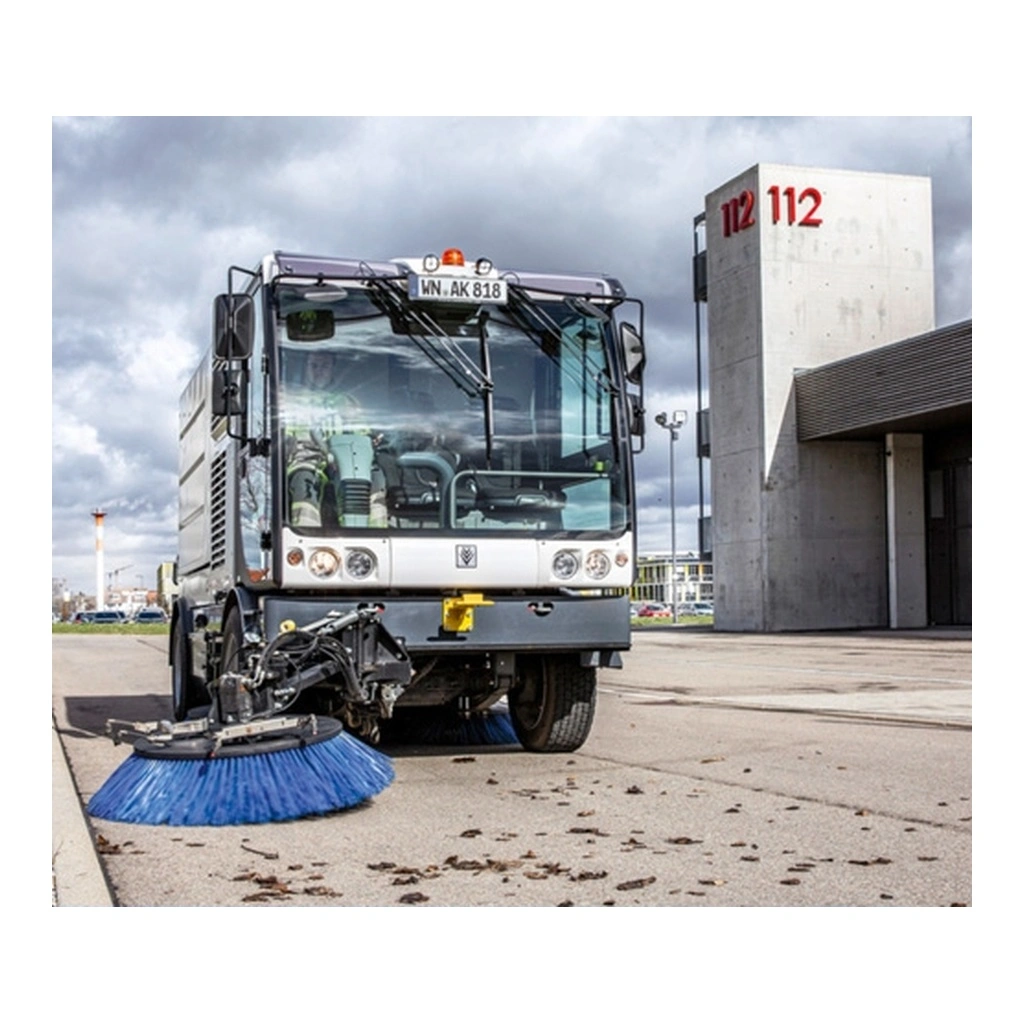

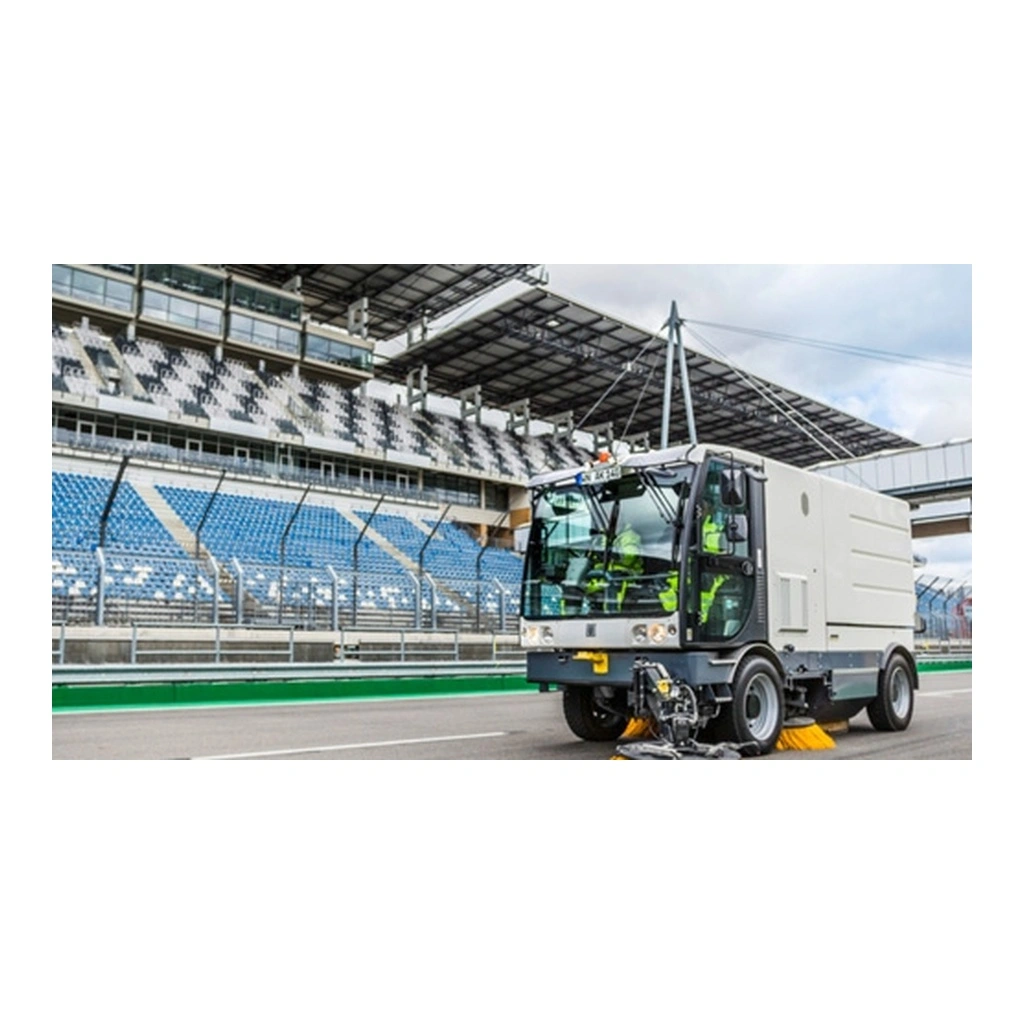

The MCM 600 mechanical street sweeper gives municipal councils and industrial users one system for all sweeping requirements - including situations that call for high sweeping capacities and zero dust dispersion.

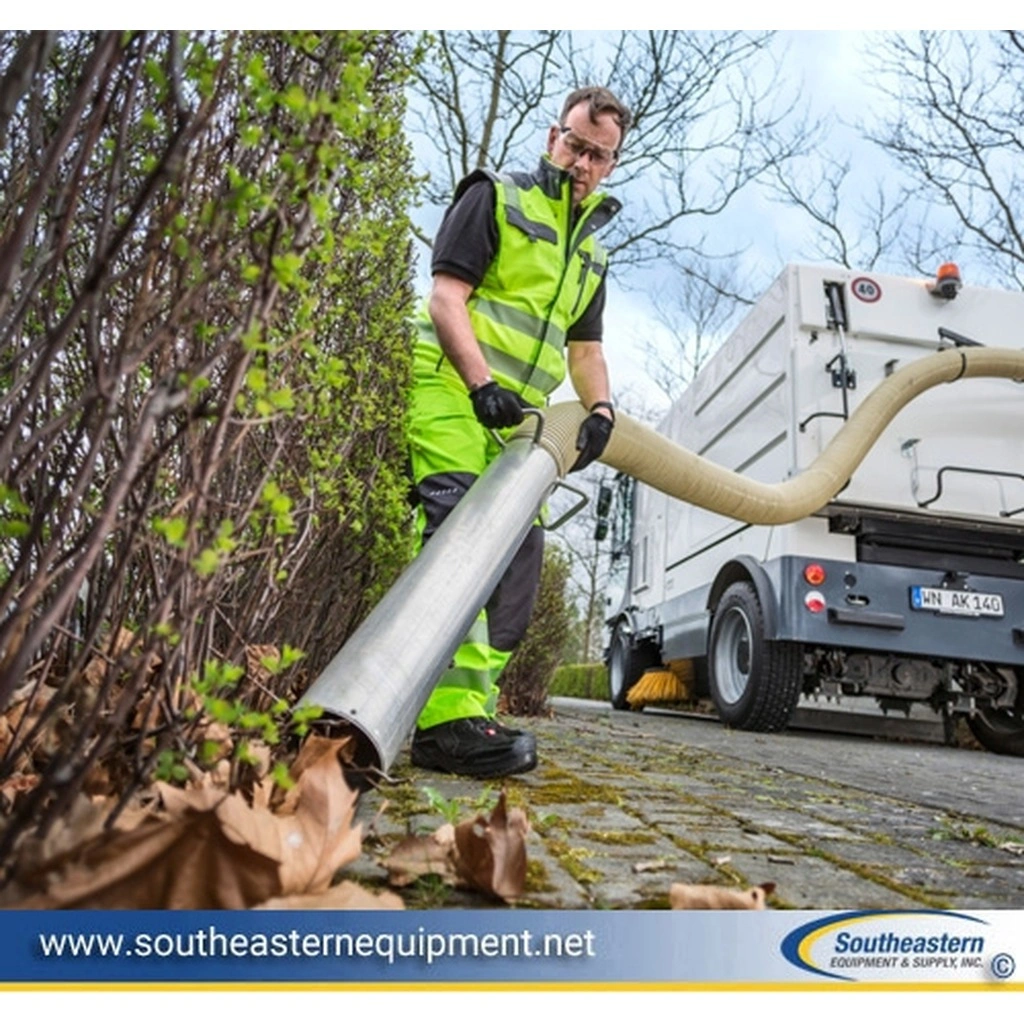

Whether for municipal applications in urban and suburban areas or in industrial facilities with high cleaning requirements, such as foundries, cement plants, mines: Karcher's MCM 600 mechanical street sweeper is the perfect choice for the most demanding sweeping requirements. The combined system with mechanical extraction for large dirt particles, a suction device for lighter materials and a filter system comprising several polyester filters, which effectively filter out fine dust up to PM1 in any conditions, guarantees a high cleaning performance without any dust dispersion. Another contributory factor is the synchronised steering on both axles, which guarantees easy maneuverability and maximum sweeping accuracy even when turning. The patented hydraulic system (CDS - Clever Detective System) for the automatic regulation of the ground pressure of the central brush also assists the sweeping accuracy. Thanks to the control panel with colour display and function keys next to the steering wheel, the machine is very easy to operate, plus the cab, which is designed for 3 people, gives users the highest standards of safety and ergonomics.
