| Scrub head type | Disk |
| Scrub path | 20 in |
| Solution capacity | 18 gal |
| Recovery capacity | 18 gal |
| Max speed | 3.1 mph |
| Max productivity | 27,200 sq. ft/hr |
| Actual productivity | 22,015 sq. ft/hr |
| Brush pressure | Floating-locked |
| Brush speed | 185-400 rpm |
| Brush motor | 600 watts |
| Vacuum motor | 550 watts |
| Vacuum airflow | 69 cfm |
| Vacuum waterlift | 68 in |
| Sound pressure | 68 dBA |
| Water flow | 0.45 gpm |
| Min. turn-around aisle width | 50.5 in |
| Maximum ramp climbing | 6% |
| Squeegee width | 25 in |
| Machine voltage | 24 VDC |
| Power source | Battery (2) 12 V, 140 Ah |
| Battery charger | On Board |
| Maximum run time | 3-3.5 hours |
| Dimensions w/ squeegee (LxWxH) | 47.5 in x 25.5 in x 45 in |
| Weight with batteries | 691 lbs |
| Weight without batteries | 342 lbs |
Technical specs may include optional equipment that is not included with all units.

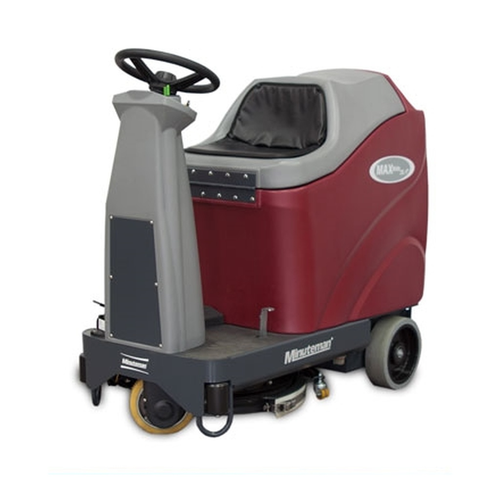

New Minuteman Max Ride 20" Disc Brush Automatic Scrubber - SPORT, AGM batteries Includes: 172520-2 - 20" Pad Driver 956158- BATT
The MAX Ride 20 is the first compact micro rider scrubber engineered with large rider durability in mind. Built on an extremely durable e-coated steel frame with a large integrated solution and recovery tank capacities, this ride on scrubber machine maximizes productivity at an exceptional value.
This innovative micro Minuteman Sport rider with its unique squeegee assembly to brush proximity offers best-in-class water pick up.
Features
- Auto Load and Unload of brush or pad driver
- On-board Charger
- Capable of turning 360 degrees on its own axis providing exceptional maneuverability
- 18-gallon solution and recovery tanks
- Squeegee is contained under the unit and follows the brush/pad driver for complete water pickup
- SPORT (Scrub Polish or Remove Top Two Coats) can easily and economically provide chemical free surface preparation and/or the removal of floor finish to effectively clean and restore floors.
- The SPORT technology is the newest inclusion to the highly regarded Minuteman E series line of Auto Scrubbers.
- The SPORT technology (Scrub Polish or Remove Top Two Coats) can easily and economically provide users with the means to perform chemical free surface preparation and or the removal of floor finish to effectively clean and restore floors.
- Easy to understand controls ensure that the machine is simple to operate.
- The compact and sleek design results in total operator comfort by focusing on ergonomics and provides an excellent line of sight to the area to be cleaned.
- The adjustable handle and ergonomic hand bails offer superior handling of the machine and the traction drive models offer ergonomic, adjustable speed regulation with the turn of a dial.
