| Power type | Electricity |
| Chemical pickup type | Draw from per-mixed solution |
| Number of products unit can draw from | One product |
| Suction line length/diameter | 3/8 in. (9.5 mm) inside diameter |
| Capacity | 15 gallons (56.8 liters) |
| Discharge line length/diameter | 25 ft. (7.6 cm) coiled twin-line tubing 1/4 in. (6.4 mm outside diameter) |

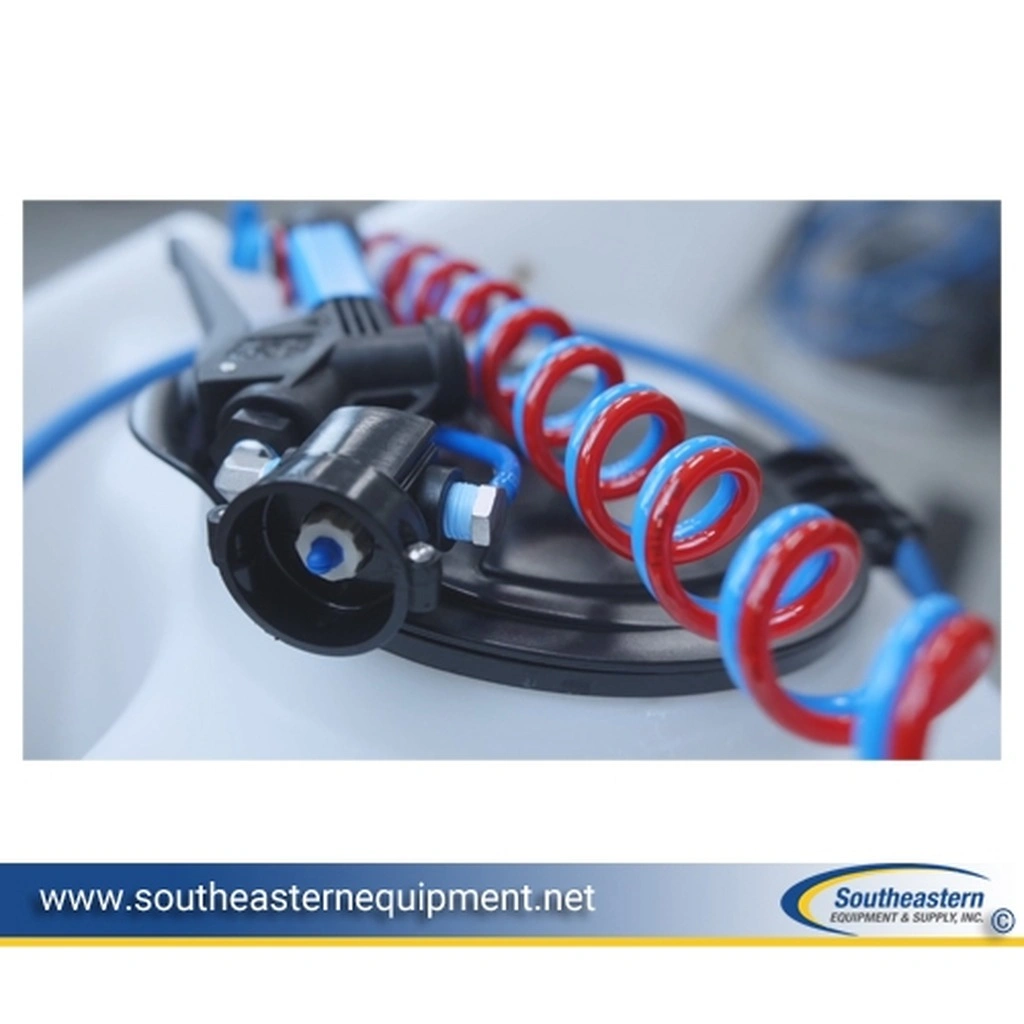

| Discharge wand/tip type | Handheld double-barrel misting wand with one nozzle or Polypropylene trigger handle with misting nozzle |
| Output distance | 3-4.5 ft. (0.9-1.4 m) |
| Output volume | 8.9 oz./min (263.2 mL/min) at 50 psi (3.4 bar) |
| Flow rate* | 8.9 oz./min (263.2 mL/min) at 50 psi (3.4 bar) |
| Pump seals | Santoprene, Viton, or Kalrez |
| Power cable | 9 ft. |
| Machine weight | 90 lbs |
| Noise level (dBA) | 60 |
| Nozzle type | Pneumatic fog nozzle |
| Number of nozzles | 1 nozzle |
| Droplet size | 15 microns at 50 psi (3.4 bar) |
| Wheel type | Two 10 in. (25.4 cm) non-marking wheels/ Two 5 in. (12.7 cm) casters with lock |
* Dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.
** Area Covered and run time may vary based on humidity, air flow, and product used.
Technical specs may include optional equipment that is not included with all units.

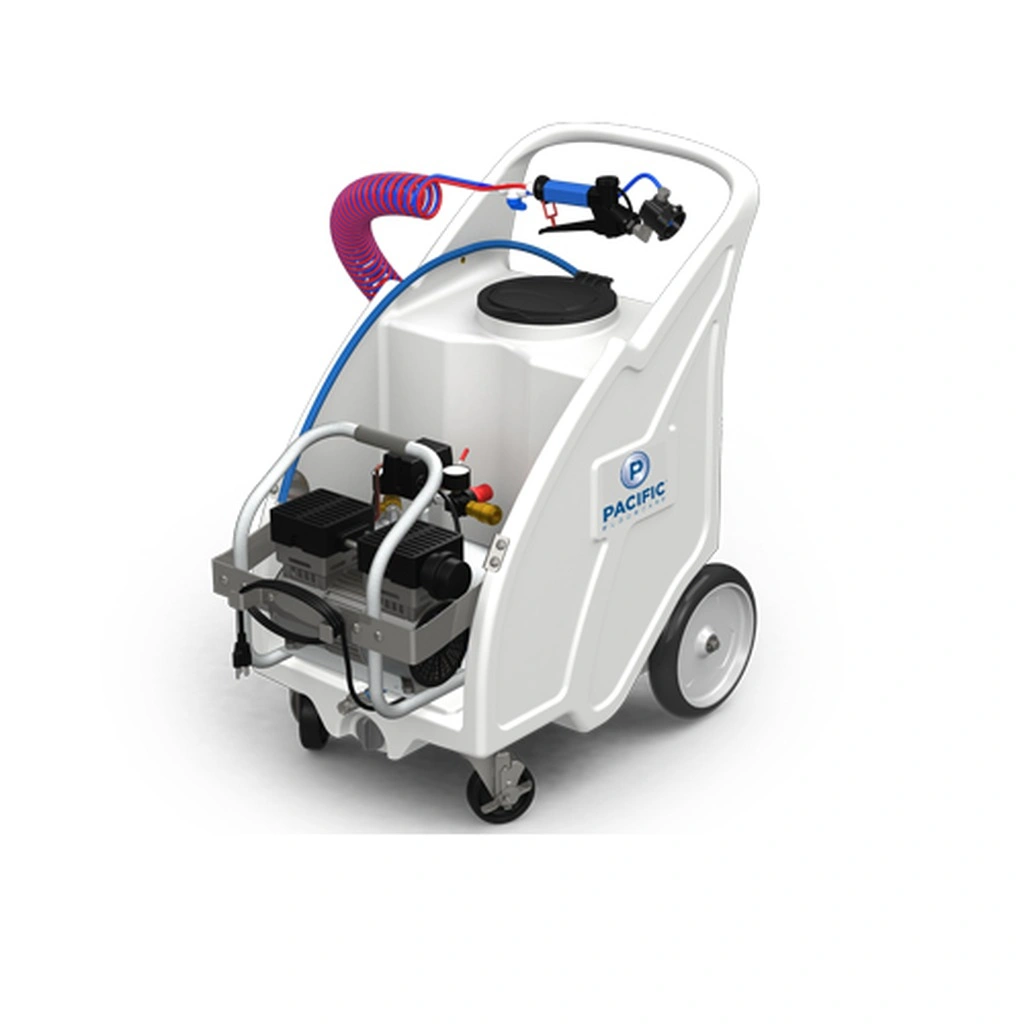

Demo Pacific AM-15 15-Gallon Air Assisted Misting Machine
The Pacific AM-15 is a versatile foam or misting unit with effective droplets at 15 microns and overall capacity provides superior productivity for large area disinfection. The unit will out perform the commonly used handheld machines on the market today. The large 15 gallon tank provides continual usage - a one stop chemical source. Fill it and disinfect your entire facility.
WARNING: Personal Protection Equipment is required when dispensing disinfection solution. Eye/Face, Skin, and respiratory equipment must be utilized. Refer to your chemicals MSD sheet for complete requirements.Please Note: Not for use with Alcohol Based or Flammable Products
Applications:
- Hallways, Banquet areas, Rooms
- Patient rooms
- Classrooms, Weight rooms, Locker rooms, Restrooms
- Health clubs
- Transportation
- Class A office buildings
- Supermarkets, Carts
- Municipalities
- Sports & Recreational complexes
