| BODY CONSTRUCTION/DIMENSIONS | |
| Chassis Construction: | 3/16" Steel (4.8mm) Powder Coated |
| Front Wheels (Ø x Width) | (2x) 8" x 2" ([2x] 20 x 5cm) - Solid Black |
| Rear Casters (Ø x Width): | (2x) 2.5" x 1.38" ([2x] 6 x 4cm) - Non-Marking Grey |
| Size (L x W x H) *Smallest machine configuration. | 50" x 23" x 39" (127 x 59 x 99cm) |
| Weight (w/o Batteries): | 278 - 328lbs (126 - 149kg) |
| Weight (w/ 201 ah Batteries): | 410 - 460 (186 - 209kg) |
| BRUSH/PAD SYSTEM | |
| EDGE Dimensions: | 20" x 14" (51 x 35.6cm) 24" x 14" (61 x 35.6cm) |
| EDGE Motor: | 1.0 hp (746 watts) 2,500 rpm |
| Brush Down Pressure: | Up to 175lbs (79kg) / 500 lbs (227kg) Actuator Rating |
| POWER SYSTEM | |
| System Voltage/Amps | 24 VDC / 130 ah WET |
| Optional Battery: *Includes Onboard Charger | 150 ah WET / 115 ah AGM* / 140 ah AGM* |
| DRIVE SYSTEM | |
| Power: | 0.75hp - All Gear / Sealed (559 watts) |
| Forward Speed: | 0 - 230 ft/min / 0 - 2.6 mph (0 - 70m/min / 0 - 4km/h) |
| Scrubbing Speed: | 0 - 184 ft/min / 0 - 2mph (0 - 56m/min / 0 - 3km/h) |
| Reverse Speed: | 0 - 130 ft/min / 0 - 1.5mph (0 - 40m/min / 0 - 2km/h) |
| SOLUTION/RECOVERY SYSTEMS | |
| Solution Tank Capacity: | 13 Gallons (49 liters) - w/ Graduated Site Tube |
| Solution Flow / Filter: | 0 - 0.5GPM / Stainless Inline (0 - 2 LPM) |
| Recovery Tank Capacity: | 15 Gallons (56.8 liters) - 1.5" Ø Drain Hose |
| Small Tank Capacity: | N/A |
| Demisting Chamber: | 1.25 Gallons (4.7 Liters) |
| Drain Saver: | 30 Cubic inches (492 cubic cm) |
| Vacuum Power (Water Lift / Airflow): | 0.8 hp / 3 Stage / 5.7" Ø (588 watts) 68" / 72 cfm (173cm / 2cm) |
| GENERAL | |
| Productivity - Theoretical: ***Based off of ISSA 2010 Cleaning Times | Up to 26,000 sqft/hr (2,415 sqm)*** |
| Productivity - Practical: ***Based off of ISSA 2010 Cleaning Times | Up to 12,059 sqft/hr (1,120 sqm)*** |
Technical specs may include optional equipment that is not included with all units.

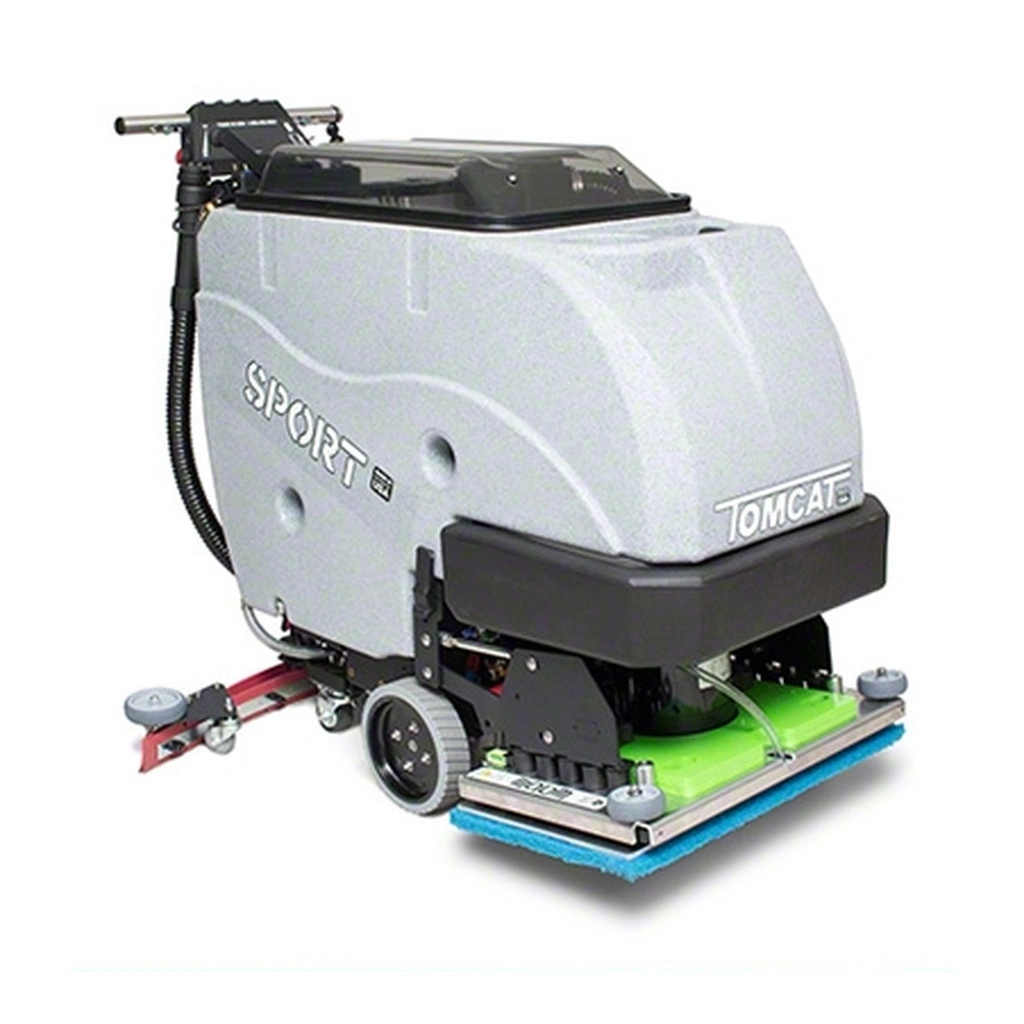

Reconditioned Tomcat Sport EDGE 28" Scrubber
TomCat Sport Edge 28" Scrubber. This heavy-duty floor scrubber is a compact battery-powered floor scrubber that delivers impressive cleaning performance in a small unit. Built with a welded steel chassis and a 3-stage vacuum motor, this sport floor scrubber outperforms all competitors in its category. Its durable construction is apparent in every feature of the machine and unmistakable compared to other brands. This floor scrubber can easily handle pool decks with exposed aggregate, non-slip flooring, patios, stock rooms, hotels, and medium-sized retail spaces. It is compact enough for any operator to use comfortably, yet it packs enough power to tackle even the most challenging cleaning jobs. This particular scrubber can be used in wood, VCT, rubber running tracks, concrete, artificial turf, and other surfaces unique to athletics departments.
Tough and proven in the floor cleaning industry, the TomCat floor scrubber is the way to go.
Condition: Refurbished (Reconditioned). Learn more about Our Reconditioning Process Here.
Features
Sport Specs:
- Up to 52,000 sqft/Charge
- 13 / 15 Gallons
- 20 - 26 inch decks
- Chemical Free Stripping
- Reduce Slip & Fall Potential
- 70% Reduction in Water Usage
- VCT Prep & Recoat
