| Construction | |
| Frame | 1/8" in Steel |
| Front wheels | (1) 10 x 3 in |
| Rear wheels | (2) 14 x 5 in |
| Dimensions (LxWxH) | 64 x 37 x 55 |
| Weight without batteries | 850 lbs |
| Weight with batteries | 1350 lbs |
| Sweeping System | |
| Sweeping method | Direct throw |
| Broom (length x diameter) | 32 x 10 in |
| Broom power/speed | 1.0 hp/440 rpm |
| Side broom size | (1) 17" in |
| Side broom power | (1) 0.3 hp |
| Side broom speed | 100 rpm |
| Hopper capacity | 4.2 cubic ft |
| Battery System | |
| Battery run time | 4 to 7 hours |
| Charger (110v/60 Hz, auto) | 25-40 amp |
| Filtering System | |
| Filtering material | Polymer Felt |
| Filter rating | 1 micron |
| Size | 5,182 sq. inches |
| Vacuum rating | 270 cfm |
| Drive System | |
| Drive power | 1.0 or 1.5 hp |
| Speed control | 0 to 4 mph |
| Productivity | |
| Cleaning width | 46 in |
| Cleaning rate | 60,568 ft2/hr |
| General | |
| Sound level | 68 dBA |
| Standard equipment | Headlight, horn, auto parking brake |
| Optional equipment | Strobe, back-up alarm, overhead guard, battery packs, non-marking tires |
Technical specs may include optional equipment that is not included with all units.

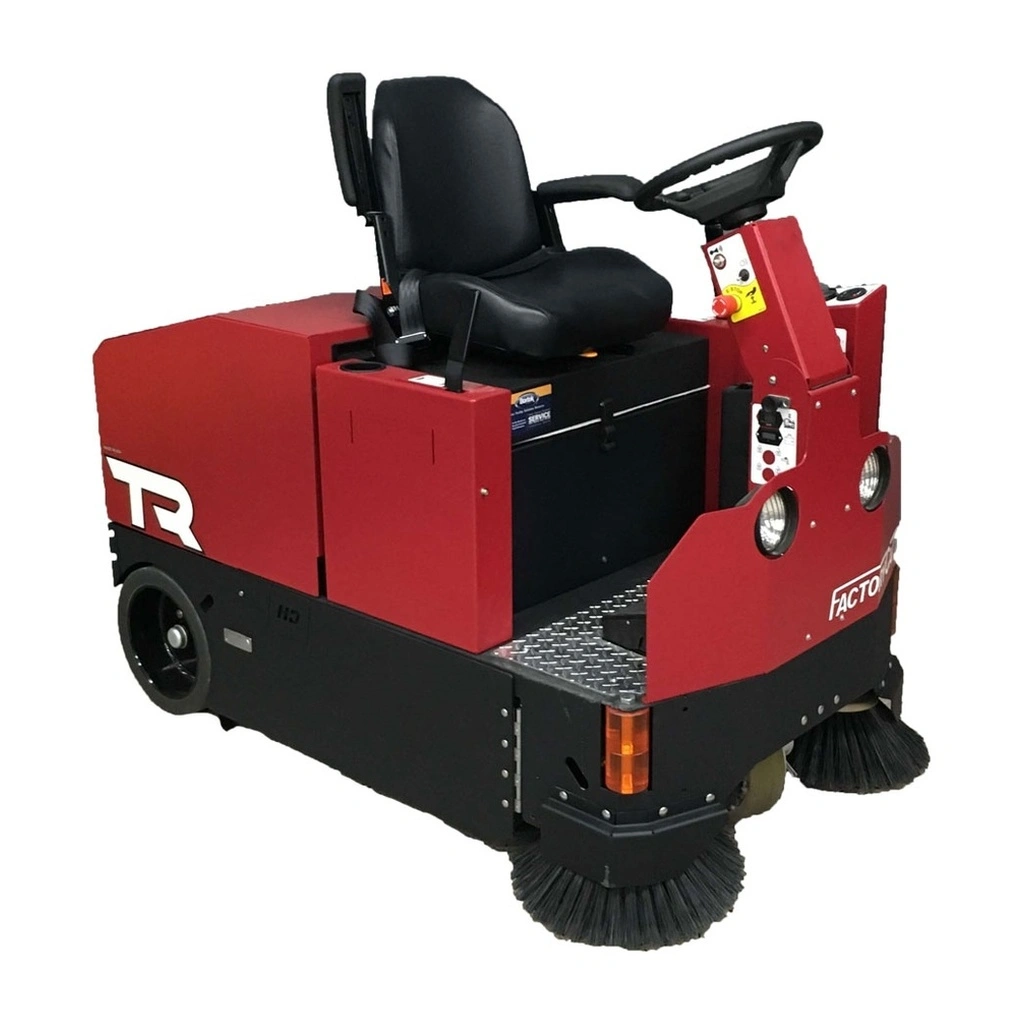

Reconditioned Factory Cat TR 46C Rider Floor Sweeper
The Factory Cat TR sweeper's design was built from the success of the walk behind Factory Cat 34 sweeper. The TR's side brooms sweep up dirt in the corners while a huge tubular sweeping broom under the machine sweeps up the dirt and debris from the floor and packs it into the steel hopper. Meanwhile, the second stage vacuums up the dust and traps it in a polypropylene felt "baghouse" filter. This Factory Cat commercial riding floor sweeper can pick up whole bags of cement at a time without leaving a trace of dust behind.
Condition: Refurbished (Reconditioned). Learn more about Our Reconditioning Process Here.
Features
Applications- Saw mills
- Foundries
- Fertilizer/powder packaging
- Distribution centers
- Machine shops
