| MACHINE DIMENSIONS | |
| Length | 64 - 66.5 in |
| Width (without squeegee) | 28.25 in |
| Width (with squeegee) | 37.5 - 45.5 in |
| Height | 43 in |
| Weight (with batteries) | 817 lb |
| SCRUBBING SYSTEM | |
| Scrubbing path | 28 |
| Scrub head | 2 discs or 2 cylindrical brushes |
| Motor, disc | |
| (Standard) 320 rpm | .6 hp |
| (Heavy-duty) 300 rpm | 1.0 hp |
| Motor, cylindrical 750 rpm | .75 hp |
| RECOVERY SYSTEM | |
| Solution tank polyethylene | 30 gal |
| Recovery tank polyethylene | 30 gal |
| Demisting chamber | 10 gal |
| Vacuum fan 14,000 rpm | .8 hp |
| PROPELLING Power transaxle propulsion | |
| Transaxle Motor | .5 hp |

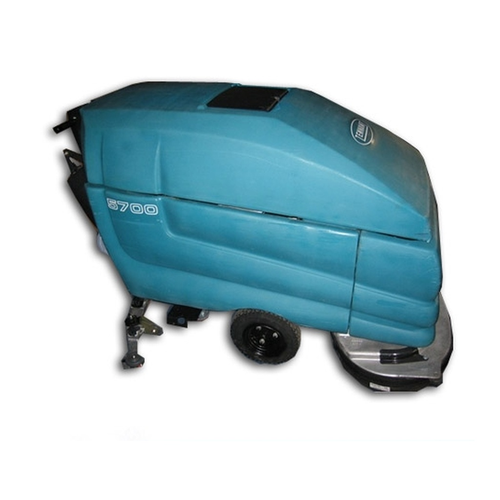

Reconditioned Tennant 5700 28" Disk Floor Scrubber with ec-H2O
Combining an advanced airflow system with a parabolic squeegee assembly, the 5700 picks up all the cleaning solution it puts down – even on the sharpest turns. And with 33% fewer parts than other scrubbers, there is less to break. Easily accessible, modular component assemblies allow quick and easy repair. The 5700: everything a scrubber should be. And much, much more.
Features
- Composite material shock-absorbing frame and scrub head linkage protect critical components from damage.
- Thick polyethylene construction and aluminum squeegee assembly and scrub heads provide excellent impact and corrosion resistance, for long life.
- 10-gal/38 L demisting chamber keeps moisture out of vacuum fan and extends motor life.
- Tank filter prevents contamination from entering the vacuum and extends motor life
- Parabolic breakaway squeegee accurately tracks the scrubber on tight turns and provides excellent solution retrieval.
