- Machine Dimensions Length 120.0 in 3050 mm Width 70 in 1780 mm
- Turning radius (left) 85 in 2160 mm
- Minimum aisle turn (left) 135 in 3430 mm
- Propelling System Engine Gasoline/LP GMC 3.0 liter 83 hp 61.9 kW Diesel Caterpillar 3.3 liter 63 hp 47 kW 63 hp 47 kW
- Gradeability Full hopper 8.5 deg/15% 8.5 deg/15%
- Ground clearance 6 in 150 mm
- Propel speed Forward (variable to) 10.0 mph 16.1 km/h
- Reverse (variable to) 4.5 mph 7.2 km/h
- Sweeping System Cleaning Path 66 in 1675 mm
- Main brush length 50 in 1270 mm
- Main brush lift Hydraulic
- Hydraulic Side brush diameter 26 in 650 mm
- Hopper volume capacity 30 ft3 850 L
- Hopper dump height 72 in 1830 mm
- Tennant Value-Added Equipment Includes:
- II-Speed? cleaning system
- Timed filter shaker
- Thermo-sentry?
- T-beam frame super-structure
- Steel-channel wraparound bumper
- Industrial radiator/debris screen
- Triple, heavy duty accessory pumps
- Retractable sidebrush
- Power steering
- Servo-assist adjustable foot pedal
- Optional Equipment
- Severe environment version
- Audio-visual backup alarm
- Heavy-duty bumpers
- Stainless steel hopper bottom
- Vacuum wand
- Enclosed cab
- Overhead guard
- Left-hand sidebrush
Technical specs may include optional equipment that is not included with all units.

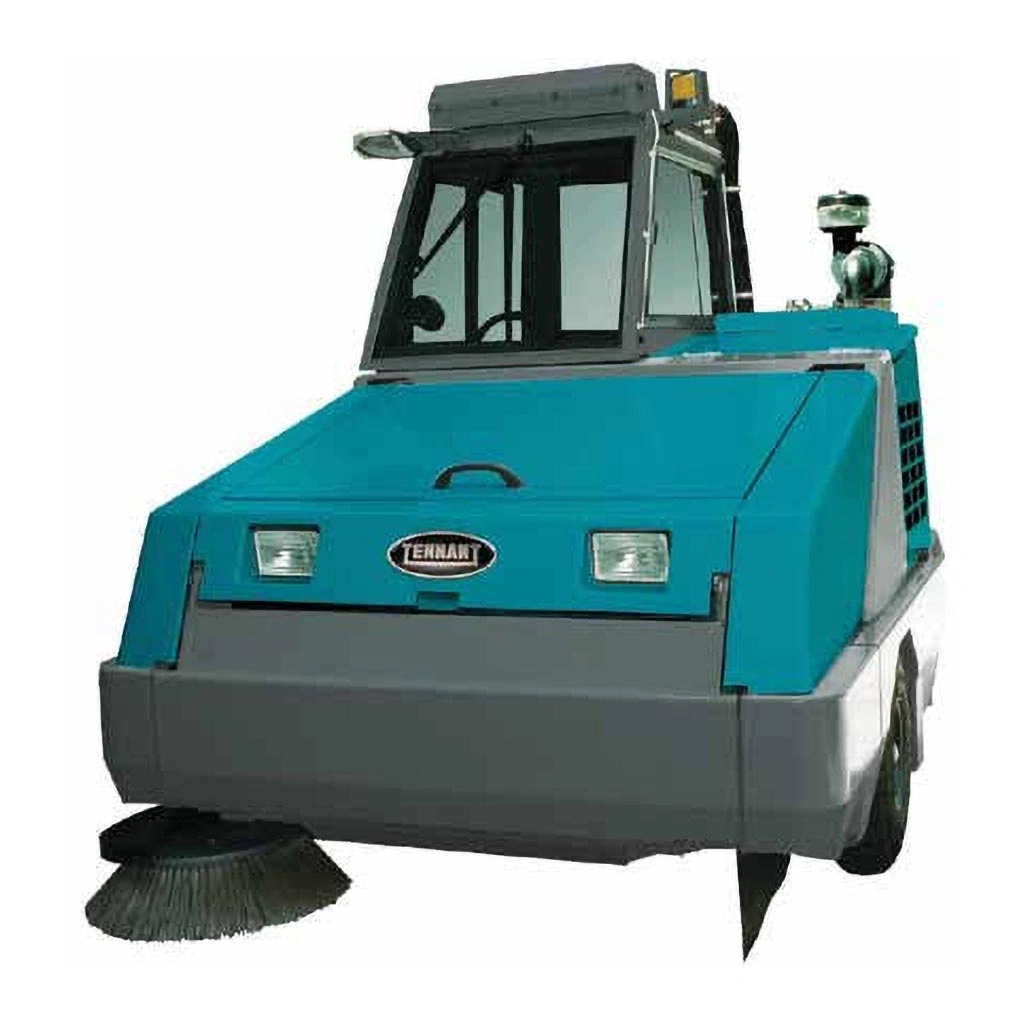

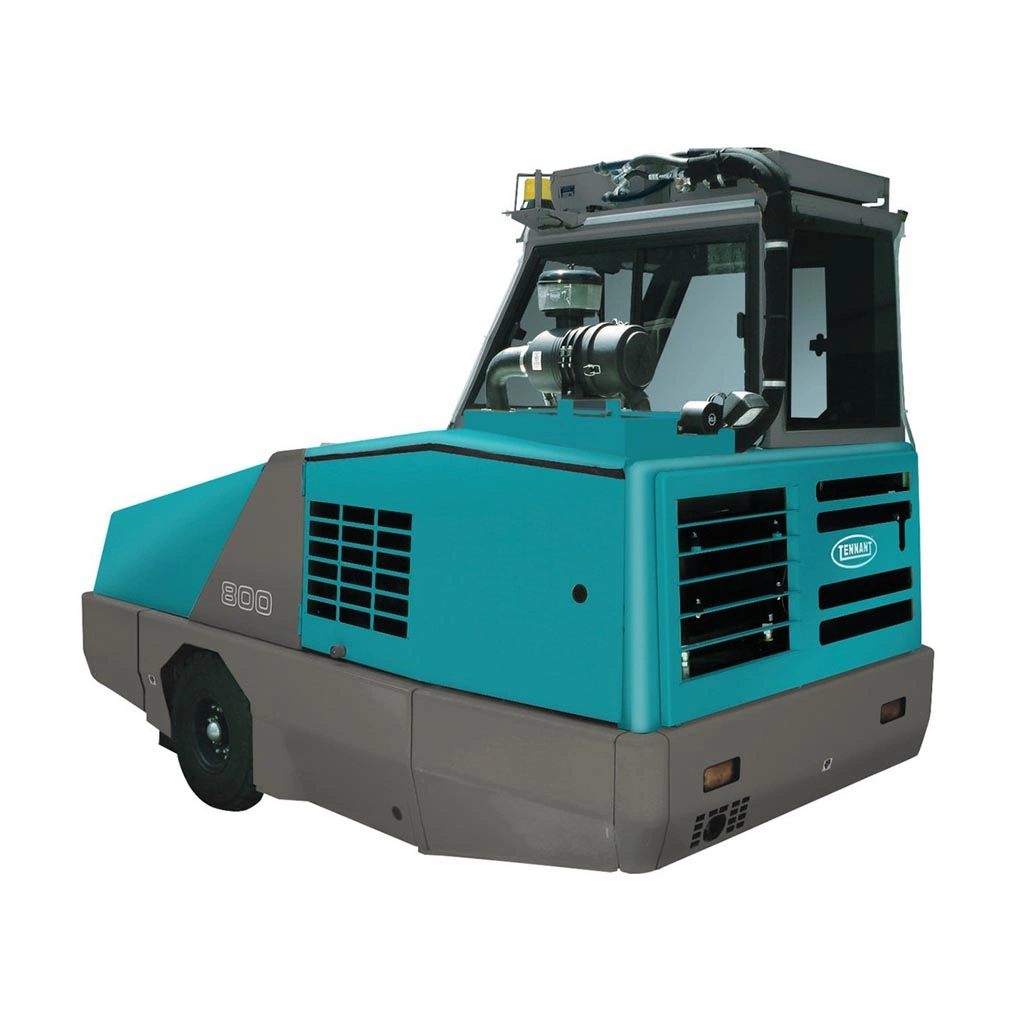

Reconditioned Tennant 800 Diesel Sweeper with Cab
This fully reconditioned Tennant Sweeper 800 unit is in like new condition and includes a cab to keep operator dry and protected. The sweeper is diesel powered and covers a huge area.
Diesel sweeper unit is reconditioned to like new condition and can be custom ordered with options such as heat and air conditioning. Call today to order a customized unit.
The Tennant Sweeper 800 features a massive steel frame and rugged T-beam super-structure that withstands heavy use and abuse over time. Huge steel bumpers encircle and protect the machine. The specially protected hydraulic system is designed to give and flex with movement and vibration. Other features include a side brush that retracts on impact and a Thermo-Sentry to sense excess heat in the hopper and stop air flow. An SE (Severe Environment) version offers tower corner and upper body bumpers, protection devices for longer engine life and a stainless steel hopper bottom. The Model 800 cleans a 66 in. (1680 mm) path that lets it cover as much as 200,000 sq. ft. (1858 m2) in one hour. A huge, 30 cubic ft. (.85 cubic meter) hopper allows up to 2,000 lbs. (907 kg) of debris to be packed in, so the machine saves non-productive time spent traveling to and from dump sites. A standard multi-level dump hopper allows debris to be dumped on the ground or into dumpsters or trucks as high as 6 ft. (1.82 meters). For More Information Or To Order CALL US 800-440-6723
Condition: Refurbished (Reconditioned). Learn more about Our Reconditioning Process Here.
Features
The Model 800 and Model 810 are built to withstand heavy use and abuse, year after year. The 800 is ideal for tough indoor industrial applications. It features a massive steel frame and a rugged T-beam superstructure, along with huge steel bumpers that encircle and protect the machine. It cleans a 66" path and covers as much as 200,000 sq. ft. in a single hour. A large 30 cubic ft. hopper holds up to 2,000 lbs. of debris, so time spent traveling to dump sites is kept to a minimum. And with six inches of ground clearance, it easily navigates speed bumps and rough terrain. The Model 800 is also extremely efficient at controlling dust. In addition, it's easy to operate and the main brush can be changed in one minute - without tools. The Model 810 features everything the 800 offers, and more. The 810 is specially designed to take-on your tough outdoor sweeping challenges. With a choice of direct-throw sweeping or the patented, Power-Throw cleaning system, it picks up nearly any debris from dust, sand and rocks - to broken glass and light, bulky paper litter.Productivity-Enhancing Options
Both the Model 800 and 810 are available with Severe Environment (SE) options that offer special machine protection, heavy-duty tower bumpers, regenerative filter system, and a stainless steel hopper bottom that's ideal for aluminum reduction plants, foundries, steel mills or other extremely rugged environments. Model 800 and 810 To eliminate the need to handle debris twice, the standard 30 cubic ft. multi-level dump hopper empties on the ground or into dumpsters as high as 6 ft. The Quad Filtering System uses four separate high-efficiency filters to trap particles. Routine maintenance is fast and easy. The engine area, fittings, filters and battery have wide open, easy access. Thermo-Sentry, system monitoring lights, brush down-pressure indicator and a fuel gauge warn the operator of potential problems. The 810 offers even greater cleaning quality with an extra sweeping brush. The 810 makes light work of picking up rocks, leaves and other debris - and keeps kick-up dust to a minimum. This rugged machine practically pampers its operators with an energy absorbing seat, tilt steering wheel, power steering, and an adjustable drive pedal. Dust and moisture are checked by a unique Quad Filtering System that allows the 800 and 810 to operate nearly dust-free, long after others clog.
