| Vacuum System | |
| Vacuum motor HP | 1.8 hp / 1.34 kW |
| Vacuum motor stages | 3 stage |
| Water lift at sealed orifice | 136 in / 3500 mm |
| Airflow through 2 in / 50 mm orifice | 95 cfm / 2.7 m3/min |
| Vacuum shoe size | 20 in / 510 mm |
| Recovery System | |
| Recovery tank capacity | 14.5 gallon/ 55 L |
| Recovery tank description | Integrated bladder tank |
| Brush Drive System | |
| Brush motor amp | 1.5 A |
| Brush RPM | 1200 |
| Brush motor RPM | 1800 |
| Brush width | 17 in / 431 mm |
| Brush bristle type | Offset rows of nylon bristles in a chevron pattern |
| Brush diameter | 3.31 in / 84 mm |
| Solution System | |
| Solution pump amps | 1 A |
| Solution pump pressure | 100 psi / 6.9 Bar |
| Solution pump voltage | 120 V |
| Solution capacity | 10 gal / 38 L |
| Solution pump pressure | 100 psi / 6.9 Bar |
| Solution flow | 1 gpm / 3.78 L / min |
| Solenoid valve | Electric |
| Spray jets | 2 - quarter turn, quick disconnect |
| Total Power Consumption | 14.5 Amps / 1740 Watts |
| Power Cord | |
| Power cord length | 50 ft / 15.24 m (detachable) |
| Power cord type | 16 gauge, safety yellow |
| Optional Accessories | Wands, hand tools, solution and recovery hoses, etc. |
| Dimensions/Weight/Sound Level | 78 dBA |
| Length/Width/Height/Weight/Sound | L: 43 in / 1092 mm, W: 20 in / 508 mm, H: 34 in / 863 mm, Wt: 106 lb / 48.2 kg, 78 dBA |
Technical specs may include optional equipment that is not included with all units.

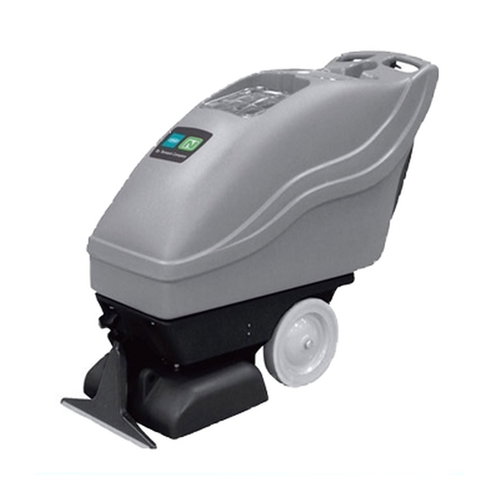

Reconditioned Tennant EX-SC-1020 Self-Contained Carpet Extractor
The Tennant EX-SC-1020 is a mid-size, self-contained carpet extractor engineered for deep cleaning in commercial environments. With a 17-inch cleaning path, dual spray nozzles, and a 3-stage vacuum motor, it delivers powerful extraction while protecting carpet integrity. Its 10-gallon solution and 14.5-gallon recovery tanks reduce downtime, and the lightweight, ergonomic design makes it easy to maneuver in classrooms, offices, hospitals, and restaurants. The controlled agitation system ensures effective soil removal without over-wetting or damaging carpet fibers. Certified Bronze by the Carpet & Rug Institute (CRI), the EX-SC-1020 is built with durable polyethylene construction, a 50-foot safety-yellow power cord, and simple controls for operator-friendly performance.
Condition: Refurbished (Reconditioned). Learn more about Our Reconditioning Process Here.
Features
17-Inch Cleaning Path with Dual Spray Nozzles: Covers more area in fewer passes and delivers deep, even cleaning.
10-Gallon Solution / 14.5-Gallon Recovery Tanks: Lift-off tanks simplify filling and emptying while supporting extended cleaning runs.
1.8 HP 3-Stage Vacuum Motor: Provides 100 psi pump pressure and 95" water lift for powerful soil extraction.
Lightweight, Maneuverable Design: Low center of gravity and compact frame improve stability and ease of use in tight spaces.
Controlled Agitation System: Removes tough soils without damaging carpet fibers, ideal for high-traffic areas.
