| Sweeping System | |
| Cleaning path | |
| Single side brush | 50 in |
| Dual side brush | 62 in |
| Brush Drive System | |
| Main brush | |
| Main brush length (tubular) | 36 in |
| Main brush lift | Mechanical lever |
| Main brush drive | Belt |
| Side brush diameter (disk) | 23 in |
| Debris hopper | |
| Volume capacity (polyethylene) | 11 ft 3 |
| Weight capacity | 650 lbs |
| Dump height (variable to) | 60 in |
| Dump reach | 14 in |
| Propelling System | |
| Propel speed forward (variable to) | 5.0 mph |
| Propel speed reverse (variable to) | 3.0 mph |
| Gradeability | |
| Full hopper | 8.0 deg |
| Empty hopper | 10.0 deg |
| Dust Control System | |
| Filter system (triple stage) | |
| Stage 1 | Perma-filter |
| Stage 2 | Cyclonic pre-filter |
| Stage 3 (canister filled) | 80 ft 2 |
| Filtration level (up to) | 0.5 microns @ 99% efficiency |
| Vacuum fan | 1.0 hp |
| Vacuum fan speed | 6,100 rpm |
| Vacuum diameter | 9 in |
| Machine Specifications | |
| Length | 82.3 in |
| Width | 48.5 in |
| Height | |
| With overhead guard | 82.1 in |
| Without overhead guard | 48.5 in |
| Weight (net) without battery | 2,300 lbs |
| Weight (net) with standard battery | 2,975 lbs |
| Minimum aisle turn | 95 in |
Technical specs may include optional equipment that is not included with all units.

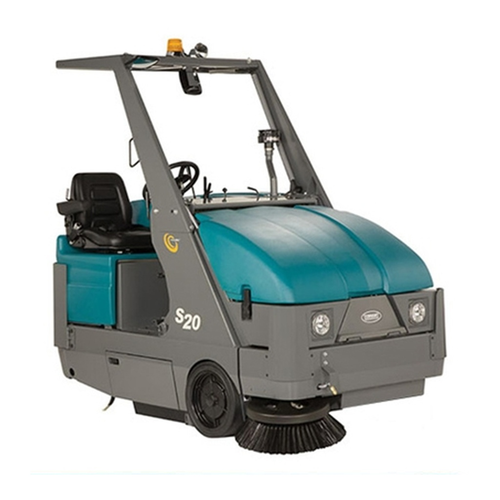

Reconditioned Tennant S20 Battery Rider Sweeper
Our Take (from the SES Sales Team)
"If you want a tried and true heavy-duty compact, yet durable ride-on sweeper, the Tennant model S20 is our go-to machine. For applications ranging from foundries to parking garages and all manufacturing and warehousing sites, the S20 is big on performance without sacrificing maneuverability. It all starts with the direct throw sweeping system and ShakeMax 360 filter cleaning mechanism. You can load up to 350 pounds of light-to-heavy debris in the 60" high dump hopper, all while controlling the dust down to mere microns for safe, efficient, and productive cleaning. And reducing downtime, service, and maintenance costs is a breeze with the no-tool, easy-to-open covers! The spacious operator compartment incorporates an adjustable seat, propel pedal, and steering column to customize fit. Important design safety features include excellent sightlines, side brush visibility, parking brake alert, and much more. Available in Gas, LP, Diesel and Battery versions -- the S20 can be configured for virtually any application. Let us show you why our Fully Reconditioned and Certified Tennant Model S20 Sweepers are the best choice for your dry sweeping needs."
Reconditioned Tennant S20 Battery Powered Rider Sweeper is fully reconditioned with all new wear items, filters, brooms and full service completed. Excellent industrial ride on sweeper that is ready for heavy duty applications.
Condition: Refurbished (Reconditioned). Learn more about Our Reconditioning Process Here.
Features
MAXIMUM PRODUCTIVITY AND OPTIMUM CLEANING
- Tennant Sweeper S20 maximizes dust control and improves air flow filtration with the SweepMax(r) 3-stage dust control system.
- Clean from the inside out, dislodging dust particles lodged deep within the pleats with ShakeMax(r) 360 filter shaker.
- Compact size and indoor /outdoor flexibility increase machine use throughout the facility.
- Decrease operator training time and simplify machine operation with "All-Levers-Forward" controls.
INCREASED SAFETY
- Excellent operator sight lines, standard headlights and taillights, 7 in /180 cm side brush reach, and horn button in the center of steering wheel.
- Thermo-Sentry hopper sensor alerts operators to excessive heat in the hopper and shuts down air flow to the hopper.
- Seat occupancy switch shuts down the engine within seconds of the operator leaving the seat.
- Optional overhead guard with a standard rear-view mirror and tower bumpers protect the operator and machine.
PROVEN TENNANT QUALITY FOR LONG-LASTING RETURN ON INVESTMENT
- Quality combined with easy maintenance makes the Tennant Sweeper S20 an exceptionally cost-effective sweeper that you can count on for years of reliable service.
