Disk vs. Cylindrical vs. Orbital Floor Scrubbers
Three scrub head designs, three very different cleaning jobs. Here's how to pick the one that fits your floors, your soils, and your operation.
If you're shopping for an automatic scrubber, the scrub head is where most of your real-world performance lives. Two machines with the same tank size and footprint can clean very differently depending on whether they use a disk, cylindrical, or orbital scrub head. Each one applies cleaning energy to the floor in a different way, and each has a clear sweet spot.
This guide breaks down how each type works, what it does well, where it struggles, and which facility types tend to favor it. For a broader overview of automatic scrubbers, see our main Automatic Scrubbers Buyer's Guide.

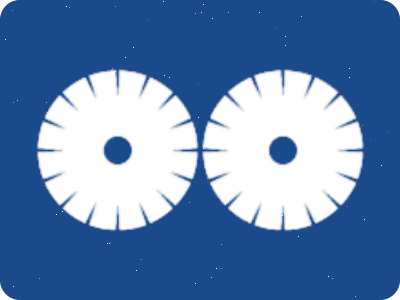

Counter-Rotating Disk Brush Motion Example
Type 01Disk Scrubbers
The most traditional and most common scrub head design. One or two flat, round pads (or brushes) spin horizontally and apply firm down pressure to the floor. Cleaning solution is dispensed through the center of the discs.
Best For
Smooth, flat floors, VCT, sheet vinyl, polished concrete, terrazzo in facilities where pre-sweeping is already part of the routine. Common in healthcare, education, retail, and office environments.
Strengths
- Highest down pressure for tough soils and stains
- Lower initial cost and simpler maintenance
- Long-lasting brushes; wide pad selection
- Can be used to strip floor finish
Trade-offs
- No debris pickup - floors must be swept first
- Round head leaves uncovered area at corners and edges
- Less effective on textured or grouted surfaces

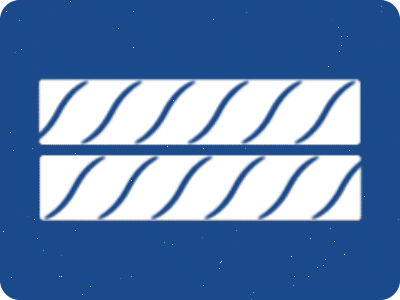

Counter-Rotating Cylindrical Brush Motion Example
Type 02Cylindrical Scrubbers
A completely different geometry: two horizontal tube-shaped brushes mounted parallel. The front brush rotates forward to scrub. The rear brush rotates backward to scoop small debris into a hopper behind the scrub head, so the machine sweeps and scrubs in a single pass.
Best For
Textured, uneven, or debris-strewn floors such as industrial plants, manufacturing facilities, warehouses, parking garages, and food & beverage processing.
Strengths
- Eliminates pre-sweeping in most environments
- Excellent on grout, textured concrete, and uneven floors
- Higher brush RPM offsets smaller floor contact area
- Can replace a separate sweeper
Trade-offs
- Higher initial cost and total cost of ownership
- Less down pressure than disk on heavy stains
- No pad compatibility - brushes only
- May need side brooms to direct debris into brush path

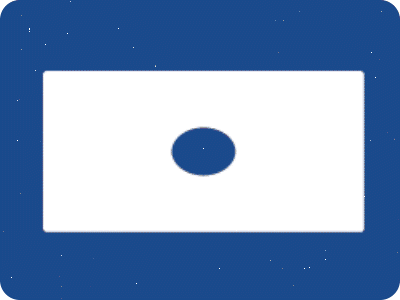

Oscillating Orbital Brush Motion Example
Type 03Orbital Scrubbers
The newest of the three. A rectangular scrub head doesn't rotate at all; an eccentric weight drives it in a tight oscillating pattern, roughly a quarter-inch of total movement at around 2,200 RPM. That's roughly 10x the speed of a traditional disk machine, and the high-frequency vibration delivers cleaning energy where disk rotation can't.
Best For
Operations that need versatility across multiple floor types, want to clean closer to walls and corners, or want to reduce chemical use. Especially valuable for facilities that strip and refinish floors regularly.
Strengths
- Chemical-free finish removal  strip 2–3 coats with water and a surface prep pad
- Rectangular head reaches corners and edges
- Works across VCT, concrete, and grouted tile
- Significant labor and chemical cost savings on refinishing jobs
Trade-offs
- No debris pickup - pre-sweeping still required
- Pads only - not compatible with brushes
- Higher upfront cost than entry-level disk
At a Glance
| Disk | Cylindrical | Orbital | |
|---|---|---|---|
| Motion | Rotation, 140-300 RPM | Counter-rotating tubes, ~3Ã disk speed | Micro-oscillation, ~2,200 RPM |
| Head shape | Round | Two long tubes | Rectangular |
| Picks up debris | No | Yes (into hopper) | No |
| Pads or brushes | Both | Brushes only | Pads only |
| Down pressure | High | Lower | High (via vibration) |
| Chemical-free stripping | No | No | Yes |
| Best floor type | Smooth, flat | Textured, debris-heavy | Mixed surfaces, grouted tile |
| Typical industries | Healthcare, retail, education | Industrial, food & beverage, parking | Multi-surface facilities, refinishing-heavy operations |
The Bottom Line
Choose disk for straightforward daily scrubbing of smooth floors when budget matters most. Choose cylindrical when you want to eliminate pre-sweeping on rough or debris-strewn industrial floors. Choose orbital when versatility, edge cleaning, and chemical-free finish stripping are priorities.
Still not sure? The right answer often depends on the specific floor type, square footage, and cleaning frequency in your facility, and the trade-off between upfront cost and long-term labor savings.
