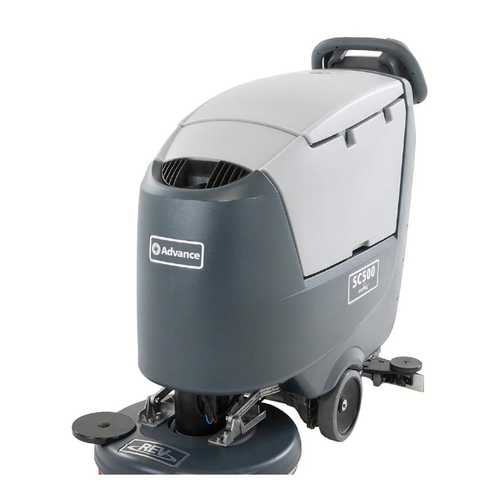

New Advance SC500 X20R EcoFlex One 64 Ah Lithium-ion battery, onboard charger and fixed pad holder
Our Take (from the SES Sales Team)
“The SC500 X20R is the SC500 for floors that need more than a spinning disc. It uses Advance's REV head: a fixed pad holder that moves in a high-speed 2,250 rpm orbital pattern while the pad slowly rotates, working soil from several directions. That makes it a good fit for schools, healthcare facilities and retail floors that want deeper scrubbing from a 20 in walk-behind. This package runs on one 64 Ah lithium-ion battery with an onboard charger, so there is no watering, and the operator just plugs it in at the end of the shift. The X means EcoFlex is standard, so detergent is dosed from an onboard bottle and operators can scrub with water only when the floor allows. The 12 gal solution and recovery tanks are the same as the rest of the SC500 line, and the traction drive and ergonomic paddles make it easy to steer. At 65 dB A, and 61 dB A in silent mode, it is quiet enough for daytime cleaning. For everyday disc scrubbing, the X20D is the simpler choice.”
A 20 in walk-behind with REV orbital scrubbing

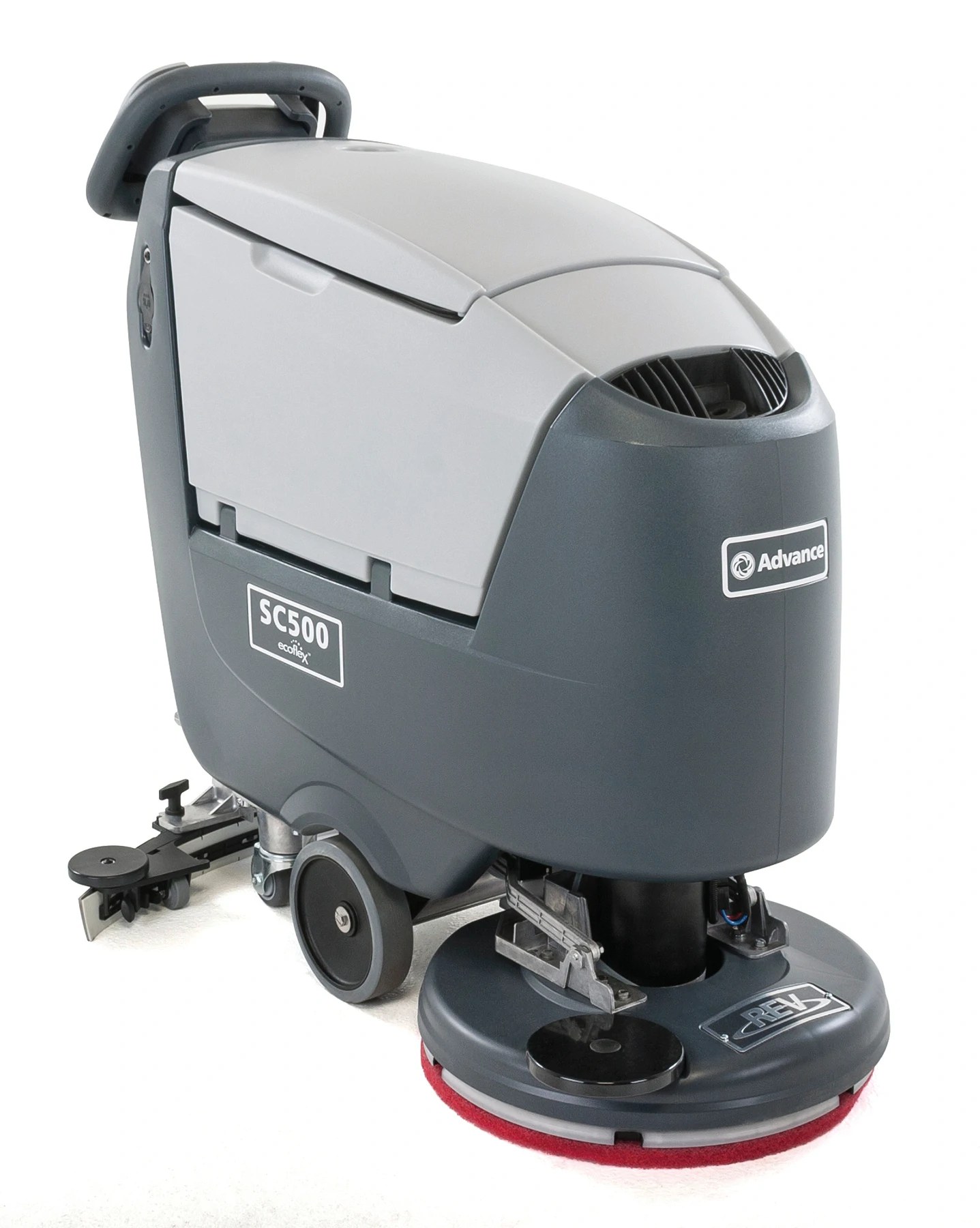

The Advance SC500 X20R is a walk-behind automatic floor scrubber with a REV orbital scrub head, built for schools, healthcare, offices and retail floors. Its fixed pad holder moves in a 2,250 rpm orbital pattern while slowly rotating, cleaning a 20 in path at up to 24,552 sq ft per hour (theoretical).
EcoFlex is standard. This package (Advance 56394692) runs on one 24 V, 64 Ah lithium-ion battery with an onboard charger.
Condition: New.
What you get
Ready to scrub with REV and EcoFlex
REV: orbital scrubbing in a walk-behind
Features
Built for deeper scrubbing
- ✓REV orbital scrub head with a fixed pad holder
- ✓EcoFlex onboard detergent system for water-only or detergent scrubbing
- ✓Traction drive with ergonomic forward and reverse control paddles
- ✓Silent mode drops the sound level to 61 dB A for daytime cleaning
- ✓Easy-fill solution tank port and a squeezable drain hose with flow control
Choosing a model
SC500 20D, X20D or X20R?
| SC500 20D | SC500 X20D | SC500 X20R (this unit) | |
|---|---|---|---|
| Scrub head | 20 in disc | 20 in disc | 20 in REV orbital |
| Pad holder | Pad holder | Pad holder | Fixed pad holder |
| Brush speed | 155 rpm | 155 rpm | 2,250 rpm orbital |
| EcoFlex detergent system | No | Yes | Yes |
| Sound level (silent mode) | 63 dB A (60) | 63 dB A (60) | 65 dB A (61) |
All three share the same 12 gal solution and recovery tanks and 20 in cleaning path.

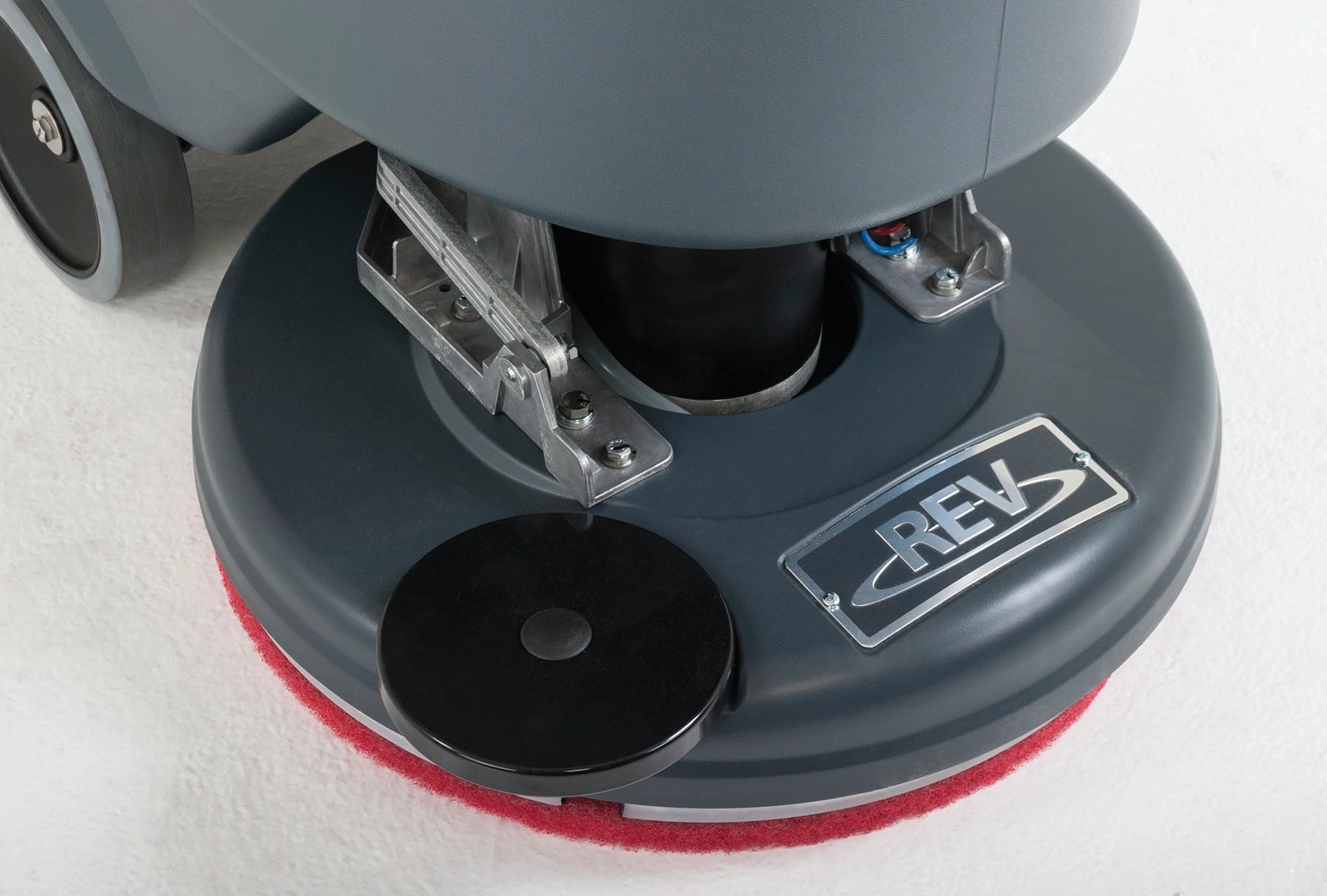

The REV deck
The REV deck holds the pad in a fixed holder and moves it in a tight orbit, so the whole pad stays in contact with the floor.
Specifications
Advance SC500 X20R at a glance
| Models | SC500 X20R EcoFlex, 64 Ah lithium-ion battery, onboard charger, fixed pad holder |
|---|---|
| Scrub head | REV orbital, 20 in (51 cm) cleaning path, fixed pad holder |
| Brush motor | 0.75 hp (560 W), 2,250 rpm orbital; 30 rpm pad rotation |
| Solution / recovery tanks | 12 gal (45 L) / 12 gal (45 L) |
| Max coverage per hour | Up to 24,552 sq ft (2,280 m²), theoretical |
| Vacuum motor | 280 W |
| Vacuum waterlift | 29.9 in H2O (76 cm H2O) |
| Drive motor | 200 W, traction drive |
| Power source | 24 V, one 64 Ah lithium-ion battery |
| Sound level | 65 dB A normal; 61 dB A silent mode |
| Model Numbers | Advance 56394692 (SC500 X20R Li-ion) |
Technical specs may include optional equipment that is not included with all units.
Questions
Advance SC500 X20R: common questions
What is the difference between REV and a disc scrubber?
A disc scrubber spins a round brush or pad. The REV head moves a fixed pad holder in a high-speed 2,250 rpm orbital pattern while the pad slowly rotates, which works soil from several directions.
What does the X in X20R mean?
It means the EcoFlex detergent system is standard. Detergent is dosed from an onboard bottle, so operators can scrub with water only or add detergent as needed.
Why choose lithium-ion?
This package runs on one 64 Ah lithium-ion battery, so there is no battery watering. The onboard charger only needs to be plugged in at the end of the shift.
How big are the tanks?
The SC500 has a 12 gal solution tank and a 12 gal recovery tank.
Is it quiet enough for daytime cleaning?
Advance rates the X20R at 65 dB A in normal mode and 61 dB A in silent mode.
Not sure the SC500 X20R fits your floors?
Tell our team about the floor, the building and the shift, and we will help you decide if this is the right machine.
