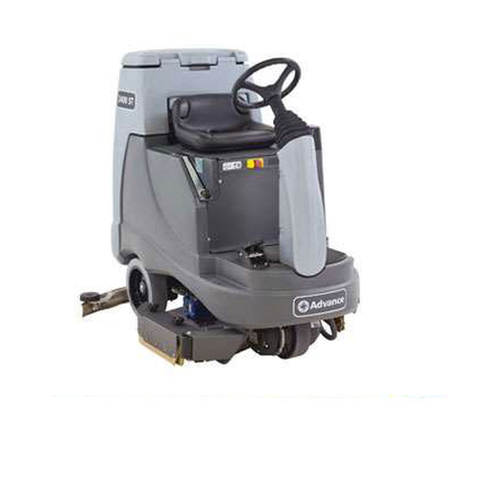

New Advance 3400 ST Four 420 Ah wet batteries, shelf charger and pad holders
Our Take (from the SES Sales Team)
“The 3400 ST puts a 34 in disc deck on a body that is still only 27.5 in wide, so you get a wide cleaning path without stepping up to a big machine. Advance rates it at up to 47,872 sq ft per hour, which makes it a strong fit for warehouses, distribution centers, big-box stores and school corridors. Like the 2800 ST, it keeps the controls simple: a lever lowers the scrub deck and starts the brushes and solution, another lowers the squeegee and starts the vacuum, and the drive pedal runs the rest. Two scrub pressure settings, 105 and 205 lb, cover daily maintenance and heavier soil. The 28 gal solution and 29 gal recovery tanks give up to 85 minutes of scrubbing per tankful, and four 420 Ah wet batteries with a shelf charger keep it going through long shifts. It turns in a 67.5 in aisle, and the steering column tilts upright with side steps on both sides for easy boarding. Plan on regular battery watering.”
A 34 in path on a compact rider
The Advance 3400 ST is a ride-on automatic floor scrubber for warehouses, distribution centers, big-box retail, schools and other large commercial floors. A 34 in disc deck cleans up to 47,872 sq ft per hour, and the 28 gal solution and 29 gal recovery tanks deliver up to 85 minutes of scrubbing per tankful.
Manual levers control the scrub deck and squeegee in place of complex electronics. This package (Advance 56601613) includes four 420 Ah wet batteries, a shelf charger and pad holders.
Condition: New.
What you get
Ready for big floors
Back-to-basics controls
Features
Simple to learn, simple to run
- ✓Manual scrub deck and squeegee levers with a simple one-button control panel
- ✓Two scrub pressure settings, 105 and 205 lb
- ✓Adjustable steering column that tilts upright for easy boarding
- ✓Side steps on both sides and a large recovery tank opening
- ✓High-traction non-marking urethane tires
Choosing a size
3400 ST or 2800 ST?
| 3400 ST (this unit) | 2800 ST | |
|---|---|---|
| Cleaning path | 34 in | 28 in |
| Max coverage per hour | 47,872 sq ft | 39,424 sq ft |
| Scrub pressure | 105 / 205 lb | 85 / 180 lb |
| Minimum aisle turn | 67.5 in | 63 in |
| Squeegee width | 41.4 in | 32.6 in |
Both share the same 28 gal solution and 29 gal recovery tanks, body size and manual controls.
Easy on, easy off
The steering column tilts upright and side steps on both sides make it easy for the operator to get on and off during the shift.
Specifications
Advance 3400 ST at a glance
| Models | 3400 ST, 420 Ah wet batteries, shelf charger, pad holders |
|---|---|
| Scrub head | Disc, 34 in cleaning path |
| Brush motor | 0.5 hp (373 W), 260 rpm |
| Scrub pressure | 105 / 205 lb (46 / 93 kg) |
| Solution / recovery tanks | 28 gal (106 L) / 29 gal (110 L) |
| Scrubbing per tankful | Up to 85 min |
| Max coverage per hour | 47,872 sq ft (4,448 m²) at 3.12 mph |
| Vacuum motor | 0.75 hp (560 W), 66 CFM |
| Sealed waterlift | 63 in H2O (15.7 kPa) |
| Drive motor | 1.05 hp (780 W) |
| Speed | 3.91 mph transport (6.3 km/h); 3.12 mph cleaning (4.8 km/h) |
| Gradeability | Transport 16% (9 degrees); cleaning 9% (5 degrees) |
| Power source | 24 VDC |
| Sound level | 66.7 dB A |
| Body (L x W x H) | 60 x 27.5 x 51.7 in (152 x 70 x 131 cm) |
| Squeegee width | 41.4 in (105 cm) |
| Minimum aisle turn | 67.5 in (171 cm) |
| Weight | 536 lb (244 kg) without batteries; 1,451 lb (658 kg) operating |
| Model Numbers | Advance 56601613 (3400ST 420 SC PH) |
Technical specs may include optional equipment that is not included with all units.
Questions
Advance 3400 ST: common questions
How much floor can it clean in an hour?
Advance rates the 3400 ST at up to 47,872 sq ft per hour at its 3.12 mph maximum cleaning speed.
How is the 3400 ST different from the Advenger?
It uses the same body and tanks, but manual levers raise and lower the scrub deck and squeegee in place of the Advenger’s electronic controls.
Does it have an onboard detergent system?
No. Detergent is mixed into the 28 gal solution tank.
Will it fit my aisles and doorways?
The body is 60 in long, 27.5 in wide and 51.7 in high, the squeegee is 41.4 in wide, and it turns in a 67.5 in aisle. Measure your tightest doorway and aisle before you order.
