| Scrub Head Type | Disc |
| Cleaning Path | 34 in |
| Sound Pressure Level (IEC 60704-1/ISO 11201) | 63.7 dB A |
| Maximum Transport Speed | 3.91 mph (6.3 kph) |
| Maximum Cleaning Speed | 3.12 mph (4.8 kph) |
| Maximum Coverage Per Hour@ 3.12 MPH | 47,872 sq ft (4,448 sq m) |
| Solution Tank | 28 gal (106 L) |
| Recovery Tank | 29 gal (110 L) |
| Flow Rates | 0.33 gal/min (1.25 L/min) |
| 0.66 gal/min (2.50 L/min) | |
| 1.0 gal/min (3.79 L/min) | |
| Maximum Productivity Per Tankful Scrubbing | 85 minutes |
| Maximum Productivity Per Tankful Floor Finish Removal | N/A |
| Power Source | 24 VDC |
| Brush Drive Motor | 0.64 hp (480 W) |
| Brush Speed | 260 RPM |
| Scrub Pressure | |
| Regular Scrub | 90 lb (39 kg) |
| Heavy Scrub | 150 lb (65 kg) |
| Extreme Scrub | 220 lb (96 kg) |
| Drive Motor | 1.05 hp (780 W) |
| Vacuum Motor | 0.75 hp (560 W) |
| Sealed Waterlift | 63 in H2O (15.7 kPa) |
| CFM | 66 @ 2 in (5 cm) orifice |
| Minimum Aisle Turning Radius | 67.5 in (171 cm) |
| Body Length | 60 in (152 cm) |
| Body Height | 51.7 in (131 cm) |
| Body Width | 27.5 in (70 cm) |
| Maximum Width w/o Squeegee | 36.5 in (93 cm) |
| Squeegee Width | 41.4 in (105 cm) |
| Maximum Weight w/o Batteries | 536 lb (244 kg) |
| Maximum Weight (Full Solution Tank and Largest Batteries) | 1,451 lb (658 kg) |
| Maximum Shipping Weight | 1,400 lb (635 kg) |
| Gradability Transport | 16% (9 degrees) |
| Gradability Cleaning | 9% (5 degrees) |
| Maximum PSI (Full tank and 200 lb rider) | 175 PSI (12.3 kg/sq cm) |
Technical specs may include optional equipment that is not included with all units.

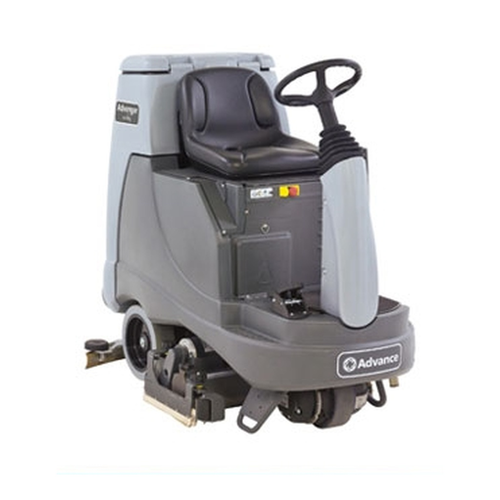

New Advance Advenger X3405D EcoFlex Rider Scrubber
Our Take (from the SES Sales Team)
“The Advenger X3405D is the wide-path version of the Advenger disc rider, a good fit for schools, hospitals, grocery stores, hotels and warehouses with larger open floors to cover. It cleans a 34 in path at up to 47,872 sq ft per hour, with a 28 gal solution tank and 29 gal recovery tank for up to 85 minutes of scrubbing per tankful. Even with the wider deck, it stays manageable: the body is 60 in long, it is 36.5 in wide without the squeegee, and it turns in a 67.5 in aisle. The open operator compartment and low step make it easy to get on and off all shift. The X means EcoFlex is standard. Operators can run water only for daily cleaning, pick a detergent level from the onboard cartridge, or press the burst of power button for a tough spot and drop right back to the normal setting. Three scrub pressure settings (90, 150 and 220 lb) cover everything from maintenance scrubbing to restoration work, and at 63.7 dB A it is quiet enough for daytime cleaning. For tighter buildings, the X2805D is the 28 in version.”
A 34 in disc rider with EcoFlex built in

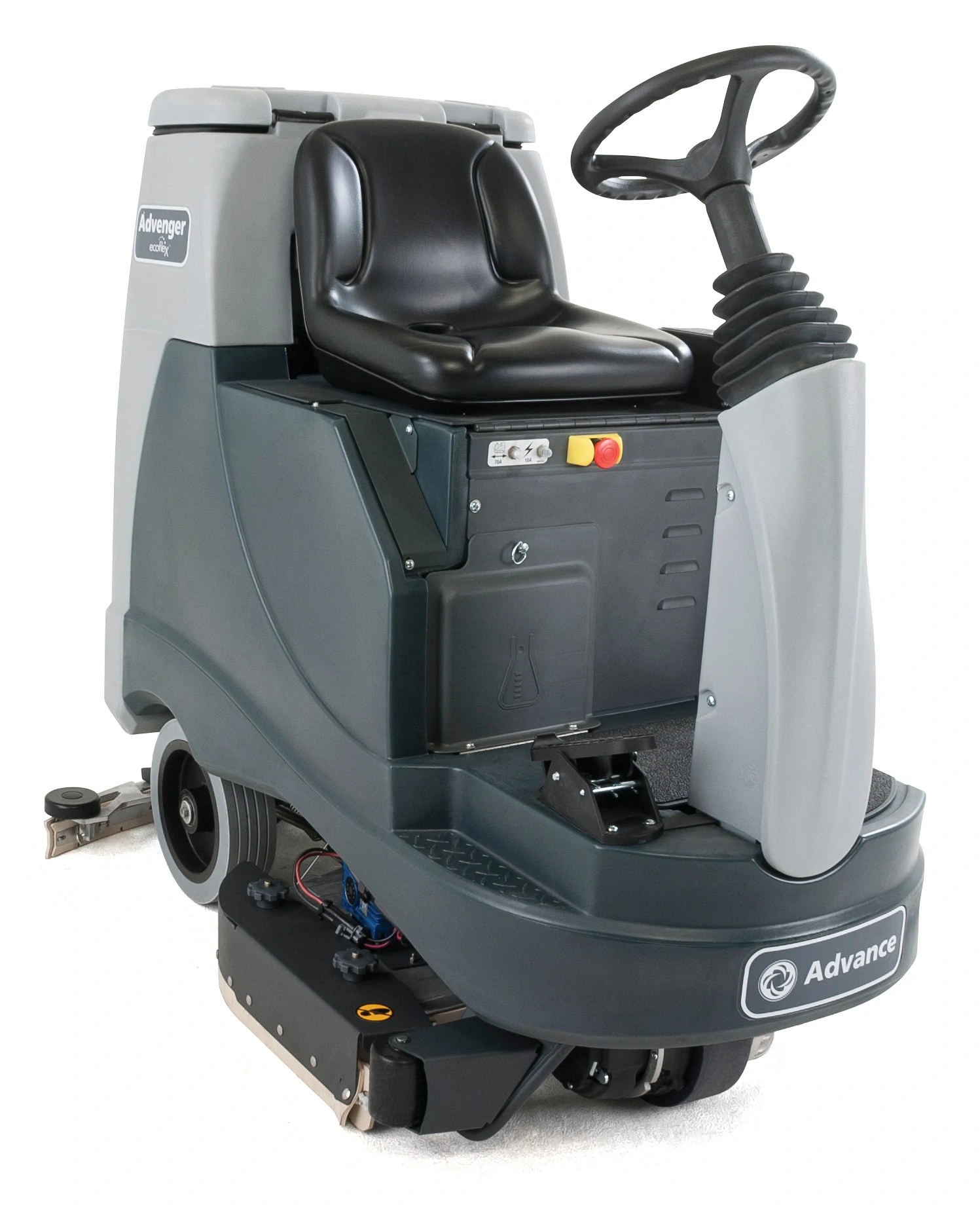

The Advance Advenger X3405D is a ride-on automatic floor scrubber for schools, hospitals, grocery stores, hotels, warehouses and other commercial floors. Two 17 in pad holders clean a 34 in path at up to 47,872 sq ft per hour, and the 28 gal solution and 29 gal recovery tanks deliver up to 85 minutes of scrubbing per tankful.
The EcoFlex detergent system is standard, so operators can switch between water-only cleaning and several detergent levels at the touch of a button. This package (Advance 56601647) runs on a 24 V pack of 6 V, 310 Ah wet batteries.
Condition: New.
What you get
Ready to scrub with EcoFlex
EcoFlex: match the clean to the soil on the floor
Features
Easy to drive, easy to see
- ✓EcoFlex lets operators switch between water-only cleaning and several detergent levels
- ✓One-Touch control panel, an open rider compartment and a low step for easy on and off
- ✓Tight, easily maneuverable steering with an adjustable steering column
- ✓Three scrub pressure settings for daily scrubbing through restoration work
- ✓High-traction non-marking urethane tires and a built-in squeegee hanger
Choosing a size
X3405D or X2805D?
| X3405D (this unit) | X2805D | |
|---|---|---|
| Cleaning path | 34 in | 28 in |
| Max coverage per hour | 47,872 sq ft | 39,424 sq ft |
| Minimum aisle turn | 67.5 in | 63 in |
| Max width without squeegee | 36.5 in | 31 in |
| Squeegee width | 41.4 in | 32.6 in |
Both share the same 28 gal solution and 29 gal recovery tanks, EcoFlex system and controls.
Detergent right where you need it

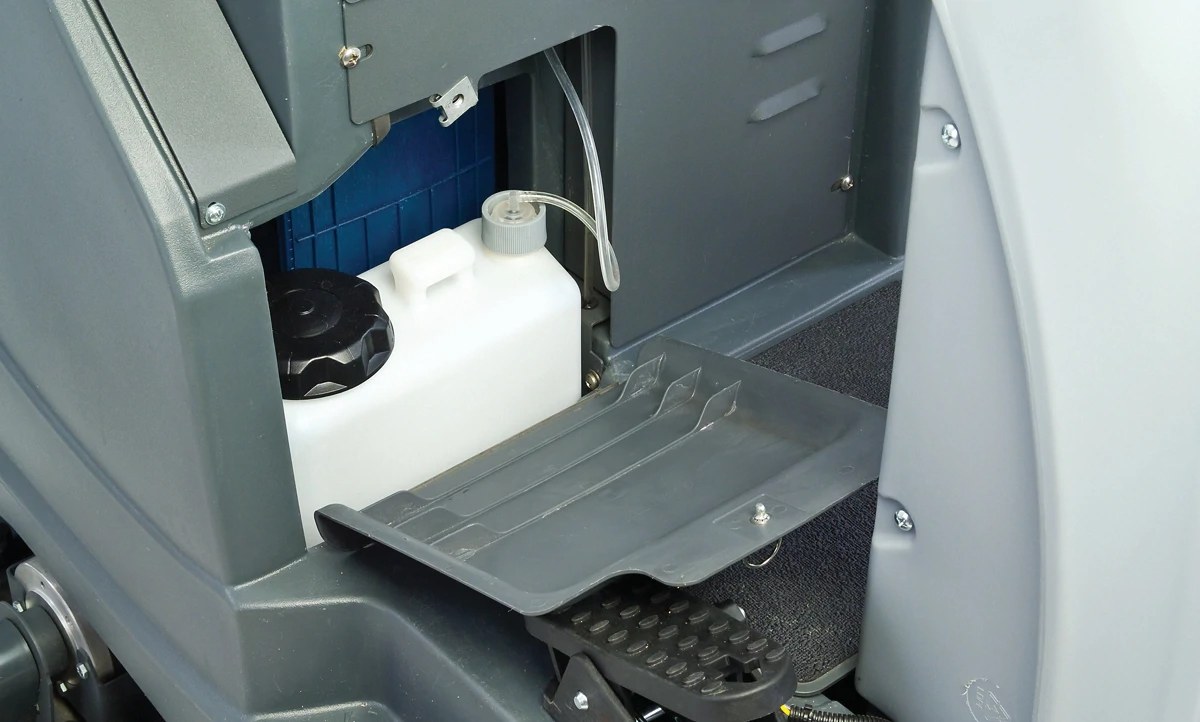

The refillable EcoFlex cartridge sits in its own compartment next to the operator platform, so it is easy to check and refill.
Specifications
Advance Advenger X3405D at a glance
| Models | Advenger X3405D, EcoFlex, 310 Ah wet batteries, pad holders |
|---|---|
| Scrub head | Disc, 34 in cleaning path |
| Brush motor | 0.64 hp (480 W), 260 rpm |
| Scrub pressure | 90 / 150 / 220 lb (39 / 65 / 96 kg) |
| Solution / recovery tanks | 28 gal (106 L) / 29 gal (110 L) |
| Solution flow rates | 0.33 / 0.66 / 1.0 gal/min (1.25 / 2.50 / 3.79 L/min) |
| Scrubbing per tankful | Up to 85 min |
| Max coverage per hour | 47,872 sq ft (4,448 m²) at 3.12 mph |
| Vacuum motor | 0.75 hp (560 W), 66 CFM |
| Sealed waterlift | 63 in H2O (15.7 kPa) |
| Drive motor | 1.05 hp (780 W) |
| Speed | 3.91 mph transport (6.3 km/h); 3.12 mph cleaning (4.8 km/h) |
| Gradeability | Transport 16% (9 degrees); cleaning 9% (5 degrees) |
| Power source | 24 VDC |
| Sound level | 63.7 dB A |
| Body (L x W x H) | 60 x 27.5 x 51.7 in (152 x 70 x 131 cm) |
| Max width without squeegee | 36.5 in (93 cm) |
| Squeegee width | 41.4 in (105 cm) |
| Minimum aisle turn | 67.5 in (171 cm) |
| Weight | 536 lb (244 kg) without batteries; 1,451 lb (658 kg) max with full tank and largest batteries |
| Model Numbers | Advance 56601647 (Advenger X3405D 310 SC PH) |
Technical specs may include optional equipment that is not included with all units.
Questions
Advance Advenger X3405D: common questions
What does the X in X3405D mean?
It means the EcoFlex detergent system is standard. EcoFlex lets the operator switch between water-only cleaning and several detergent levels, plus a temporary burst of power for heavy soil.
How long can it scrub on one tank?
Advance rates the X3405D at up to 85 minutes of scrubbing per tankful from the 28 gal solution tank.
How much floor can it clean in an hour?
Advance rates it at up to 47,872 sq ft per hour at its 3.12 mph maximum cleaning speed.
Will it fit my aisles and doorways?
The body is 60 in long, 27.5 in wide and 51.7 in high, and 36.5 in wide without the squeegee. It turns in a 67.5 in aisle. Measure your tightest doorway and aisle before you order.
Is it quiet enough for daytime cleaning?
Yes. Advance rates the Advenger at 63.7 dB A, which makes it a good fit for occupied schools, hospitals and stores.
