| Scrub Head Type | REV Dual Random Orbit |
| Cleaning Path | 28 in |
| Sound Pressure Level (IEC 60704-1/ISO 11201) | 63.7 dB A |
| Maximum Transport Speed | 3.91 mph (6.3 kph) |
| Maximum Cleaning Speed | 3.12 mph (4.8 kph) |
| Maximum Coverage Per Hour@ 3.12 MPH | 39,424 sq ft (3,663 sq m) |
| Solution Tank | 28 gal (106 L) |
| Recovery Tank | 29 gal (110 L) |
| Flow Rates | 0.1 / 0.2 gal/min (0.38 / 0.76 L/min) |
| 0.2 / 0.4 gal/min (0.76 / 1.51 L/min) | |
| 0.4 / 0.8 gal/min (1.65 / 3.03 L/min) | |
| Maximum Productivity Per Tankful Scrubbing | 140 minutes |
| Maximum Productivity Per Tankful Floor Finish Removal | 280 minutes |
| Power Source | 24 VDC |
| Brush Drive Motor | 0.75 hp (559 W) |
| Brush Speed | 2,250 RPM |
| Scrub Pressure | |
| Regular Scrub | 80 lb (36 kg) |
| Heavy Scrub | 125 lb (57 kg) |
| Extreme Scrub | 175 lb (79 kg) |
| Drive Motor | 1.05 hp (780 W) |
| Vacuum Motor | 0.75 hp (560 W) |
| Sealed Waterlift | 63 in H2O (15.7 kPa) |
| CFM | 66 @ 2 in (5 cm) orifice |
| Minimum Aisle Turning Radius | 63 in (160 cm) |
| Body Length | 60 in (152 cm) |
| Body Height | 51.7 in (131 cm) |
| Body Width | 27.5 in (70 cm) |
| Maximum Width w/o Squeegee | 31 in (79 cm) |
| Squeegee Width | 32.6 in (83 cm) |
| Maximum Weight w/o Batteries | 536 lb (244 kg) |
| Maximum Weight (Full Solution Tank and Largest Batteries) | 1,451 lb (658 kg) |
| Maximum Shipping Weight | 1,400 lb (635 kg) |
| Gradability Transport | 16% (9 degrees) |
| Gradability Cleaning | 9% (5 degrees) |
| Maximum PSI (Full tank and 200 lb rider) | 175 PSI (12.3 kg/sq cm) |
Technical specs may include optional equipment that is not included with all units.

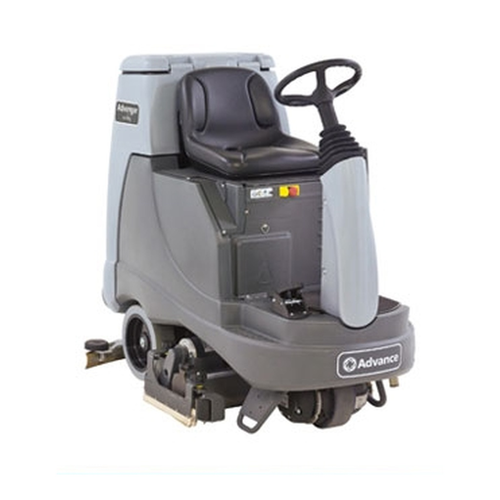

New Advance Advenger X2805R-C EcoFlex Rider Scrubber
Our Take (from the SES Sales Team)
“The Advenger X2805R is the REV version of the Advenger rider, and it is the one to look at when your floors need more than a routine scrub. Instead of spinning disc brushes, the REV head combines a high-speed orbital action with slow rotation, so it works soil loose from several directions. Advance rates it for up to 140 minutes of scrubbing per tankful, and says it can also remove floor finish in a single pass, with up to 280 minutes per tankful in that mode. Day to day, it cleans a 28 in path at up to 39,424 sq ft per hour from a 28 gal solution tank and 29 gal recovery tank, and it still turns in a 63 in aisle. EcoFlex is standard, so operators can run water only, pick a detergent level from the onboard cartridge, or press the burst of power button for a bad spot. This package runs on 310 Ah wet batteries with an onboard charger. It is a solid fit for schools, hospitals and grocery stores that want one rider for both daily cleaning and periodic restorative work.”
A 28 in REV rider with EcoFlex built in
The Advance Advenger X2805R is a ride-on automatic floor scrubber with a REV dual random orbit scrub head, built for schools, hospitals, grocery stores, hotels, warehouses and other commercial floors. It cleans a 28 in path at up to 39,424 sq ft per hour, and the 28 gal solution and 29 gal recovery tanks deliver up to 140 minutes of scrubbing per tankful.
EcoFlex is standard, so operators can switch between water-only cleaning and several detergent levels at the touch of a button. This package (Advance 56601895) runs on a 24 V pack of four 6 V, 310 Ah wet batteries with an onboard charger.
Condition: New.
What you get
Ready to scrub with REV and EcoFlex
REV: orbital scrubbing on a rider
Features
One rider for daily scrubbing and restoration
- ✓REV dual random orbit scrub head for daily scrubbing or floor finish removal
- ✓EcoFlex lets operators switch between water-only cleaning and several detergent levels

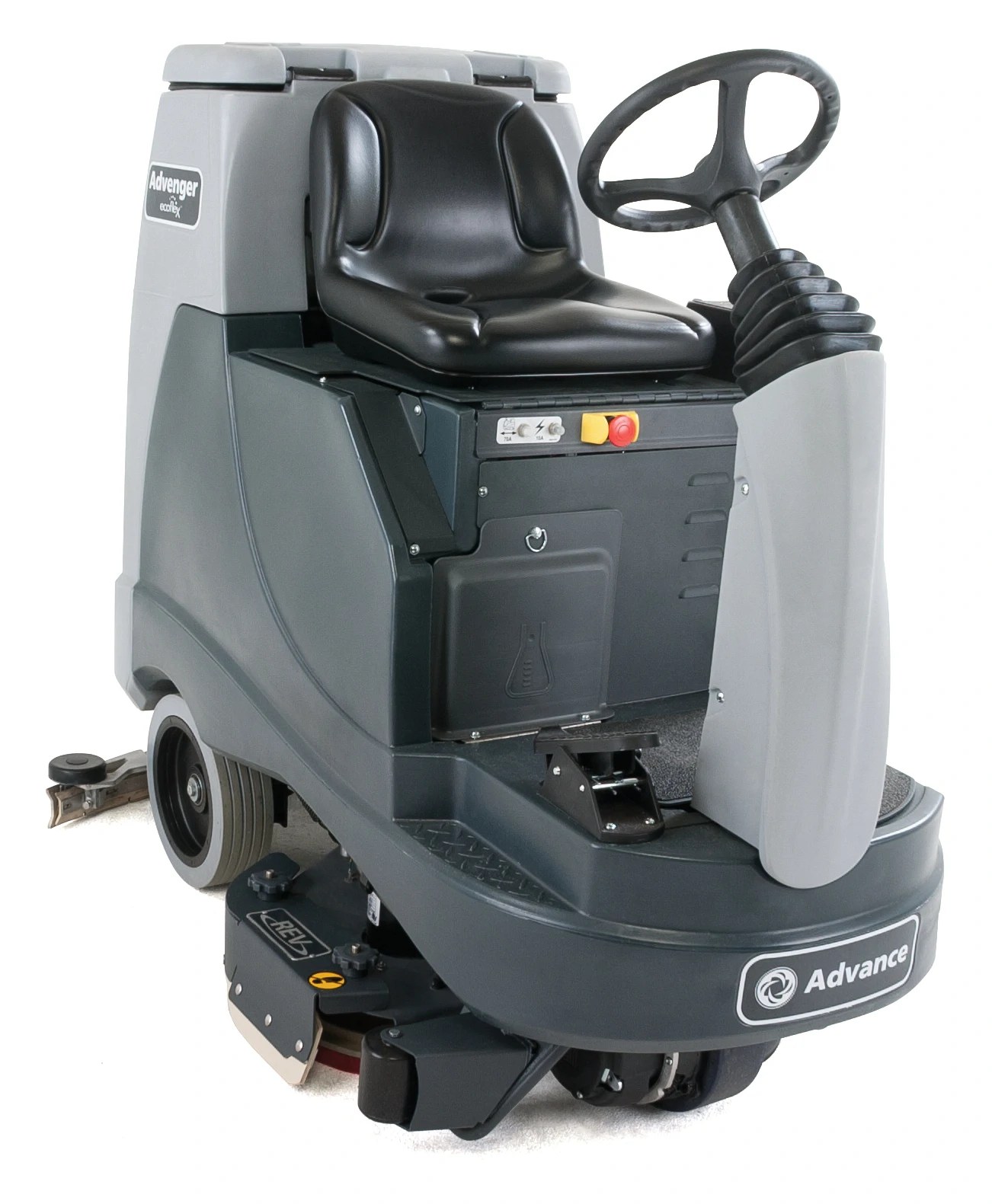

- ✓One-Touch control panel, an open rider compartment and a low step for easy on and off
- ✓Tight, easily maneuverable steering with an adjustable steering column
- ✓Non-marking traction wheels, a large recovery tank opening and a built-in squeegee hanger
Choosing a scrub head
REV or disc?
| X2805R REV (this unit) | X2805D disc | |
|---|---|---|
| Scrub head | REV dual random orbit | Disc |
| Brush speed | 2,250 rpm | 260 rpm |
| Scrub pressure | 80 / 125 / 175 lb | 90 / 150 / 220 lb |
| Scrubbing per tankful | Up to 140 min | Up to 85 min |
| Floor finish removal | Yes, up to 280 min per tankful | No |
Both share the same 28 gal solution and 29 gal recovery tanks, EcoFlex system, controls and 63 in aisle turn.

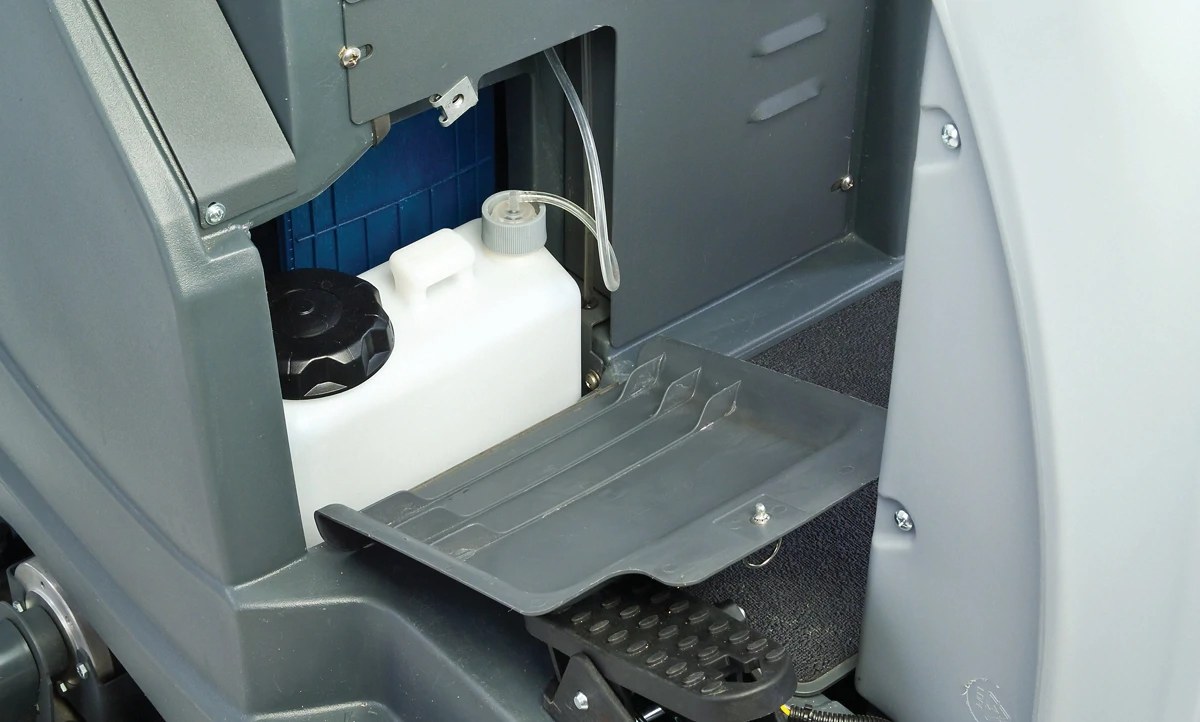

Detergent right where you need it
The refillable EcoFlex cartridge sits in its own compartment next to the operator platform, so it is easy to check and refill.
Specifications
Advance Advenger X2805R at a glance
| Models | Advenger X2805R-C, REV, EcoFlex, 310 Ah wet batteries, onboard charger |
|---|---|
| Scrub head | REV dual random orbit, 28 in cleaning path |
| Brush speed | 2,250 rpm |
| Scrub pressure | 80 / 125 / 175 lb (36 / 57 / 79 kg) |
| Solution / recovery tanks | 28 gal (106 L) / 29 gal (110 L) |
| Productivity per tankful | Up to 140 min scrubbing; up to 280 min floor finish removal |
| Max coverage per hour | 39,424 sq ft (3,663 m²) at 3.12 mph |
| Vacuum motor | 0.75 hp (560 W), 66 CFM |
| Sealed waterlift | 63 in H2O (15.7 kPa) |
| Drive motor | 1.05 hp (780 W) |
| Speed | 3.91 mph transport (6.3 km/h); 3.12 mph cleaning (4.8 km/h) |
| Gradeability | Transport 16% (9 degrees); cleaning 9% (5 degrees) |
| Power source | 24 VDC |
| Sound level | 63.7 dB A |
| Body (L x W x H) | 60 x 27.5 x 51.7 in (152 x 70 x 131 cm) |
| Max width without squeegee | 31 in (79 cm) |
| Squeegee width | 32.6 in (83 cm) |
| Minimum aisle turn | 63 in (160 cm) |
| Weight | 536 lb (244 kg) without batteries; 1,451 lb (658 kg) max with full tank and largest batteries |
| Model Numbers | Advance 56601895 (Advenger X2805R-C 310 OBC) |
Technical specs may include optional equipment that is not included with all units.
Questions
Advance Advenger X2805R: common questions
What is the difference between REV and a disc scrubber?
A disc head spins round brushes or pads. The REV head moves the pad in a high-speed orbital pattern while it slowly rotates, attacking soil from several directions. On the Advenger it also gives more scrubbing time per tankful: up to 140 minutes versus 85 for the disc models.
Can it strip floor finish?
Advance says the Advenger REV can remove floor finish in a single pass, and rates it for up to 280 minutes of floor finish removal per tankful.
Will it fit my aisles and doorways?
The body is 60 in long, 27.5 in wide and 51.7 in high, and 31 in wide without the squeegee. It turns in a 63 in aisle. Measure your tightest doorway and aisle before you order.
Do the batteries need watering?
Yes. This package uses flooded 6 V, 310 Ah wet batteries, so they need regular watering. If you would rather skip that, ask about the 312 Ah AGM package.
Is it quiet enough for daytime cleaning?
Advance rates the Advenger at 63.7 dB A, which suits occupied schools, hospitals and stores.
Not sure the Advenger X2805R fits your floors?
Tell our team about the floor, the building and the shift, and we will help you decide if this is the right machine.
