| Sweep Path | 20 in |
| Sweeping Brush Speed | 700 RPM |
| Sweeper Brush Diameter | 6 in |
| Vacuum Brush Speed | 1500 RPM |
| Vacuum Brush Diameter | 4 in |
| Side Broom Diameter | 11 in |
| Vacuum Motor | 24V 2 Stage |
| Vacuum Airflow | 67 CFM |
| Vacuum Waterlift | 51" H2O |
| Sound Pressure | 68 dba |
| Vacuum Bag | H.E.P.A Standard |
| Vacuum Bag Capacity | .58 ft^3 Max |
| Hopper Capacity | 190"^3 |
| Max Productivity | 27,200 sq ft/hr |
| Average Productivity | 22,015 sq ft/hr |
| Turning Radius | 50.5" |
| Maximum Ramp Climbing | 6% |
| Machine Voltage | 24 VDC |
| Power Source | 2-12 volt 140 ah Batteries (Optional) 235ah AGM |
| Battery Charger | On Board |
| Maximum Run Time | 2.5 - 4.0 hours |
| Weight/ W-Batteries | 342/691 lbs |
| Dimensions | 47.5"L X 26.25"W X 45"H |
Technical specs may include optional equipment that is not included with all units.

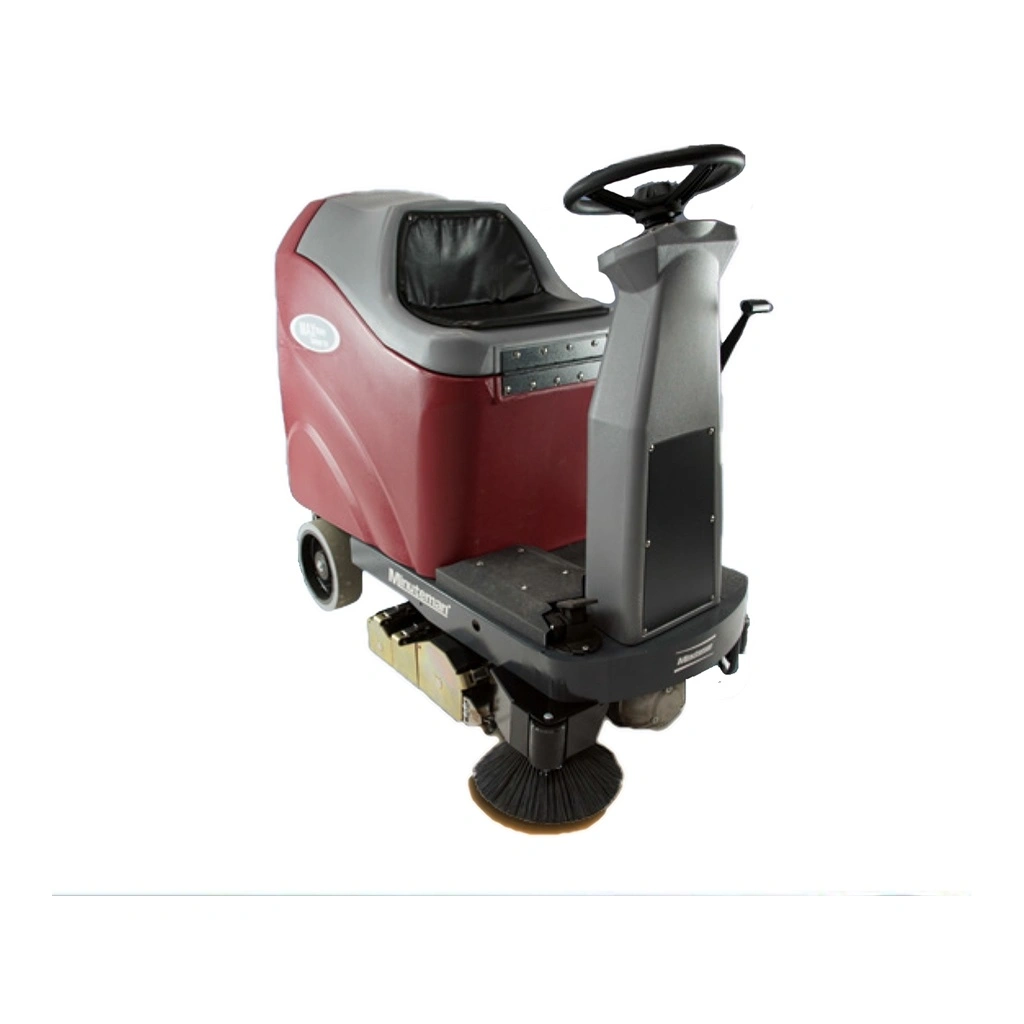

New Minuteman Max Ride Sweeper Vac
Our Take (from the SES Sales Team)
“The Max Ride 20 is a different kind of rider. It sweeps first and vacuums second: the 6 in main broom moves debris into a separate debris tray, then a 4 in vacuum brush follows to pull fine dust into a HEPA bag. Minuteman calls it the first clog-free vacuum in the industry, and that two-stage design is the reason, because the vacuum never has to swallow the big stuff. It cleans a 20 in path, and with an 11 in side broom and a 50.5 in turning radius it gets into aisles and around racking that a full-size rider sweeper cannot reach. Minuteman rates it at 22,015 sq ft per hour average and 27,200 sq ft per hour max, with 2.5 to 4 hours of runtime on its 24 V battery system and an onboard charger. At 68 dBA it is quiet enough for occupied buildings. It is a strong fit for warehouses, distribution centers, machine shops and manufacturing plants that fight fine dust.”
A compact rider that sweeps, then vacuums, in one pass

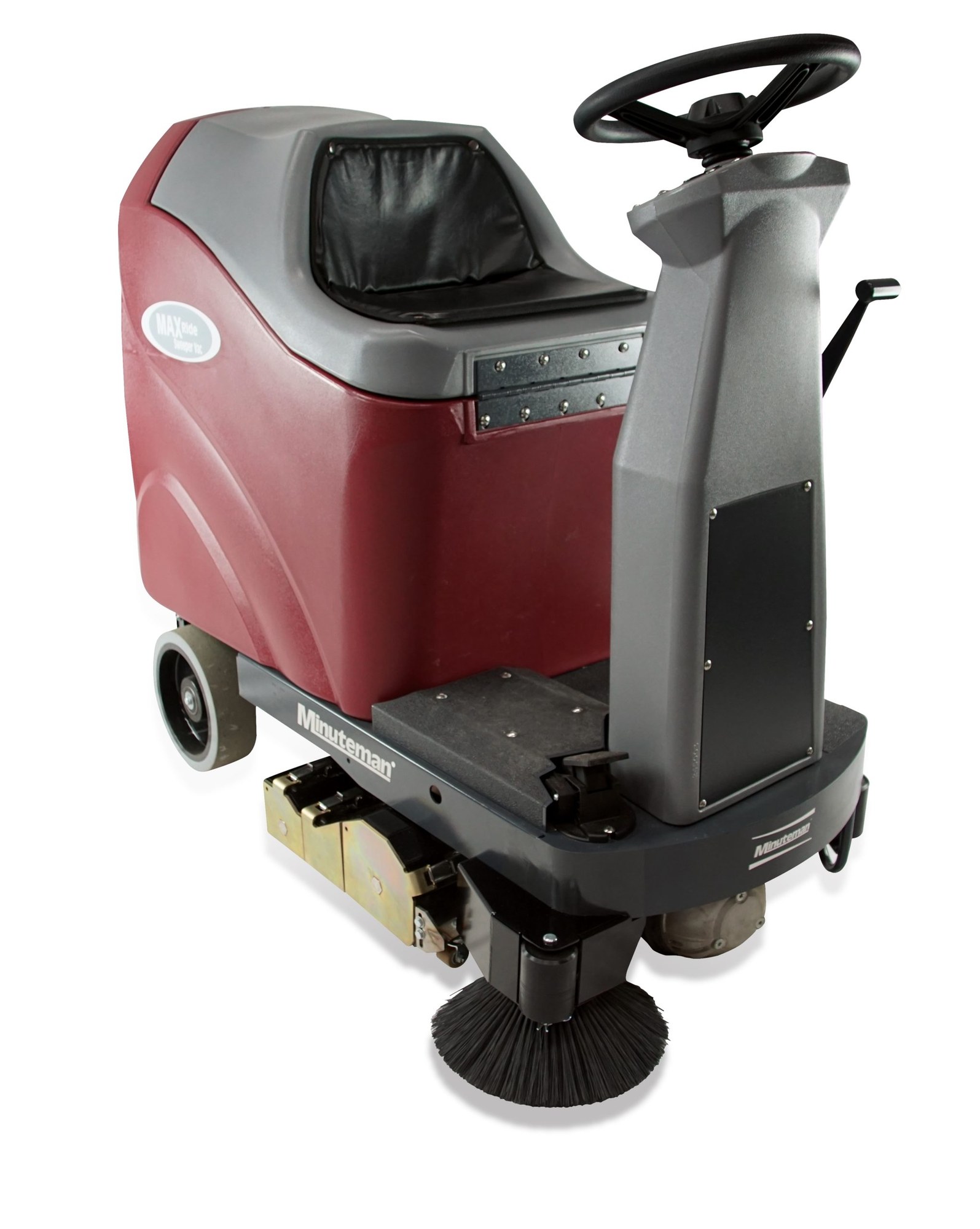

The Minuteman Max Ride 20 Sweeper Vac is a battery ride-on combination sweeper and vacuum for warehouses, manufacturing plants, machine shops, distribution centers and other commercial spaces that need debris and dust removal. A 6 in sweeping brush and an 11 in side broom clear a 20 in path, and a 4 in vacuum brush follows to lift fine dust into a HEPA bag.
It is built on an e-coated steel frame with a large vacuum chamber and an integrated steel bag frame. Minuteman rates it at 22,015 sq ft per hour average and 27,200 sq ft per hour max, with 2.5 to 4 hours of runtime on a 24 V system and an onboard charger.
Condition: New.
What you get
Built to sweep and vacuum from day one
Why sweep first and vacuum second?
Features
Small footprint, big pickup
- ✓Combination ride-on sweeper and vacuum on an e-coated steel frame
- ✓Large-capacity HEPA bag in an integrated steel bag frame for improved air quality
- ✓Vacuumized debris tray and vacuum shoe for dust and debris pickup
- ✓Easy no-tool removal of each brush
- ✓Ultra-quiet operation at 68 dBA with open visibility from the operator compartment
How it cleans
Two-stage pickup
| Stage | Brush | Speed | Job |
|---|---|---|---|
| 1. Side broom | 11 in (28 cm) | Not listed | Pulls debris out of edges and corners into the path |
| 2. Sweep | 6 in (15 cm) main brush | 700 rpm | Moves debris into the separate debris tray |
| 3. Vacuum | 4 in (10 cm) vacuum brush | 1,500 rpm | Lifts fine dust into the HEPA bag |
Specifications
Max Ride 20 Sweeper Vac at a glance
| Models | Max Ride 20 Sweeper Vac |
|---|---|
| Sweep path | 20 in (51 cm) |
| Sweeping brush | 6 in (15 cm) diameter, 700 rpm |
| Vacuum brush | 4 in (10 cm) diameter, 1,500 rpm |
| Side broom | 11 in (28 cm) diameter |
| Vacuum motor | 24 V, 2 stage |
| Vacuum airflow | 67 CFM (1.9 m³/min) |
| Vacuum water lift | 51 in H2O (130 cm) |
| Vacuum bag | HEPA standard, 0.58 cu ft max (16.4 L) |
| Debris hopper | 190 cu in (0.11 cu ft, 3.1 L) |
| Productivity | 27,200 sq ft/hr max (2,527 m²); 22,015 sq ft/hr average (2,045 m²) |
| Turning radius | 50.5 in (128 cm) |
| Maximum ramp climbing | 6% |
| Machine voltage | 24 V DC; two 12 V batteries (Minuteman lists 140 Ah, with 235 Ah AGM optional) |
| Battery charger | Onboard |
| Runtime | 2.5 to 4.0 hours |
| Sound pressure | 68 dBA |
| Weight, without / with batteries | 342 lb (155 kg) / 691 lb (313 kg) |
| Dimensions (L x W x H) | 47.5 x 26.25 x 45 in (121 x 67 x 114 cm) |
| Model Numbers | Minuteman MR20SWQP (Max Ride 20 Vacuum Sweeper, Quick Pack) |
Technical specs may include optional equipment that is not included with all units.
Questions
Max Ride 20 Sweeper Vac: common questions
How is this different from a standard rider sweeper?
It combines sweeping and vacuuming in one machine. It sweeps debris first and then vacuums, which Minuteman says prevents clogging and improves overall cleaning compared to standalone machines.
How long does it run on a charge?
Minuteman rates runtime at about 2.5 to 4 hours, depending on conditions and how hard the machine is working. The charger is on board.
Is it a good choice for dust-sensitive areas?
Yes. A HEPA vacuum bag is standard, which helps capture fine dust and improve air quality.
How much area can it clean per hour?
Minuteman rates it at up to 27,200 sq ft per hour in maximum productivity, and about 22,015 sq ft per hour on average.
Will it fit my aisles?
The machine is 47.5 in long, 26.25 in wide and 45 in high, with a 50.5 in turning radius. Do not run it on ramps steeper than 6%.
Not sure the Max Ride 20 fits your floors?
Tell our team about the floor, the building and the shift, and we will help you decide if this is the right machine.
