| Models | TRS17 |
| Solution Tank | 17 gal (64.4 L) |
| Recovery Tank | 15 gal (56.8 L) |
| Pump | 600 psi (41.4 bar), 0.85 gpm (3.2 L/min) |
| Vacuum Motor | Single 3-stage |
| Water Lift | 120 in (3,048 mm) |
| Chemical Feed | Automatic, soap/rinse valve; bottle holder for up to a 1 gal chemical bottle |
| Tank Construction | Polyethylene |
| Baseplate | 1/4 in (6.4 mm) aluminum |
| Rear Wheels | 10 in (25.4 cm) non-marking |
| Casters | 4 in (10.2 cm) locking |
| Electrical | 120 V, 60 Hz, standard 15 A circuit; 14.5 A draw |
| Electrical Protection | Built-in GFCI |
| Power Cord | 50 ft (15.2 m), twist-lock pigtail connection |
| Wand | Swivel wand with reversible brush/squeegee head |
| Pressure Gun | Included |
| Dimensions (H x L x W) | 39 x 37 x 22 in (99 x 94 x 56 cm) |
| Weight | 108 lb (49 kg) |
| Max Solution Temperature | 130°F (54°C) |
| Model Numbers | TRS17-115 |
Technical specs may include optional equipment that is not included with all units.
New Minuteman TRS17 Total Restroom System All Surface Cleaner
Our Take (from the SES Sales Team)
“The TRS17 is Minuteman's touch-free system for restrooms where a mop and bucket can't get into grout lines, partition bases and around fixtures. It fits schools, office buildings, arenas and other facilities with high-traffic restrooms that need a deep clean on a regular schedule.
The routine is spray, dwell, rinse and recover. A 600 psi pump applies chemical drawn from a bottle on the auto chemical feed, and a soap/rinse valve switches to a clean-water rinse without changing tanks. The swivel wand has a reversible brush/squeegee head for scrubbing and pulling water off the floor, and a single 3-stage vacuum motor with 120 inches of water lift does the recovery. Exhaust air also drives a blower hose for drying fixtures.
Know what you are taking on. At 108 pounds with hoses and a wand on board, it is a cart, so check elevator access and storage space. It draws 14.5 amps on a standard 15-amp, 120-volt circuit, so avoid sharing that circuit, and use defoamer in the recovery tank.”
Touch-free restroom cleaning with a 600 psi pump.

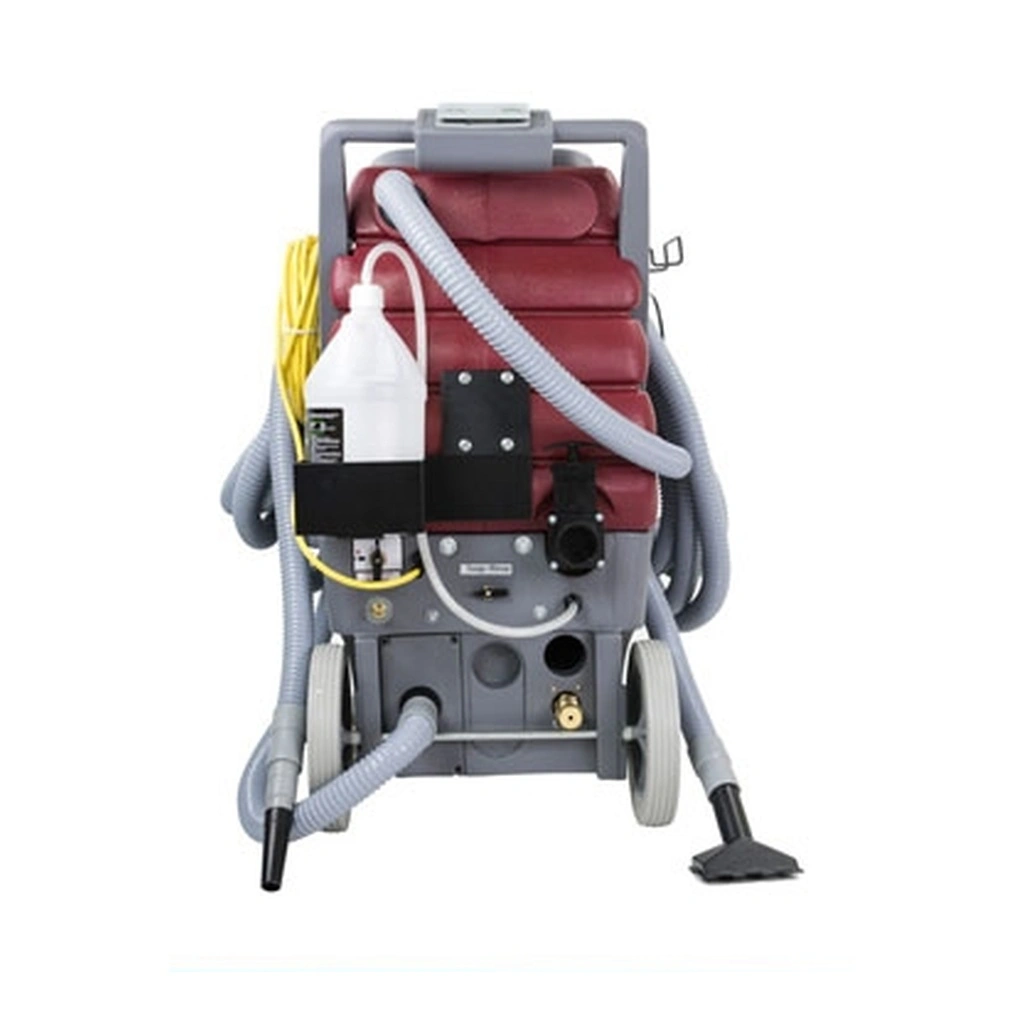

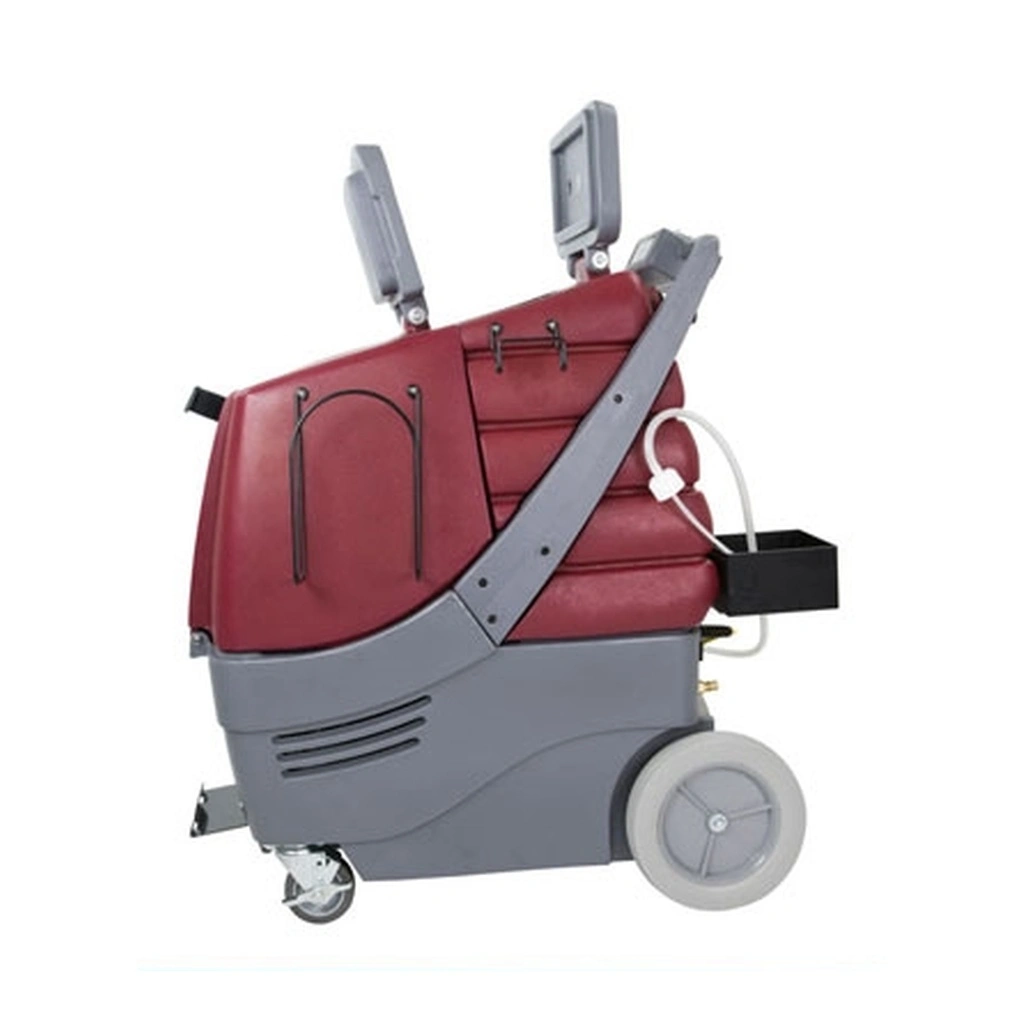

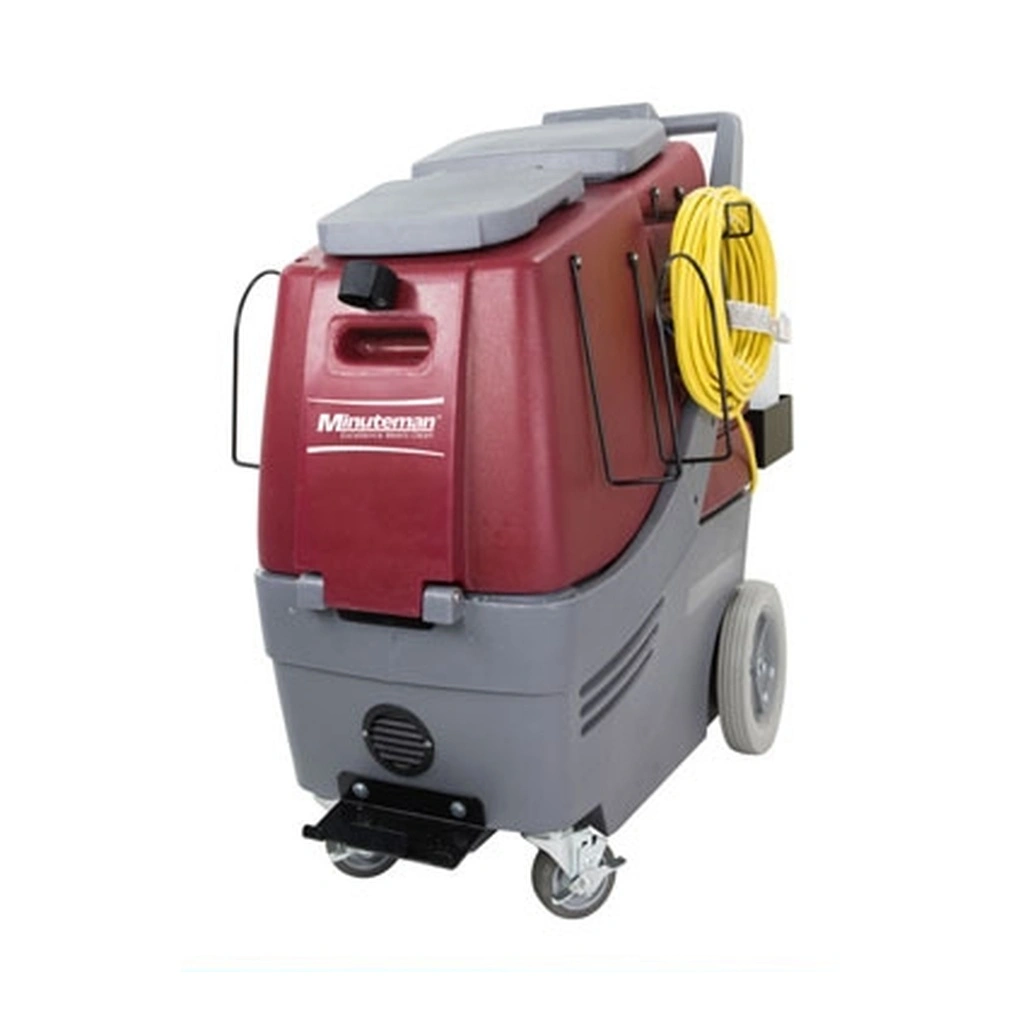

The Minuteman TRS17 Total Restroom System is a touch-free restroom cleaner that deep cleans where mop and bucket fail. A 600 psi, 0.85 gpm pump drives cleaning solution into porous tile, grout lines and hard-to-reach places, and an automatic chemical feed with a soap/rinse valve handles dilution. It holds 17 gallons of solution and 15 gallons of recovery.

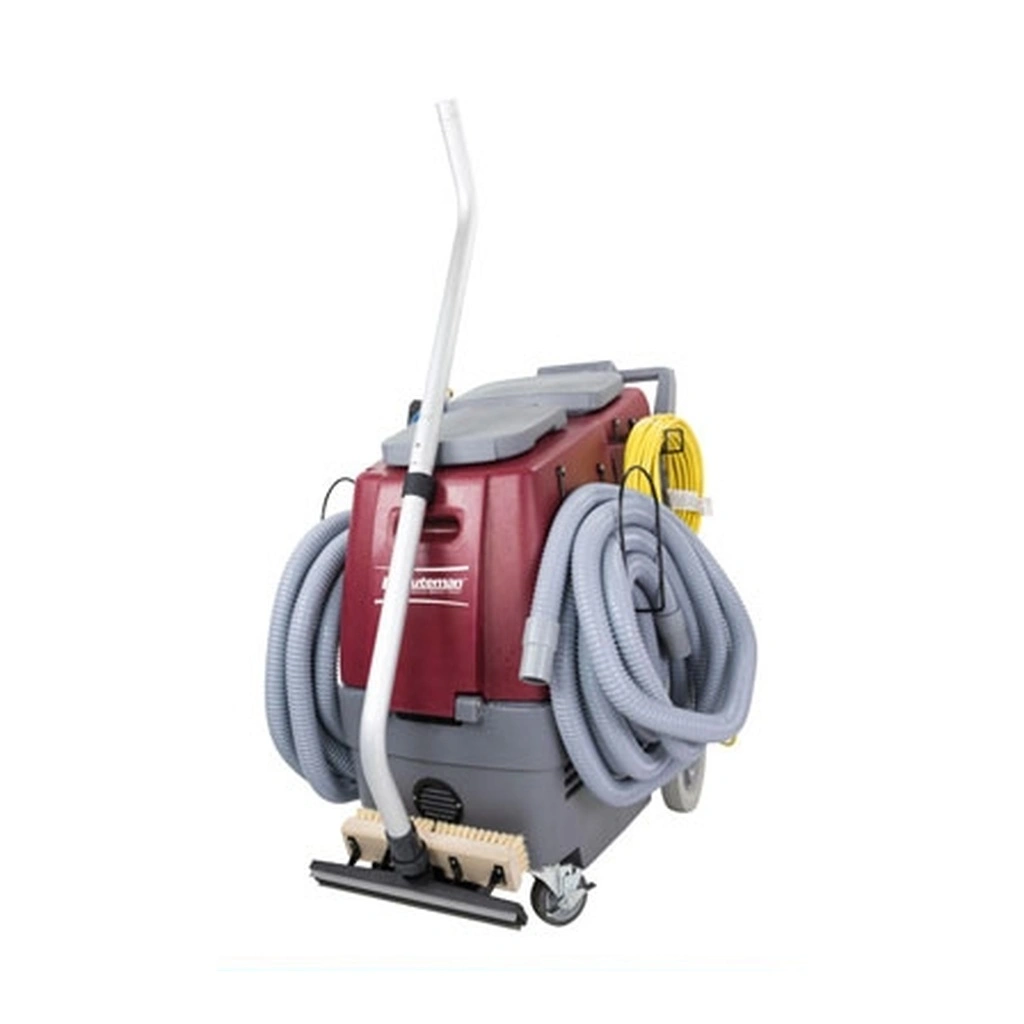

A single 3-stage vacuum motor with 120 inches of water lift recovers liquid through a swivel wand with a reversible brush/squeegee head. The wand, spray gun and hoses are included and ride in on-board caddies, and a built-in GFCI protects the electrical system. Polyethylene tanks sit on a 1/4-inch aluminum baseplate with 10-inch non-marking rear wheels and 4-inch locking casters.
Includes:
- Swivel wand with reversible brush/squeegee head

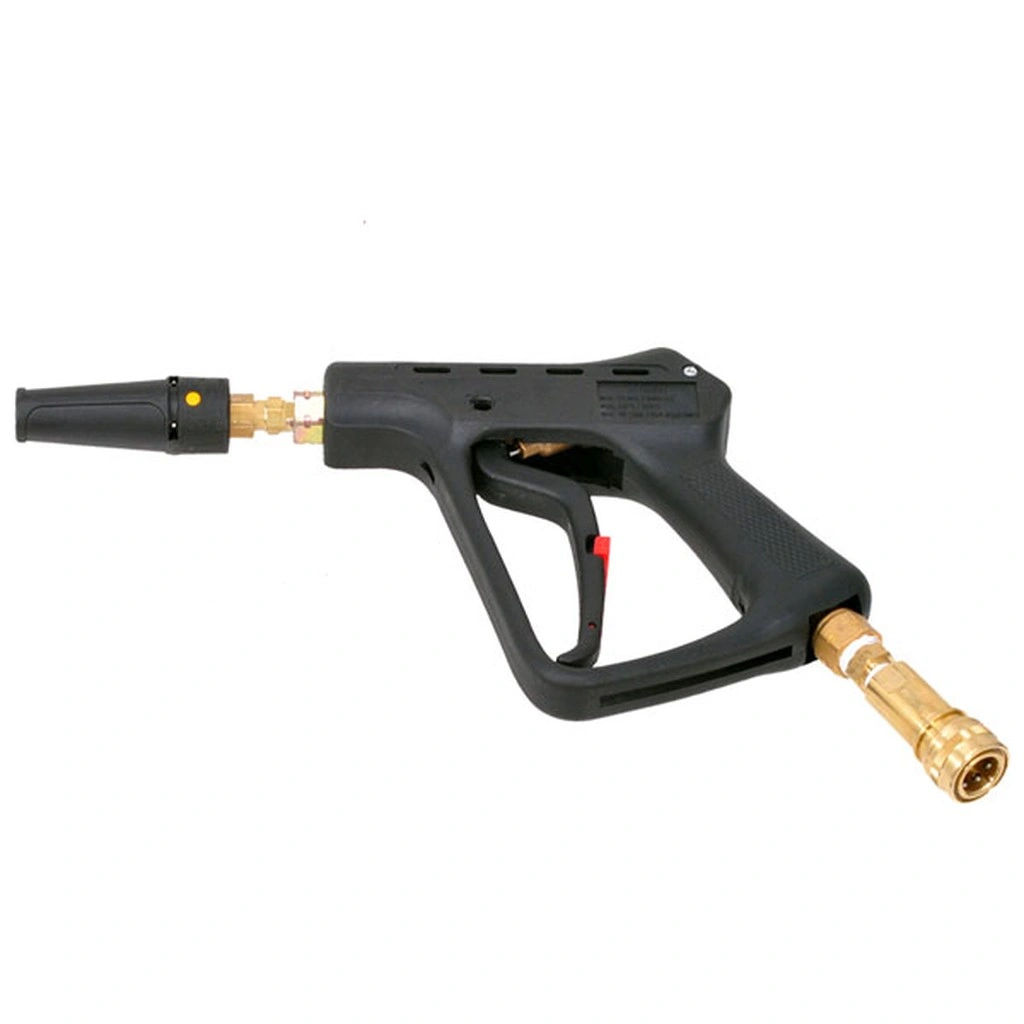

- High-pressure spray gun
- High-pressure solution hose
- Vacuum hose
- Fixture drying (blower) hose
- 50' power cord
Features:
- 600 psi, 0.85 gpm pump with automatic chemical feed
- 17-gal (64 L) solution and 15-gal (57 L) recovery tanks
- Single 3-stage vacuum motor with 120 in water lift

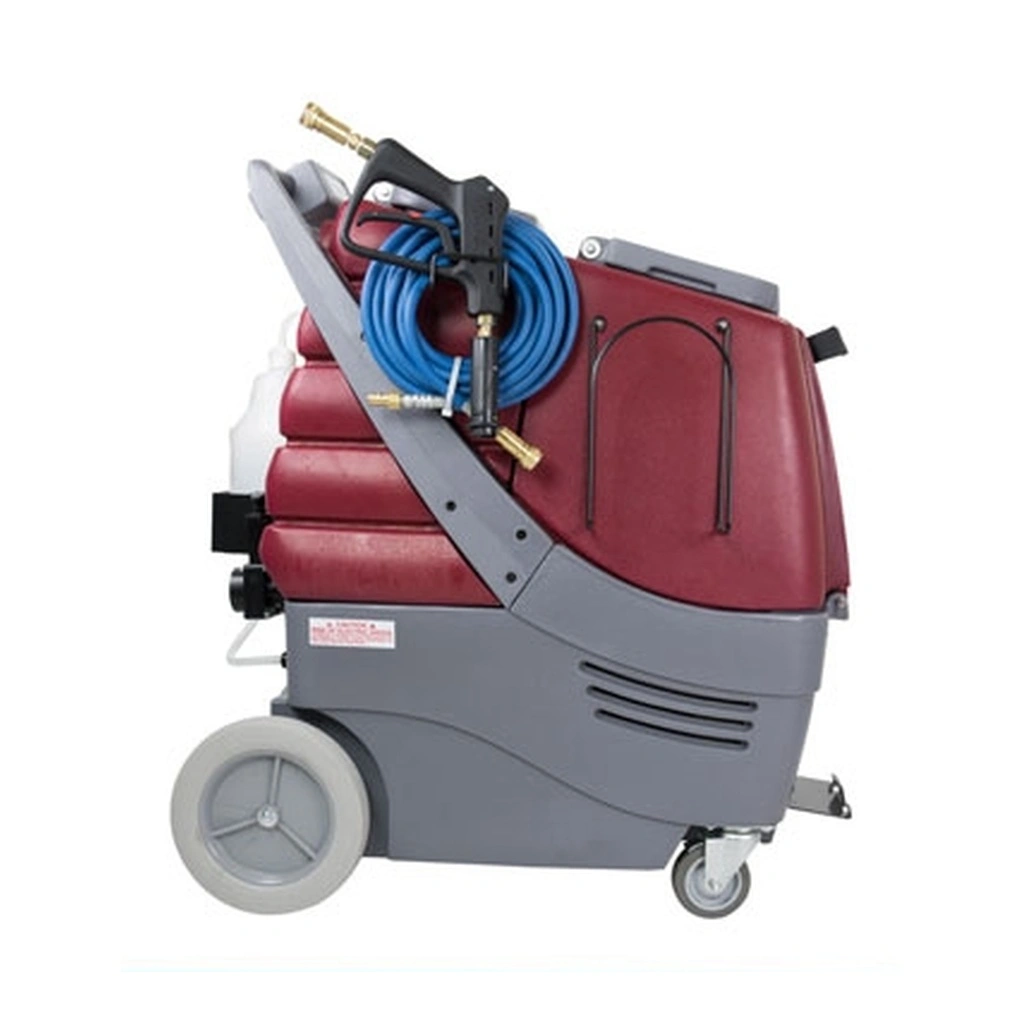

- Wand, spray gun and hoses included, with on-board caddies
- Built-in GFCI and two-screw access to components for service
