| BODY CONSTRUCTION / DIMS | |||||
| Chassis Construction: | 3/16'' (5 mm) Powder Coated Steel | ||||
| Front Wheel (Diameter Width): | 10'' 3'' (25 8 cm) | ||||
| Rear Wheels (Diameter Width): | (2) 12'' 5'' ([2] 30 13 cm) | ||||
| Size (L W H): | 64'' 37'' 50'' (163 94 140 cm) | ||||
| Weight (w/ Standard Batteries): | 1,115 - 1,165 lbs (506 - 528 kg) | ||||
| SWEEPING SYSTEM | |||||
| Cleaning Width: | 46'' (117 cm) | ||||
| Main Broom (Diameter Length): | 10'' 32'' (25 81 cm) | ||||
| Broom Power / Speed: | 1.0 hp / 435 rpm (746 watts) | ||||
| Side Broom Size: | (2) 17'' ([2] 18 cm) | ||||
| Hopper Capacity: | 4.2 cubic ft. (116 liters) | ||||
| POWER SYSTEM | |||||
| System Power: | 24 VDC - 240 ah | ||||
| Max - Optional Batteries: | Up to / 420 ah WET / 390 ah AGM / 270 ah Lithium | ||||
| Run Time: **Run times are based on continuous sweeping run times. | Up to 5 Hours** | ||||
| DRIVE SYSTEM: | |||||
| Power: | 1.0 hp - All Gear / Sealed (745 watts) | ||||
| Speed Control: | 0 - 3.5 mph (0 - 5.6 km/h) | ||||
| FILTERING SYSTEMS: | |||||
| Filtering Material & Size: | Polymer Baghouse / 4,431 inches2 | ||||
| Filter Rating: | Standard 25 Micron - Optional 1 Micron | ||||
| Vacuum Specs (Airflow): | 280 cfm | ||||
| GENERAL: | |||||
| Decibels: ***Decibel levels per ISO 11201 as recommended by the American Association of Cleaning Equipment Manufacturers & OSHA | 65 dB*** | ||||
| Productivity - Theoretical: ****Productivity is based off of ISSA 2010 Cleaning Times | Up to 71,000 sqft ( 6,581sqm)**** | ||||
| Productivity - Practical: ****Productivity is based off of ISSA 2010 Cleaning Times | Up to 53,130 sqft ( 4,936 sqm)**** |

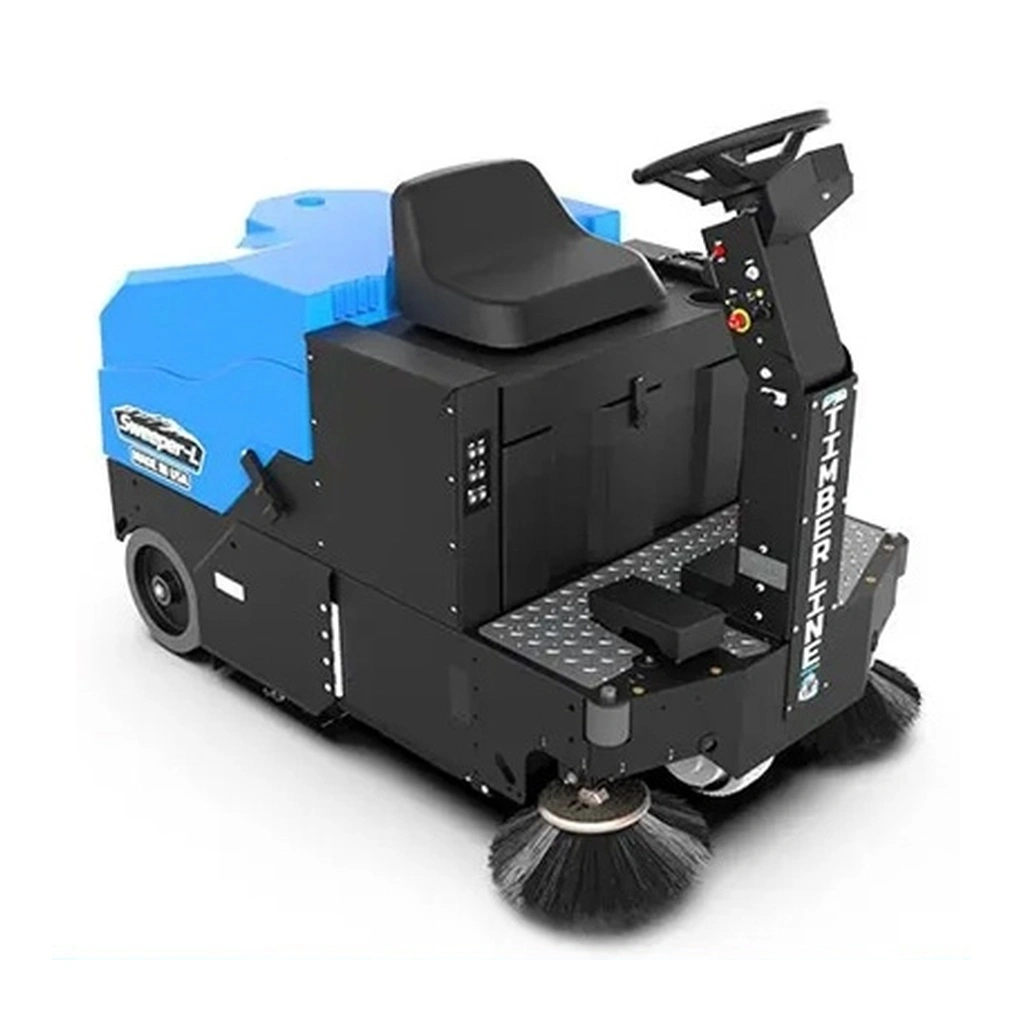

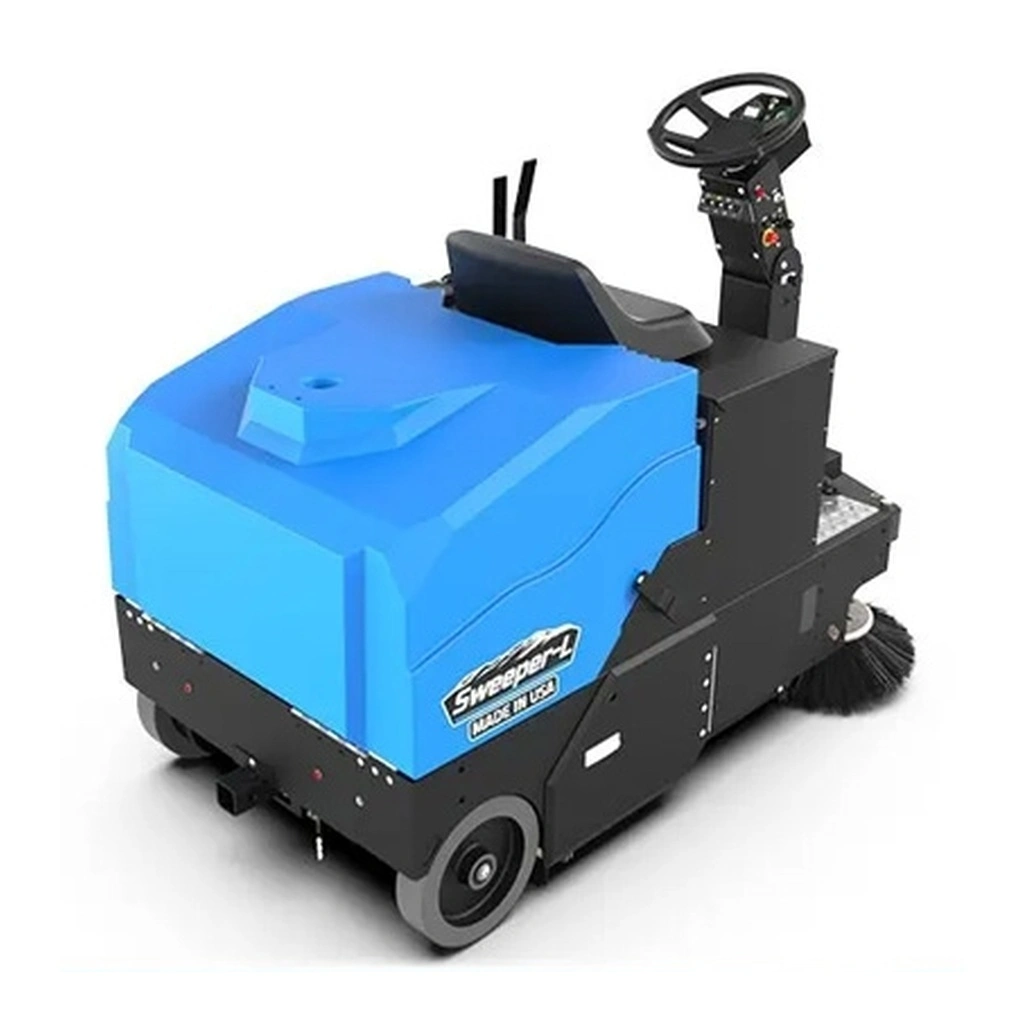

New Timberline Sweeper-L Rider Floor Sweeper

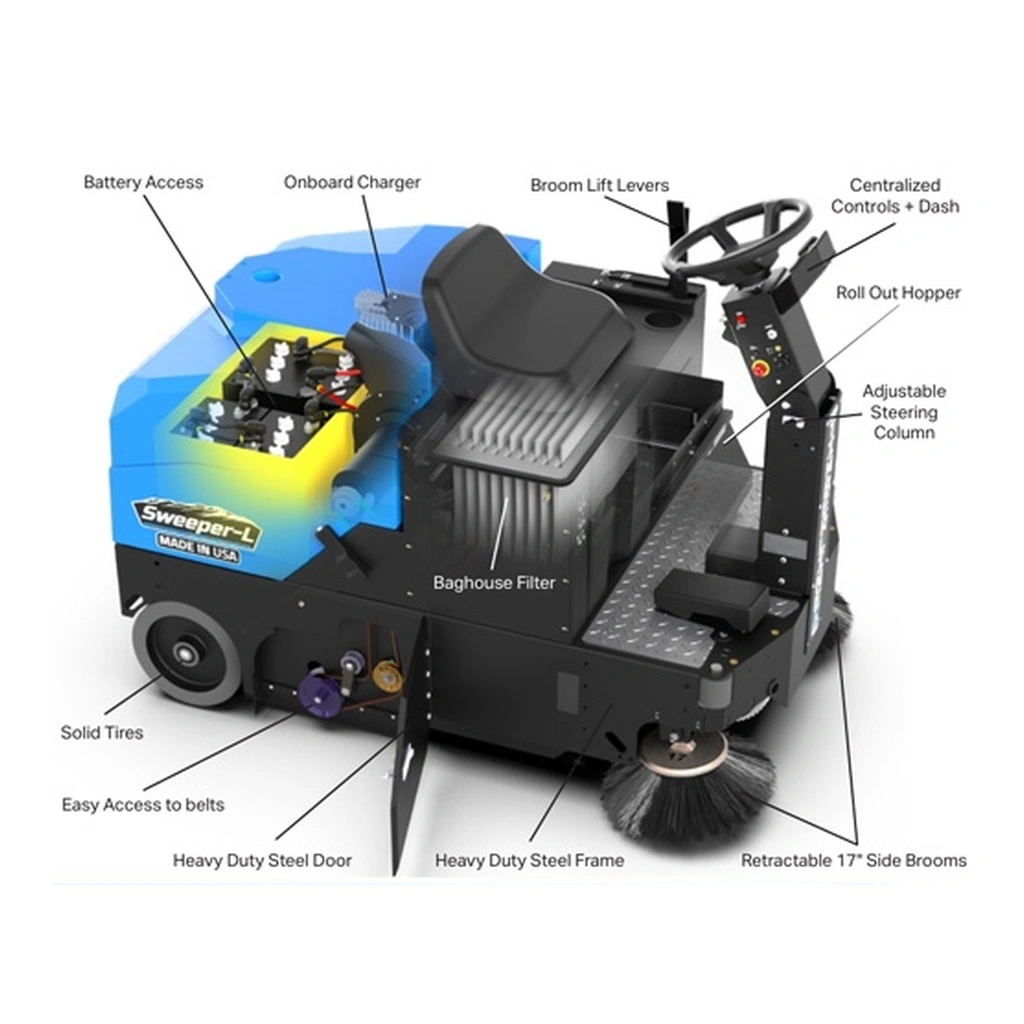

Timberline is excited to unveil the Sweeper-L, the latest addition to their lineup. This ride-on floor sweeper is equipped with a direct-throw sweeping system. It comes standard with a large-capacity baghouse filter, twin side brooms, and a heavy duty hopper, designed to tackle the toughest cleaning tasks without hesitation. The Sweeper-L sets a new standard in floor cleaning with up to five hours of continuous operation on a single charge. Additionally, it offers a range of customizable options, including various broom types, enhanced lighting features, and battery upgrades, allowing you to customize the machine to meet your specific cleaning needs.
Features
- Direct-throw sweeping system
- Heavy Duty Steel frame
- Assembled by hand in the U.S.A.
- Built Sustainability
- Five hours of continuous operation on a single charge
