| Machine Type | Walk-Behind Floor Scrubber |
|---|---|
| Cleaning Path Width | 33 inches |
| Scrub Deck Type | Disc |
| Power Source | Battery (Electric) |
| Battery Type | AGM Sealed Lead-Acid |
| Battery Capacity | 330 Ah |
| Productivity Rate | Up to 32,000 sq ft/hr |
New NSS Wrangler 3330DB Disk Walk-Behind Scrubber - 330Ah AGM Battery
Our Take (from the SES Sales Team)
“The Wrangler 3330 DB is the biggest walk-behind NSS builds, and it makes sense for open floors where a rider would be more machine than you need: big-box retail, hospital corridors, hotel back-of-house and light industrial space. Two 17 in brushes or pads clean a 33 in path, and NSS rates it at 20,400 sq ft per hour of practical coverage. The 30 gal solution tank and 32 gal recovery tank mean fewer trips to dump and refill on a long route. This unit runs on six 6 V, 330 Ah AGM batteries, rated by NSS for up to 3.7 hours with no battery watering, and the charger is on board. Controls are a few switches and mechanical levers with a twist throttle, so new custodians can be trained in minutes. On the 3330 the brush motors are centered, and the skirt design gives it the offset for edge work. If your aisles are tighter, the Wrangler 2730 DB has the same tanks with a 27 in deck.”
NSS’s largest walk-behind scrubber, with a 33 in disk deck

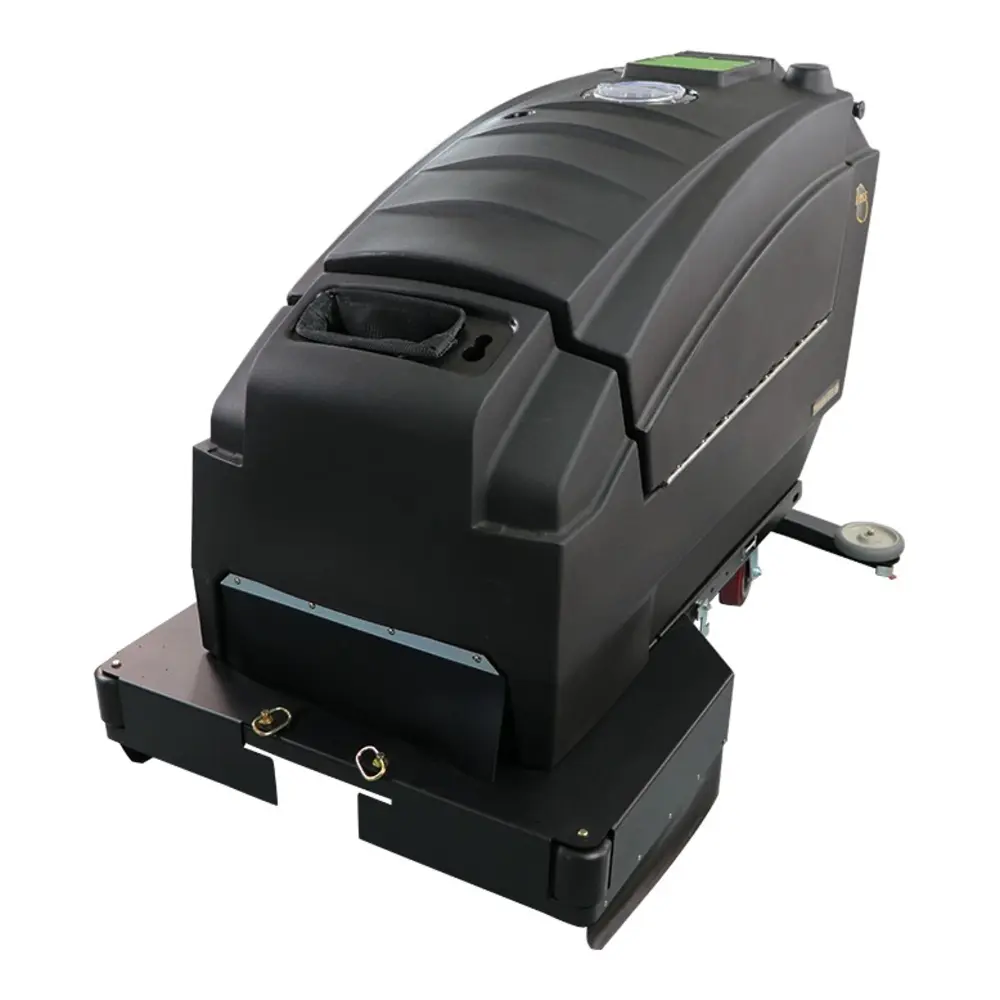

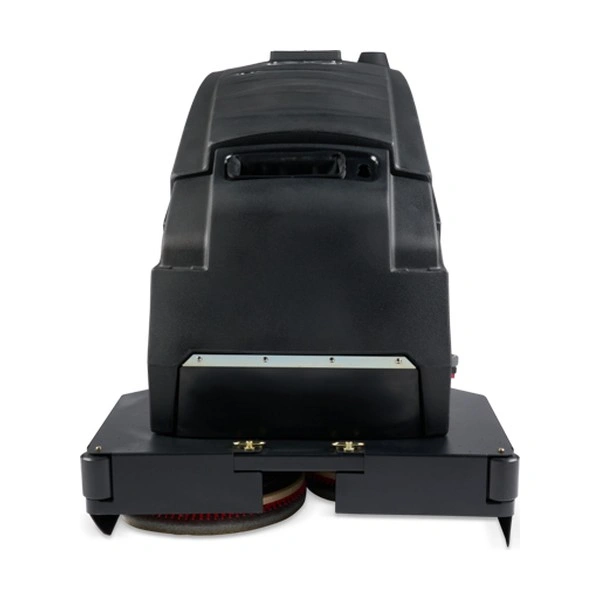

The NSS Wrangler 3330 DB is a battery-powered walk-behind automatic scrubber with a 33 in disk scrub deck. Two 17 in brushes or pads clean the floor, a 30 gal solution tank and 32 gal recovery tank keep it working between fills, and NSS rates it at 20,400 sq ft per hour of practical productivity (44,100 sq ft per hour theoretical). NSS builds it for vinyl, terrazzo and tile floors in retail, healthcare, hospitality and light industrial buildings.
This kit runs on six 6 V, 330 Ah AGM batteries, sealed and maintenance free, with up to 3.7 hours of runtime and an onboard charger.
Condition: New.
What you get
Long runtime, no battery watering

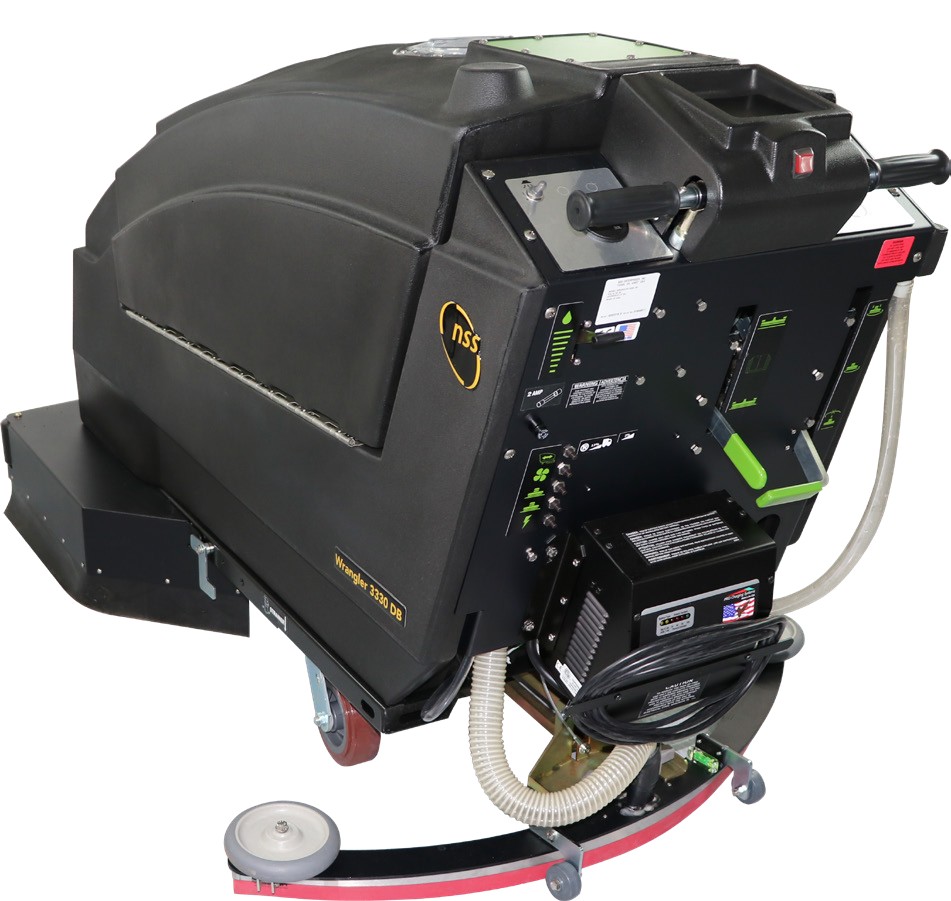

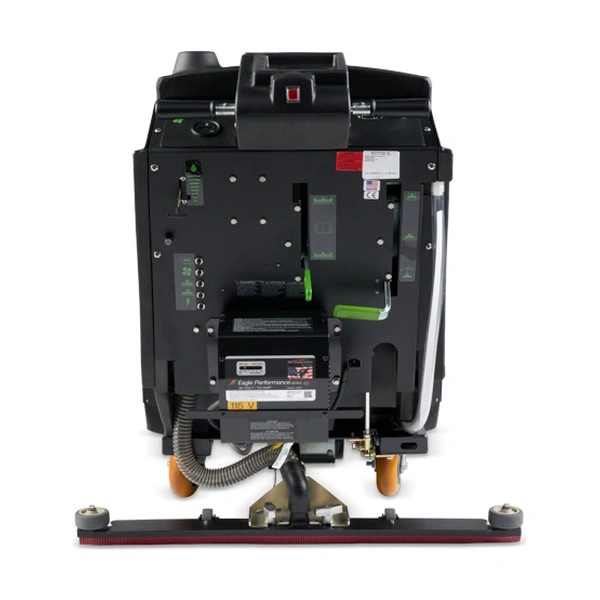

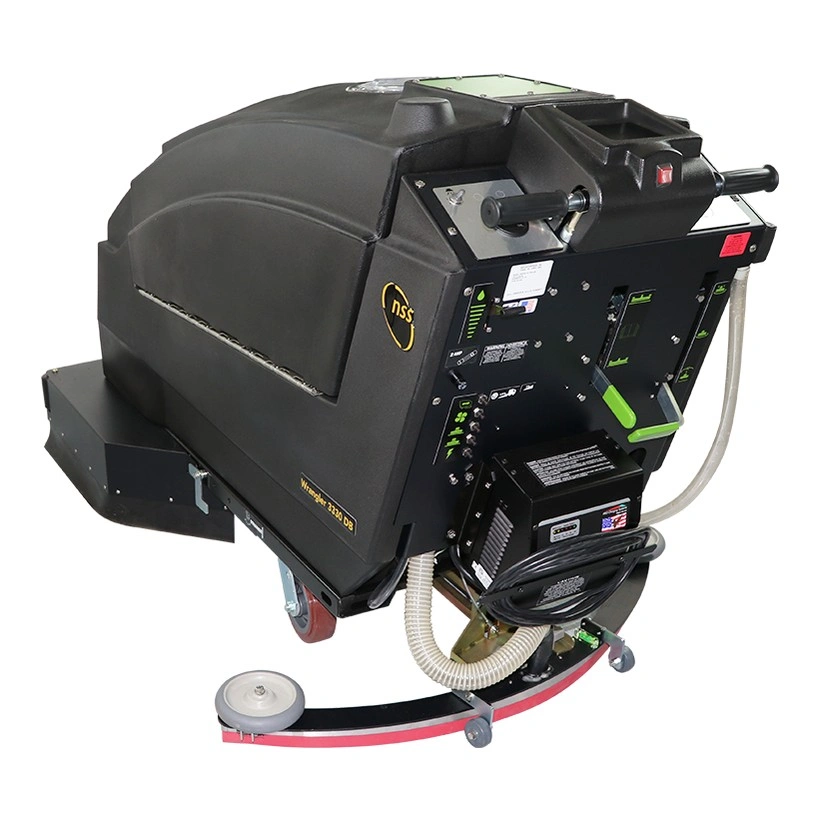

Simple enough to train in minutes
Features
Built for daily commercial use
- ✓Heavy-duty powder-coated 7-gauge steel frame with stainless steel hardware and rotomolded tanks
- ✓Ergonomic handle grips with a twist throttle, plus a safety switch that stops the machine if pressed
- ✓Centered brush motors, with an offset skirt design for cleaning along walls and edges
- ✓Side skirts can be removed or mounted upside down for easy transport between jobs
- ✓Bumper wheels protect walls and fixtures from accidental contact
Choosing a size
Wrangler 3330 DB or 2730 DB?
| Wrangler 3330 DB (this unit) | Wrangler 2730 DB | |
|---|---|---|
| Cleaning path | 33 in | 27 in |
| Brush / pad | 2 x 17 in | 2 x 14 in |
| Practical productivity | 20,400 sq ft/hr | 16,600 sq ft/hr |
| Dimensions (L x W x H) | 66 x 35.5 x 42 in | 64 x 30 x 42 in |
| Machine weight, 330 Ah AGM | 1,091 lb | 1,081 lb |
Both share the 30 gal solution tank, 32 gal recovery tank, 36 V system and controls. The 3330 covers more floor per pass, while the 2730 fits tighter aisles and doorways.
Specifications
NSS Wrangler 3330 DB at a glance
| Models | Wrangler 3330 DB, 330 Ah AGM |
|---|---|
| Cleaning path | 33 in (84 cm) |
| Brush / pad | 2 x 17 in, disk |
| Brush motor | 0.75 hp (560 W), 200 rpm |
| Pad pressure | 100 or 200 lb (45 or 91 kg) |
| Solution / recovery tanks | 30 gal (114 L) / 32 gal (125 L) |
| Solution flow | 0 to 1.0 GPM, manual valve |
| Productivity | 44,100 sq ft/hr theoretical (4,097 m²); 20,400 sq ft/hr practical (1,895 m²) |
| Vacuum motor | 0.75 hp (560 W), 73 CFM |
| Water lift | 70 in (178 cm) |
| Drive motor | 0.5 hp (370 W) |
| Drive speed | Forward up to 260 ft/min (79 m/min); reverse up to 175 ft/min (53 m/min) |
| Drive wheel | 10 x 4 in, non-marking rubber |
| Batteries | 6 x 6 V, 330 Ah AGM (36 V system) |
| Runtime | Up to 3.7 hr |
| Charger | Onboard |
| Sound level | 66 dBA |
| Dimensions (L x W x H) | 66 x 35.5 x 42 in (168 x 90 x 107 cm) |
| Machine weight | 1,091 lb (495 kg) |
| Shipping weight | 1,120 lb (508 kg) |
| Model Numbers | 3302276 (Wrangler 3330 DB, 330 Ah AGM kit) |
Technical specs may include optional equipment that is not included with all units.
Questions
NSS Wrangler 3330 DB: common questions
How long does the Wrangler 3330 DB run on a charge?
NSS rates the 330 Ah AGM battery package at up to 3.7 hours. Actual runtime depends on the floor, the pad pressure and how the machine is driven.
Do the AGM batteries need watering?
No. AGM batteries are sealed and maintenance free, with no cell caps to remove or water to add.
How much floor can it clean in an hour?
NSS rates the Wrangler 3330 DB at 20,400 sq ft per hour of practical productivity, with a theoretical maximum of 44,100 sq ft per hour.
Will it fit my aisles and doorways?
The Wrangler 3330 DB is 66 in long, 35.5 in wide and 42 in high. Measure your tightest doorway and aisle before you order.
Can it handle ramps?
NSS says never to climb a grade or operate the machine on a ramp or incline of more than 8 degrees, and never to stop or turn on a ramp.
Not sure the Wrangler 3330 DB fits your floors?
Tell our team about the floor, the building and the shift, and we will help you decide if this is the right machine.
