| Machine Type | Ride-on scrubber |
|---|---|
| Cleaning Path Width | 35 in (889 mm) |
| Power Source | Battery (electric) |
| Battery Type | AGM (Absorbent Glass Mat) |
| Battery Capacity | 330 Ah |
| Solution Tank Capacity | 35 gal (132 L) |
| Recovery Tank Capacity | 35 gal (132 L) |

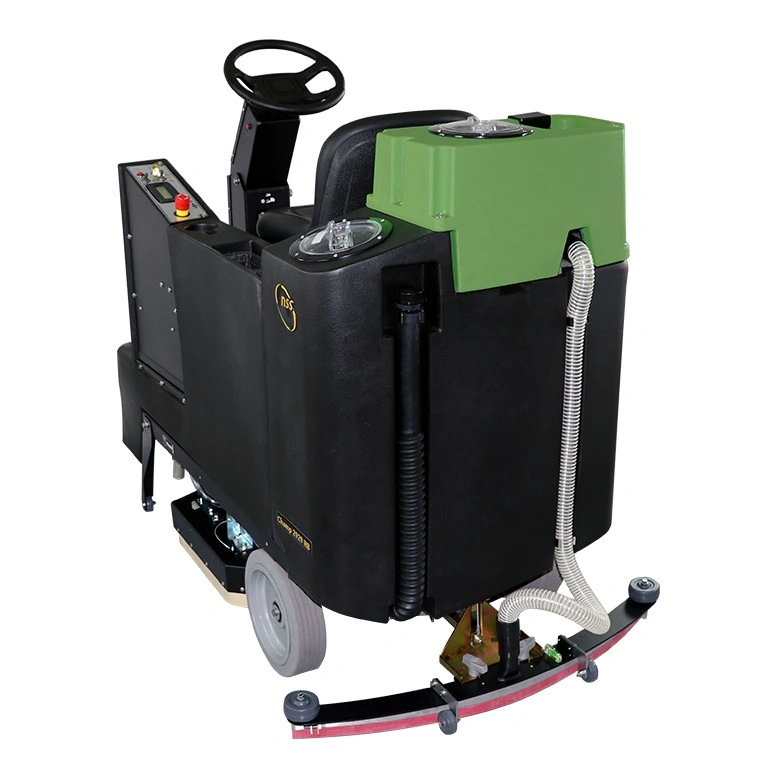

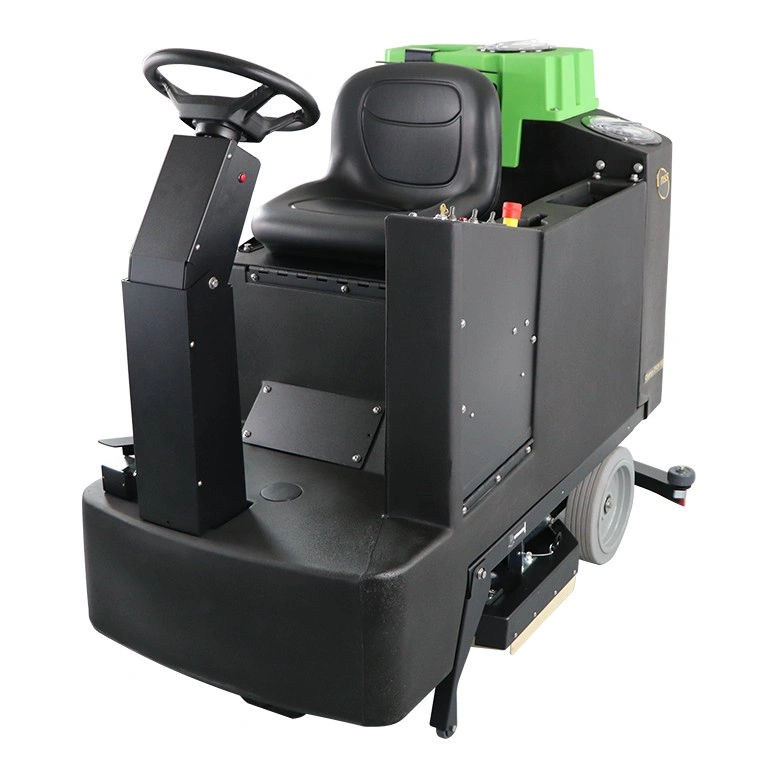

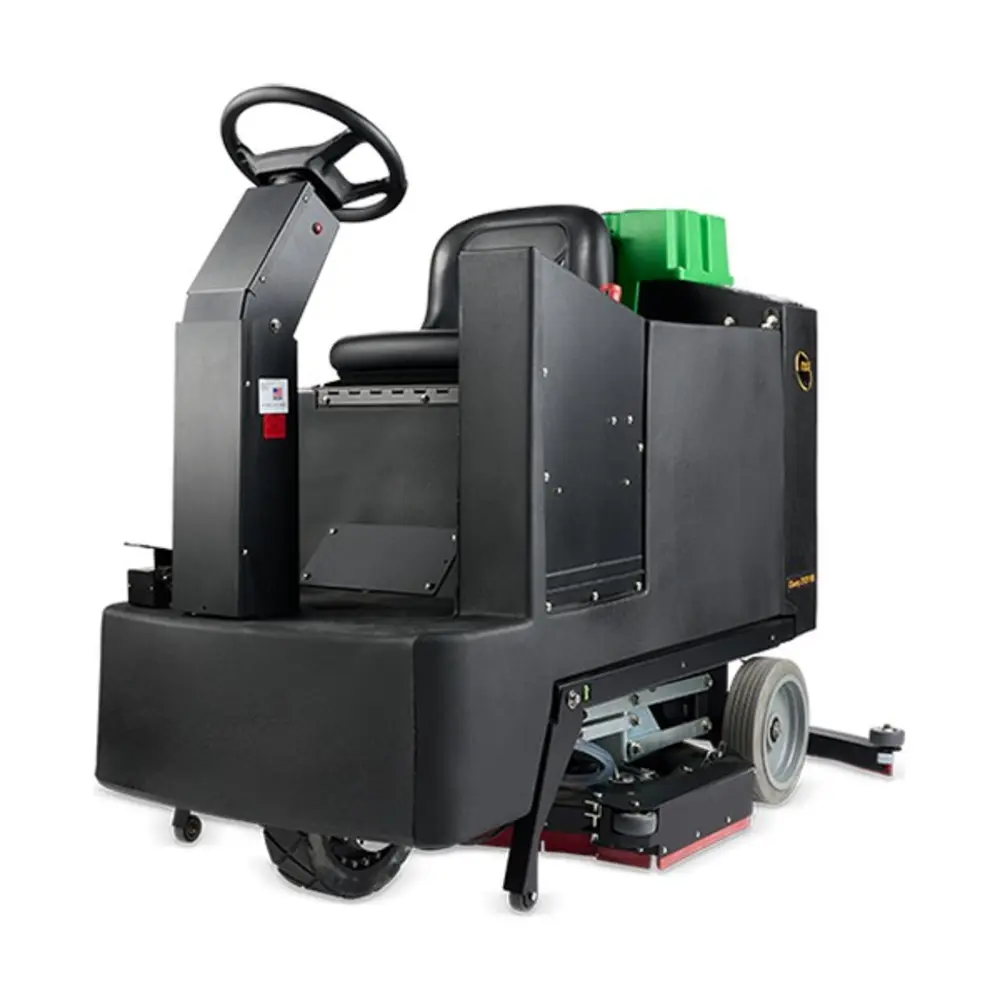

New NSS CHAMP 3529 35" Rider Scrubber - 330Ah AGM Battery
Our Take (from the SES Sales Team)
“The Champ 3529 is the widest rider in the NSS Champ line, built for buildings with long corridors and open floors: large schools, big retail stores, warehouses and distribution space. Two 18 in brushes or pads clean a 35 in path, and NSS rates it at 22,350 sq ft per hour of practical coverage. Compared with the Champ 2929, it steps up to a 1 hp vacuum motor with 99 CFM and 80 in of water lift, and its brush motor runs at 220 or 300 rpm. The 36 V system is the other reason it stands out. NSS says it delivers up to 30 percent more run time than a comparably configured 24 V machine, and the 330 Ah AGM batteries in this unit are rated for up to 3.5 hours with no battery watering. The charger is on board, so it plugs in at any outlet. The single front drive wheel turns 90 degrees each way, so it can turn around in 67 to 70 in. If your aisles are tighter, the Champ 2929 and 3329 are the smaller sizes.”
A 35 in rider scrubber with 36 V power
The NSS Champ 3529 is a ride-on automatic floor scrubber for large schools, retail stores, warehouses and other wide-open commercial floors. Two 18 in brushes or pads clean a 35 in path, a 29 gal solution tank and 32 gal recovery tank keep it working between fills, and NSS rates it at 22,350 sq ft per hour of practical productivity (47,800 sq ft per hour theoretical).
This configuration runs on six 6 V, 330 Ah AGM batteries, sealed and maintenance free, with up to 3.5 hours of runtime. A universal 36 V onboard charger lets you charge wherever there is an outlet, and the machine comes with pad drivers and the squeegee.
Condition: New.
What you get
Ready to clean, with no battery watering
Why 36 V matters
Features
Built to stay on the job
- ✓Single front drive wheel turns 90 degrees each way, so it turns around in 67 to 70 in
- ✓1 hp vacuum motor pulls 99 CFM with 80 in of water lift, the largest of the three Champ rider sizes
- ✓7-gauge powder-coated steel frame runs the full length of the machine, with stainless steel hardware
- ✓Anti-roll bar protects against accidental tipping if the operator turns too quickly
- ✓Flip-up battery cover gives easy access to the 36 V battery system
Choosing a size
Champ 2929, 3329 or 3529?
| Champ 2929 | Champ 3329 | Champ 3529 (this unit) | |
|---|---|---|---|
| Cleaning path | 29 in | 33 in | 35 in |
| Brush / pad | 2 x 15 in | 2 x 17 in | 2 x 18 in |
| Vacuum motor | 0.75 hp, 72 CFM | 0.75 hp, 72 CFM | 1.0 hp, 99 CFM |
| Practical productivity | 18,500 sq ft/hr | 21,000 sq ft/hr | 22,350 sq ft/hr |
All three share the 36 V system, 29 gal solution and 32 gal recovery tanks, and the 67 to 70 in turnaround. The Champ 3529 is also offered with 350 Ah wet batteries (up to 4.0 hr), which cost less up front but need regular watering.
Specifications
NSS Champ 3529 at a glance
| Models | Champ 3529, 330 Ah AGM |
|---|---|
| Cleaning path | 35 in (889 mm) |
| Brush / pad | 2 x 18 in |
| Brush motor | 2.5 hp (1,860 W), 220 or 300 rpm |
| Pad pressure | 115 or 230 lb (52 or 104 kg) |
| Solution / recovery tanks | 29 gal (110 L) / 32 gal (121 L) |
| Productivity | 47,800 sq ft/hr theoretical (4,440 m²); 22,350 sq ft/hr practical (2,070 m²) |
| Vacuum motor | 1.0 hp (746 W), 99 CFM (2.8 m³/min) |
| Water lift | 80 in (203 cm) |
| Drive motor | 1.0 hp (746 W) |
| Drive speed | 240 ft/min (73 m/min) |
| Drive wheel | 12 x 4 in (30 x 10 cm), slip-resistant non-marking rubber |
| Batteries | 6 x 6 V, 330 Ah AGM (36 V system) |
| Runtime | Up to 3.5 hr |
| Charger | 36 V universal onboard |
| Sound level | 69 dBA |
| Dimensions (L x W x H) | 69 x 43 x 53 in (175 x 109 x 135 cm) |
| Width with squeegee | 46 in (1,168 mm) |
| Turnaround space | 67 to 70 in |
| Machine weight | 1,326 lb (601 kg) |
| Shipping weight | 1,475 lb (669 kg) |
| Model Numbers | 7603594 (Champ 3529, 330 Ah AGM, universal onboard charger, pad drivers, squeegee) |
Technical specs may include optional equipment that is not included with all units.
Questions
NSS Champ 3529: common questions
How long does the Champ 3529 run on a charge?
NSS rates the 330 Ah AGM battery package at up to 3.5 hours. Actual runtime depends on the floor, the pad pressure and how the machine is driven.
Do the AGM batteries need watering?
No. AGM batteries are sealed and maintenance free, with no cell caps to remove. The onboard charger is set for flooded and AGM batteries as standard.
How much floor can it clean in an hour?
NSS rates the Champ 3529 at 22,350 sq ft per hour of practical productivity, with a theoretical maximum of 47,800 sq ft per hour.
Will it fit my aisles and doorways?
The Champ 3529 is 69 in long, 43 in wide and 53 in high, and 46 in wide across the squeegee. It needs only 67 to 70 in to turn around. Measure your tightest doorway and aisle before you order.
How is the 3529 different from the Champ 2929?
The 3529 cleans a 35 in path instead of 29 in, uses 18 in pads instead of 15 in, and has a larger 1 hp, 99 CFM vacuum motor with 80 in of water lift. It is also wider, at 43 in compared with 33 in.
Not sure the Champ 3529 fits your floors?
Tell our team about the floor, the building and the shift, and we will help you decide if this is the right machine.
