| Machine Type | Walk-Behind Carpet Extractor |
|---|---|
| Cleaning Path Width | 16 in (406 mm) |
| Power Source | Electric (corded) |
| Solution Tank Capacity | 3.5 gal (13.2 L) |
| Recovery Tank Capacity | 3.5 gal (13.2 L) |

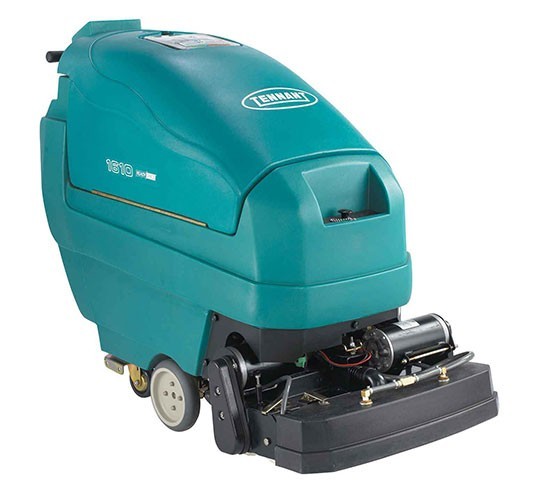

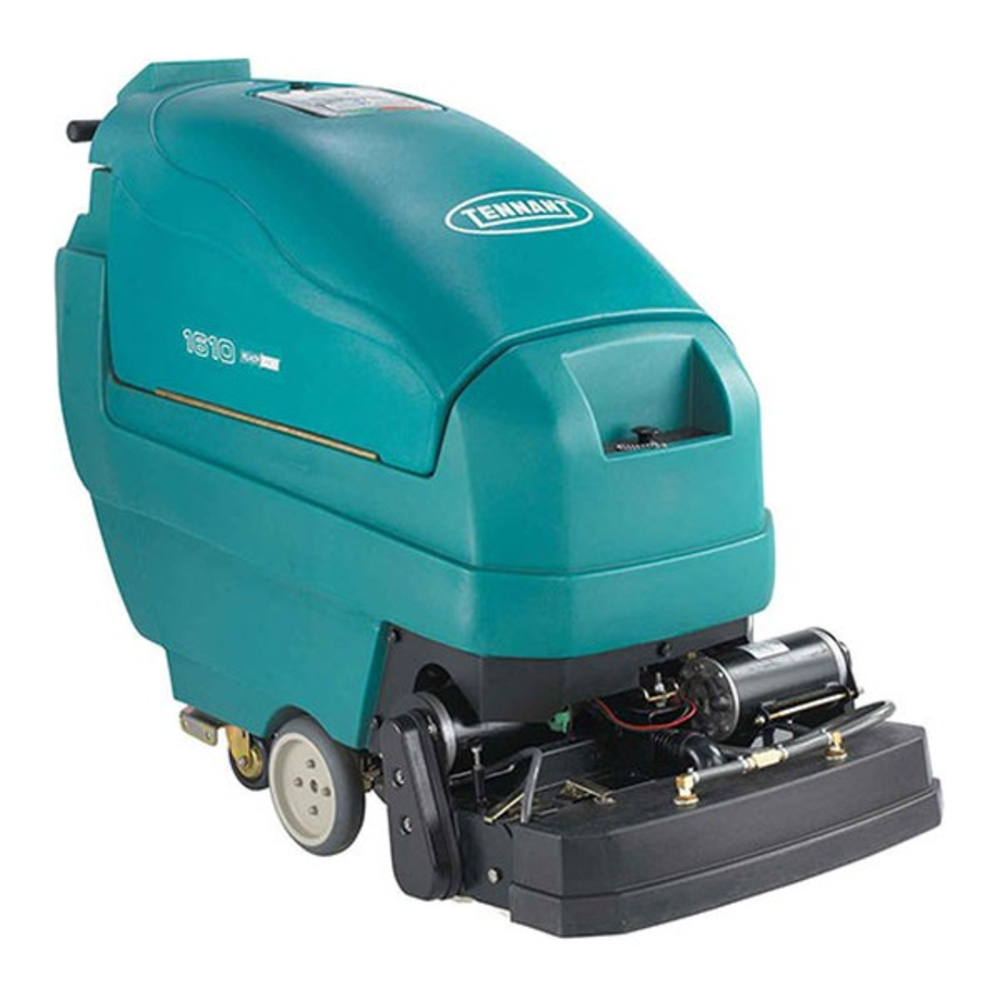

New Tennant 1610 22" Walk-Behind Carpet Extractor with Dual Technology
Our Take (from the SES Sales Team)
“The 1610 is the walk-behind we suggest when a building wants one carpet machine for both everyday maintenance and periodic deep cleaning: hotels, libraries, schools, healthcare and office space. ReadySpace is the interim mode, and Tennant says it cleans and dries carpet in less than 30 minutes, so lobbies and corridors can go back into use quickly. Tennant puts the typical ReadySpace rate at 6,000 to 10,000 sq ft per hour. When traffic lanes need more, switch to restorative extraction, with two 3-stage vacuum motors and 120 in of water lift pulling the dirty solution back out. Counter-rotating 22 in rollers or brushes give the carpet double agitation in one pass. The 21 gal solution and recovery tanks are big for a walk-behind, the debris tray keeps hoses and drains from clogging, and the Hygenic tanks open fully for cleaning. It runs on four 6 V wet batteries with an off-board charger, and Tennant rates run time at up to 2.5 hours. For very large carpeted areas, the R14 is the ride-on version.”
A 22 in battery carpet cleaner with ReadySpace and deep extraction
The Tennant 1610 is a battery-powered walk-behind dual technology carpet cleaner for hotels, libraries, schools, healthcare facilities and offices. ReadySpace rapid-drying interim cleaning and restorative deep extraction share one machine, with a 22 in cleaning path and 21 gal solution and recovery tanks.
This is the Tennant 1610 base build: four 6 V, 240 Ah wet batteries, a 19 A off-board charger, one set of ReadySpace rollers and one set of extraction brushes, high-traction tires, and the operator manual and video.
Condition: New.
What you get
Both cleaning modes in the box
Why ReadySpace matters
Features
Built for carpet care
- ✓Counter-rotating rollers give double agitation in one pass
- ✓Two 3-stage vacuum motors with 120 in of water lift
- ✓Debris tray helps prevent clogged hoses and drains
- ✓Fully cleanable Hygenic solution and recovery tanks
- ✓Battery discharge indicator and hour meter
Two modes
ReadySpace or restorative extraction?
| ReadySpace (interim) | Restorative extraction | |
|---|---|---|
| Typical rate | 6,000 to 10,000 sq ft/hr (560 to 930 m²) | 2,000 to 4,000 sq ft/hr (185 to 370 m²) |
| Theoretical maximum | 13,200 sq ft/hr (1,226 m²) | 5,500 sq ft/hr (510 m²) |
| Head | ReadySpace rollers | Extraction brushes |
| Best for | Frequent maintenance, fast return to use | Heavier soil and traffic lanes |
Both rollers and brushes come with the machine.
Specifications
Tennant 1610 at a glance
| Models | 1610 Dual Technology 22 in |
|---|---|
| Cleaning path | 22 in (560 mm) |
| Productivity (typical) | 6,000 to 10,000 sq ft/hr ReadySpace; 2,000 to 4,000 sq ft/hr extraction |
| Rollers / brushes | 22 in (560 mm), nylon |
| Brush motors | 2 x 0.625 hp, 700 rpm |
| Solution pressure | 100 psi (6.9 bar) |
| Solution / recovery tanks | 21 gal (79 L) / 21 gal (79 L) |
| Vacuum motors | 2 x 3-stage, 0.64 hp (0.48 kW) |
| Airflow / water lift | 65 cfm (1.84 m³/min) / 120 in (3,048 mm) |
| Max ramp | 11° transport; 3° cleaning |
| Batteries | 4 x 6 V, 240 Ah wet |
| Run time | Up to 2.5 hr |
| Charger | Off-board, 19 A, 120 to 240 V |
| Sound level | 72 dBA |
| Dimensions (L x W x H) | 60 x 28 x 42 in (1,524 x 710 x 1,066 mm) |
| Weight | 590 lb with batteries (268 kg); 340 lb without (153 kg) |
| Certification | CRI certified, Bronze cleaning performance |
| Model Numbers | 1610-560-2000063 (Tennant 1610 22 in base configuration) |
Technical specs may include optional equipment that is not included with all units.
Questions
Tennant 1610: common questions
How fast does the carpet dry?
In ReadySpace mode, Tennant says carpet is clean and dry in less than 30 minutes. Drying in extraction mode takes longer and depends on the carpet, airflow and humidity.
How much carpet can it clean in an hour?
Tennant puts the typical rate at 6,000 to 10,000 sq ft per hour in ReadySpace mode and 2,000 to 4,000 sq ft per hour in extraction mode.
How long does it run on a charge?
Tennant rates the 1610 at up to 2.5 hours on its four 6 V, 240 Ah wet batteries.
Will it fit through my doorways?
The 1610 is 60 in long, 28 in wide and 42 in high. Measure your narrowest doorway and any elevator before you order.
Not sure the 1610 fits your carpet?
Tell our team about the floor, the building and the shift, and we will help you decide if this is the right machine.
