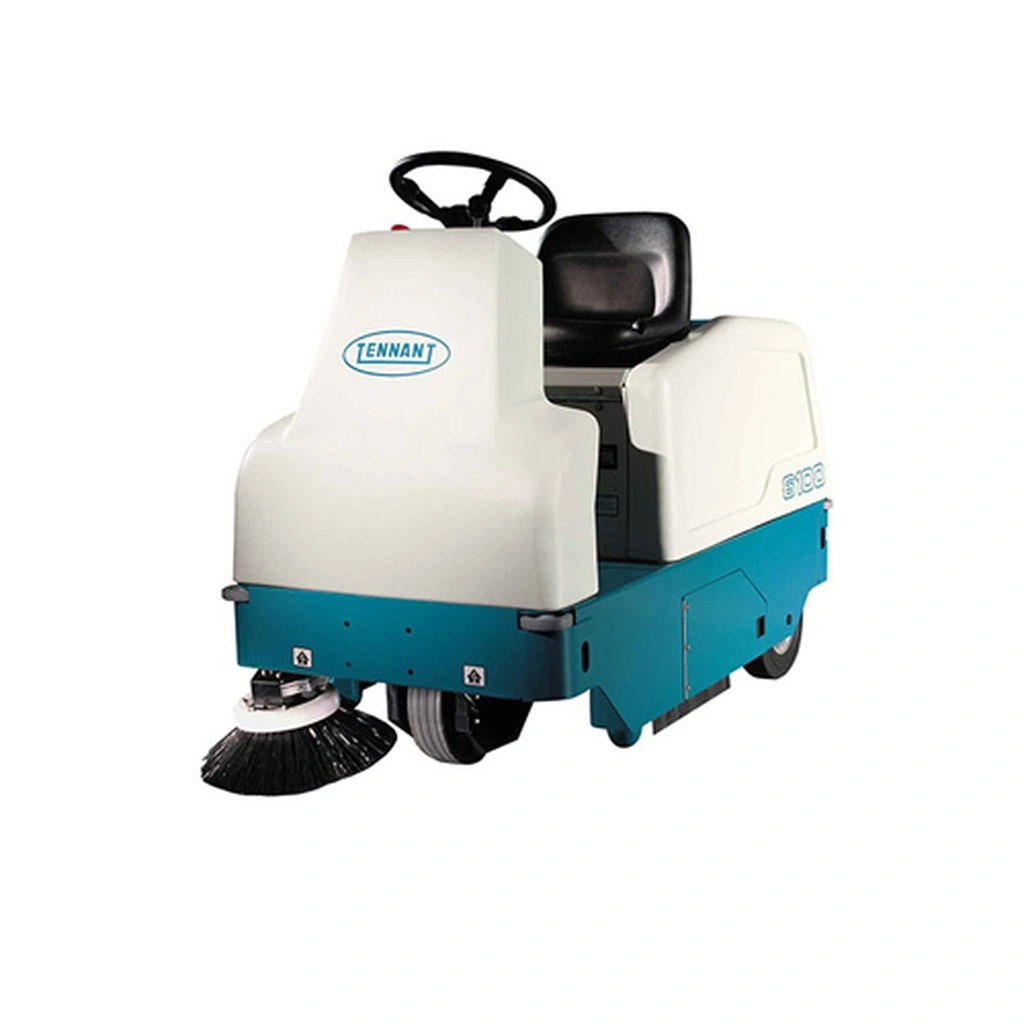

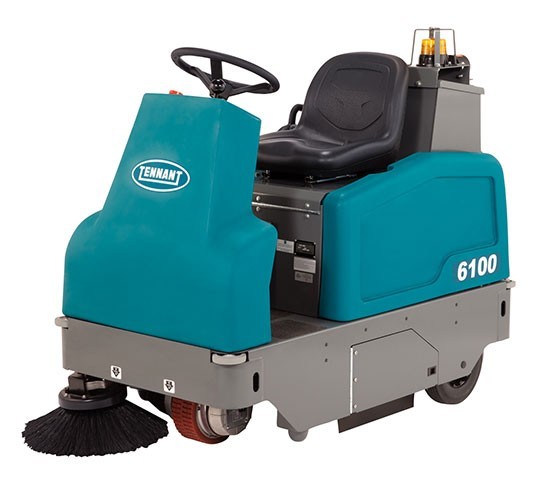

New Tennant 6100 Battery Rider Sweeper
Our Take (from the SES Sales Team)
“The 6100 is Tennant's sub-compact rider, and its size is the point. At 31.8 in wide it is built to pass through 36 in doorways and work down narrow aisles where a bigger rider cannot go, but the operator still rides instead of walking. It sweeps a 30 in path with the standard right side brush, or 38 in with optional dual side brushes, and Tennant rates average coverage at 35,640 sq ft per hour with the single side brush. The 36 V system runs up to 3.4 hours on the base 225 Ah batteries, and battery power means no fumes, so it fits indoor work in warehouses, schools, hospitals and retail stores. A multi-stage filter system with a shaker holds dust down while it sweeps, and the hopper rolls out on its own wheels for dumping. The 3 cu ft hopper is sized for routine sweeping. If you are picking up heavy debris or sweeping big outdoor lots, a larger rider such as the S16 is the better fit.”
A sub-compact battery rider that fits where big sweepers cannot

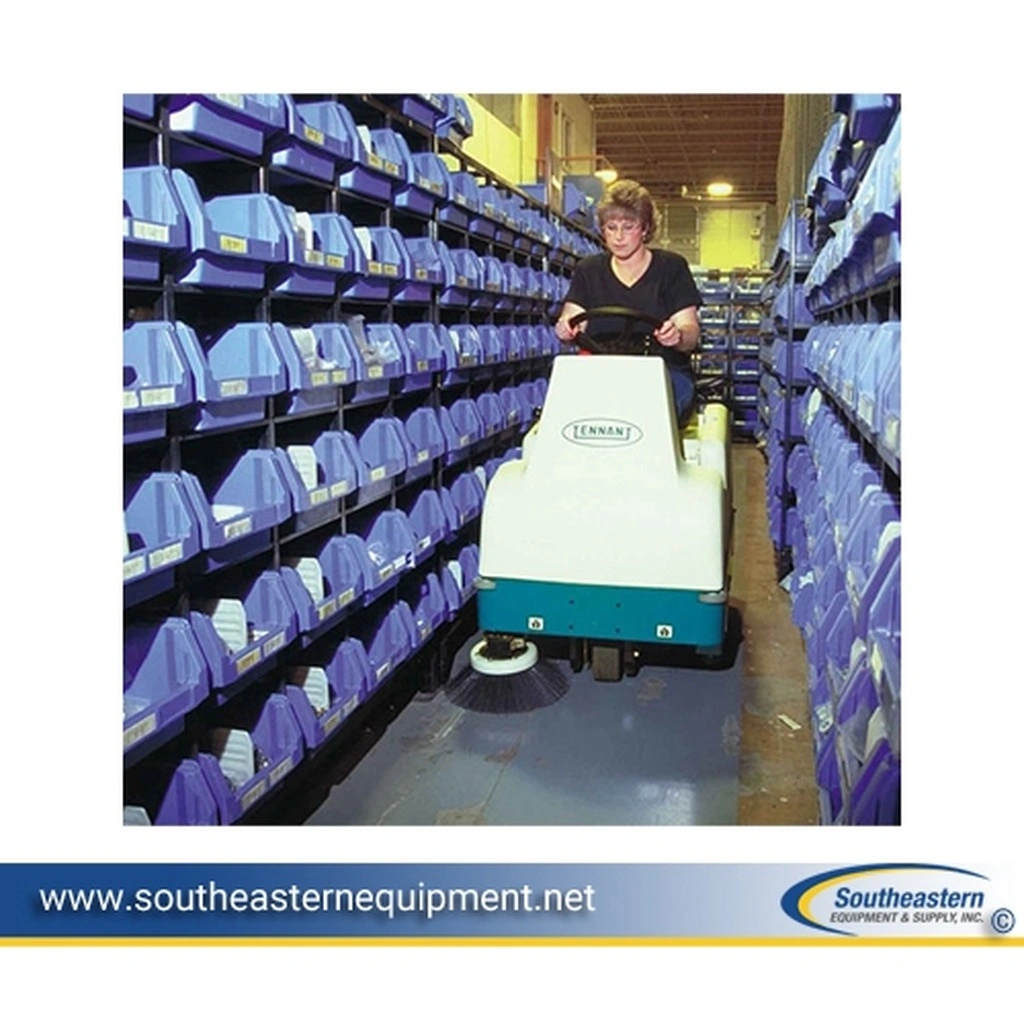

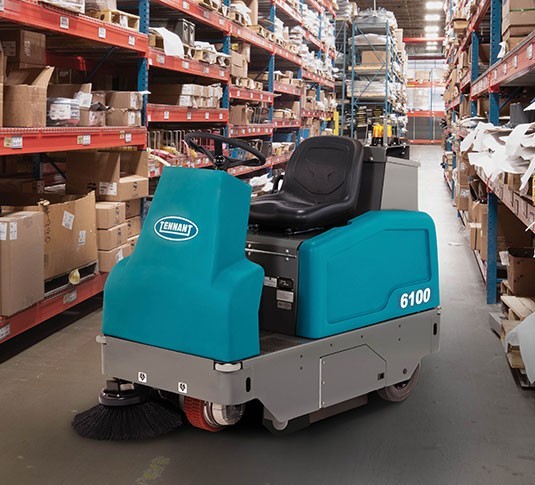

The Tennant 6100 is a battery-powered ride-on sweeper for warehouses, manufacturing plants, schools, airports, convention centers and other buildings with tight aisles and standard doorways. A 22 in main brush and a 16 in side brush sweep a 30 in path in one pass, debris goes into a 3 cu ft hopper, and Tennant rates average coverage at 35,640 sq ft per hour.
This base configuration runs on a 36 V wet battery pack (225 Ah) for up to 3.4 hours, with an off-board charger. Battery power keeps it quiet and fume-free for indoor sweeping.
Condition: New.
What you get
Base 6100 battery configuration
Built for tight spaces
Features
Simple to run, easy to maintain

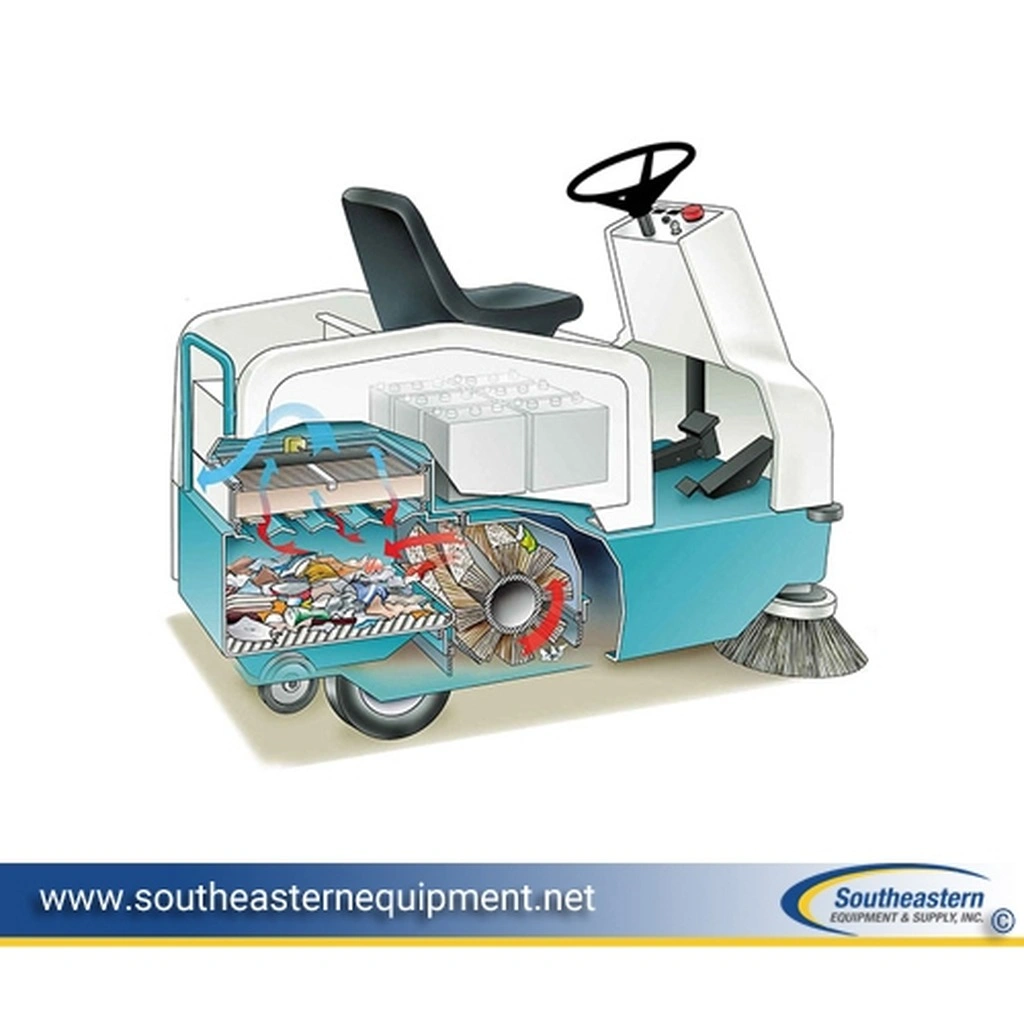

- ✓Multi-stage dust control with a Perma-Filter, a panel filter and a timed filter shaker
- ✓AutoAdjust brush cavity keeps the main brush at the right height as the bristles wear
- ✓Flap-and-trap pedal lets the operator pick up larger debris and leave a clean path
- ✓No-tool access to common maintenance items, plus no-tool brush and filter changes
- ✓Heavy-gauge steel frame and a corrosion-proof Duramer hopper and shrouds
Choosing a setup
Single or dual side brush?
| Single side brush (this unit) | Dual side brush (option) | |
|---|---|---|
| Sweeping path | 30 in (760 mm) | 38 in (970 mm) |
| Average coverage per hour | 35,640 sq ft (3,320 m²) | 46,200 sq ft (4,300 m²) |
| Maximum coverage per hour | 66,000 sq ft (6,100 m²) | 83,600 sq ft (7,720 m²) |
Average coverage is figured at 3 mph with a 3 in overlap. Maximum coverage is at full speed with no overlap.
Specifications
Tennant 6100 at a glance
| Models | 6100 Battery Rider Sweeper, base configuration |
|---|---|
| Sweeping type | Overthrow |
| Sweeping path | 30 in (760 mm) single side brush; 38 in (970 mm) dual side brush |
| Main brush | 22 in (560 mm) tubular, no-tool change |
| Side brush | 16 in (410 mm) disk |
| Hopper capacity | 3 cu ft (85 L), 200 lb (91 kg) |
| Average coverage, single side brush | 35,640 sq ft per hour |
| Power source | Battery, 36 V |
| Batteries / runtime | 225 Ah wet: up to 3.4 hours |
| Charger | 21 A off-board |
| Propel motor | 1.34 hp (1.0 kW) DC drive |
| Travel speed | Up to 5.0 mph forward (8.0 km/h), 3.0 mph reverse (4.8 km/h) |
| Gradeability | 8 degrees (14.1%) full hopper; 10 degrees (17.6%) empty |
| Dust filtration | Panel filter to 1 micron at 95%; optional HEPA to 0.3 micron at 99.97% |
| Panel filter area | 33.7 sq ft (3.1 m²) |
| Length x width x height | 59.9 x 31.8 x 46.4 in (1,520 x 810 x 1,180 mm) |
| Minimum aisle turn | 72 in (1,830 mm) |
| Ground clearance | 2.7 in (68.3 mm) |
| Weight, net with base batteries | 1,110 lb (503 kg) |
| Safety | Thermo-Sentry, UL type E, seat switch, horn, power shutdown switch |
| Model Numbers | Tennant 6100-B, reference 2000076 (6100 battery rider sweeper) |
Technical specs may include optional equipment that is not included with all units.
Questions
Tennant 6100: common questions
Will the 6100 fit through a standard doorway?
Tennant builds the 6100 with 36 in doorway pass-through clearance. The machine is 31.8 in wide and needs a 72 in aisle to turn around.
How long does it run on a charge?
Tennant rates the base 225 Ah batteries at up to 3.4 hours. Actual runtime depends on the floor, the debris and how the machine is driven.
Can it sweep carpet?
Yes. Tennant says the 6100 cleans hard and soft floors, and offers non-marking tires and a carpet brush as options for carpeted spaces.
How do you empty the hopper?

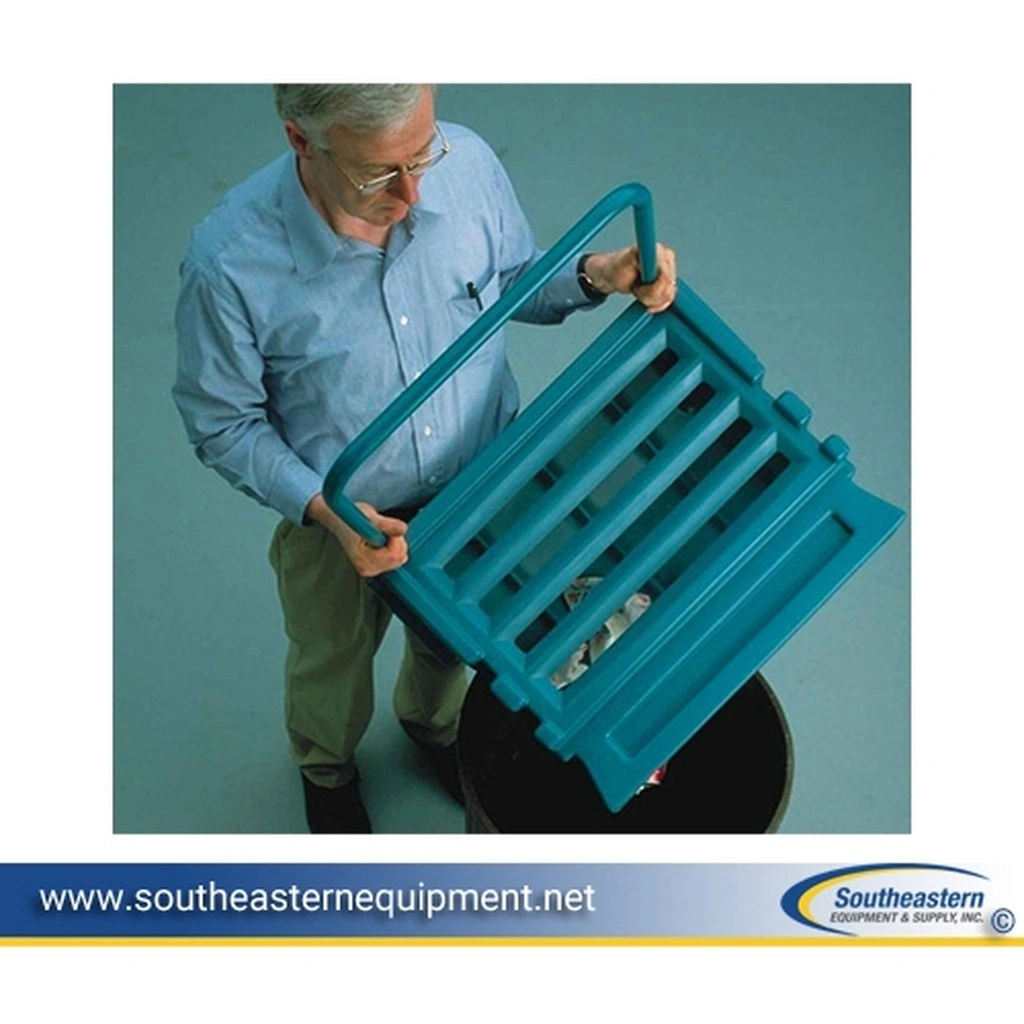

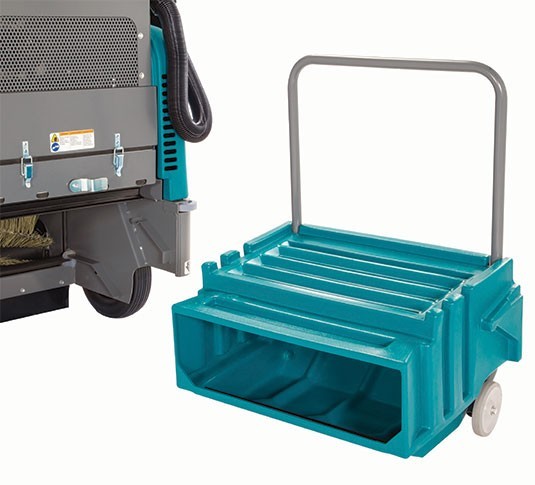

The 3 cu ft hopper glides out of the machine on built-in wheels with a handle, so the operator can roll it to the dumpster.
Can I add a second side brush or a vacuum wand?
Yes. Tennant offers dual side brushes, which widen the sweep path to 38 in, plus a dry vacuum wand, HEPA filtration and light packages as options.
