| Machine Type | Walk-Behind Sweeper |
|---|---|
| Power Source | Battery (Electric) |
| Cleaning Path Width | 32 in (813 mm) |
| Hopper Capacity | 1.3 cu ft (37 L) |
| Machine Weight | approximately 163 lb (74 kg) |
| Sound Level | 68 dB(A) |

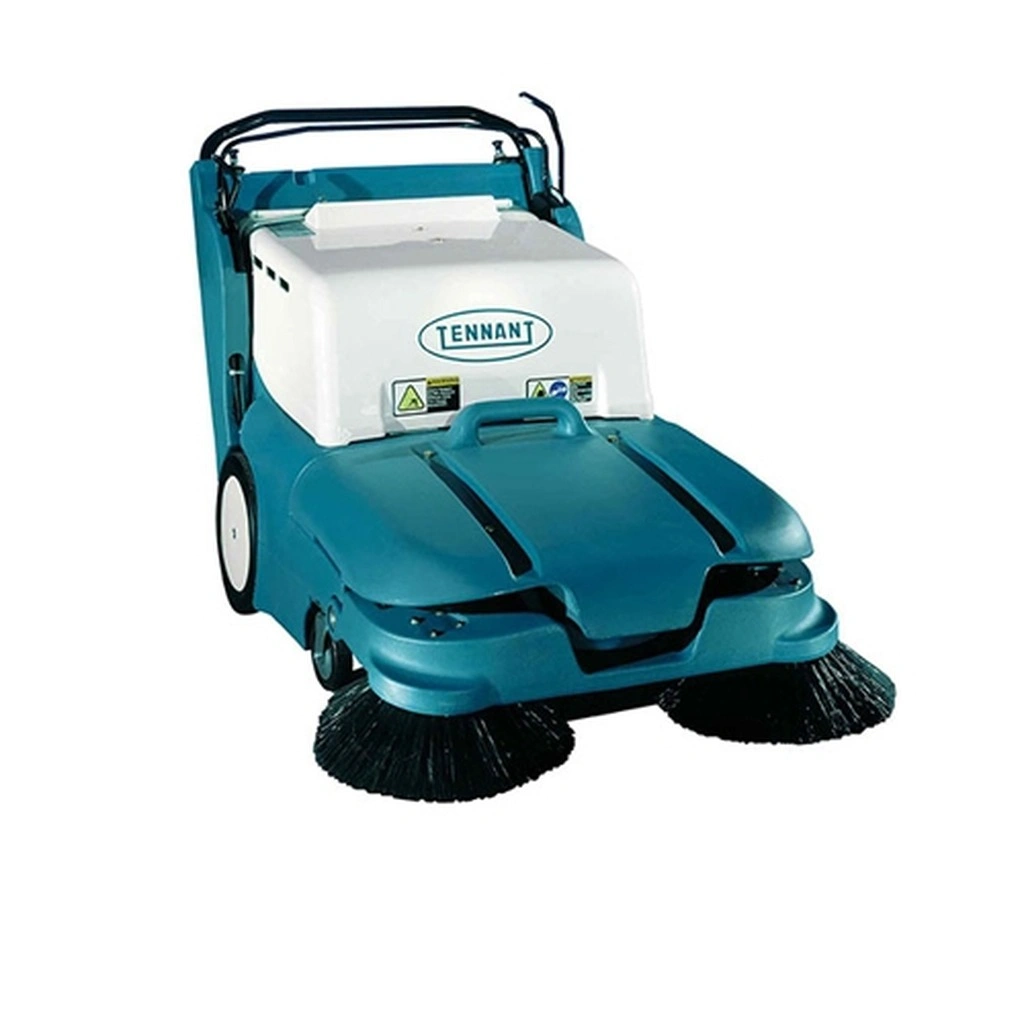

New Tennant 3640 Battery Walk-Behind Sweeper
Our Take (from the SES Sales Team)
“The 3640 is a battery walk-behind sweeper for manufacturing plants, warehouses, parking decks, retail back rooms and sidewalks, anywhere a push broom is too slow and a rider is more machine than you need. The 24 in main broom and right-hand side brush sweep a 32 in path, and Tennant rates it at up to 25,000 sq ft per hour. It throws debris directly into a 3 cu ft hopper, and the panel filter with a timed shaker plus the high airflow system keep dust down while you sweep. The propel system is variable forward and reverse up to 2.9 mph, so the operator walks at a comfortable pace instead of pushing. Main and side brushes are self-adjusting and the main broom is quick-release, so brush changes take no tools. It runs on two 130 Ah wet batteries with an off-board charger, and Tennant rates that pack at 2 to 3 hours. For outdoor work, rougher floors or carpet, Tennant offers options like pneumatic tires, dual side brushes and a carpet package.”
A 32 in battery walk-behind sweeper for indoor and outdoor work
The Tennant 3640 E is a battery-powered, self-propelled walk-behind broom sweeper for manufacturing, warehouse, retail and commercial floors, indoors and out. A 24 in main broom and a right-hand side brush sweep a 32 in path into a 3 cu ft hopper, with variable-speed propel up to 2.9 mph.
This is the Tennant 3640 E base build: two 130 Ah wet batteries, an 11 A off-board charger, UL Type E rating, a right-hand side brush, a main broom, the panel filter with timed shaker and the high airflow system.
Condition: New.
What you get
Ready to sweep
Options to ask about
Features
Simple to run, simple to maintain
- ✓Variable forward and reverse propel speed, up to 2.9 mph forward

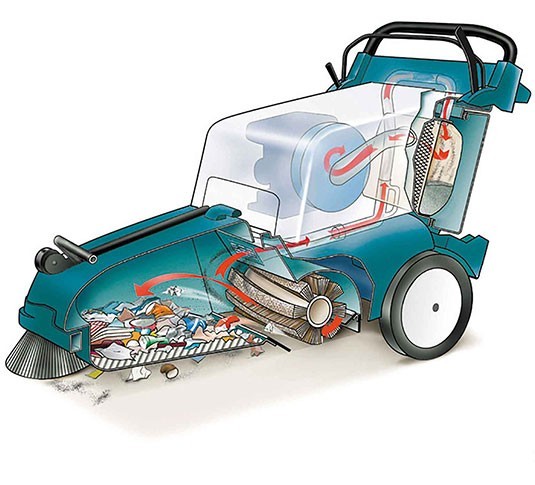

- ✓Direct throw sweeping into a free-floating 3 cu ft hopper

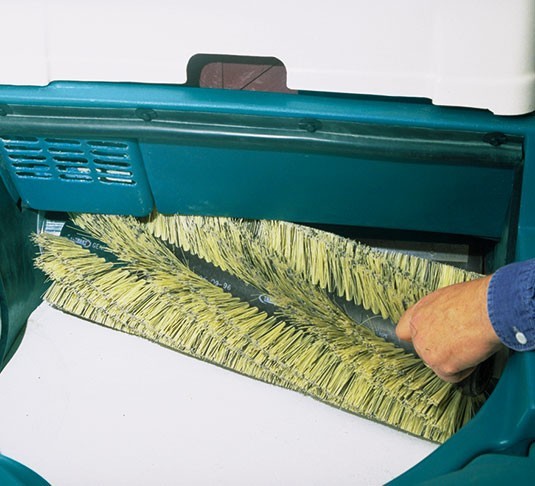

- ✓Quick-release main broom and no-tool brush changes
- ✓Control handle adjusts to the operator's height
- ✓Battery discharge indicator with hour meter, parking brake and key switch
Choosing batteries
3640 battery options
| 130 Ah wet (this unit) | Extended run time wet | |
|---|---|---|
| Run time | 2 to 3 hr | 2.5 to 4.5 hr |
| Net weight (empty) | 385 lb (175 kg) | 485 lb (220 kg) |
| Charger | 11 A off-board | 19 A off-board |
Runtime varies with the options installed and the application.
Specifications
Tennant 3640 E at a glance
| Models | 3640 E Battery Sweeper |
|---|---|
| Sweep path | 32 in (815 mm) with single side brush; 40 in (1,015 mm) with dual side brushes |
| Productivity | Up to 25,000 sq ft/hr (2,322 m²) |
| Main brush | 24 in (610 mm), 430 rpm |
| Side brush | 16.5 in (420 mm) diameter |
| Hopper capacity | 3.0 cu ft litter (85 L); 1.5 cu ft sand (42 L); 130 lb (59 kg) |
| Panel filter | 92% @ 3 micron, 39 sq ft (4 m²) |
| Vacuum fan | 5,350 rpm |
| Propel speed | Up to 2.9 mph forward (5 km/h); 1.3 mph reverse (2.0 km/h) |
| Propel motor | 1.0 hp (0.7 kW) |
| Gradeability | 8° (14.1%) |
| Batteries | 2 x 130 Ah wet |
| Run time | 2 to 3 hr |
| Charger | Off-board, 11 A |
| Sound level | 71 dBA |
| Dimensions (L x W x H) | 56.25 to 58 x 32.25 x 34.7 to 37.7 in (1,430 to 1,475 x 820 x 880 to 955 mm), varies with handle position |
| Weight | 385 lb, empty, with 130 Ah batteries (175 kg) |
| Model Numbers | 3640-E-2000098 (Tennant 3640 E base configuration) |
Technical specs may include optional equipment that is not included with all units.
Questions
Tennant 3640: common questions
Can it sweep outdoors?
Yes. Tennant designs the 3640 for indoor and outdoor sweeping. For rough outdoor surfaces, the wide-track pneumatic tire and caster kit is an option.
How long does it run on a charge?
Tennant rates the standard 130 Ah pack at 2 to 3 hours and the extended run time pack at 2.5 to 4.5 hours. Options and the application affect run time.
How much does the hopper hold?
The hopper holds 3 cu ft of litter or 1.5 cu ft of sand, up to 130 lb.
Can I get a wider path?
Yes. Dual side brushes are a factory option that widens the sweep path from 32 in to 40 in.
Will it fit through my doorways?
The 3640 is 32.25 in wide, 56.25 to 58 in long and 34.7 to 37.7 in high, depending on handle position. Measure your narrowest doorway before you order.
Not sure the 3640 fits your floors?
Tell our team about the floor, the building and the shift, and we will help you decide if this is the right machine.
