| Machine Type | Heated Canister Extractor |
|---|---|
| Power Source | Electric (corded) |
| Heating Method | In-line water heater |
| Voltage | 120V |
| Solution Tank Capacity | 3.9 gal (15 L) |
| Recovery Tank Capacity | 3.9 gal (15 L) |

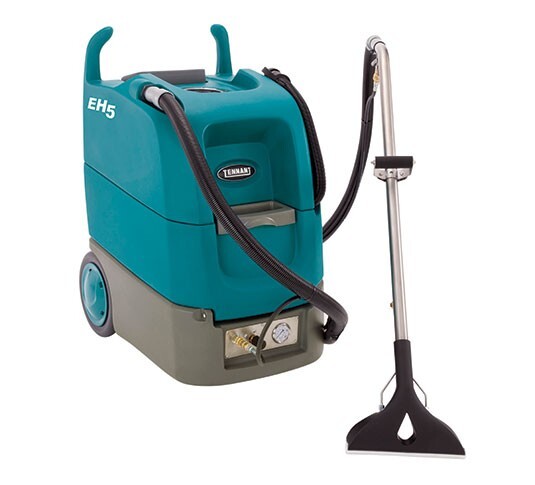

New Tennant EH5 Heated Canister Extractor
Our Take (from the SES Sales Team)
“The EH5 is the heated canister extractor we suggest when you need real cleaning power on carpet without bringing in a truck mount. It has an in-line heater and a pump adjustable from 50 to 500 psi, so you can run low pressure on delicate carpet or upholstery and turn it up for heavy soil. The 15 gal solution tank and 13.5 gal recovery tank mean long runs between fill and dump, and 15 ft hoses let the operator cover a lot of carpet without moving the machine. Tennant ships it with a 13 in High Airflow Titanium wand with two Unijets, which is part of why the line earned the Carpet and Rug Institute Gold Seal. It runs on two 40 ft hospital grade cords, each on its own 15 A circuit, and a circuit locator light shows when both are ready. A pressure gauge on the front shows exactly where you are. Hotels, healthcare and office buildings get the most from it. Hand tools are sold separately.”
A heated 500 psi canister extractor with a Titanium wand
The Tennant EH5 is a heated canister carpet extractor for hotels, healthcare facilities, offices and schools. An in-line heater and a pump adjustable from 50 to 500 psi handle everything from routine cleaning to heavy soil, and a three-stage vacuum motor pulls water back out so carpets dry faster.
Tennant's package includes a 13 in (330 mm) High Airflow Titanium carpet wand with two Unijets, 15 ft (4.5 m) vacuum and solution hoses, and two 40 ft (12.2 m) hospital grade safety yellow power cords (dual 15 A cords). Hand tools are sold separately.
Condition: New.
What you get
Ready to extract
Why the pressure range matters
Features
Power without the hassle
- ✓Easy-access fill port keeps the operator in an ergonomic position
- ✓Easy-empty stretch drain hose

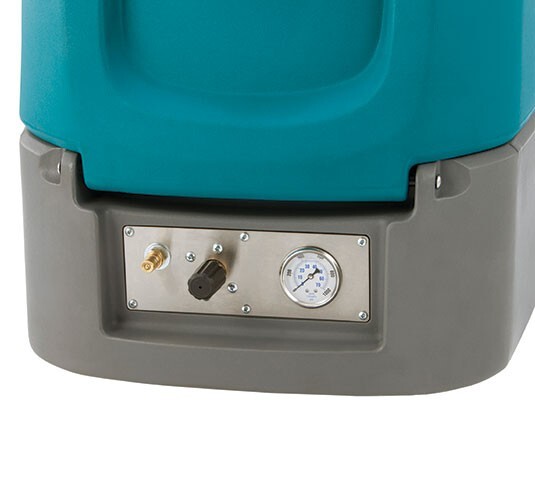

- ✓Visible pressure gauge shows the in-use pressure range

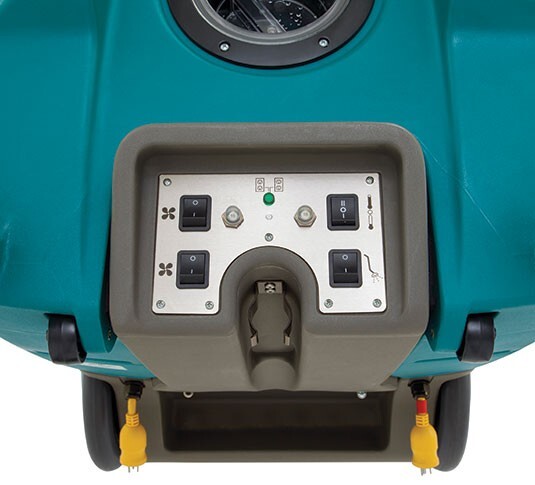

- ✓Circuit locator light shows when the unit is ready to use
- ✓Three-stage vacuum motor maximizes water recovery
Specifications
Tennant EH5 at a glance
| Models | EH5 Heated Canister Extractor |
|---|---|
| Solution tank | 15 gal (57 L) |
| Recovery tank | 13.5 gal (51 L) |
| Solution pump pressure | 50 to 500 psi (3.45 to 34 bar) |
| In-line heater | Yes |
| Solution and vacuum hoses | 15 ft (4.5 m) |
| Carpet wand | 13 in (330 mm) High Airflow Titanium, two Unijets |
| Vacuum airflow | 90 cfm (2.55 m³/min) |
| Vacuum water lift | 155 in (3,937 mm) |
| Power cords | 2 x 40 ft (12.2 m), NEMA 5-15P, 15 A each |
| Dimensions (L x W x H) | 32.5 x 25.25 x 41.5 in (826 x 641 x 1,054 mm) |
| Weight | 132 lb (60 kg) |
| Approvals | CRI Gold Seal with Titanium wand; ETL (US and Canada) |
| Model Numbers | 2191807 (Tennant EH5 with High Airflow Titanium wand) |
Technical specs may include optional equipment that is not included with all units.
Questions
Tennant EH5: common questions
Why does it have two power cords?
The EH5 runs on two 40 ft hospital grade cords, each plugged into its own 15 A circuit. A circuit locator light shows when the unit is ready to use.
Is the solution heated?
Yes. An in-line heater warms the solution on its way to the wand.
Does it come with an upholstery or stair tool?
No. Tennant includes the 13 in Titanium carpet wand and hoses; hand tools are sold separately.
Is it CRI certified?
Yes. Tennant lists the EH5 with the High Airflow Titanium wand as CRI Gold certified.
