| Machine Type | Self-Contained Upright Carpet Extractor |
|---|---|
| Cleaning Path Width | 20 in (508 mm) |
| Power Source | Electric (corded) |
| Solution Tank Capacity | 3.5 gal (13.2 L) |
| Recovery Tank Capacity | 3.5 gal (13.2 L) |
| Productivity Rate | Up to 4,800 sq ft/hr (446 sq m/hr) |

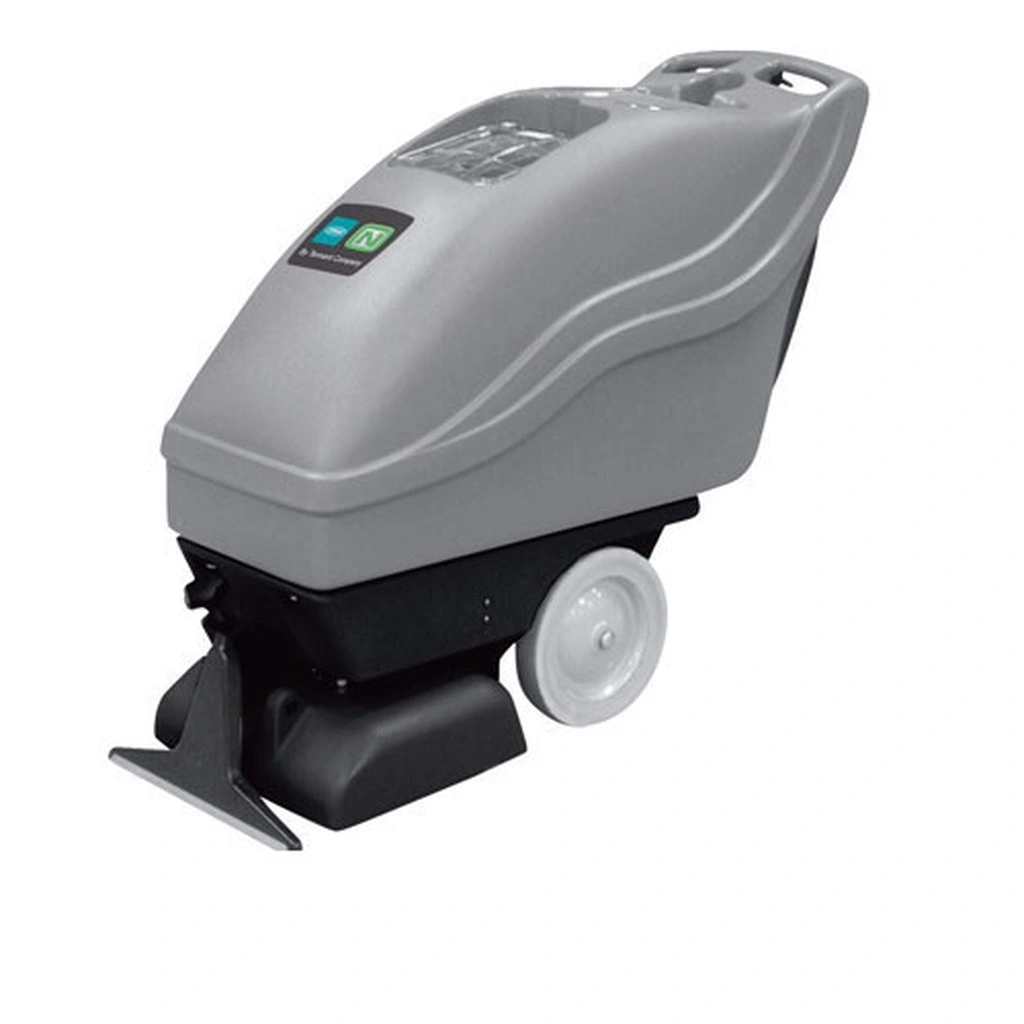

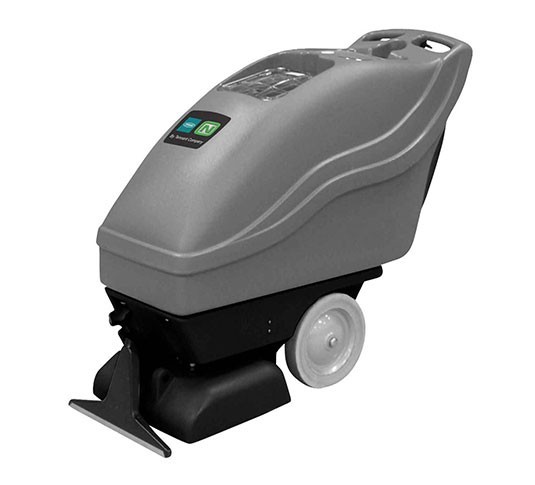

New Tennant EX-SC-1020 Self-Contained Extractor
Our Take (from the SES Sales Team)

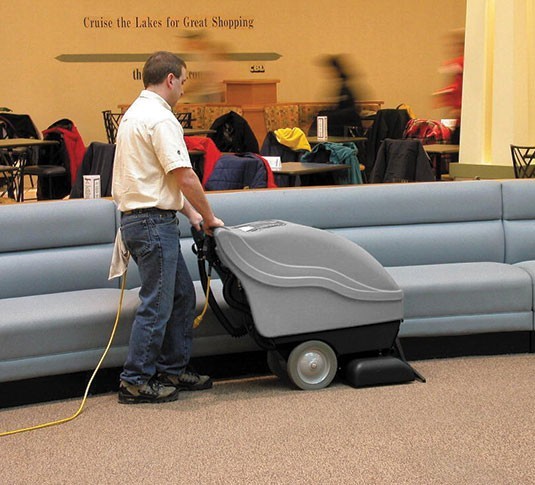

“The EX-SC-1020 is a workhorse self-contained extractor for buildings that do their own carpet restoration: schools, offices, hotels, churches, hospitals and restaurants. Everything is on board. The operator fills the 10 gal solution tank, sprays through two quick-disconnect jets at 100 psi, agitates with a 1,200 rpm chevron-pattern nylon brush and recovers through a 20 in vacuum shoe in one pass. The 1.8 hp three-stage vacuum pulls 136 in of water lift, which is strong for a machine this size. Recovery goes into a 14.5 gal bladder tank that keeps the center of gravity low, so the machine is easier to steer and turn. The polyethylene body resists dents and cracks, and the trigger solution control keeps the operator's hands in one place. At 20 in wide and 106 lb, it is easy to move between classrooms, offices and hallways. Tennant lists it with the CRI Seal of Approval at the Bronze level.”
A mid-size, self-contained deep cleaning carpet extractor
The Tennant EX-SC-1020 is a corded walk-behind carpet extractor that sprays, scrubs and recovers in one pass. Dual spray nozzles and a stiff, motor-driven brush loosen embedded soil without damaging the carpet, and a powerful three-stage vacuum pulls the dirty water back out.
This is Tennant model 2192249. It is certified Bronze by the Carpet and Rug Institute (CRI) and ETL listed.
Condition: New.
What you get
Built-in cleaning systems
Deep cleaning without carpet damage
Features
Made for everyday extraction
- ✓Ergonomic handle grip with trigger solution control
- ✓Durable polyethylene construction resists dents and cracks
- ✓Low-center-of-gravity bladder system for easier maneuvering
- ✓Dual spray nozzles with quick-disconnect jets
- ✓Compact 20 in width for classrooms, offices and corridors
Specifications
Tennant EX-SC-1020 at a glance
| Models | EX-SC-1020 Self-Contained Extractor |
|---|---|
| Brush width | 17 in (431 mm) |
| Vacuum shoe | 20 in (510 mm) |
| Brush | 3.31 in (84 mm) diameter, nylon, chevron pattern, 1,200 rpm |
| Solution tank | 10 gal (38 L) |
| Recovery tank | 14.5 gal (55 L), integrated bladder |
| Solution pump | 100 psi (6.9 bar), 1 gpm (3.78 L/min), 120 V |
| Spray jets | 2, quarter-turn, quick disconnect |
| Vacuum motor | 1.8 hp (1.34 kW), 3-stage |
| Sealed water lift | 136 in (3,500 mm) |
| Airflow | 95 cfm (2.7 m³/min) |
| Total power | 14.5 A, 1,740 W |
| Power cord | 50 ft (15 m), 16 gauge, safety yellow, detachable |
| Dimensions (L x W x H) | 43 x 20 x 34 in (1,092 x 508 x 863 mm) |
| Weight | 106 lb (48 kg) |
| Sound level | 78 dBA |
| Approvals | CRI Seal of Approval, Bronze; ETL |
| Model Numbers | 2192249 (EX-SC-1020 self-contained extractor) |
Technical specs may include optional equipment that is not included with all units.
Questions
Tennant EX-SC-1020: common questions
Is the EX-SC-1020 heated?
No. Tennant lists it as a non-heated, corded deep cleaning extractor.
How big are the tanks?
The solution tank holds 10 gal (38 L) and the bladder recovery tank holds 14.5 gal (55 L).
Can I use a wand or hand tool with it?
Yes. Wands, hand tools and solution and recovery hoses are available as optional accessories. Ask our team which ones fit this machine.
What does it plug into?
It runs on 120 V and draws 14.5 A in total, with a 50 ft detachable power cord.
Will it fit through doorways?
The EX-SC-1020 is 20 in wide, 43 in long and 34 in high. Measure your narrowest doorway before you order.
Not sure the EX-SC-1020 fits your carpet?
Tell our team about the carpet, the building and the schedule, and we will help you decide if this is the right machine.
