| Machine Type | Rotary Floor Machine |
|---|---|
| Cleaning Path Width | 20 in (508 mm) |
| Power Source | Corded Electric |
| Number of Speeds | 2 |
| Pad Driver Size | 20 in (508 mm) |

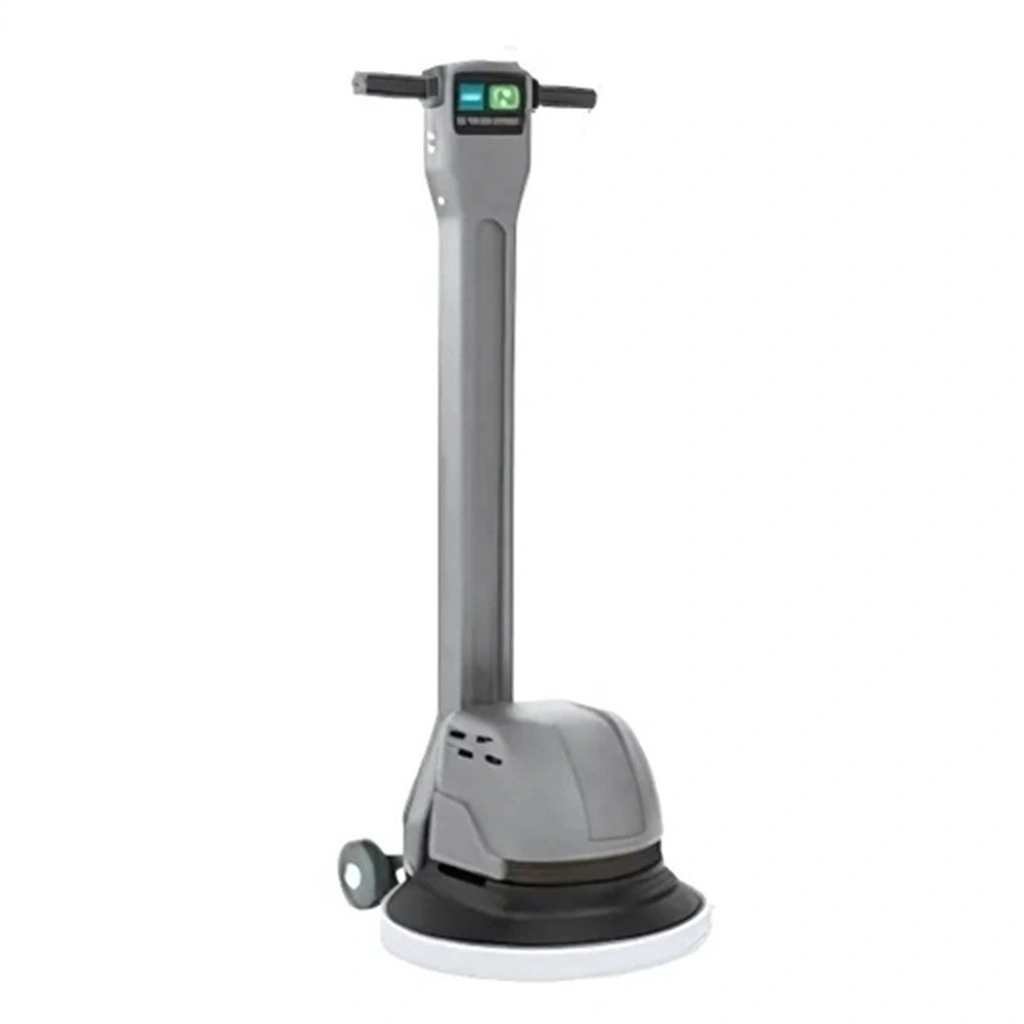

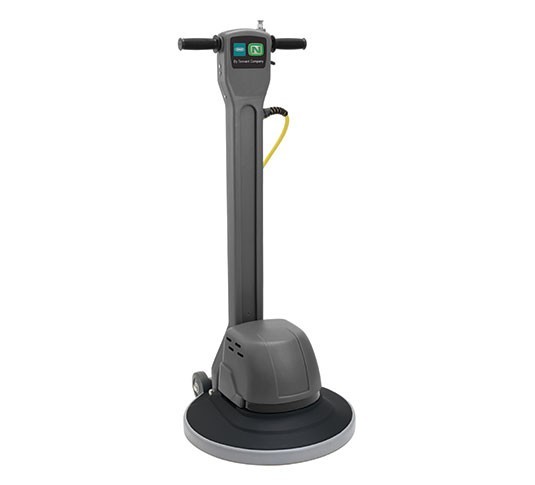

New Tennant FM-20-DS 20" Dual Speed Floor Machine
Our Take (from the SES Sales Team)
“A dual speed floor machine earns its spot in the closet because it does two jobs. On the low 185 rpm setting the FM-20-DS scrubs and strips, and on the high 330 rpm setting it spray buffs and polishes, so one machine covers routine floor care and interim stripping instead of needing two. It is built around a heavy-duty 1.5 hp permanent magnet DC motor and a triple planetary gearbox, and the base and handle are rotationally molded polyethylene, so the body won't rust or corrode. The twist-grip handle has a safety lock, which is a good feature when several people share the machine. Tennant rates it at 71 dBA, quiet enough for schools, clinics and offices. It runs on a standard 120 V outlet with a 50 ft cord, and it comes with a pad driver. An optional 3 gal solution tank is available if you want to scrub without a mop bucket. If you only need one speed for scrubbing, the FM-20-SS is the single speed version.”
A heavy-duty 20 in dual speed floor machine
The Tennant FM-20-DS is a corded 20 in floor machine for scrubbing, stripping and polishing most hard floors. Two speeds let it scrub at 185 rpm and buff at 330 rpm, and a corrosion-proof polyethylene body keeps it looking good for years in schools, healthcare, retail and office buildings.
This is Tennant model 2213536, the FM-20-DS Heavy Duty Dual Speed 20 in (508 mm) Floor Machine. It includes a pad driver.
Condition: New.
What you get
Ready for scrubbing and buffing
Two speeds
Which speed for which job?
| Setting | Speed | Typical use |
|---|---|---|
| Low | 185 rpm | Scrubbing and stripping |
| High | 330 rpm | Buffing and polishing |
Optional solution tank
Features
Simple and durable
- ✓Two speeds for scrubbing, stripping and polishing
- ✓Twist-grip operation with a safety lock to protect operators
- ✓Corrosion-proof, rotationally molded polyethylene base and handle
- ✓Simplified design that needs little maintenance
- ✓CSA and ETL approved
Specifications
Tennant FM-20-DS at a glance
| Models | FM-20-DS Dual Speed Floor Machine |
|---|---|
| Head size | 20 in (510 mm) |
| Pad speed | 185 rpm scrub / 330 rpm buff |
| Motor | 1.5 hp (1.12 kW), permanent magnet DC, 66 frame, dual speed |
| Gearbox | Triple planetary, 10:1 ratio |
| Electrical | 120 V, 12 A, 1,100 W |
| Power cord | 50 ft (15 m), 14 gauge, 3-wire SJT |
| Max coverage | 3,000 sq ft/hr (279 m²) |
| Optional solution tank | 3 gal (11.4 L), 0.1 gpm (0.38 L/min) |
| Handle | Twist grip with safety lock |
| Base / handle material | Rotationally molded polyethylene |
| Dimensions (L x W x H) | 23.5 x 20 x 48 in (597 x 510 x 1,219 mm) |
| Weight | 97 lb (44 kg) |
| Sound level | 71 dBA |
| Approvals | CSA, ETL |
| Model Numbers | 2213536 (FM-20-DS heavy duty dual speed 20 in floor machine, pad driver) |
Technical specs may include optional equipment that is not included with all units.
Questions
Tennant FM-20-DS: common questions
What is the difference between the FM-20-DS and the FM-20-SS?
The FM-20-DS has two speeds, 185 rpm for scrubbing and 330 rpm for buffing. The FM-20-SS runs at a single 175 rpm.
Can it strip floors?
Yes. Tennant describes the FM-20-DS for polishing, scrubbing and stripping most hard floor surfaces, using the low speed for scrubbing and stripping.
Does it come with a pad driver?
Yes. This package includes a pad driver.
What power does it need?
A standard 120 V outlet. The motor draws 12 A, and the machine has a 50 ft power cord.
Not sure the FM-20-DS fits your floors?
Tell our team about the floor, the finish and the cleaning schedule, and we will help you decide if this is the right machine.
