| MACHINE DIMENSIONS | |
| Length | 56.25 in 1430 mm |
| Width | 32.25 in 820 mm |
| Height | 37.7 in 960 mm |
| CLEANING SYSTEM | |
| Cleaning path (single side brush) | 32 in (810 mm) |
| Cleaning path (dual side brush) | 40 in (1015 mm) |
| Hopper volume capacity | 3 ft3 (85 L) |
| Hopper weight capacity | 130 lb (59 kg) |
| Vacuum fan | 9 in (230 mm) |
| Main brush length | 24 in (610 mm) |
| Side brush diameter | 16.5 in (420 mm) |
| Filter bag capacity | 1050 in3 (17.2 L) |
| POWER PLANTS | |
| Air cooled gasoline/LP (max) | 6.0 hp (4.48 kW) |
| Battery power (propelling motor) | 1.0 hp 0.75 kW) |
| PROPELLING SYSTEM | |
| 3 speeds forward (variable) | 3.3 mph (5.3 km/h) |
| Speed reverse (variable) | 1.4 mph (2.25 km/h) |
| GRADEABILITY | |
| Full hopper | 8.0 deg (14.1%) |
| Empty hopper | 8.0 deg (14.1%) |
Technical specs may include optional equipment that is not included with all units.

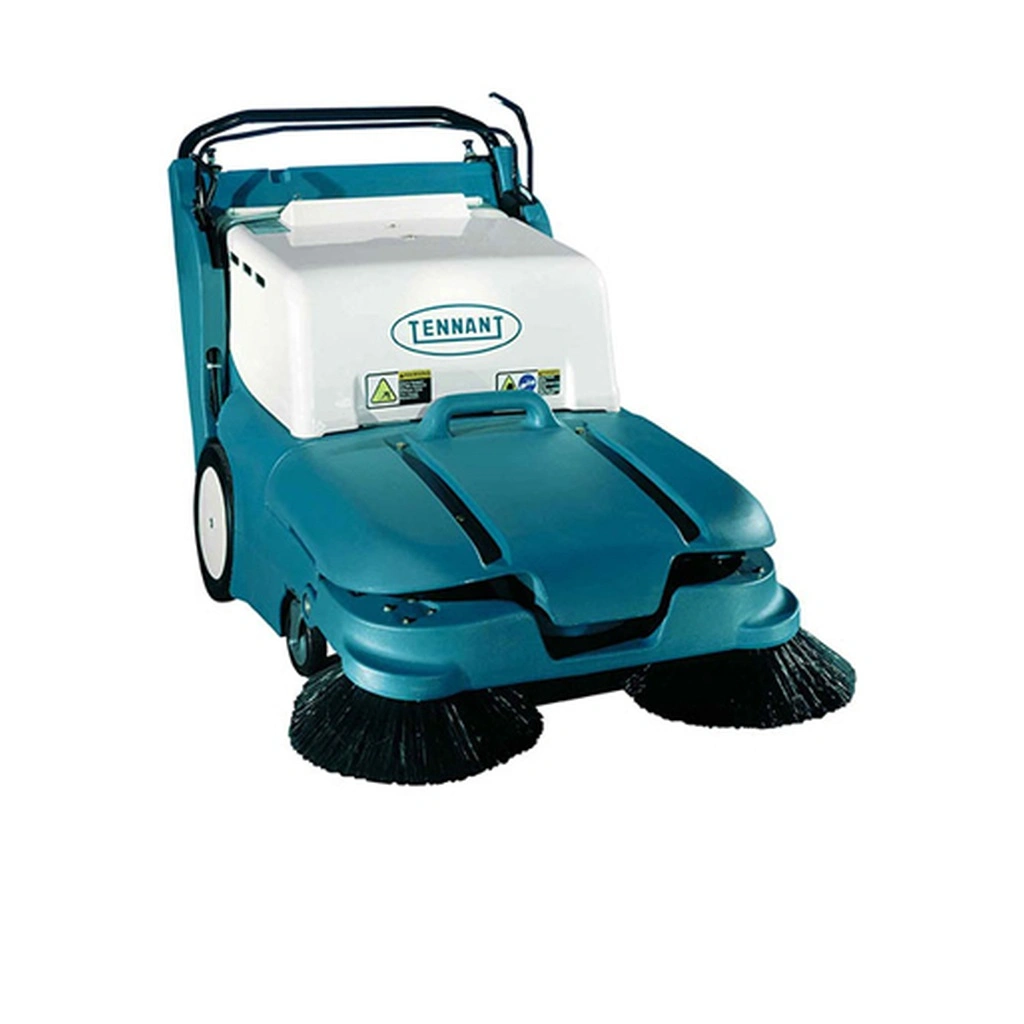

New Tennant 3640 E Battery Powered Walk-Behind Sweeper
Our Take (from the SES Sales Team)
“If your crew is still pushing brooms across a shop floor, loading dock or warehouse aisle, the 3640 E is the step up we usually suggest before a ride-on sweeper. It is a self-propelled, battery-powered walk-behind, so there are no fumes and no cord, and it works indoors or out. A 24 in main broom and a 16.5 in right-hand side brush sweep a 32 in path, throwing debris straight into a free-floating hopper that holds 3 cu ft of litter or 1.5 cu ft of sand. Tennant rates it at up to 25,000 sq ft per hour. The panel filter has a timed shaker, and the high airflow system helps hold dust down. Propel speed is fully variable forward and reverse, up to 2.9 mph, and the handle adjusts to the operator's height. Brushes are self-adjusting and change without tools. It comes with two 130 Ah wet batteries and an 11 A off-board charger, good for 2 to 3 hours per Tennant.”
A self-propelled 32 in battery sweeper that replaces push brooms
The Tennant 3640 E is a battery-powered, self-propelled walk-behind broom sweeper for manufacturing, warehouse, retail and commercial floors, indoors and out. A 24 in main broom and a right-hand side brush sweep a 32 in path into a 3 cu ft hopper, with variable-speed propel up to 2.9 mph.
This is the Tennant 3640 E base build: two 130 Ah wet batteries, an 11 A off-board charger, UL Type E rating, a right-hand side brush, a main broom, the panel filter with timed shaker and the high airflow system.
Condition: New.
What you get
Everything you need to start sweeping
Options to ask about
Features
Easy on operators
- ✓Variable forward and reverse propel speed, up to 2.9 mph forward
- ✓Direct throw sweeping into a free-floating 3 cu ft hopper
- ✓Quick-release main broom and no-tool brush changes
- ✓Control handle adjusts to the operator's height
- ✓Battery discharge indicator with hour meter, parking brake and key switch
Choosing batteries
3640 battery options
| 130 Ah wet (this unit) | Extended run time wet | |
|---|---|---|
| Run time | 2 to 3 hr | 2.5 to 4.5 hr |
| Net weight (empty) | 385 lb (175 kg) | 485 lb (220 kg) |
| Charger | 11 A off-board | 19 A off-board |
Runtime varies with the options installed and the application.
Specifications
Tennant 3640 E at a glance
| Models | 3640 E Battery Sweeper |
|---|---|
| Sweep path | 32 in (815 mm) with single side brush; 40 in (1,015 mm) with dual side brushes |
| Productivity | Up to 25,000 sq ft/hr (2,322 m²) |
| Main brush | 24 in (610 mm), 430 rpm |
| Side brush | 16.5 in (420 mm) diameter |
| Hopper capacity | 3.0 cu ft litter (85 L); 1.5 cu ft sand (42 L); 130 lb (59 kg) |
| Panel filter | 92% @ 3 micron, 39 sq ft (4 m²) |
| Vacuum fan | 5,350 rpm |
| Propel speed | Up to 2.9 mph forward (5 km/h); 1.3 mph reverse (2.0 km/h) |
| Propel motor | 1.0 hp (0.7 kW) |
| Gradeability | 8° (14.1%) |
| Batteries | 2 x 130 Ah wet |
| Run time | 2 to 3 hr |
| Charger | Off-board, 11 A |
| Sound level | 71 dBA |
| Dimensions (L x W x H) | 56.25 to 58 x 32.25 x 34.7 to 37.7 in (1,430 to 1,475 x 820 x 880 to 955 mm), varies with handle position |
| Weight | 385 lb, empty, with 130 Ah batteries (175 kg) |
| Model Numbers | 3640-E-2000098 (Tennant 3640 E base configuration) |
Technical specs may include optional equipment that is not included with all units.
Questions
Tennant 3640: common questions
Is the 3640 self-propelled?
Yes. Propel speed is fully variable forward and reverse, up to 2.9 mph forward and 1.3 mph reverse, so the operator guides it instead of pushing.
How long does it run on a charge?
Tennant rates the standard 130 Ah pack at 2 to 3 hours and the extended run time pack at 2.5 to 4.5 hours. Options and the application affect run time.
Can it sweep outdoors?
Yes. Tennant designs the 3640 for indoor and outdoor sweeping. For rough outdoor surfaces, the wide-track pneumatic tire and caster kit is an option.
How much does the hopper hold?
The hopper holds 3 cu ft of litter or 1.5 cu ft of sand, up to 130 lb.
Will it fit through my doorways?
The 3640 is 32.25 in wide, 56.25 to 58 in long and 34.7 to 37.7 in high, depending on handle position. Measure your narrowest doorway before you order.
Not sure the 3640 fits your floors?
Tell our team about the floor, the building and the shift, and we will help you decide if this is the right machine.
