| Machine Type | Walk-Behind Scrubber |
|---|---|
| Cleaning Path Width | 28 in (711 mm) |
| Brush Type | Dual Disc |
| Power Source | Battery |
| Battery Type | Lithium-Ion |
| Solution Tank Capacity | 5.3 gal (20 L) |
| Recovery Tank Capacity | 5.3 gal (20 L) |
| Machine Weight (with battery) | approximately 99 lb (45 kg) |
| Sound Level | 60 dB(A) |

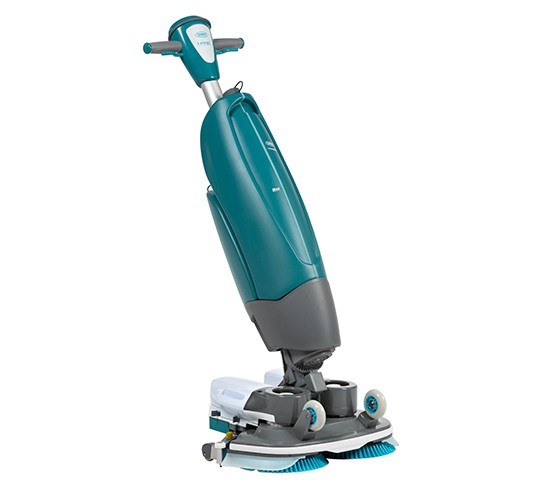

New Tennant i-mop XL Plus Disk Walk-Behind Scrubber
Our Take (from the SES Sales Team)
“The i-mop XL Plus is the machine we point people to when a mop and bucket is still doing the work in restrooms, break rooms, behind counters and around tables and chairs. It scrubs and dries like an auto scrubber, but it steers like a mop. The handle pivots on a heavy-duty hinge for 360 degree steering, and the low-profile head reaches under furniture and counters. Twin counter-rotating brushes turn at 350 rpm and push solution toward the center, so it stays on the floor instead of splashing onto baseboards. It cleans an 18.1 in path, and Tennant rates it at up to 19,375 sq ft per hour. The tanks lift off, so you can fill and dump at any sink instead of walking back to a janitor closet. The lithium-ion battery packs swap out, so a spare set keeps you cleaning while the other set charges. If you have larger open areas to cover, the i-mop XXL Plus gives you a 24.4 in path in the same format.”
The maneuverability of a mop with the cleaning of a scrubber
The Tennant i-mop XL Plus is a lithium-ion walk-behind scrubber for restrooms, kitchens, break rooms, retail aisles, classrooms and other tight spaces where a full-size auto scrubber cannot go. Two counter-rotating brushes clean an 18.1 in path, a squeegee and vacuum pick up the water behind them, and Tennant rates it at up to 19,375 sq ft per hour.
The machine stands upright, folds for storage and rolls on its own wheels between floors and buildings. Removable tanks and swappable battery packs keep it simple to run and simple to service.
Condition: New.
What you get
Ready to clean out of the box

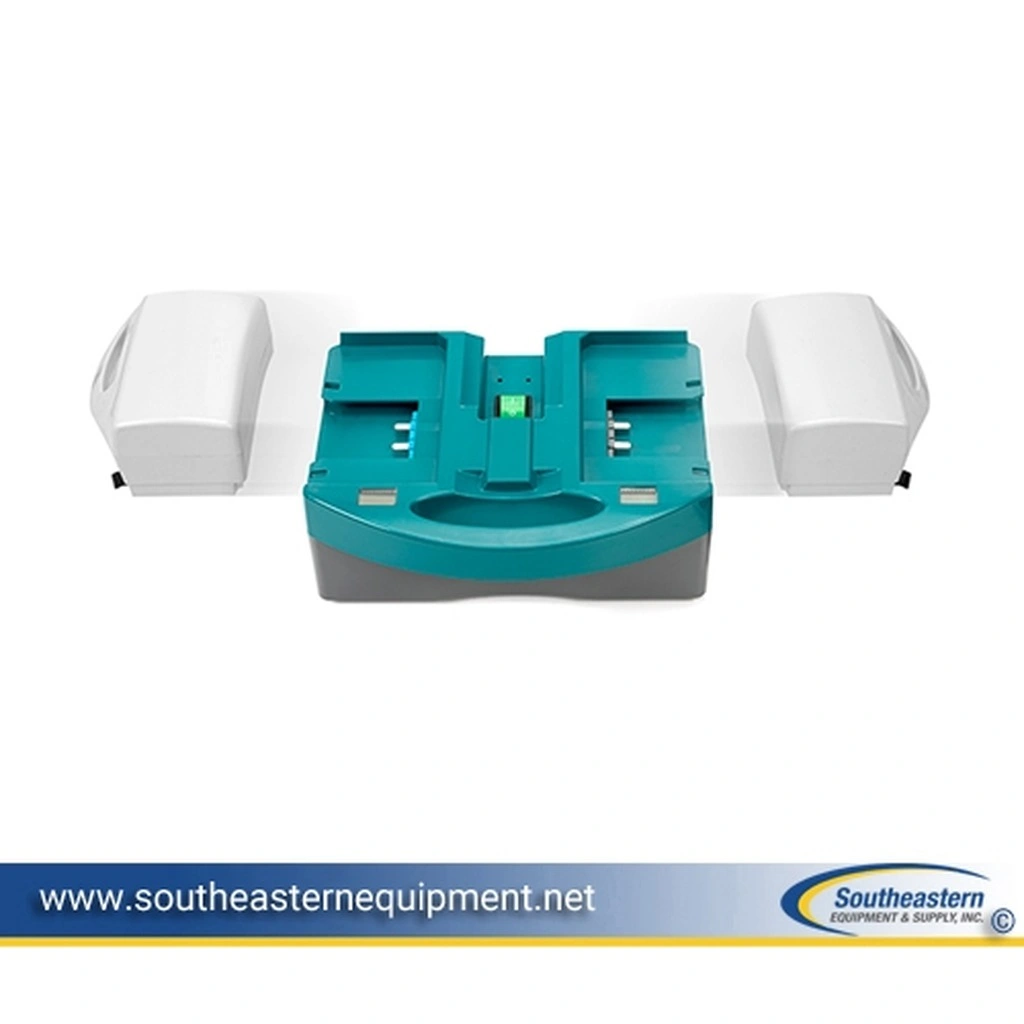

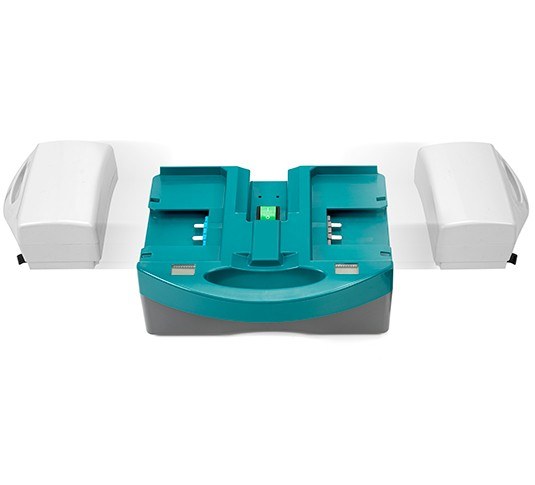

Swap batteries and keep cleaning
Features
Designed for the cleaner
- ✓Heavy-duty hinge gives 360 degree steering around fixtures, furniture and other obstacles

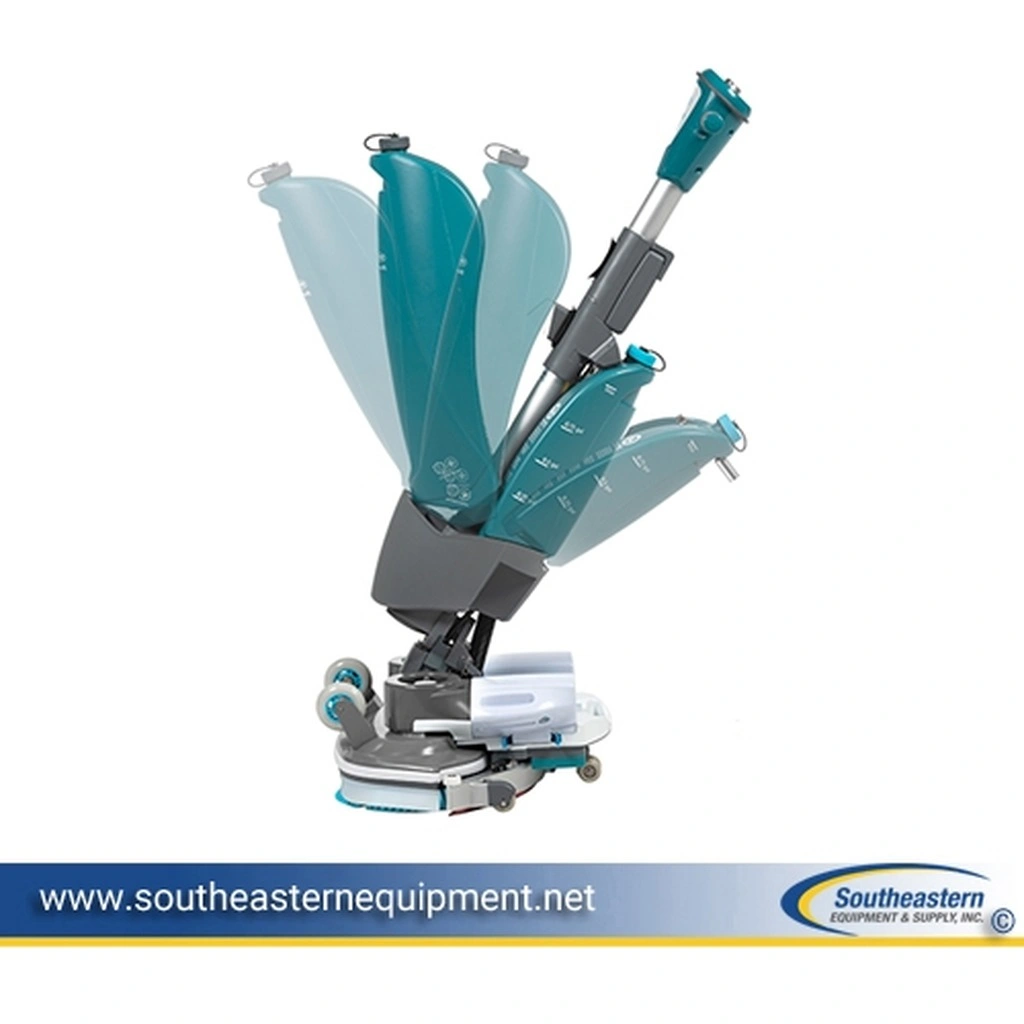

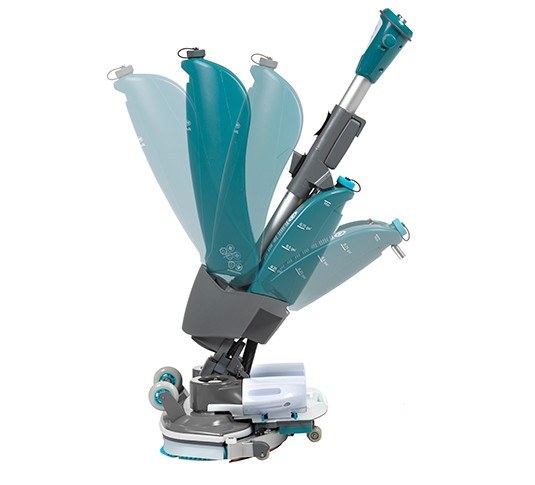

- ✓Low-profile, folding design fits under counters and furniture and stores in a narrow space

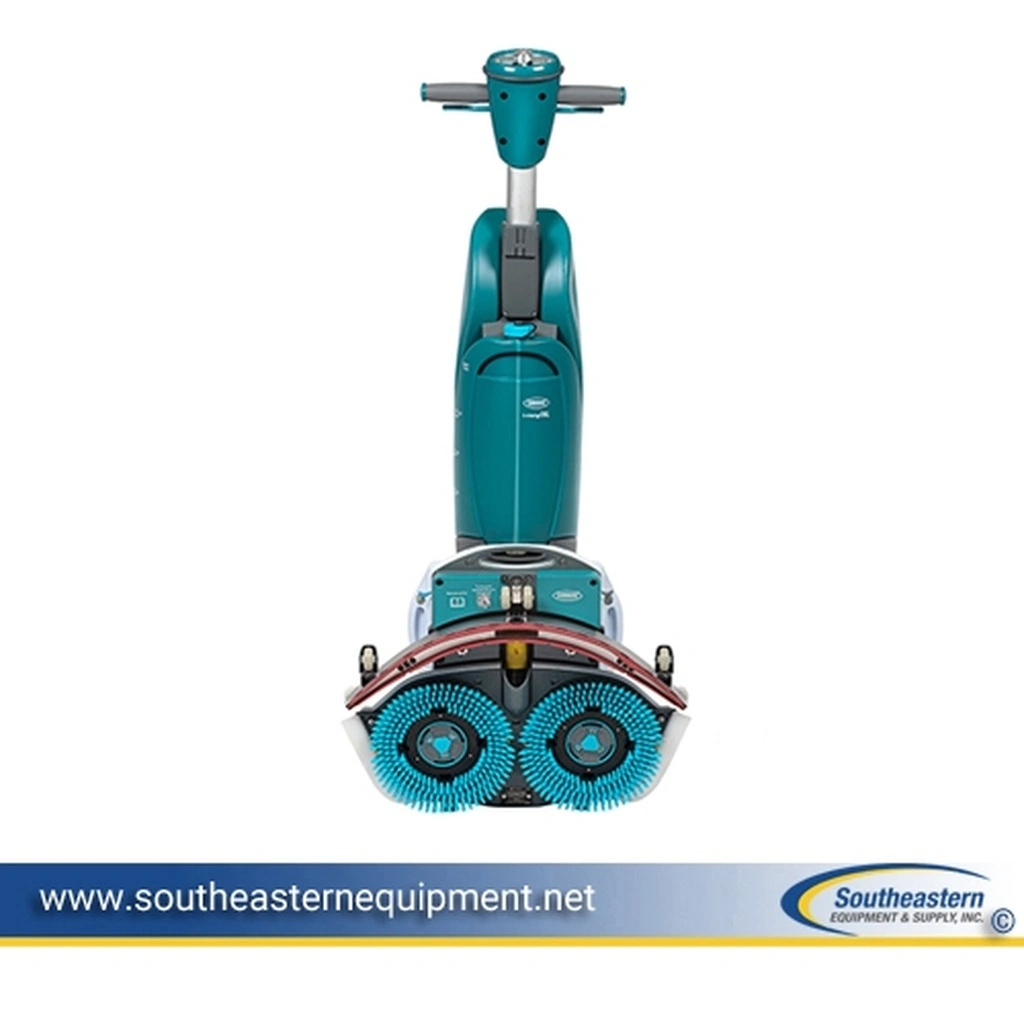

- ✓Twin counter-rotating brushes push solution toward the center instead of splashing it to the side

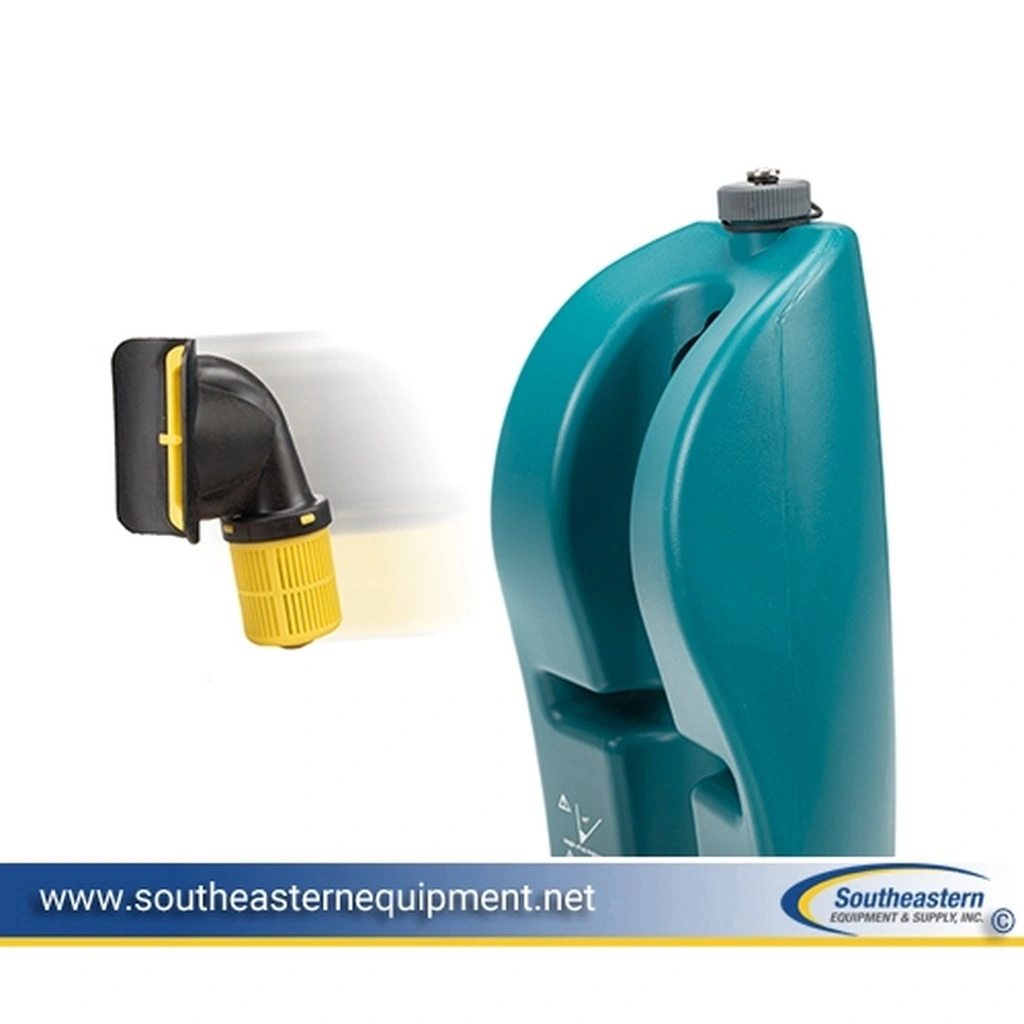

- ✓Detachable tanks fill and empty at any sink, with a floating ball that closes the recovery tank when it is full
- ✓Electronic angle switch shuts the motor off when the machine is held below a 32 degree angle
Choosing a size
i-mop XL Plus or XXL Plus?
| XL Plus (this unit) | XXL Plus | |
|---|---|---|
| Cleaning path | 18.1 in (460 mm) | 24.4 in (620 mm) |
| Max productivity | 19,375 sq ft/hr | 24,750 sq ft/hr |
| Brush/pad pressure | 48.4 lb (22.5 kg) | 70.4 lb (32 kg) |
| Solution / recovery tanks | 1 gal / 1.5 gal | 1.25 gal / 2 gal |
| Width | 18.9 in (480 mm) | 26.8 in (680 mm) |
| Weight with batteries and water | 57 lb (25.9 kg) | 78 lb (35.3 kg) |
The XL Plus is the better fit for restrooms, kitchens and tight spaces. The XXL Plus covers more floor per pass in open areas.
Specifications
Tennant i-mop XL Plus at a glance
| Models | i-mop XL Plus Lithium-Ion Auto Disk Scrubber |
|---|---|
| Cleaning path | 18.1 in (460 mm) |
| Productivity, theoretical max | 19,375 sq ft/hr (1,800 m²/hr) |
| Brushes | 2 counter-rotating, 350 rpm |
| Brush/pad pressure | Up to 48.4 lb (22.5 kg) |
| Solution tank | 1 gal (4 L) |
| Recovery tank | 1.5 gal (6 L) |
| Battery | Lithium-ion, 24.2 V (8.8 Ah) |
| Runtime | Up to 60 min per battery set |
| Charge time | About 80% in 1 hr; up to 5 hr for a full charge |
| Charger | Off-board |
| Length x width x height | 13.8 x 18.9 x 47.2 in (351 x 480 x 1,199 mm) |
| Weight | 57 lb (25.9 kg) with batteries and water |
| Sound level | As low as 70 dBA |
| Model Numbers | Tennant 4030266 (i-mop XL Plus with white batteries and charger) |
Technical specs may include optional equipment that is not included with all units.
Questions
Tennant i-mop XL Plus: common questions
How long does it run on a charge?
Tennant rates the XL Plus at up to 60 minutes of continuous scrubbing per battery set. A one-hour charge brings the batteries to about 80%, and a full charge takes up to 5 hours.
Can it clean a full shift without stopping to charge?
Yes, with a second set of batteries. The packs swap out by hand, so one set can charge while the other runs. Tennant offers the XL Plus with two sets of white batteries as a separate package.
Where do I fill and empty the tanks?
The solution and recovery tanks detach from the machine, so you can fill and empty them at any sink.
Will it clean under furniture?
Yes. The low-profile head and folding design reach under counters, tables and other furniture, and the hinge lets the handle steer 360 degrees.
Should I choose the XL Plus or the XXL Plus?
The XL Plus cleans an 18.1 in path and is 18.9 in wide, which suits restrooms and tight spaces. The XXL Plus cleans a 24.4 in path for larger open areas.
