| Machine Type | Walk-Behind Scrubber |
|---|---|
| Cleaning Path Width | 28 in (711 mm) |
| Brush Type | Dual Cylindrical |
| Power Source | Battery (Electric) |
| Battery Type | Lithium-Ion |
| Solution Tank Capacity | 13.2 gal (50 L) |
| Recovery Tank Capacity | 13.2 gal (50 L) |
| Productivity Rate | up to 20,450 sq ft/hr (1,900 sq m/hr) |
| Sound Level | 67 dB(A) |

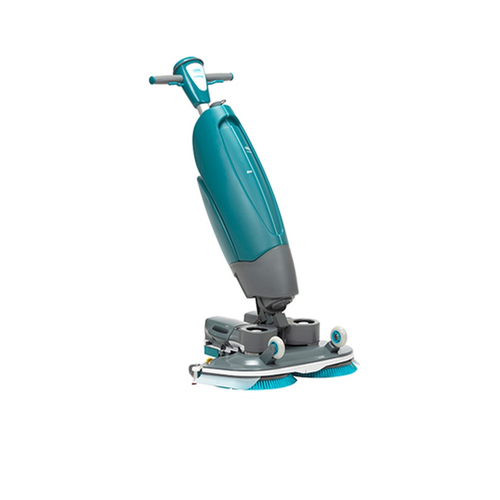

New Tennant i-mop XXL Plus Disk Walk-Behind Scrubber
Our Take (from the SES Sales Team)
“The i-mop XXL Plus is for buildings that have outgrown the mop and bucket but still have plenty of floor a ride-on or a big walk-behind cannot reach: corridors, classrooms, retail aisles, lobbies, cafeterias and the spaces between tables and fixtures. It cleans a 24.4 in path, and Tennant rates it at up to 24,750 sq ft per hour, which is a lot of floor for a machine that steers like a mop. The heavy-duty hinge gives 360 degree steering, the low-profile head reaches under furniture, and the twin counter-rotating brushes turn at 350 rpm with up to 70.4 lb of down pressure. Solution goes toward the center of the head instead of out onto baseboards. The tanks lift off to fill and empty at any sink, and the lithium-ion battery packs swap out by hand, so adding a spare set keeps one machine running through a shift. For restrooms and tighter rooms, the narrower i-mop XL Plus is the better fit.”
A 24.4 in scrubber that steers like a mop

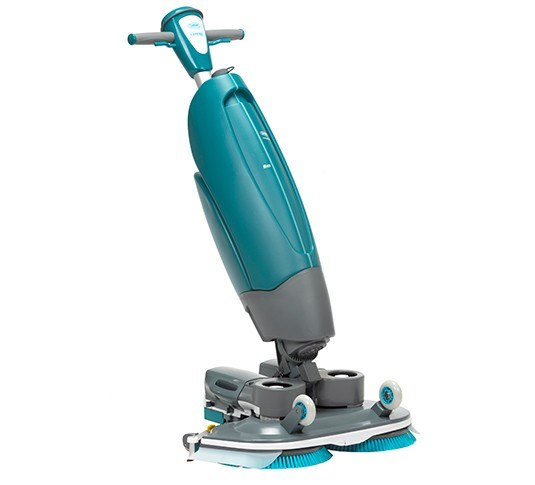

The Tennant i-mop XXL Plus is a lithium-ion walk-behind scrubber for corridors, classrooms, retail stores, lobbies, healthcare facilities and other busy floors with obstacles to work around. Two counter-rotating brushes clean a 24.4 in path, a squeegee and vacuum pick up the water behind them, and Tennant rates it at up to 24,750 sq ft per hour.
It stands upright, folds for storage and rolls on its own wheels between areas, levels and buildings. Removable tanks and swappable battery packs keep it simple to run.
Condition: New.
What you get
Ready to clean out of the box
Swap batteries and keep cleaning
Features
Designed for the cleaner
- ✓Heavy-duty hinge gives 360 degree steering around fixtures, furniture and other obstacles

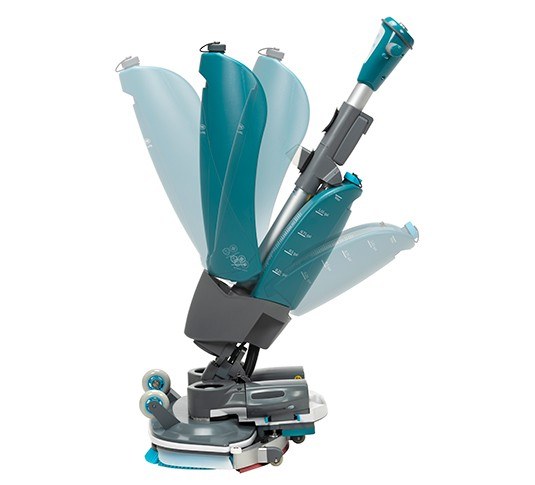

- ✓Low-profile, folding design fits under counters and furniture and stores in a narrow space
- ✓Twin counter-rotating brushes push solution toward the center instead of splashing it to the side
- ✓Detachable tanks fill and empty at any sink, with a floating ball that closes the recovery tank when it is full
- ✓Electronic angle switch shuts the motor off when the machine is held below a 32 degree angle
Choosing a size
i-mop XXL Plus or XL Plus?
| XXL Plus (this unit) | XL Plus | |
|---|---|---|
| Cleaning path | 24.4 in (620 mm) | 18.1 in (460 mm) |
| Max productivity | 24,750 sq ft/hr | 19,375 sq ft/hr |
| Brush/pad pressure | 70.4 lb (32 kg) | 48.4 lb (22.5 kg) |
| Solution / recovery tanks | 1.25 gal / 2 gal | 1 gal / 1.5 gal |
| Width | 26.8 in (680 mm) | 18.9 in (480 mm) |
| Weight with batteries and water | 78 lb (35.3 kg) | 57 lb (25.9 kg) |
The XXL Plus covers more floor per pass in corridors and open areas. The XL Plus is the better fit for restrooms, kitchens and tight rooms.
Specifications
Tennant i-mop XXL Plus at a glance
| Models | i-mop XXL Plus Lithium-Ion Auto Disk Scrubber |
|---|---|
| Cleaning path | 24.4 in (620 mm) |
| Productivity, theoretical max | 24,750 sq ft/hr (2,300 m²/hr) |
| Brushes | 2 counter-rotating, 350 rpm |
| Brush/pad pressure | Up to 70.4 lb (32 kg) |
| Solution tank | 1.25 gal (5 L) |
| Recovery tank | 2 gal (8 L) |
| Battery | Lithium-ion, 25.2 V (14 Ah) |
| Runtime | Up to 60 min per battery set |
| Charge time | About 80% in 1 hr; up to 6 hr for a full charge |
| Charger | Off-board |
| Length x width x height | 14.2 x 26.8 x 50 in (361 x 680 x 1,270 mm) |
| Weight | 78 lb (35.3 kg) with batteries and water |
| Model Numbers | Tennant 4030267 (i-mop XXL Plus with grey batteries and charger) |
Technical specs may include optional equipment that is not included with all units.
Questions
Tennant i-mop XXL Plus: common questions
How long does it run on a charge?
Tennant rates the XXL Plus at up to 60 minutes of continuous scrubbing per battery set. A one-hour charge brings the batteries to about 80%, and a full charge takes up to 6 hours.
Can it clean a full shift without stopping to charge?

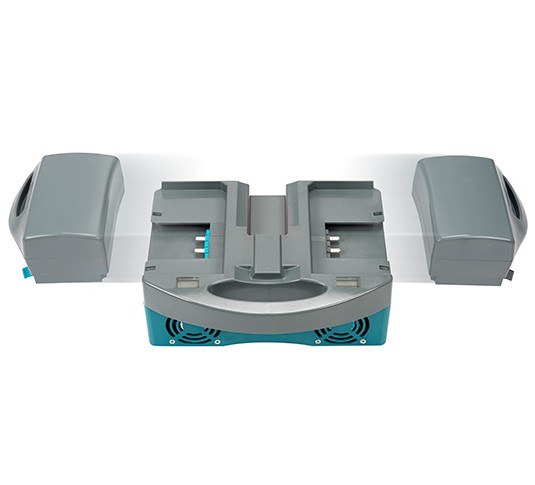

Yes, with a second set of batteries. The packs swap out by hand, so one set can charge while the other runs. Tennant offers the XXL Plus with two sets of grey batteries as a separate package.
Where do I fill and empty the tanks?
The 1.25 gal solution tank and 2 gal recovery tank detach from the machine, so you can fill and empty them at any sink.
Will it clean under furniture?
Yes. The low-profile head and folding design reach under counters, tables and other furniture, and the hinge lets the handle steer 360 degrees.
Should I choose the XXL Plus or the XL Plus?
The XXL Plus cleans a 24.4 in path for corridors and open areas and is 26.8 in wide. The XL Plus cleans an 18.1 in path and is 18.9 in wide, which suits restrooms and tight spaces.
Not sure the i-mop XXL Plus fits your floors?
Tell our team about the floor, the building and the shift, and we will help you decide if this is the right machine.
