| Estimated Coverage/Productivity | Up to 24750 sq ft / 2300 sq m |
| Weight | 79.6 lbs / 36.1 kg (with batteries and water) |
| Sound Level | As low as 79.6 dBA |
| Main Down Pressure | Up to 70.4 lbs / 32 kg |
| Charger Type | Off-board |
| Pad RPMs | Up to 350 rpm |
| Machine Width | 26.8 in / 680 mm |
| Head Type | Disk |
| Machine Height | 50 in / 1270 mm |
| Recovery Tank Capacity | 2 gal / 8 L |
| Solution Tank Capacity | 1.25 gal / 5 L |
| Machine Type | Walk-Behind |
| Estimated Run Time | Up to 70 minutes |
| Power Source | Lithium-Ion Battery |
| Battery Charger Type | Battery |
| Machine Length | 14.2 in / 360.7 mm |
| Cleaning Path | 24.4 in / 620 mm |
| Application | Indoor |
Technical specs may include optional equipment that is not included with all units.
New Tennant i-mop XXL Plus 24" Disk Walk-Behind Scrubber
Our Take (from the SES Sales Team)
“This is the i-mop XXL Plus package we suggest when the machine has to clean all shift, not just for an hour at a time. You get the machine, the charger and two full sets of grey lithium-ion battery packs, so one set is always charging while the other is in the machine. Swapping takes seconds and needs no tools. The XXL Plus itself cleans a 24.4 in path, and Tennant rates it at up to 24,750 sq ft per hour. Twin counter-rotating brushes run at 350 rpm with up to 70.4 lb of down pressure and push solution toward the center so it stays off the baseboards. It steers like a mop on a 360 degree hinge, gets under counters and furniture with its low-profile head, and folds to store in a closet. The 1.25 gal solution tank and 2 gal recovery tank detach, so you fill and dump at any sink. It fits well in schools, healthcare, retail and contract cleaning routes. If one battery set covers your cleaning window, the single-set XXL Plus package is the simpler buy.”
A 24.4 in scrubber that steers like a mop

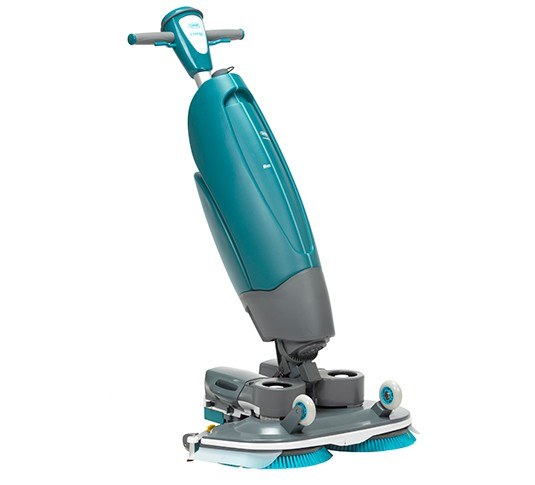

The Tennant i-mop XXL Plus is a lithium-ion walk-behind scrubber for corridors, classrooms, retail stores, lobbies, healthcare facilities and other busy floors with obstacles to work around. Two counter-rotating brushes clean a 24.4 in path, a squeegee and vacuum pick up the water behind them, and Tennant rates it at up to 24,750 sq ft per hour.
It stands upright, folds for storage and rolls on its own wheels between areas, levels and buildings. Removable tanks and swappable battery packs keep it simple to run.
Condition: New.
What you get

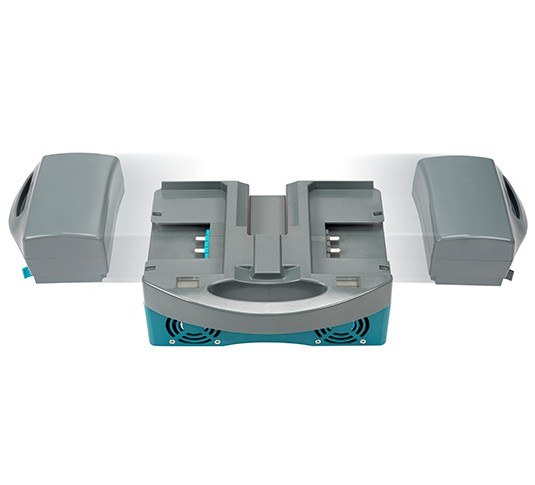

Two battery sets for nonstop cleaning
Run one set while the other charges
Features
Designed for the cleaner
- ✓Heavy-duty hinge gives 360 degree steering around fixtures, furniture and other obstacles

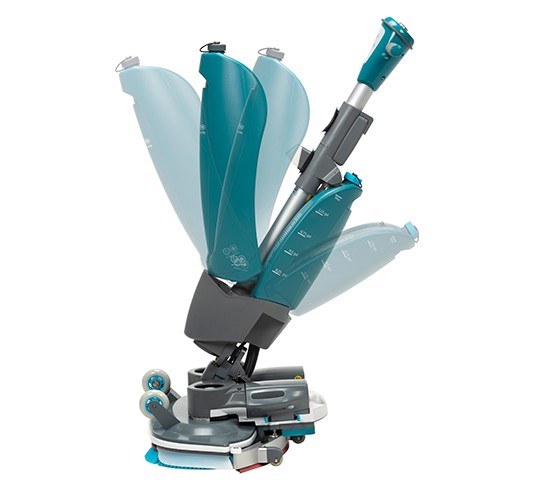

- ✓Low-profile, folding design fits under counters and furniture and stores in a narrow space
- ✓Twin counter-rotating brushes push solution toward the center instead of splashing it to the side
- ✓Detachable tanks fill and empty at any sink, with a floating ball that closes the recovery tank when it is full
- ✓Electronic angle switch shuts the motor off when the machine is held below a 32 degree angle
Choosing a size
i-mop XXL Plus or XL Plus?
| XXL Plus (this unit) | XL Plus | |
|---|---|---|
| Cleaning path | 24.4 in (620 mm) | 18.1 in (460 mm) |
| Max productivity | 24,750 sq ft/hr | 19,375 sq ft/hr |
| Brush/pad pressure | 70.4 lb (32 kg) | 48.4 lb (22.5 kg) |
| Solution / recovery tanks | 1.25 gal / 2 gal | 1 gal / 1.5 gal |
| Width | 26.8 in (680 mm) | 18.9 in (480 mm) |
| Weight with batteries and water | 78 lb (35.3 kg) | 57 lb (25.9 kg) |
The XXL Plus covers more floor per pass in corridors and open areas. The XL Plus is the better fit for restrooms, kitchens and tight rooms.
Specifications
Tennant i-mop XXL Plus at a glance
| Models | i-mop XXL Plus Lithium-Ion Auto Disk Scrubber + 2 sets of batteries |
|---|---|
| Cleaning path | 24.4 in (620 mm) |
| Productivity, theoretical max | 24,750 sq ft/hr (2,300 m²/hr) |
| Brushes | 2 counter-rotating, 350 rpm |
| Brush/pad pressure | Up to 70.4 lb (32 kg) |
| Solution tank | 1.25 gal (5 L) |
| Recovery tank | 2 gal (8 L) |
| Battery | Lithium-ion, 25.2 V (14 Ah), two sets |
| Runtime | Up to 60 min per battery set |
| Charge time | About 80% in 1 hr; up to 6 hr for a full charge |
| Charger | Off-board |
| Length x width x height | 14.2 x 26.8 x 50 in (361 x 680 x 1,270 mm) |
| Weight | 78 lb (35.3 kg) with batteries and water |
| Model Numbers | Tennant 4186752 (i-mop XXL Plus 1264255 with grey battery and charger, plus a second set of grey batteries) |
Technical specs may include optional equipment that is not included with all units.
Questions
Tennant i-mop XXL Plus: common questions
How long does it run on a charge?
Tennant rates the XXL Plus at up to 60 minutes of continuous scrubbing per battery set. A one-hour charge brings the batteries to about 80%, and a full charge takes up to 6 hours.
Can it clean a full shift without stopping to charge?
Yes. This package includes a second set of grey batteries, so one set charges while the other runs. The packs swap out by hand.
Where do I fill and empty the tanks?
The 1.25 gal solution tank and 2 gal recovery tank detach from the machine, so you can fill and empty them at any sink.
Will it clean under furniture?
Yes. The low-profile head and folding design reach under counters, tables and other furniture, and the hinge lets the handle steer 360 degrees.
Should I choose the XXL Plus or the XL Plus?
The XXL Plus cleans a 24.4 in path for corridors and open areas and is 26.8 in wide. The XL Plus cleans an 18.1 in path and is 18.9 in wide, which suits restrooms and tight spaces.
Not sure the i-mop XXL Plus fits your floors?
Tell our team about the floor, the building and the shift, and we will help you decide if this is the right machine.
