| Burnishing System | |
| Burnishing path (disk) | 27 in |
| Pad motor | 4 hp direct drive |
| Pad rotation | 1,500 - 1,600 rpm |
| Selectable down pressure | Controlled by pad motor current draw 70, 78, 85 amps |
| Toe kick pass under | 4 in |
| Forward burnishing speeds | Low- 150 fpm Medium- 175 fpm High- 200 fpm |
| Burnishing speeds (console programmable) | Low range- 125/150/175 fpm High range- 250/275/300 fpm |
| Construction & Power Systems | |
| Chasis construction | Carbon steel main frame (painted) Rotational molded polyethylene front and rear body parts |
| Power supply (standard) | Flooded lead acid 6 x 6 Volts 435 Amp Hour at 20 hour rate |
| Battery run time | 3 hour minimum run time at low down pressure setting |
| On-board charger | 25 amp rating with charge time ~ 18 hours |
| Dimensions/Weight/Sound level | |
| Length | 58.5 in |
| Width | 31.5 in |
| Height | 55 in |
| Net weight | 1,350 lbs |
| Sound level | 69 dBA |
| Standard Features | |
| Active dust control | HEPA filtration |
| True free floating head | Automated head lift |
Technical specs may include optional equipment that is not included with all units.

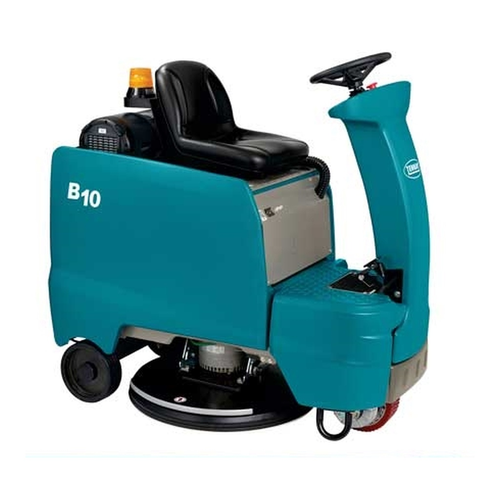

New Tennant B10 Battery Rider Burnisher 610mm/24"
Our Take (from the SES Sales Team)
“If your crew is burnishing a big floor with a walk-behind and running out of night, the B10 is worth a look. It is a battery rider, so there are no propane tanks to store or fumes to manage, and the 24 in head is rated up to 30,250 sq ft per hour. Tennant puts a 4 hp direct-drive pad motor on it and says that is more than 20 percent more horsepower than the leading competitor. What stands out for us is how much comes standard: active 4-stage HEPA dust control, automated head lift with an 18 degree side tilt for pad changes, an on-board charger, and Quality Assurance Controls that let a supervisor lock the settings. Three speeds and three down-pressure settings let one machine handle different floors and finishes. It runs at 69 dBA, which suits schools, hospitals and stores during open hours. The 24 in size keeps the width to 30 in, which helps in tighter buildings.”
A 24 in battery rider burnisher with active HEPA dust control and automated head lift
The Tennant B10 is a ride-on battery burnisher for large retail floors, schools, hospitals and other big open areas. A 24 in free-floating head driven by a 4 hp direct-drive pad motor brings finished floors to a high gloss, and Tennant's active 4-stage HEPA dust control is standard. Three speeds and three down-pressure settings let one machine handle many floors.
This is Tennant's B10 24 in base build: six 6 V, 435 Ah wet batteries (36 V), a 25 A on-board charger, automated head lift, Quality Assurance Controls with supervisor lock-out, a back-up alarm, an adjustable seat, an hour meter and the operator manual.
Condition: New.
What you get
Ready to burnish
Why a rider instead of a walk-behind?
Features
Built for big floors
- ✓Three forward speeds and three down-pressure settings for different floors and finishes
- ✓Truly free-floating head for uniform burnishing across the path
- ✓Integrated step and adjustable seat for operator comfort
- ✓Easy battery access, with an optional manual battery watering system
- ✓Yellow maintenance touch points simplify daily checks and training
Choosing a head size
B10 24 in or 27 in?
| 24 in (this unit) | 27 in | |
|---|---|---|
| Burnishing path | 24 in (610 mm) | 27 in (690 mm) |
| Productivity (max) | 30,250 sq ft/hr (2,813 m²) | 34,375 sq ft/hr (3,197 m²) |
| Width | 30 in (762 mm) | 31.5 in (800 mm) |
| Weight with batteries | 1,346 lb (611 kg) | 1,350 lb (612 kg) |
Both sizes share the 4 hp pad motor, 435 Ah battery pack, active HEPA dust control and 58.5 in length.
Specifications
Tennant B10 24 in at a glance
| Models | B10 24 in Battery Rider |
|---|---|
| Burnishing path | 24 in (610 mm) |
| Productivity | 30,250 sq ft/hr max (2,813 m²) |
| Pad motor | 4 hp direct drive |
| Pad speed | 1,500 to 1,600 rpm |
| Burnishing speed (as shipped) | Low 150, medium 175, high 200 ft/min (45.7, 53.3, 61.0 m/min) |
| Transport speed (max) | 435 ft/min (8 km/h) |
| Voltage | 36 VDC |
| Batteries | 6 x 6 V, 435 Ah wet |
| Charger | On-board, 25 A, 120 V |
| Run time | Up to 3.5 hours |
| Dust control | Active 4-stage, HEPA 99.97% @ 0.3 micron |
| Sound level | 69 dBA |
| Dimensions (L x W x H) | 58.5 x 30 x 55 in (1,486 x 762 x 1,397 mm) |
| Weight with batteries | 1,346 lb (611 kg) |
| Model Numbers | B10-610-2000057 (Tennant B10 24 in base configuration) |
Technical specs may include optional equipment that is not included with all units.
Questions
Tennant B10: common questions
How long does the B10 run on a charge?
Tennant lists up to 3.5 hours. Runtime varies with speed, down pressure and the pad used.
Is it quiet enough for occupied buildings?
Tennant rates the B10 at 69 dBA, and as a battery machine it has no propane fumes or tanks to store.
How are pads changed?
The head lifts automatically and tilts 18 degrees to the side, so the operator can reach the pad without lifting the head by hand.
Can supervisors lock the settings?
Yes. Quality Assurance Controls lock in preferred settings and can turn off operator adjustments, so results stay consistent from shift to shift.
Should I pick the 24 in or the 27 in?
The 27 in head is the other option. The 27 in covers more floor per hour; the 24 in is 1.5 in narrower for tighter doorways and elevators. Measure your tightest openings first.
Not sure the B10 fits your floors?
Tell our team about the floor, the building and the shift, and we will help you decide if this is the right machine.
