| Cleaning Path | 28 in / 710 mm |
| Productivity (per hour) | |
| Theoretical max - ReadySpace | 13,000 ft2 / 1,210 m2 |
| Estimated coverage - ReadySpace | 10,000 ft2 / 930 m2 |
| Theoretical max - Extraction | 7,500 ft2 / 700 m2 |
| Estimated coverage - Extraction | 5,000 ft2 / 470 m2 |
| Brush motor horsepower (2) | 0.54 hp / 0.40 kW |
| Roller/brush RPM | 270 rpm / 270 rpm |
| Roller/brush size (dual cylindrical) | 27.5 in / 700 mm |
| Down Pressure | |
| ReadySpace | 104 lb / 47 kg standard, 152 lb / 69 kg heavy |
| Extraction | 32 lb 15 kg standard, 84 lb / 38 kg heavy |
| Solution tank capacity - cleanable | 32 gal / 121 L |
| Solution pump rated pressure (max) | 250 psi / 17.2 bar |
| Solution pump pressure | |
| ReadySpace | 30 psi / 2.07 bar at spray tips |
| Extraction | 52 psi / 3.59 bar at spray tips |
| Solution flow rate | |
| ReadySpace | 0.33 gpm / 1.25 lpm |
| Extraction | 1.24 gpm / 4.7 lpm |
| Recovery tank capacity - cleanable | 28 gal / 106 L |
| Vacuum fan (2) | 3-stage, 0.6 hp / 0.45 kW |
| Vacuum motor airflow (max) | 66.5 cfm / 1.88 m3/min |
| Vacuum system airflow (actual) | |
| ReadySpace | 48 cfm / 1.36 m3/min |
| Extraction | 32 cfm / 0.91 m3/min |
| Vacuum motor sealed waterlift | 70.5 in / 1,790 mm |
| Vacuum system sealed waterlift | 56 in / 1,420 mm |
| Vacuum shoe (2) | 16.5 in / 420 mm (removable without tools) |
| Standard capacity batteries (24 V) | 335 AH |
| Battery run time (max) | 3.0 hr |
| Cleaning speed - ReadySpace | |
| Standard | 100 fpm / 30 mpm |
| Maximum | 150 fpm / 46 mpm |
| Cleaning speed - Extraction | |
| Standard | 50 fpm / 15 mpm |
| Maximum | 75 fpm / 23 mpm |
| Transport speed forward | 290 fpm / 88 mpm |
| Transport speed reverse | 175 fpm / 53 mpm |
| Gradeability | |
| Transport at gross weight | 6 degrees / 10.5 % |
| Transport (empty for trailering) | 11 degrees / 19.25% |
| Working | 3 degrees / 5% |
| Length | 61.5 in / 1,560 mm |
| Width | 31.5 in / 800 mm |
| Height | 52 in / 1,320 mm |
| Weight | 835 lb / 379 kg |
| Weight (with batteries) | 1,225 lb / 556 kg |
| Minimum aisle turn | 64 in / 1,630 mm |
| Sound level (operator's ear) | 73 dBA |

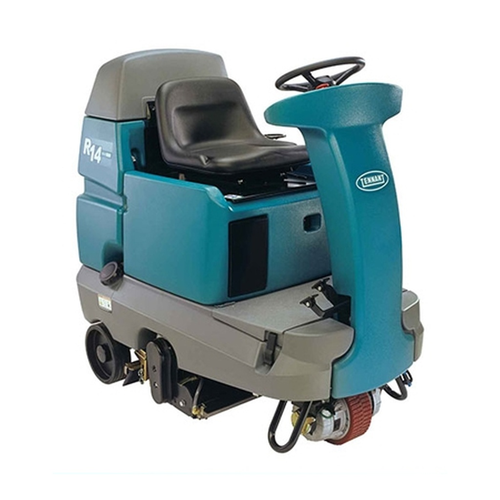

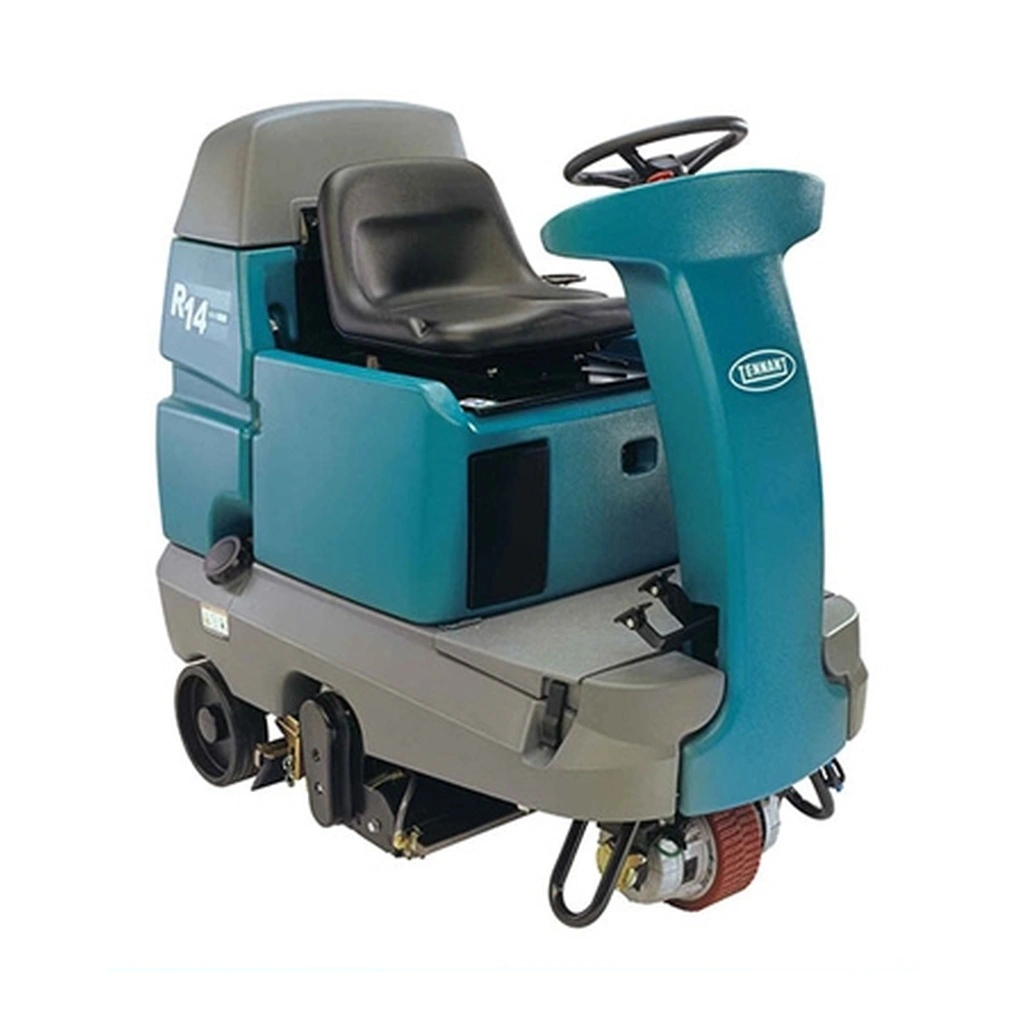

New Tennant R14 Ride-On Dual Technology Carpet Maintainer 700mm/28"
Our Take (from the SES Sales Team)
“If you manage a lot of carpet, the hard part usually isn't the deep clean. It is keeping traffic lanes looking good between deep cleans without closing areas for half a day. That is the problem the R14 is built to solve. In ReadySpace mode it cleans with soil-transfer rollers and very little water, and Tennant says the carpet is dry in less than 30 minutes, so lobbies, corridors and meeting rooms can stay open. When it is time to restore the carpet, the same machine switches to deep extraction with dual counter-rotating brushes, and the change takes no tools. The operator rides, which matters on big jobs: the R14 cleans a 28 in path and holds 32 gal of solution, so it covers far more carpet per shift than a walk-behind. Tennant rates it at up to 10,000 sq ft per hour of estimated coverage in ReadySpace mode and 5,000 in extraction. Airports, hotels, convention space, campuses and large offices get the most out of it.”
Interim carpet care and deep extraction on one rider
The Tennant R14 Ride-On Dual Technology Carpet Maintainer combines ReadySpace rapid-dry cleaning with deep extraction. Frequent ReadySpace cleaning keeps carpet looking fresh with less water, and periodic extraction removes the most deeply embedded soil to extend carpet life.
This listing is the R14 700 mm/28 in, Tennant model 2000064, with four 6 V wet 360 Ah batteries, a 25 A off-board charger, and one set of ReadySpace rollers plus one set of extraction brushes.
Condition: New.
What you get
Everything needed for both modes
Less water, fewer problems
Features
Why crews like it

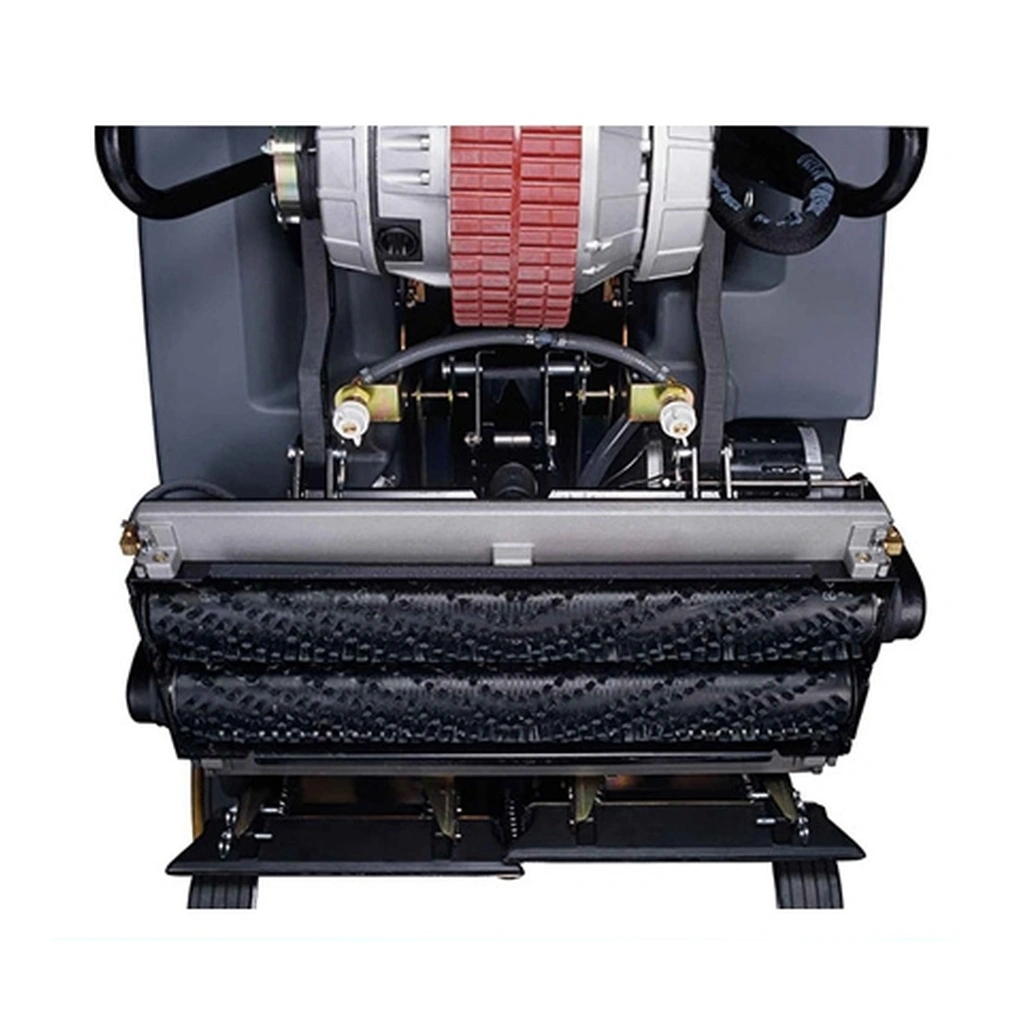

- ✓Switch between ReadySpace and extraction with no tools

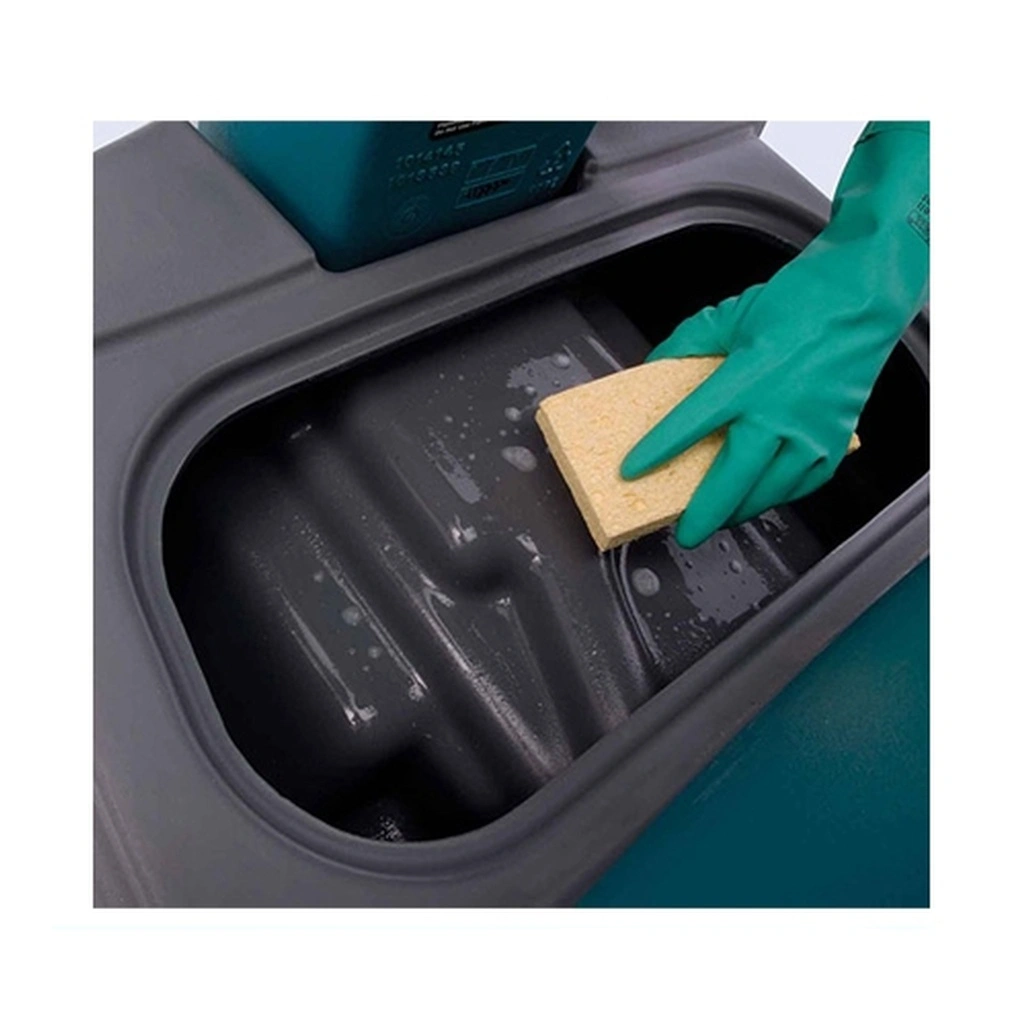

- ✓Hygenic solution and recovery tanks open fully for cleaning
- ✓Patented vacuum shoe design for water recovery across the full path
- ✓Soft-touch control panel with one-button operation
- ✓Compact rider design for moving through congested areas
Choosing a mode
How the two modes compare
| ReadySpace | Deep extraction | |
|---|---|---|
| Estimated coverage | 10,000 sq ft/hr | 5,000 sq ft/hr |
| Solution spray rate | 0.33 gpm | 1.24 gpm |
| Vacuum system airflow | 48 CFM | 32 CFM |
| Cleaning speed, maximum | 150 fpm | 75 fpm |
| Best for | Frequent interim cleaning, fast reopening | Periodic restorative cleaning |
Specifications
R14 700 mm/28 in specifications
| Models | R14 Ride-On Dual Technology Carpet Maintainer |
|---|---|
| Cleaning path | 28 in (700 mm) |
| Productivity, theoretical max | 13,000 sq ft/hr ReadySpace; 7,500 sq ft/hr extraction |
| Roller / brush speed | 270 rpm |
| Down pressure, ReadySpace | 104 lb standard, 152 lb heavy |
| Down pressure, extraction | 32 lb standard, 84 lb heavy |
| Solution / recovery tanks | 32 gal (121 L) / 28 gal (106 L) |
| Pump | Piston pump, 250 psi max rated; 30 psi ReadySpace, 52 psi extraction at tips |
| Vacuum motor water lift, sealed | 70.5 in (1,791 mm) |
| Propel motor | 1.1 hp (0.85 kW) |
| Incline, working | 3 degrees (5%) |
| Batteries | 4 x 6 V wet 360 Ah (24 V) |
| Runtime | Up to 2.5 hr |
| Charger | 25 A, 100-240 V AC, 50/60 Hz, off-board |
| Sound level | 73 dBA |
| Dimensions (L x W x H) | 61.5 x 31.5 x 52 in (1,560 x 800 x 1,325 mm) |
| Weight with batteries | 1,225 lb (560 kg) |
| Model Numbers | R14-700 / 2000064 (R14 700 mm/28 in, wet 360 Ah batteries, off-board charger) |
Technical specs may include optional equipment that is not included with all units.
Questions
R14 carpet maintainer: common questions
What is the difference between ReadySpace and extraction?
ReadySpace uses damp soil-transfer rollers and very little water for frequent cleaning with fast drying. Extraction sprays more solution and agitates with counter-rotating brushes for a deeper, restorative clean.
Are both the rollers and the brushes included?
Yes. This package includes one set of ReadySpace rollers and one set of extraction brushes.
How much carpet can it clean in an hour?
Tennant estimates up to 10,000 sq ft per hour in ReadySpace mode and 5,000 sq ft per hour in extraction mode.
Can it climb ramps?
Tennant rates the R14 for a 3 degree (5%) incline while cleaning and 6 degrees (10.5%) in transport at gross weight.
Want help planning your carpet program?
Tell our team about the carpet, the traffic and the cleaning schedule, and we will help you decide if the R14 is the right machine.
