| Cleaning Path (Disk) | 20 in / 500 mm |
| Productivity (per hour) Theoretical max manual mode | 33,440 ft2 / 3,106 m2 |
| Brush / Pad RPM | 215 |
| Brush/Pad Down Pressure (Low / High) | 62 /90 lbs, 28/41 kg |
| Solution Tank | 20 gal / 75 L |
| Recovery Tank | 20 gal / 75 L |
| System Voltage | 24 Volts |
| Battery Run Time* | Up to 4 hours |
| Weight (tanks empty) w/ batteries | 850 lbs / 386 kg |
| Length | 62 in / 1575 mm |
| Width/ frame | 25 in / 635 mm |
| Height (to light) | 55 in / 1397 mm |
| Weight (tanks empty) lbs w/ batteries | 850 lbs / 385 kg |
| Safety | Overlapping sensors detect and avoid people and obstacles. Equipped with two auto-stop buttons. Horn. Antijoy ride detection. Beeps alert passerbys. Blinkers alert turn direction. |
| Learning System | Teach & Repeat |
Technical specs may include optional equipment that is not included with all units.

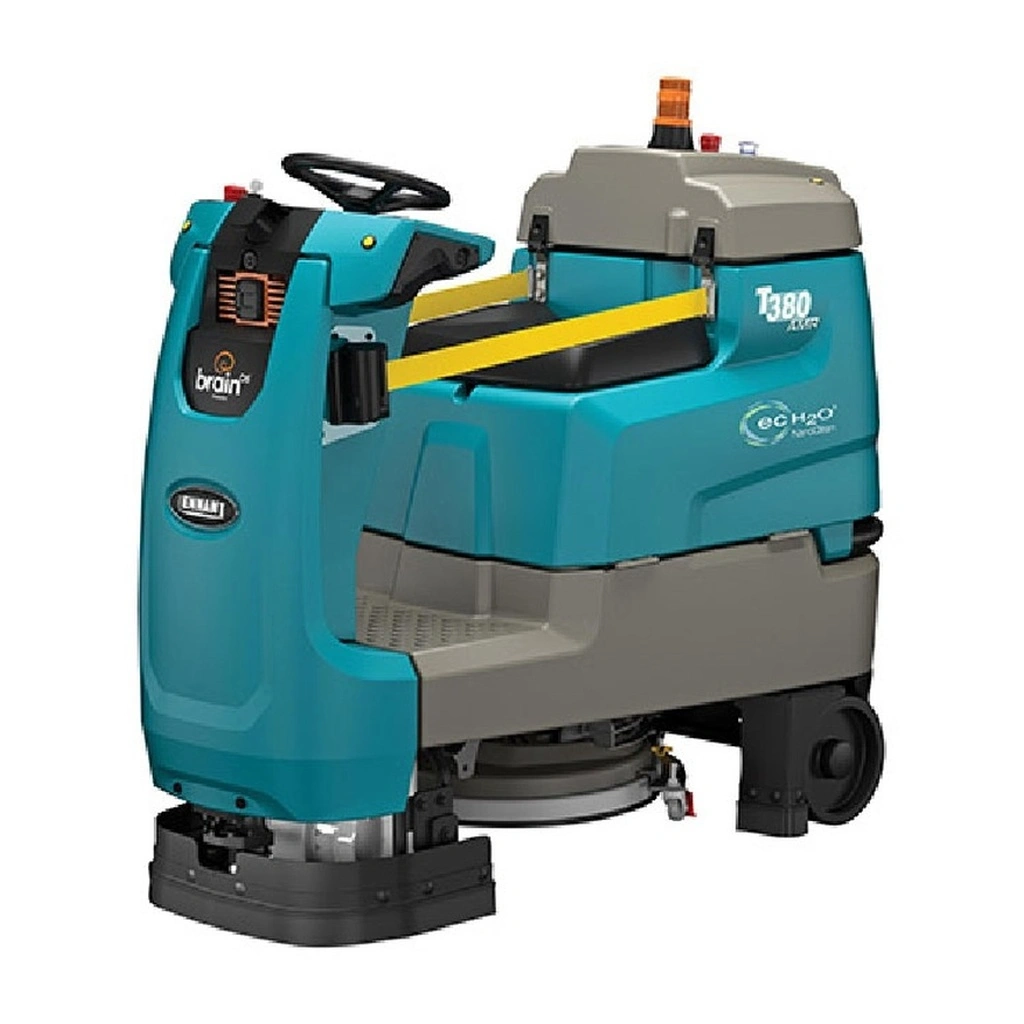

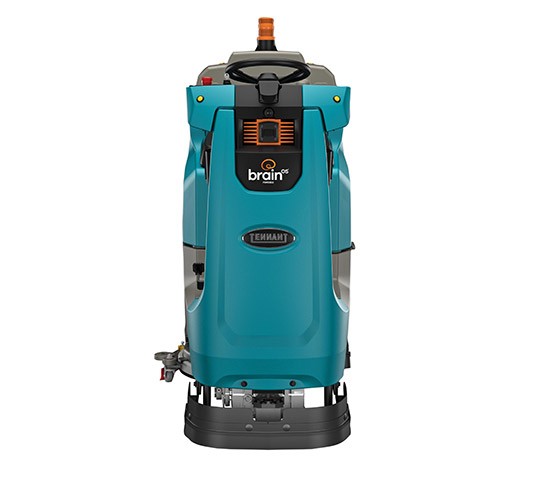

New Tennant T380AMR Robotic Floor Scrubber
Our Take (from the SES Sales Team)

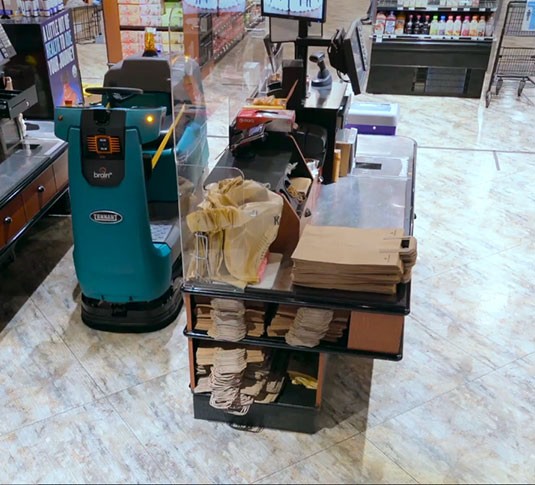

“The T380AMR makes sense when floor scrubbing is eating labor hours that a store or school would rather spend somewhere else. It's a compact robotic ride-on scrubber powered by BrainOS from Brain Corporation. An operator drives a route once to teach it, and after that the machine repeats the route on its own, steering around people and obstacles while staff handle other work. The 20 in scrub path and 25 in body width let it work narrow aisles, checkout areas and corridors where a larger machine struggles, and the 20 gal solution and recovery tanks keep it on a route without constant refills. The standard wet 225 Ah batteries are rated for up to 4 hours of continuous autonomous cleaning. It suits grocery stores, retail, schools and other buildings where cleaning happens around customers and staff, and Tennant's weekly usage reports help managers confirm the floors actually got cleaned. Autonomous operation requires a BrainOS autonomy service term through Tennant, so plan on our team walking you through the deployment and route setup before the machine goes to work.”
A compact robotic scrubber for narrow aisles

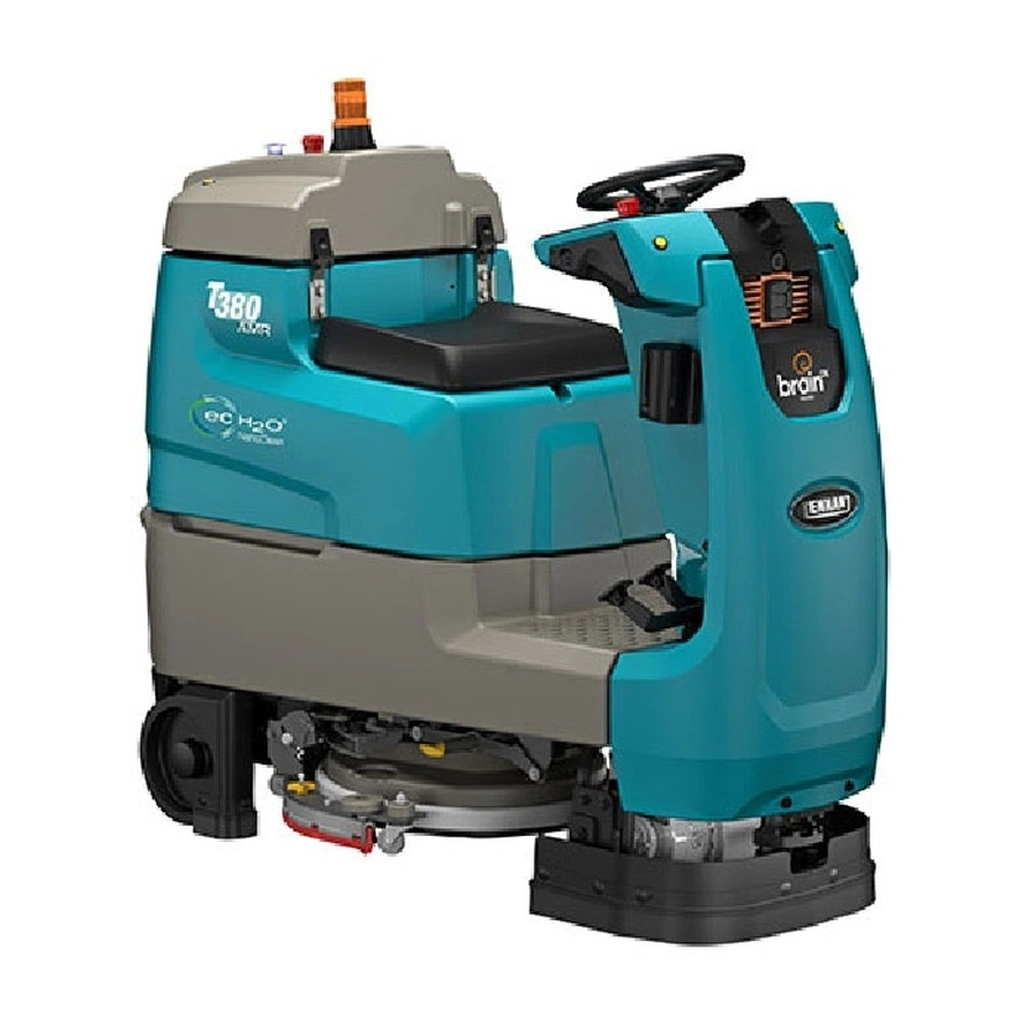

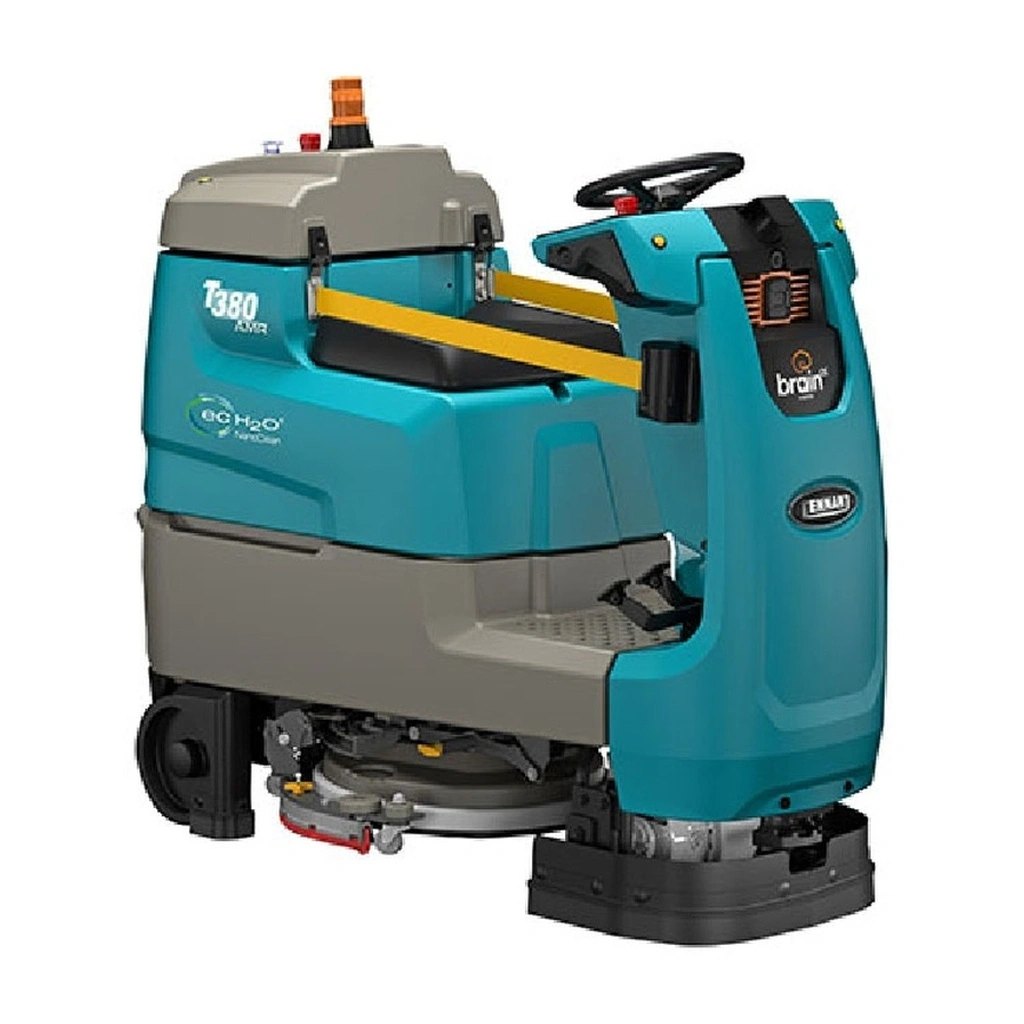

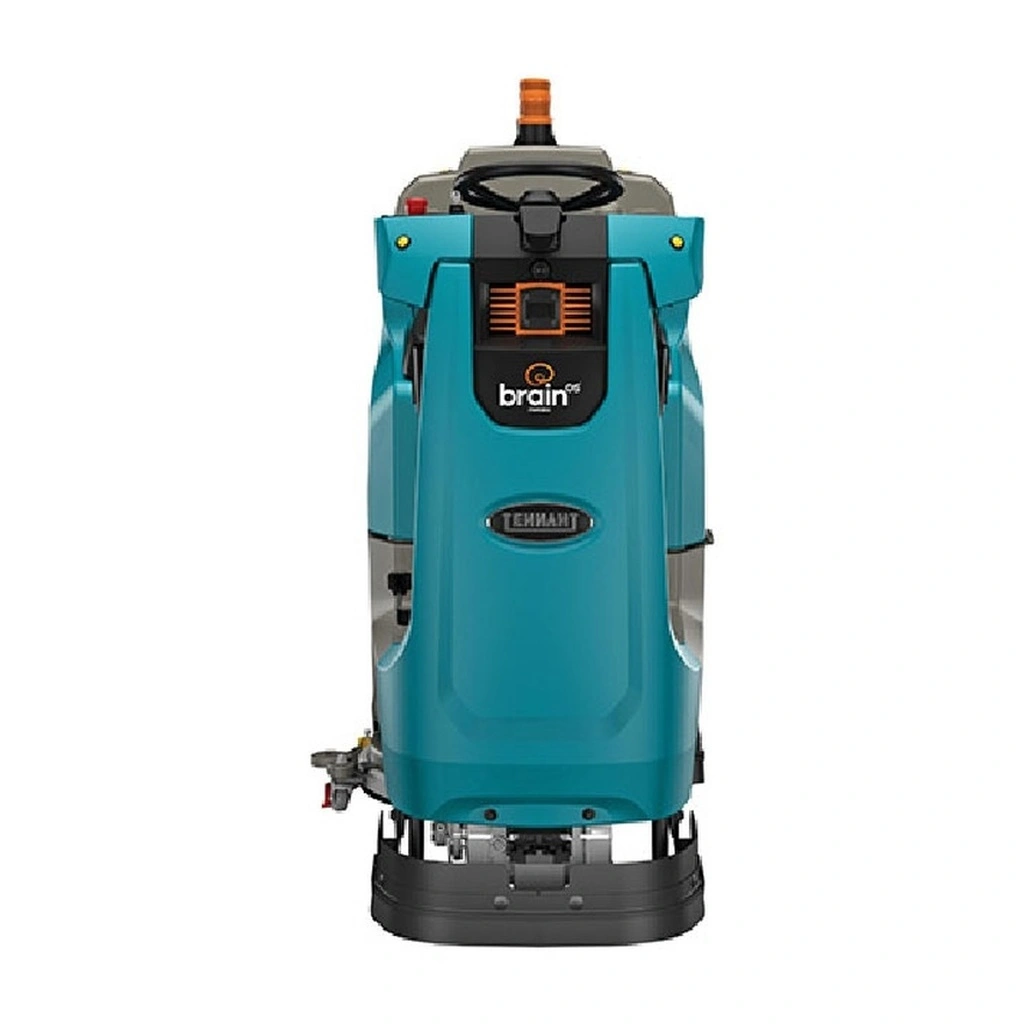

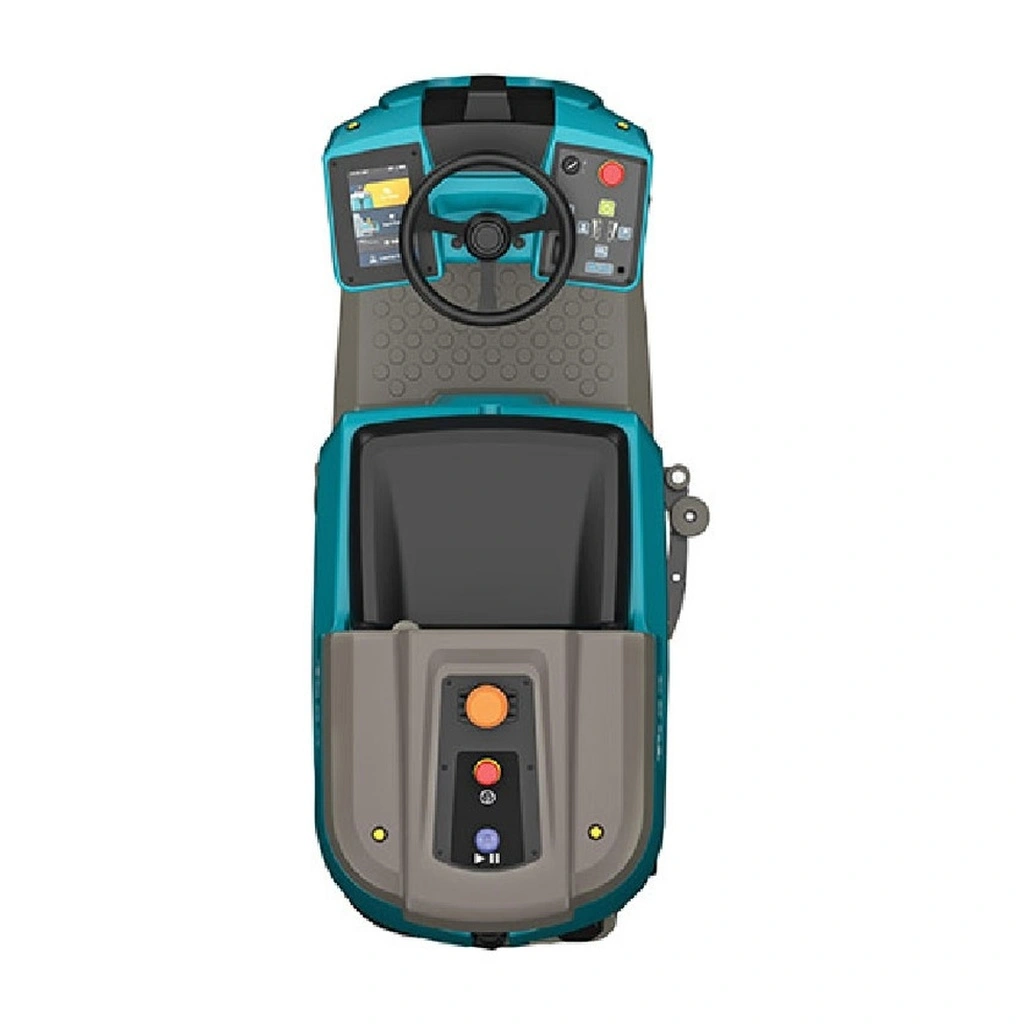

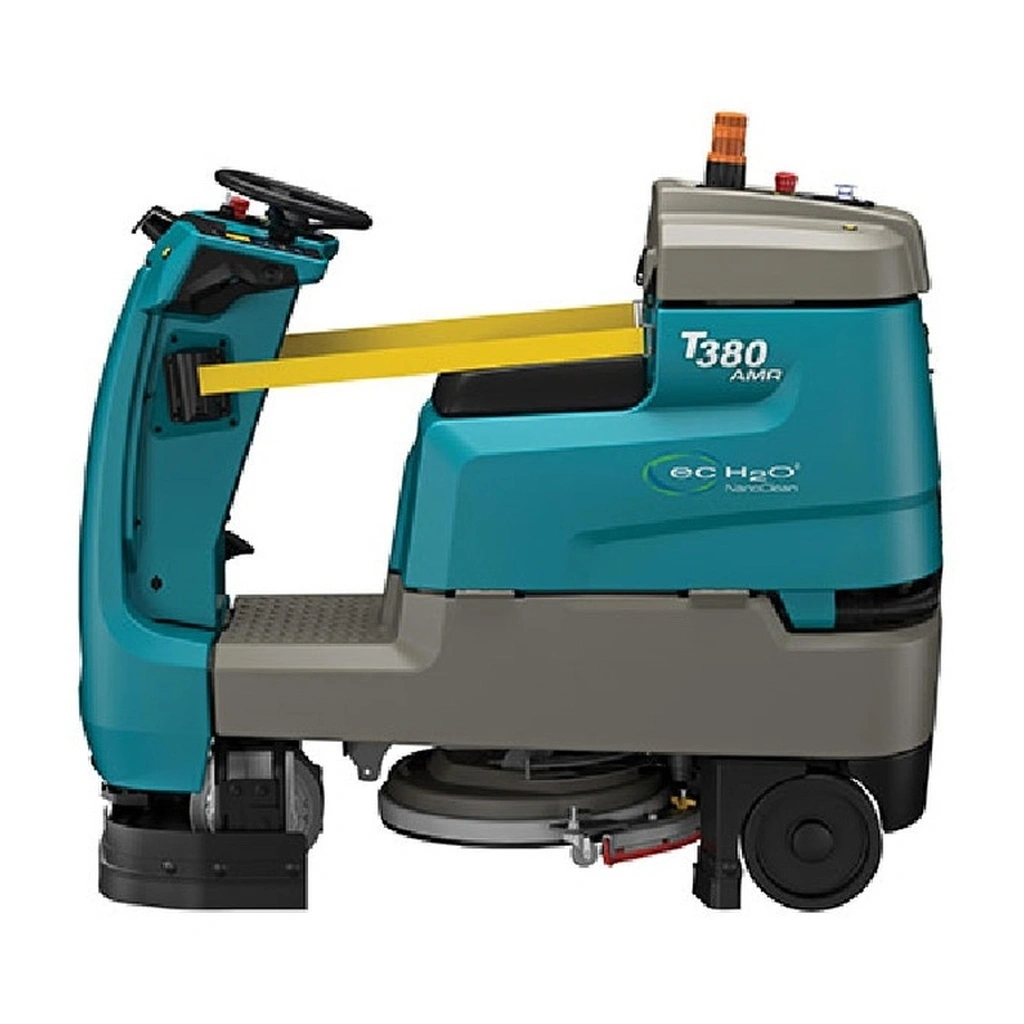

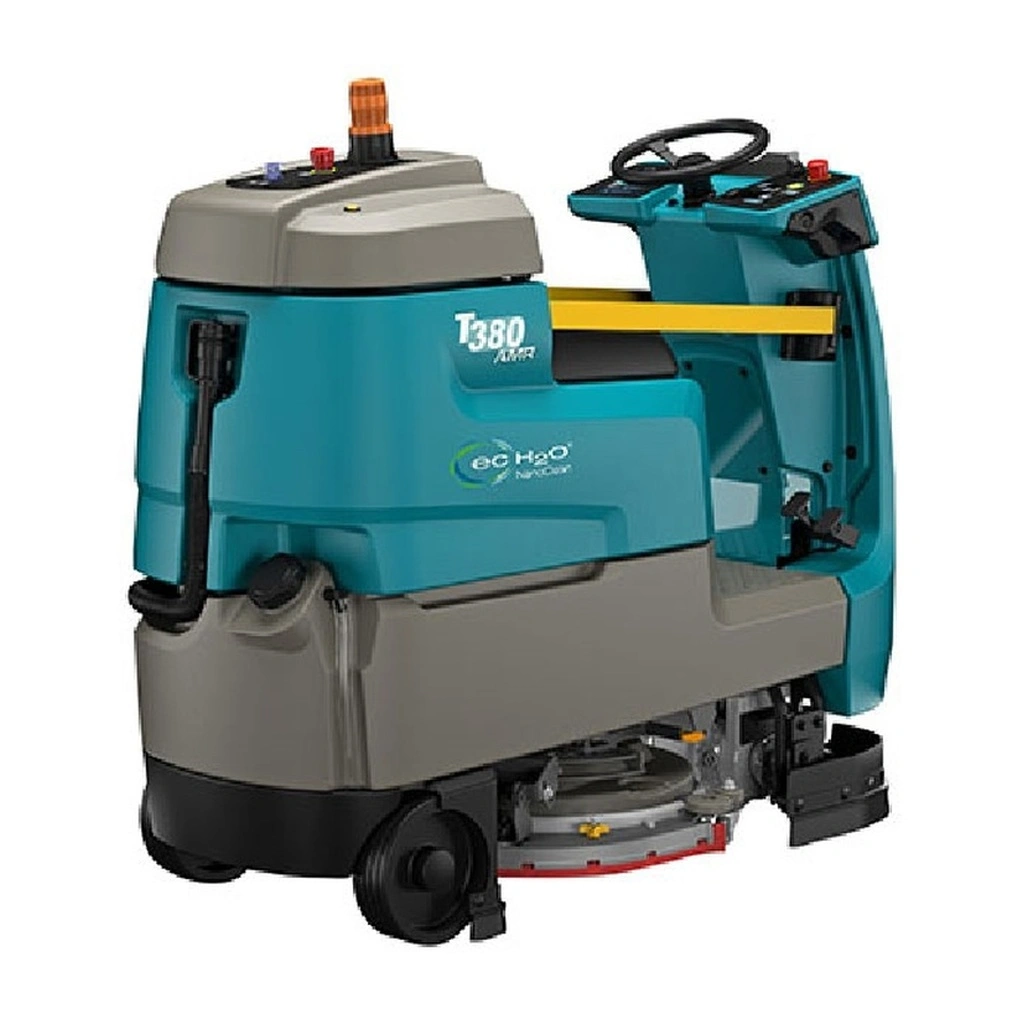

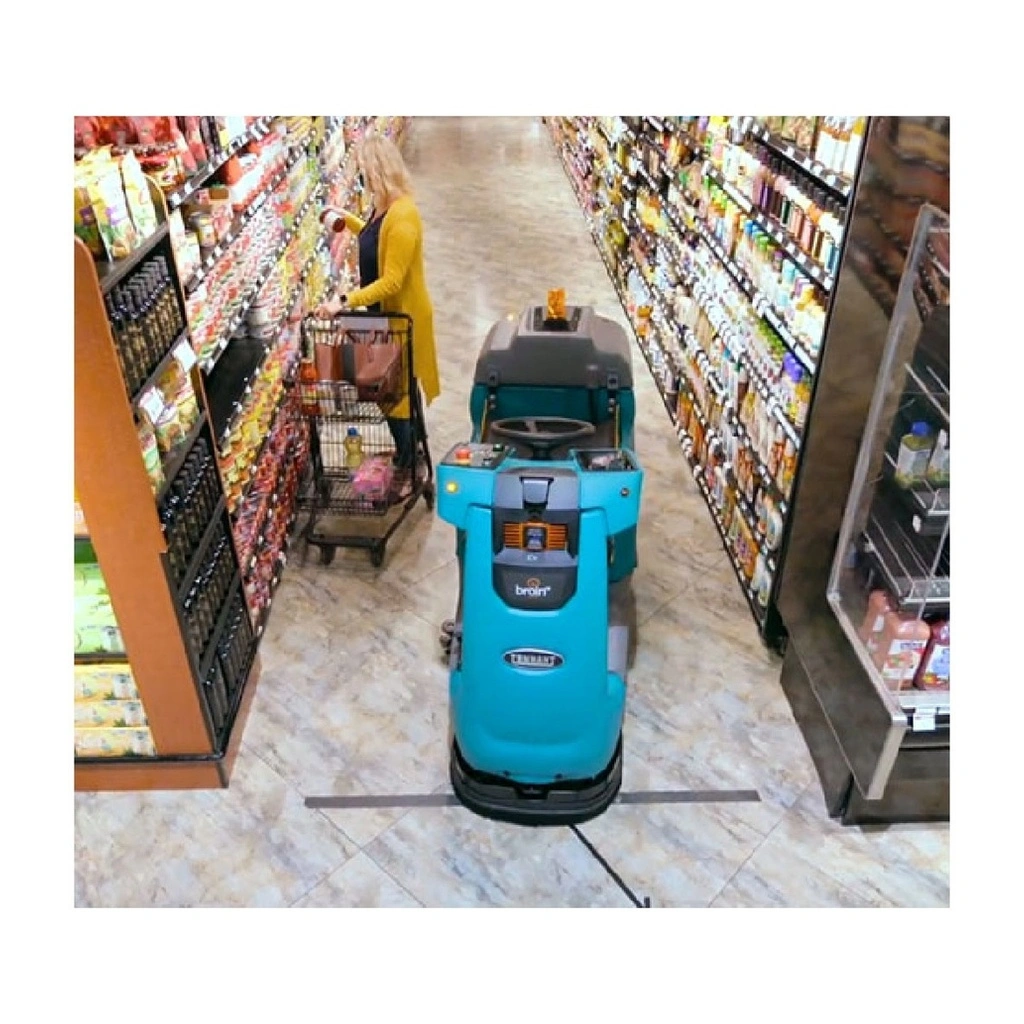

The Tennant T380AMR is an autonomous ride-on floor scrubber powered by BrainOS, an artificial intelligence and robotic technology platform from Tennant partner Brain Corporation. A 20 in (500 mm) disk deck, 20 gal (75 L) solution and recovery tanks and a 25 in (635 mm) wide body let it clean narrow aisles and tight spaces while working safely around customers and employees.
This listing is the T380AMR-500-D standard configuration: conventional scrubbing, wet 225 Ah batteries with a manual battery watering kit, an off-board charger and one brush or pad driver. ec-H2O NanoClean and lithium-ion batteries are options.
Condition: New.
What you get
Ready to learn your routes
Autonomy service is required
Features
Built to clean around people
- ✓Teach-and-repeat routes let it run multiple routes back to back without assistance
- ✓Vision-based obstacle avoidance, automatic braking and parking brake actuation
- ✓Self-adjusting splash skirt reduces overspray on fixtures, walls and baseboards
- ✓Tank lift assist gives easy access to the batteries for charging
- ✓Hygenic solution and recovery tanks are easy to clean out
Specifications
Tennant T380AMR at a glance
| Models | T380AMR-500-D, 225 Ah Wet |
|---|---|
| Cleaning path | 20 in (500 mm) disk |
| Brush / pad speed | 215 rpm |
| Down pressure | 62 lb (28 kg) low; 90 lb (41 kg) high |
| Scrub motor | 24 VDC, 0.9 hp (0.65 kW) |
| Propel motor | 24 VDC, 1.1 hp (0.85 kW) |
| Productivity | 33,440 sq ft/hr (3,106 m²) theoretical max, manual mode |
| Solution / recovery tanks | 20 gal (75 L) / 20 gal (75 L) |
| Demisting chamber | 9.9 gal (37.5 L) |
| Vacuum | 24 VDC, 0.6 hp (0.46 kW), 42 in (1,067 mm) water lift |
| Solution flow, conventional | 0.15 / 0.35 / 0.50 gpm (0.57 / 1.32 / 1.89 L/min) |
| Propel speed | Forward up to 3.75 mph (6.0 km/h); reverse up to 2.5 mph (4.0 km/h) |

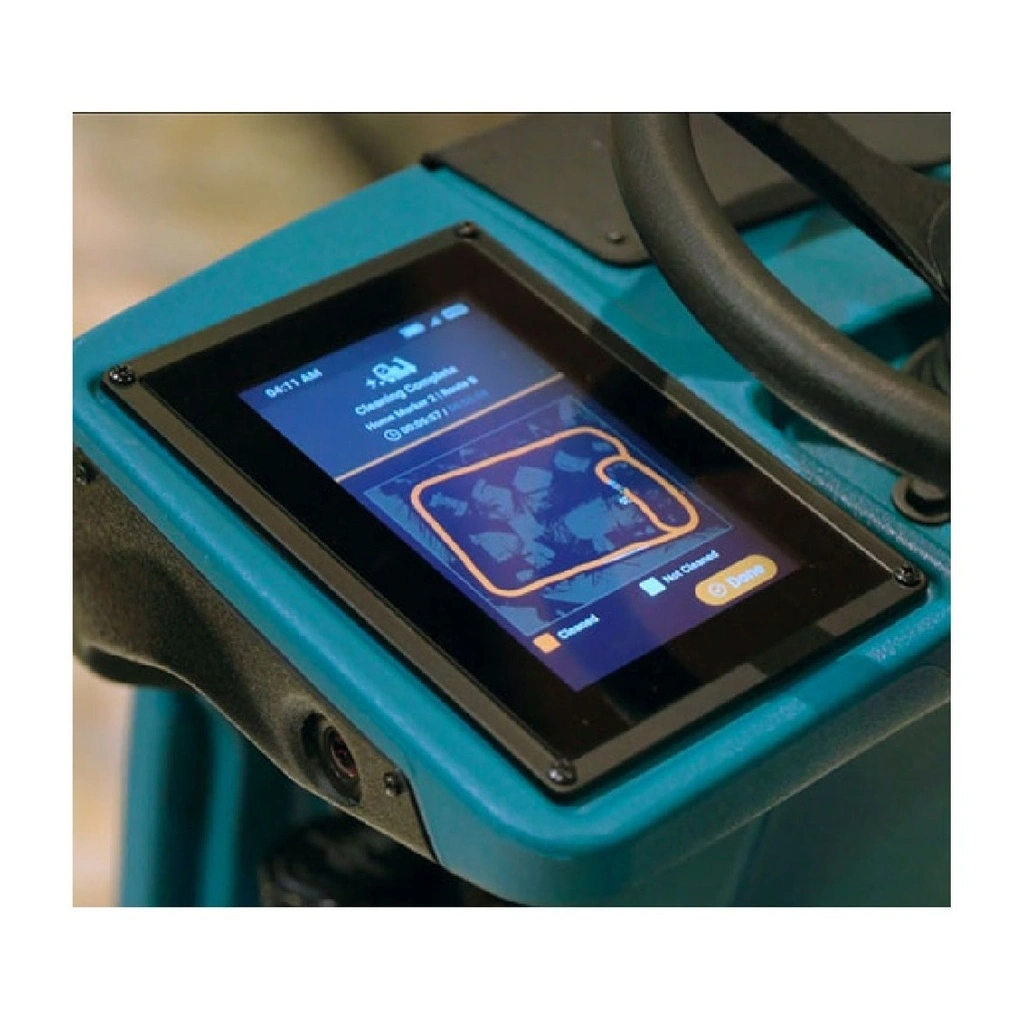

| Controls | BrainOS LCD touch screen |
| Batteries | 24 V, 225 Ah wet, with manual battery watering kit |
| Runtime | Up to 4 hr estimated continuous autonomous runtime |
| Charger | Off-board |
| Dimensions (L x W x H) | 62 x 25 x 55 in (1,575 x 635 x 1,397 mm), height to light |
| Weight | 582 lb (264 kg) empty without batteries; 850 lb (385 kg) with batteries |
| Model Numbers | T380AMR-500-D (T380AMR 20 in disk, conventional, 225 Ah wet batteries, off-board charger) |
Technical specs may include optional equipment that is not included with all units.
Questions
Tennant T380AMR: common questions
How does the T380AMR learn where to clean?
It uses a teach-and-repeat model. An operator drives the route once in manual mode, and the machine can then repeat that route autonomously, including several routes back to back.

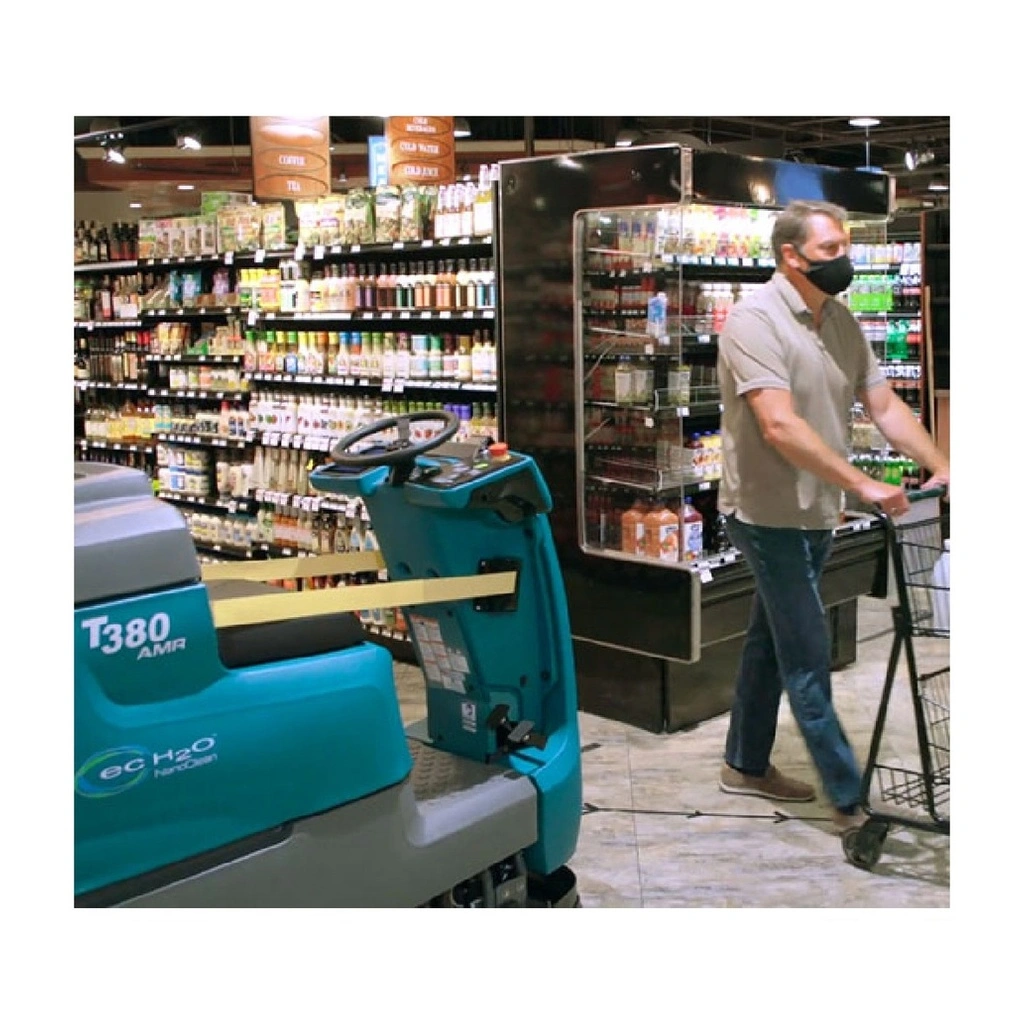

Is it safe to run around customers and staff?
The BrainOS platform uses vision-based technology to avoid people and unplanned obstacles, with automatic braking and parking brake actuation, so it can clean during regular business hours.
How long does it run on a charge?
Tennant estimates up to 4 hours of continuous autonomous cleaning on the standard wet 225 Ah batteries, in economy mode. A lithium-ion option is rated for up to 5 hours.
What is required besides the machine?
Autonomous operation requires a BrainOS autonomy service term through Tennant. Ask our team about the service terms, deployment and route setup for your building.
Will it fit narrow aisles?
The T380AMR is 62 in long, 25 in wide and 55 in high to the light, with a 20 in scrub head built for narrow aisles and tight spaces.
Not sure a robotic scrubber fits your building?
Tell our team about the floor, the building and the routes, and we will help you decide if the T380AMR is the right machine.
