| Machine Type | Walk-Behind Scrubber |
|---|---|
| Cleaning Path Width | 20-28 in (508-711 mm) |
| Power Source | Battery (electric) |
| Solution Tank Capacity | 13 gal (49 L) |
| Recovery Tank Capacity | 13 gal (49 L) |
| Productivity Rate | Up to 19,200 sq ft/hr (1,784 sq m/hr) |
| Sound Level | 65 dB(A) |

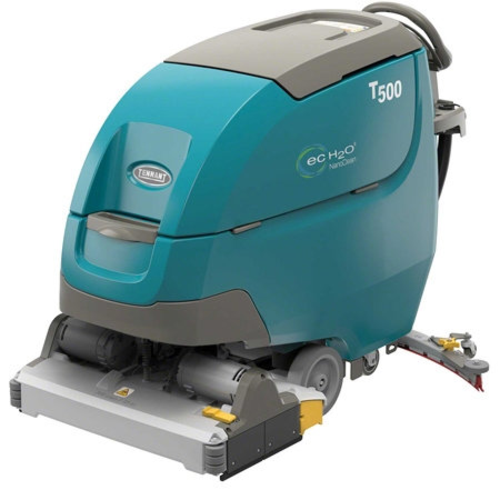

New Tennant T500 26" Disk Walk-Behind Scrubber - 225AH Battery
Our Take (from the SES Sales Team)
“The T500 26 in is the version to look at when a facility needs real tank capacity but still has furniture, doorways and narrow aisles to work around: schools, offices, clinics and smaller retail. The 26 in dual-disk deck is the most maneuverable T500 and needs 59 in of aisle to turn around, yet it still carries a 22.5 gal solution tank and a 27 gal recovery tank for long routes between dump-and-fill stops. This package is the conventional T500, scrubbing with water and detergent, with the Pro-Membrane control panel, so supervisors can preset three Zone Settings for different floors and lock out changes. It also comes with Smart-Fill automatic battery watering on the four 6 V, 225 Ah wet batteries, which takes battery watering off the crew's to-do list. Quiet-Mode drops the sound level to 61.7 dBA for daytime cleaning in occupied buildings. If your floors are more open, the 28 in and 32 in T500 packages cover more ground per hour, and an ec-H2O NanoClean version of this 26 in machine is also available.”
A mid-size 26 in scrubber with automatic battery watering
The Tennant T500 is a battery-powered, self-propelled walk-behind floor scrubber for schools, healthcare, grocery, retail and other mid-size floors. Two 13 in disks clean a 26 in (650 mm) path, and the 22.5 gal (85 L) solution and 27 gal (102 L) recovery tanks keep it on long routes between dump-and-fill stops.
This package (T500-2001D) has the Pro-Membrane control panel, four 6 V, 225 Ah wet batteries with Smart-Fill automatic battery watering, conventional cleaning with water and detergent, a 25 A on-board charger and a set of pad drivers.
Condition: New.
What you get
Everything you need to start scrubbing
Zone Settings on the Pro-Membrane panel
Features
Built for long daily routes
- ✓Insta-Fit no-tool pad and brush attachment with a free-floating head skirt
- ✓Breakaway squeegee with an integrated P-trap and no-tool blade changes
- ✓100 percent water recovery in 180-degree turns with the standard squeegee
- ✓Quiet-Mode lowers the sound level to 61.7 dBA for daytime cleaning
- ✓Front water fill port, recovery tank debris tray and yellow touch points
Choosing a deck
T500 deck sizes compared
| Package | Estimated coverage | Squeegee width | Aisle turnaround |
|---|---|---|---|
| 26 in disk (this unit) | 20,571 sq ft/hr | 38.3 in | 59 in |
| 28 in disk | 22,286 sq ft/hr | 41.3 in | 59.6 in |
| 32 in disk | 25,714 sq ft/hr | 46.6 in | 61.6 in |
All three conventional packages share the 22.5 gal and 27 gal tanks, the Pro-Membrane panel, the 225 Ah wet batteries with Smart-Fill and the on-board charger.
Specifications
Tennant T500 26 in at a glance
| Models | T500-2001D, 26 in Disk |
|---|---|
| Cleaning path | 26 in (650 mm) dual disk |
| Brush / pad | 2 x 13 in disk, 220 rpm |
| Scrub motors | 2 x 24 VDC, 0.75 hp (0.55 kW) |
| Down pressure | 40 / 80 / 120 lb (18 / 36 / 54.5 kg) |
| Solution / recovery tanks | 22.5 gal (85 L) / 27 gal (102 L) |
| Theoretical max productivity | 28,600 sq ft/hr (2,657 m²) |
| Estimated coverage, conventional | 20,571 sq ft/hr (1,911 m²) |
| Vacuum | 24 VDC, 0.63 hp (0.47 kW); 46 in (1,170 mm) water lift, 32 in (810 mm) in Quiet-Mode |
| Speed | Scrub up to 2.5 mph (4.0 km/h); transport up to 2.7 mph (4.3 km/h) |
| Batteries | 4 x 6 V, 225 Ah wet (24 V system), Smart-Fill automatic watering |
| Charger | 25 A on-board, 100-240 V |
| Sound level | 66.5 dBA; 61.7 dBA in Quiet-Mode |
| Squeegee width | 38.3 in (973 mm) |
| Aisle turnaround width | 59 in (1,499 mm) |
| Dimensions (L x W x H) | 58.5 x 27.5 x 43.3 in (1,486 x 700 x 1,100 mm) |
| Weight | 320 lb (145 kg) without batteries; 610 lb (277 kg) with batteries |
| Model Numbers | T500-2001D (T500 26 in disk, Pro-Membrane panel, 225 Ah wet batteries, Smart-Fill, conventional, 25 A on-board charger, pad drivers) |
Technical specs may include optional equipment that is not included with all units.
Questions
Tennant T500 26 in: common questions
Do the batteries need watering?

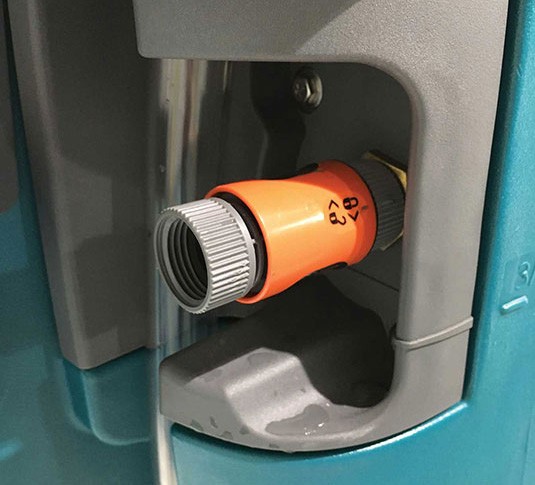

They are wet batteries, but this package includes Smart-Fill automatic battery watering, which fills them correctly from an on-board 0.66 gal tank. The operator only refills that tank.
Does it come with pad drivers or brushes?
One set of pad drivers comes standard. Polypropylene or nylon 26 in disk brushes can be chosen in place of the pad drivers when you order.
How much floor can it clean in an hour?
Tennant estimates about 20,571 sq ft per hour of practical coverage, with a theoretical max of 28,600 sq ft per hour.
Will it fit my aisles and doorways?
The 26 in T500 is 58.5 in long, 27.5 in wide and 43.3 in high, the squeegee is 38.3 in wide, and it needs 59 in of aisle to turn around. Measure your tightest doorway and aisle before you order.
What does Quiet-Mode do?
Quiet-Mode lowers the sound level from 66.5 to 61.7 dBA at the operator’s ear, which helps in occupied buildings. Tennant says it also extends run time.
