| Machine Type | Walk-Behind Scrubber |
|---|---|
| Cleaning Path Width | 20-28 in (508-711 mm) |
| Power Source | Battery (electric) |
| Solution Tank Capacity | 13 gal (49 L) |
| Recovery Tank Capacity | 13 gal (49 L) |
| Productivity Rate | Up to 19,200 sq ft/hr (1,784 sq m/hr) |
| Sound Level | 65 dB(A) |

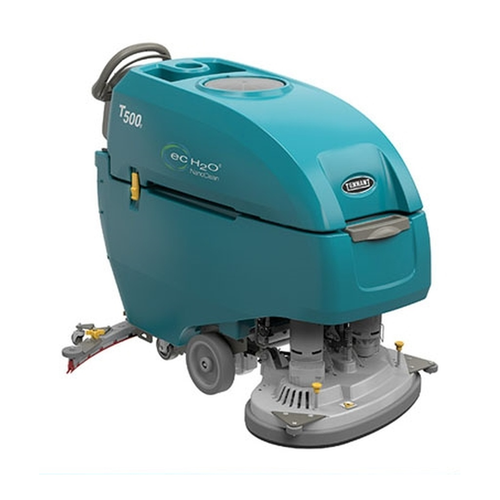

New Tennant T500 28" Disk Walk-Behind Scrubber - 225AH Battery
Our Take (from the SES Sales Team)
“The 28 in T500 is the all-around middle of the lineup, and it's a natural first look for grocery stores, hospital corridors, school hallways and general retail. Two 14 in pads or brushes clean a 28 in path, Tennant estimates about 22,286 sq ft per hour of practical coverage, and the 22.5 gal solution tank and 27 gal recovery tank keep the operator cleaning instead of walking to the drain. This is the conventional package, scrubbing with water and detergent, with the Pro-Membrane control panel and its Zone Settings and supervisor lock-outs, plus four 6 V, 225 Ah wet batteries with Smart-Fill automatic battery watering. The on-board charger plugs in wherever there's a standard outlet. Practical touches add up over a shift: Insta-Fit no-tool pad and brush changes, a no-tool squeegee change, a front fill port and a breakaway squeegee with an integrated P-trap to stop drips. With the standard squeegee, Tennant says the T500 recovers 100 percent of the water in 180-degree turns. If chemical use is a concern, the same machine is offered with ec-H2O NanoClean.”
A mid-size 28 in scrubber with automatic battery watering
The Tennant T500 is a battery-powered, self-propelled walk-behind floor scrubber for schools, healthcare, grocery, retail and other mid-size floors. Two 14 in disks clean a 28 in (700 mm) path, and the 22.5 gal (85 L) solution and 27 gal (102 L) recovery tanks keep it on long routes between dump-and-fill stops.

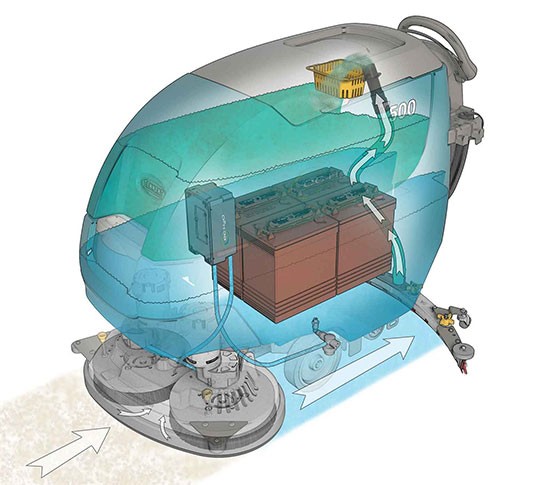

This package (T500-2002D) has the Pro-Membrane control panel, four 6 V, 225 Ah wet batteries with Smart-Fill automatic battery watering, conventional cleaning with water and detergent, a 25 A on-board charger and a set of pad drivers.
Condition: New.
What you get
Everything you need to start scrubbing
Zone Settings on the Pro-Membrane panel
Features
Built for long daily routes
- ✓Insta-Fit no-tool pad and brush attachment with a free-floating head skirt
- ✓Breakaway squeegee with an integrated P-trap and no-tool blade changes
- ✓100 percent water recovery in 180-degree turns with the standard squeegee
- ✓Quiet-Mode lowers the sound level to 61.7 dBA for daytime cleaning
- ✓Front water fill port, recovery tank debris tray and yellow touch points
Choosing a deck
T500 deck sizes compared
| Package | Estimated coverage | Squeegee width | Aisle turnaround |
|---|---|---|---|
| 26 in disk | 20,571 sq ft/hr | 38.3 in | 59 in |
| 28 in disk (this unit) | 22,286 sq ft/hr | 41.3 in | 59.6 in |
| 32 in disk | 25,714 sq ft/hr | 46.6 in | 61.6 in |
All three conventional packages share the 22.5 gal and 27 gal tanks, the Pro-Membrane panel, the 225 Ah wet batteries with Smart-Fill and the on-board charger.
Specifications
Tennant T500 28 in at a glance
| Models | T500-2002D, 28 in Disk |
|---|---|
| Cleaning path | 28 in (700 mm) dual disk |
| Brush / pad | 2 x 14 in disk, 220 rpm |
| Scrub motors | 2 x 24 VDC, 0.75 hp (0.55 kW) |
| Down pressure | 40 / 80 / 120 lb (18 / 36 / 54.5 kg) |
| Solution / recovery tanks | 22.5 gal (85 L) / 27 gal (102 L) |
| Theoretical max productivity | 30,800 sq ft/hr (2,861 m²) |
| Estimated coverage, conventional | 22,286 sq ft/hr (2,070 m²) |
| Vacuum | 24 VDC, 0.63 hp (0.47 kW); 46 in (1,170 mm) water lift, 32 in (810 mm) in Quiet-Mode |
| Speed | Scrub up to 2.5 mph (4.0 km/h); transport up to 2.7 mph (4.3 km/h) |
| Batteries | 4 x 6 V, 225 Ah wet (24 V system), Smart-Fill automatic watering |
| Charger | 25 A on-board, 100-240 V |
| Sound level | 66.5 dBA; 61.7 dBA in Quiet-Mode |
| Squeegee width | 41.3 in (1,049 mm) |
| Aisle turnaround width | 59.6 in (1,514 mm) |
| Dimensions (L x W x H) | 59.1 x 29.5 x 43.3 in (1,501 x 750 x 1,100 mm) |
| Weight | 330 lb (150 kg) without batteries; 620 lb (281 kg) with batteries |
| Model Numbers | T500-2002D (T500 28 in disk, Pro-Membrane panel, 225 Ah wet batteries, Smart-Fill, conventional, 25 A on-board charger, pad drivers) |
Technical specs may include optional equipment that is not included with all units.
Questions
Tennant T500 28 in: common questions
Do the batteries need watering?

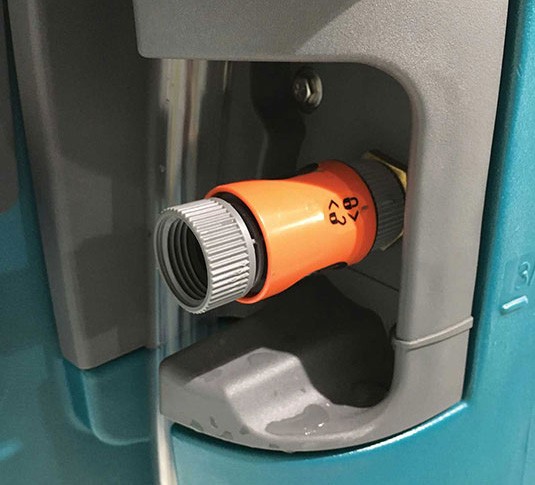

They are wet batteries, but this package includes Smart-Fill automatic battery watering, which fills them correctly from an on-board 0.66 gal tank. The operator only refills that tank.
Does it come with pad drivers or brushes?
One set of pad drivers comes standard. Polypropylene or nylon 28 in disk brushes can be chosen in place of the pad drivers when you order.
How much floor can it clean in an hour?
Tennant estimates about 22,286 sq ft per hour of practical coverage, with a theoretical max of 30,800 sq ft per hour.
Will it fit my aisles and doorways?
The 28 in T500 is 59.1 in long, 29.5 in wide and 43.3 in high, the squeegee is 41.3 in wide, and it needs 59.6 in of aisle to turn around. Measure your tightest doorway and aisle before you order.
What does Quiet-Mode do?
Quiet-Mode lowers the sound level from 66.5 to 61.7 dBA at the operator’s ear, which helps in occupied buildings. Tennant says it also extends run time.
Not sure the T500 28 in fits your floors?
Tell our team about the floor, the building and the shift, and we will help you decide if this is the right machine.
