| Machine Type | Walk-Behind Scrubber |
|---|---|
| Cleaning Path Width | 20-28 in (508-711 mm) |
| Power Source | Battery (electric) |
| Solution Tank Capacity | 13 gal (49 L) |
| Recovery Tank Capacity | 13 gal (49 L) |
| Productivity Rate | Up to 19,200 sq ft/hr (1,784 sq m/hr) |
| Sound Level | 65 dB(A) |

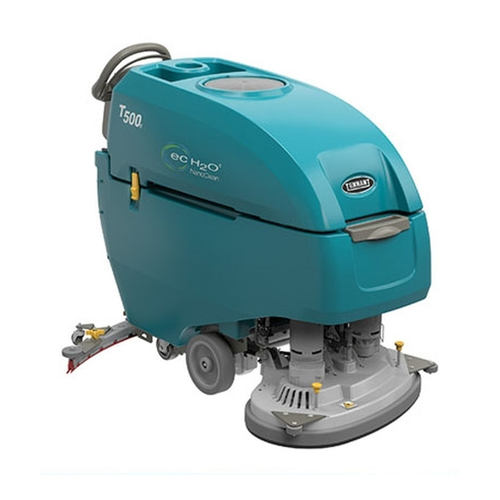

New Tennant T500 26" Disk Walk-Behind Scrubber with ec-H2O NanoClean - 225AH Battery
Our Take (from the SES Sales Team)
“The T500 26 in with ec-H2O NanoClean fits facilities that want to cut back on daily floor chemicals without giving up a mid-size machine: schools, healthcare buildings, offices and retail with tight layouts. ec-H2O electrically converts plain water into a cleaning solution, so crews handle less detergent, and the machine can still switch to conventional scrubbing when a floor needs it. Tennant also rates ec-H2O at higher coverage: about 23,124 sq ft per hour on the 26 in deck, against 20,571 conventionally. The 26 in dual-disk deck is the most maneuverable T500 and turns around in 59 in of aisle, while the 22.5 gal solution and 27 gal recovery tanks keep it on long routes. This package adds the Pro-Membrane control panel with Zone Settings, four 6 V, 225 Ah wet batteries with Smart-Fill automatic watering and an on-board charger. One caution: Tennant notes ec-H2O isn't suited to heavy concentrations of fats and oils, so greasy kitchen floors may still need conventional chemicals. For more open floors, the 28 in and 32 in ec-H2O packages cover more ground.”
A mid-size 26 in scrubber with ec-H2O NanoClean

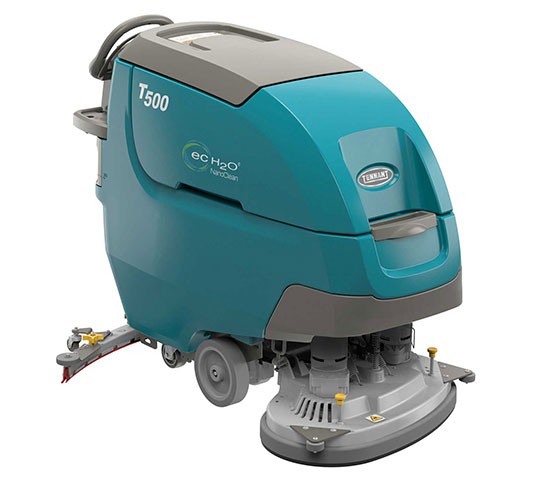

The Tennant T500 is a battery-powered, self-propelled walk-behind floor scrubber for schools, healthcare, grocery, retail and other mid-size floors. Two 13 in disks clean a 26 in (650 mm) path, and the 22.5 gal (85 L) solution and 27 gal (102 L) recovery tanks keep it on long routes between dump-and-fill stops.
This package (T500-3001D) has the Pro-Membrane control panel, four 6 V, 225 Ah wet batteries with Smart-Fill automatic battery watering, ec-H2O NanoClean cleaning, a 25 A on-board charger and a set of pad drivers.
Condition: New.
What you get
Everything you need to start scrubbing

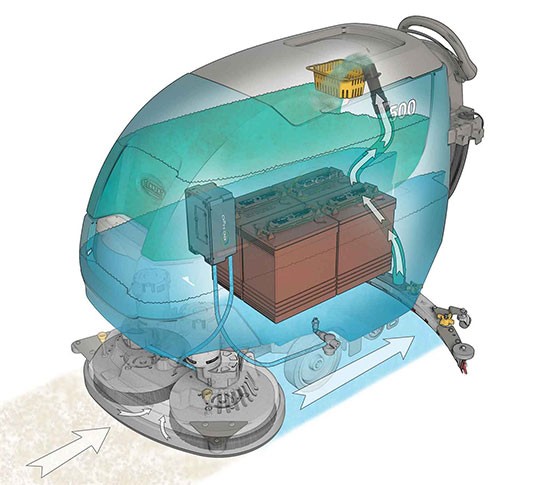

How ec-H2O NanoClean works
Features
Built for long daily routes
- ✓Insta-Fit no-tool pad and brush attachment with a free-floating head skirt
- ✓Breakaway squeegee with an integrated P-trap and no-tool blade changes
- ✓100 percent water recovery in 180-degree turns with the standard squeegee
- ✓Quiet-Mode lowers the sound level to 61.7 dBA for daytime cleaning
- ✓Front water fill port, recovery tank debris tray and yellow touch points
Choosing a deck
T500 ec-H2O deck sizes compared
| Package | Estimated coverage (ec-H2O) | Squeegee width | Aisle turnaround |
|---|---|---|---|
| 26 in disk (this unit) | 23,124 sq ft/hr | 38.3 in | 59 in |
| 28 in disk | 23,680 sq ft/hr | 41.3 in | 59.6 in |
| 32 in disk | 27,323 sq ft/hr | 46.6 in | 61.6 in |
All three ec-H2O packages share the 22.5 gal and 27 gal tanks, the Pro-Membrane panel, the 225 Ah wet batteries with Smart-Fill and the on-board charger.
Specifications
Tennant T500 26 in at a glance
| Models | T500-3001D, 26 in Disk, ec-H2O |
|---|---|
| Cleaning path | 26 in (650 mm) dual disk |
| Brush / pad | 2 x 13 in disk, 220 rpm |
| Scrub motors | 2 x 24 VDC, 0.75 hp (0.55 kW) |
| Down pressure | 40 / 80 / 120 lb (18 / 36 / 54.5 kg) |
| Solution / recovery tanks | 22.5 gal (85 L) / 27 gal (102 L) |
| Theoretical max productivity | 28,600 sq ft/hr (2,657 m²) |
| Estimated coverage | 23,124 sq ft/hr (2,148 m²) with ec-H2O; 20,571 sq ft/hr (1,911 m²) conventional |
| Vacuum | 24 VDC, 0.63 hp (0.47 kW); 46 in (1,170 mm) water lift, 32 in (810 mm) in Quiet-Mode |
| Speed | Scrub up to 2.5 mph (4.0 km/h); transport up to 2.7 mph (4.3 km/h) |
| Batteries | 4 x 6 V, 225 Ah wet (24 V system), Smart-Fill automatic watering |
| Charger | 25 A on-board, 100-240 V |
| Sound level | 66.5 dBA; 61.7 dBA in Quiet-Mode |
| Squeegee width | 38.3 in (973 mm) |
| Aisle turnaround width | 59 in (1,499 mm) |
| Dimensions (L x W x H) | 58.5 x 27.5 x 43.3 in (1,486 x 700 x 1,100 mm) |
| Weight | 320 lb (145 kg) without batteries; 610 lb (277 kg) with batteries |
| Model Numbers | T500-3001D (T500 26 in disk, Pro-Membrane panel, 225 Ah wet batteries, Smart-Fill, ec-H2O NanoClean, 25 A on-board charger, pad drivers) |
Technical specs may include optional equipment that is not included with all units.
Questions
Tennant T500 26 in: common questions
Do the batteries need watering?

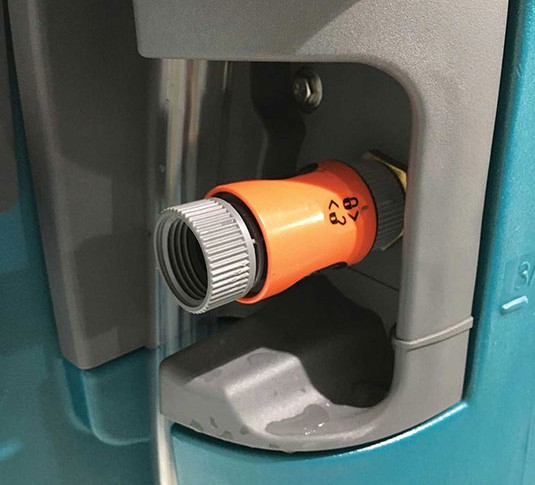

They are wet batteries, but this package includes Smart-Fill automatic battery watering, which fills them correctly from an on-board 0.66 gal tank. The operator only refills that tank.
Does it come with pad drivers or brushes?
One set of pad drivers comes standard. Polypropylene or nylon 26 in disk brushes can be chosen in place of the pad drivers when you order.
How much floor can it clean in an hour?
Tennant estimates about 23,124 sq ft per hour with ec-H2O and 20,571 conventionally, with a theoretical max of 28,600 sq ft per hour.
Will it fit my aisles and doorways?
The 26 in T500 is 58.5 in long, 27.5 in wide and 43.3 in high, the squeegee is 38.3 in wide, and it needs 59 in of aisle to turn around. Measure your tightest doorway and aisle before you order.
Can I still use detergent?
Yes. ec-H2O machines have two scrubbing modes, so the operator can switch to conventional scrubbing with detergent for heavier soil. Tennant notes ec-H2O isn’t suited to heavy concentrations of fats and oils.
Not sure the T500 26 in fits your floors?
Tell our team about the floor, the building and the shift, and we will help you decide if this is the right machine.
