| Machine Type | Walk-Behind Scrubber |
|---|---|
| Cleaning Path Width | 20-28 in (508-711 mm) |
| Power Source | Battery (electric) |
| Solution Tank Capacity | 13 gal (49 L) |
| Recovery Tank Capacity | 13 gal (49 L) |
| Productivity Rate | Up to 19,200 sq ft/hr (1,784 sq m/hr) |
| Sound Level | 65 dB(A) |

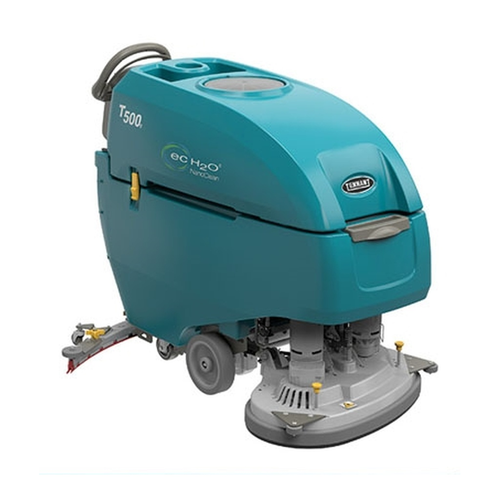

New Tennant T500 28" Disk Walk-Behind Scrubber with ec-H2O NanoClean - 225AH Battery
Our Take (from the SES Sales Team)
“The 28 in T500 with ec-H2O NanoClean is a strong all-purpose choice for grocery, retail, hospital and school floors where the goal is daily scrubbing with less detergent. ec-H2O turns ordinary water into a cleaning solution on board, which means fewer chemical jugs to store and mix, and Tennant rates the 28 in deck at about 23,680 sq ft per hour of estimated coverage with ec-H2O. When a spill or heavy soil calls for detergent, the operator can switch to conventional mode. The machine itself is the full T500: a 22.5 gal solution tank, a 27 gal recovery tank, three down pressure settings up to 120 lb and a vacuum with 46 in of water lift. This package includes the Pro-Membrane control panel, so supervisors can preset Zone Settings and lock them, four 6 V, 225 Ah wet batteries with Smart-Fill automatic battery watering, and an on-board charger. Insta-Fit pad changes and a no-tool squeegee change keep upkeep quick. Heavy grease is the one place to be careful, since Tennant says ec-H2O isn't suited to heavy concentrations of fats and oils.”
A mid-size 28 in scrubber with ec-H2O NanoClean

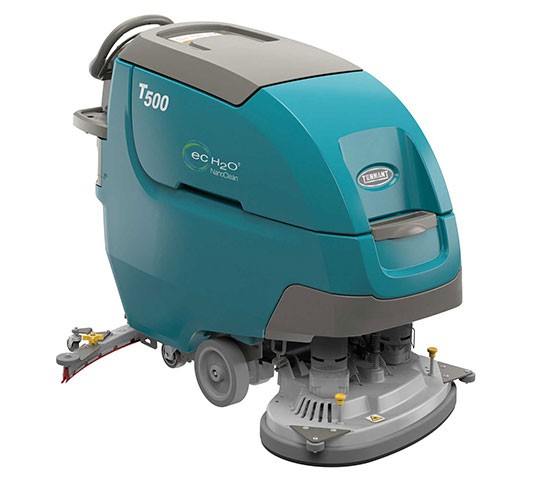

The Tennant T500 is a battery-powered, self-propelled walk-behind floor scrubber for schools, healthcare, grocery, retail and other mid-size floors. Two 14 in disks clean a 28 in (700 mm) path, and the 22.5 gal (85 L) solution and 27 gal (102 L) recovery tanks keep it on long routes between dump-and-fill stops.
This package (T500-3002D) has the Pro-Membrane control panel, four 6 V, 225 Ah wet batteries with Smart-Fill automatic battery watering, ec-H2O NanoClean cleaning, a 25 A on-board charger and a set of pad drivers.
Condition: New.
What you get
Everything you need to start scrubbing

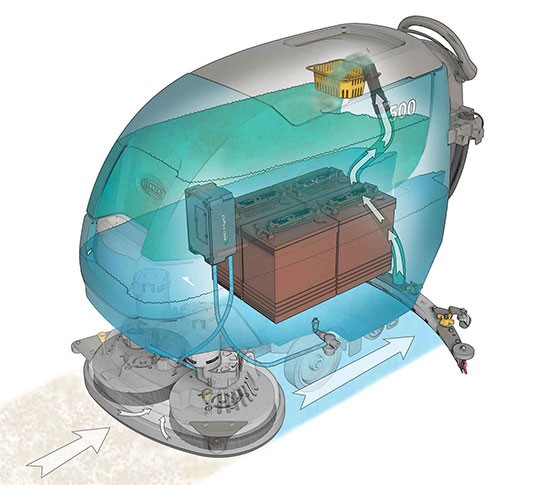

How ec-H2O NanoClean works
Features
Built for long daily routes
- ✓Insta-Fit no-tool pad and brush attachment with a free-floating head skirt
- ✓Breakaway squeegee with an integrated P-trap and no-tool blade changes
- ✓100 percent water recovery in 180-degree turns with the standard squeegee
- ✓Quiet-Mode lowers the sound level to 61.7 dBA for daytime cleaning
- ✓Front water fill port, recovery tank debris tray and yellow touch points
Choosing a deck
T500 ec-H2O deck sizes compared
| Package | Estimated coverage (ec-H2O) | Squeegee width | Aisle turnaround |
|---|---|---|---|
| 26 in disk | 23,124 sq ft/hr | 38.3 in | 59 in |
| 28 in disk (this unit) | 23,680 sq ft/hr | 41.3 in | 59.6 in |
| 32 in disk | 27,323 sq ft/hr | 46.6 in | 61.6 in |
All three ec-H2O packages share the 22.5 gal and 27 gal tanks, the Pro-Membrane panel, the 225 Ah wet batteries with Smart-Fill and the on-board charger.
Specifications
Tennant T500 28 in at a glance
| Models | T500-3002D, 28 in Disk, ec-H2O |
|---|---|
| Cleaning path | 28 in (700 mm) dual disk |
| Brush / pad | 2 x 14 in disk, 220 rpm |
| Scrub motors | 2 x 24 VDC, 0.75 hp (0.55 kW) |
| Down pressure | 40 / 80 / 120 lb (18 / 36 / 54.5 kg) |
| Solution / recovery tanks | 22.5 gal (85 L) / 27 gal (102 L) |
| Theoretical max productivity | 30,800 sq ft/hr (2,861 m²) |
| Estimated coverage | 23,680 sq ft/hr (2,200 m²) with ec-H2O; 22,286 sq ft/hr (2,070 m²) conventional |
| Vacuum | 24 VDC, 0.63 hp (0.47 kW); 46 in (1,170 mm) water lift, 32 in (810 mm) in Quiet-Mode |
| Speed | Scrub up to 2.5 mph (4.0 km/h); transport up to 2.7 mph (4.3 km/h) |
| Batteries | 4 x 6 V, 225 Ah wet (24 V system), Smart-Fill automatic watering |
| Charger | 25 A on-board, 100-240 V |
| Sound level | 66.5 dBA; 61.7 dBA in Quiet-Mode |
| Squeegee width | 41.3 in (1,049 mm) |
| Aisle turnaround width | 59.6 in (1,514 mm) |
| Dimensions (L x W x H) | 59.1 x 29.5 x 43.3 in (1,501 x 750 x 1,100 mm) |
| Weight | 330 lb (150 kg) without batteries; 620 lb (281 kg) with batteries |
| Model Numbers | T500-3002D (T500 28 in disk, Pro-Membrane panel, 225 Ah wet batteries, Smart-Fill, ec-H2O NanoClean, 25 A on-board charger, pad drivers) |
Technical specs may include optional equipment that is not included with all units.
Questions
Tennant T500 28 in: common questions

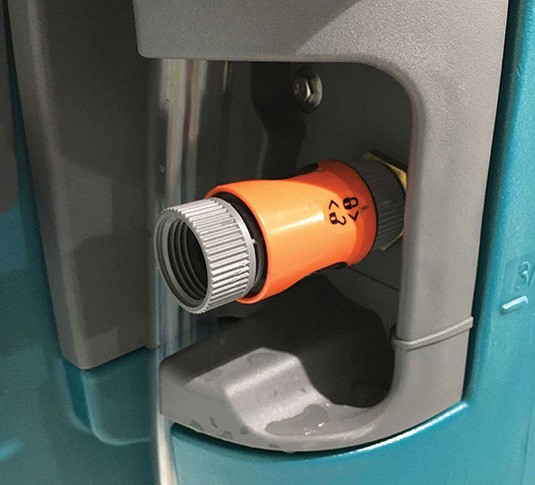

Do the batteries need watering?
They are wet batteries, but this package includes Smart-Fill automatic battery watering, which fills them correctly from an on-board 0.66 gal tank. The operator only refills that tank.
Does it come with pad drivers or brushes?
One set of pad drivers comes standard. Polypropylene or nylon 28 in disk brushes can be chosen in place of the pad drivers when you order.
How much floor can it clean in an hour?
Tennant estimates about 23,680 sq ft per hour with ec-H2O and 22,286 conventionally, with a theoretical max of 30,800 sq ft per hour.
Will it fit my aisles and doorways?
The 28 in T500 is 59.1 in long, 29.5 in wide and 43.3 in high, the squeegee is 41.3 in wide, and it needs 59.6 in of aisle to turn around. Measure your tightest doorway and aisle before you order.
Can I still use detergent?
Yes. ec-H2O machines have two scrubbing modes, so the operator can switch to conventional scrubbing with detergent for heavier soil. Tennant notes ec-H2O isn’t suited to heavy concentrations of fats and oils.
