| Machine Type | Walk-Behind Scrubber |
|---|---|
| Cleaning Path Width | 20-28 in (508-711 mm) |
| Power Source | Battery (electric) |
| Solution Tank Capacity | 13 gal (49 L) |
| Recovery Tank Capacity | 13 gal (49 L) |
| Productivity Rate | Up to 19,200 sq ft/hr (1,784 sq m/hr) |
| Sound Level | 65 dB(A) |

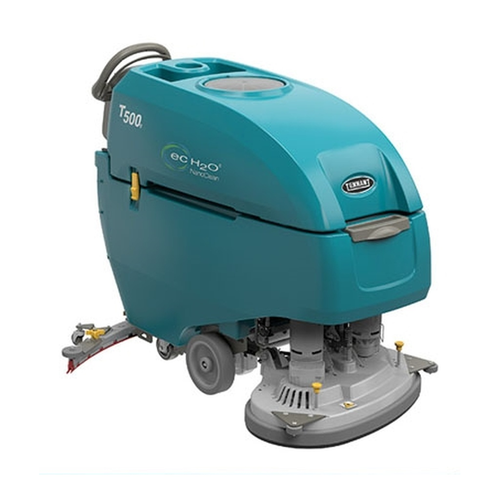

New Tennant T500 32" Disk Walk-Behind Scrubber with ec-H2O NanoClean - 225AH Battery
Our Take (from the SES Sales Team)
“The 32 in T500 with ec-H2O NanoClean is aimed at big, open floors where a facility wants maximum walk-behind coverage and less chemical handling: large retail and grocery, school commons and cafeterias, gyms and wide hospital corridors. With ec-H2O, Tennant rates the 32 in deck at about 27,323 sq ft per hour of estimated coverage, the highest of the T500 disk packages, and up to 35,200 sq ft per hour theoretical. ec-H2O electrically converts water into a cleaning solution, and conventional mode is still there for heavier soil. The 46.6 in squeegee covers the full path, the machine needs 61.6 in of aisle to turn around, and the 22.5 gal and 27 gal tanks keep it on the route. This package comes with the Pro-Membrane control panel with Zone Settings, four 6 V, 225 Ah wet batteries with Smart-Fill automatic battery watering, and an on-board charger. Quiet-Mode lowers the sound level to 61.7 dBA for daytime cleaning. For greasy kitchen floors, keep in mind that Tennant says ec-H2O isn't suited to heavy concentrations of fats and oils.”
A mid-size 32 in scrubber with ec-H2O NanoClean

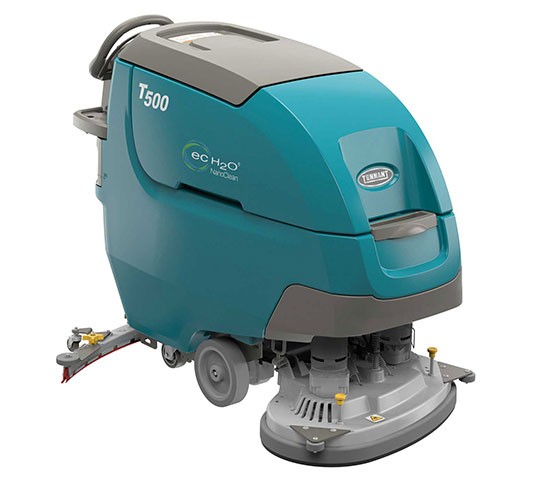

The Tennant T500 is a battery-powered, self-propelled walk-behind floor scrubber for schools, healthcare, grocery, retail and other mid-size floors. Two 16 in disks clean a 32 in (800 mm) path, and the 22.5 gal (85 L) solution and 27 gal (102 L) recovery tanks keep it on long routes between dump-and-fill stops.
This package (T500-3003D) has the Pro-Membrane control panel, four 6 V, 225 Ah wet batteries with Smart-Fill automatic battery watering, ec-H2O NanoClean cleaning, a 25 A on-board charger and a set of pad drivers.
Condition: New.
What you get
Everything you need to start scrubbing

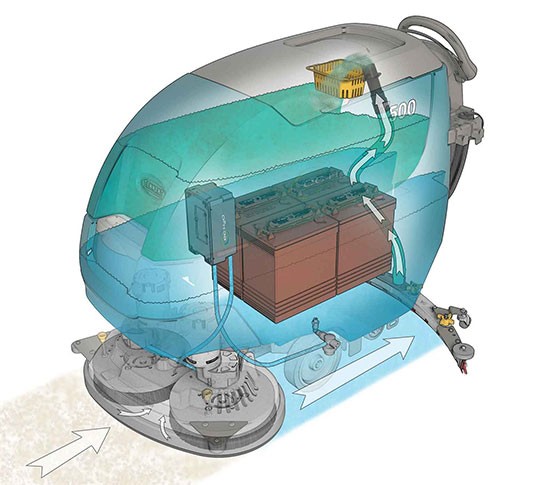

How ec-H2O NanoClean works
Features
Built for long daily routes
- ✓Insta-Fit no-tool pad and brush attachment with a free-floating head skirt
- ✓Breakaway squeegee with an integrated P-trap and no-tool blade changes
- ✓100 percent water recovery in 180-degree turns with the standard squeegee
- ✓Quiet-Mode lowers the sound level to 61.7 dBA for daytime cleaning
- ✓Front water fill port, recovery tank debris tray and yellow touch points
Choosing a deck
T500 ec-H2O deck sizes compared
| Package | Estimated coverage (ec-H2O) | Squeegee width | Aisle turnaround |
|---|---|---|---|
| 26 in disk | 23,124 sq ft/hr | 38.3 in | 59 in |
| 28 in disk | 23,680 sq ft/hr | 41.3 in | 59.6 in |
| 32 in disk (this unit) | 27,323 sq ft/hr | 46.6 in | 61.6 in |
All three ec-H2O packages share the 22.5 gal and 27 gal tanks, the Pro-Membrane panel, the 225 Ah wet batteries with Smart-Fill and the on-board charger.
Specifications
Tennant T500 32 in at a glance
| Models | T500-3003D, 32 in Disk, ec-H2O |
|---|---|
| Cleaning path | 32 in (800 mm) dual disk |
| Brush / pad | 2 x 16 in disk, 220 rpm |
| Scrub motors | 2 x 24 VDC, 0.75 hp (0.55 kW) |
| Down pressure | 40 / 80 / 120 lb (18 / 36 / 54.5 kg) |
| Solution / recovery tanks | 22.5 gal (85 L) / 27 gal (102 L) |
| Theoretical max productivity | 35,200 sq ft/hr (3,270 m²) |
| Estimated coverage | 27,323 sq ft/hr (2,538 m²) with ec-H2O; 25,714 sq ft/hr (2,389 m²) conventional |
| Vacuum | 24 VDC, 0.63 hp (0.47 kW); 46 in (1,170 mm) water lift, 32 in (810 mm) in Quiet-Mode |
| Speed | Scrub up to 2.5 mph (4.0 km/h); transport up to 2.7 mph (4.3 km/h) |
| Batteries | 4 x 6 V, 225 Ah wet (24 V system), Smart-Fill automatic watering |
| Charger | 25 A on-board, 100-240 V |
| Sound level | 66.5 dBA; 61.7 dBA in Quiet-Mode |
| Squeegee width | 46.6 in (1,234 mm) |
| Aisle turnaround width | 61.6 in (1,565 mm) |
| Dimensions (L x W x H) | 61.1 x 33.5 x 43.3 in (1,552 x 850 x 1,100 mm) |
| Weight | 355 lb (161 kg) without batteries; 645 lb (293 kg) with batteries |
| Model Numbers | T500-3003D (T500 32 in disk, Pro-Membrane panel, 225 Ah wet batteries, Smart-Fill, ec-H2O NanoClean, 25 A on-board charger, pad drivers) |
Technical specs may include optional equipment that is not included with all units.
Questions
Tennant T500 32 in: common questions
Do the batteries need watering?
They are wet batteries, but this package includes Smart-Fill automatic battery watering, which fills them correctly from an on-board 0.66 gal tank. The operator only refills that tank.
Does it come with pad drivers or brushes?
One set of pad drivers comes standard. Polypropylene or nylon 32 in disk brushes can be chosen in place of the pad drivers when you order.
How much floor can it clean in an hour?
Tennant estimates about 27,323 sq ft per hour with ec-H2O and 25,714 conventionally, with a theoretical max of 35,200 sq ft per hour.
Will it fit my aisles and doorways?
The 32 in T500 is 61.1 in long, 33.5 in wide and 43.3 in high, the squeegee is 46.6 in wide, and it needs 61.6 in of aisle to turn around. Measure your tightest doorway and aisle before you order.
Can I still use detergent?
Yes. ec-H2O machines have two scrubbing modes, so the operator can switch to conventional scrubbing with detergent for heavier soil. Tennant notes ec-H2O isn’t suited to heavy concentrations of fats and oils.
Not sure the T500 32 in fits your floors?
Tell our team about the floor, the building and the shift, and we will help you decide if this is the right machine.
