| Solution Tank | 26 gal |
| Recovery Tank | 26 gal |
| Brush/Pad Diameter | 14 in |
| Brush/Pad Pressure | 77 lb |
| Squeegee Width | 37 in |
| Sound Pressure Level | 69 dB A |
| Brush Speed | 204 rpm |
| Brush Motor | 2 x 300 W |
| Vacuum Motor 3 Stages | 500 W |
| Max Speed | 3.7 mph |
| Cleaning Width | 28 in |
| Battery Compartment Size | 13.2 in x 19 in x 11.8 in |
| Net Weight (Empty Tanks, with Batteries) | 771.6 lb |
| Max Loading Weight | 959 lb |
| Packaging Size | 68.11 in x 31.89 in x 55.5 in |
| Dimensions (L x W x H) | 62.2 in x 29.9 in x 48.4 in |
| Part Number | 50000318 |
Technical specs may include optional equipment that is not included with all units.

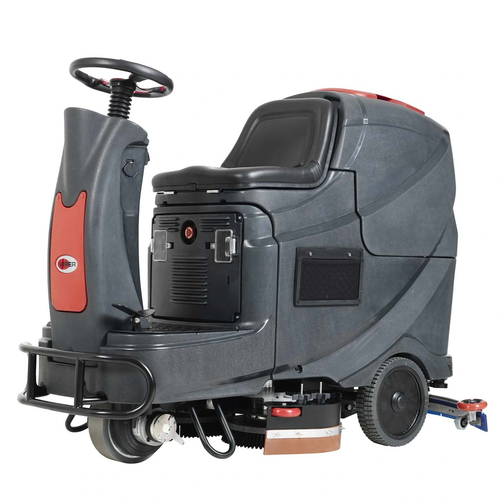

Demo Viper AS710R 28" Battery Rider Scrubber
Our Take (from the SES Sales Team)
“The AS710R is a good next step for buildings where a walk-behind is slowing the crew down but a big industrial rider would be overkill: schools, retail stores, hotels, offices and light warehouses with heavy foot traffic. It cleans a 28 in path with two 14 in pad drivers, carries 31 gal of solution and 31 gal of recovery, and Viper rates it at up to 47,500 sq ft per hour. The design is simple on purpose. One-touch scrubbing, four solution flow rates and a deck and squeegee that raise and lower mechanically mean less to train and less to go wrong. This package runs on four 6 V, 245 Ah AGM batteries, so there are no batteries to water, and the 24 V onboard charger plugs in wherever the machine parks. A hanger on the recovery tank holds the squeegee up when you move through tight spaces, and the large tank opening makes rinsing out quick at the end of the shift. If you need a wider path, the AS850R is the 32 in version of the same machine.”
A 28 in rider scrubber that keeps things simple
The Viper AS710R is a ride-on automatic floor scrubber for schools, retail stores, hotels, offices and other heavy-traffic commercial floors. Two 14 in pad drivers clean a 28 in path with up to 77 lb of down pressure, 31 gal solution and recovery tanks keep it working between fills, and Viper rates it at up to 47,500 sq ft per hour.
This package (Viper 50000318) comes with pad drivers, a 37 in squeegee assembly, four 6 V, 245 Ah AGM batteries and a 24 V onboard charger, so there are no batteries to water and no separate charger to move around.
Condition: Demo. Light use from demonstrations. Ask us about hours and condition.
What you get
Ready to ride, with no battery watering
Built simple so it stays running
Features
Easy to run every shift
- ✓One-touch scrubbing and a simple dashboard keep operator training short
- ✓Four solution flow rates match water use to the floor and the soil
- ✓Scrub deck and squeegee lower mechanically, with a standard front bumper for protection
- ✓Integrated squeegee hanger on the recovery tank for moving through narrow areas
- ✓Large recovery tank opening, a side pocket for paperwork and a USB port for charging devices
Choosing a size
AS710R or AS850R?
| AS710R (this unit) | AS850R | |
|---|---|---|
| Cleaning path | 28 in | 32 in |
| Down pressure | Up to 77 lb | Up to 80 lb |
| Solution / recovery tanks | 31 gal / 31 gal | 31 gal / 31 gal |
| Max productivity | 47,500 sq ft/hr | 55,218 sq ft/hr |
Both models share the same 31 gal tanks and controls. The AS850R trades a little maneuverability for a wider path.
Easy to empty and rinse

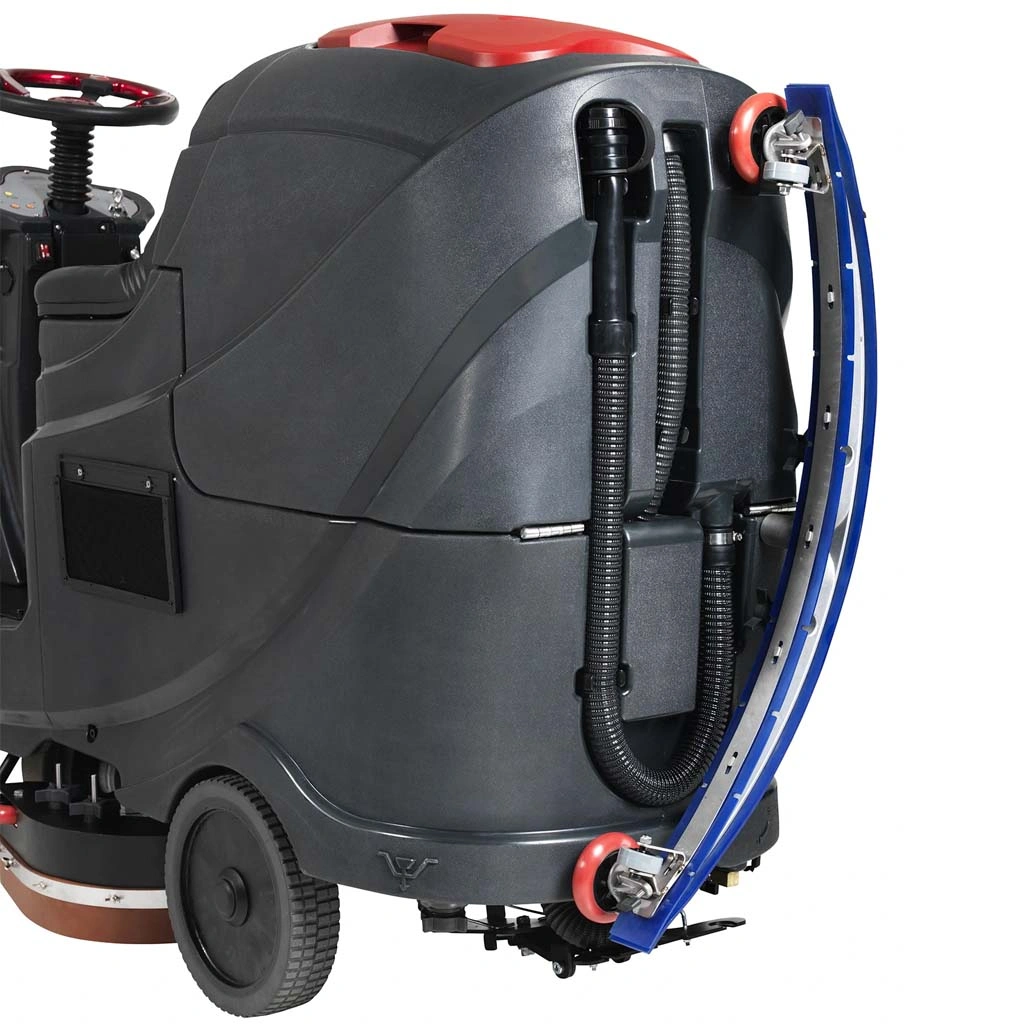

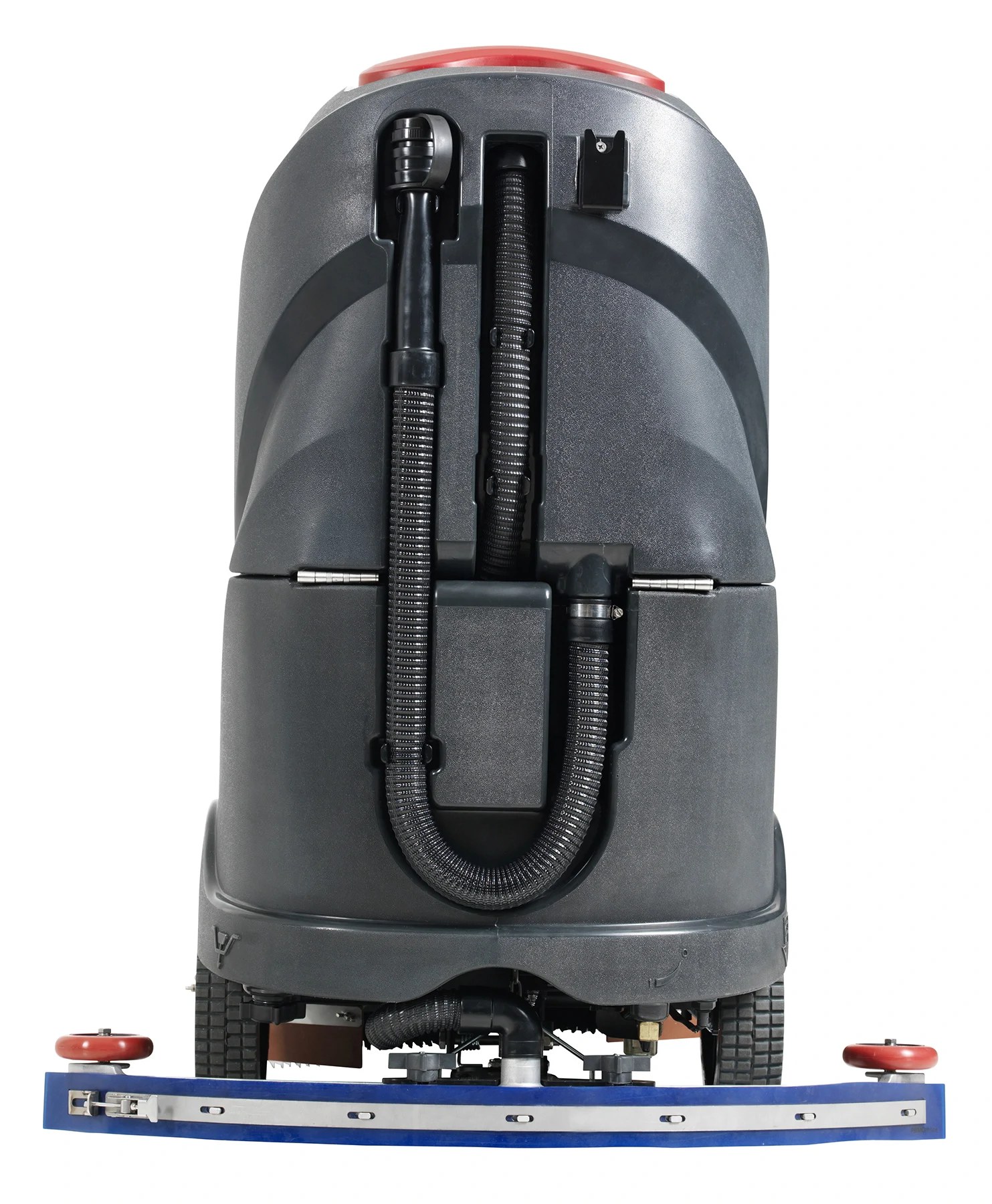

The drain and vacuum hoses sit at the back of the machine, and the large recovery tank opening makes it quick to rinse out the tank at the end of the shift.
Specifications
Viper AS710R at a glance
| Models | AS710R, 245 Ah AGM, onboard charger |
|---|---|
| Cleaning path | 28 in |
| Pad drivers | 2 x 14 in |
| Brush speed | 204 rpm |
| Brush motors | 2 x 0.4 hp (2 x 300 W) |
| Down pressure | Up to 77 lb (35 kg) |
| Solution / recovery tanks | 31 gal / 31 gal (120 L / 120 L) |
| Max productivity | 47,500 sq ft/hr (4,413 m²/hr) |
| Squeegee width | 37 in (940 mm) |
| Vacuum motor | 0.67 hp (500 W), 3-stage |
| Drive motor | 0.67 hp (500 W), traction drive |
| Max speed | 3.7 mph |
| Gradeability | 10% |
| Batteries | 4 x 6 V, 245 Ah AGM (24 V system) |
| Charger | 24 V, 25 A onboard |
| Sound level | 69 dBA |
| Dimensions (L x W x H) | 62.2 x 29.9 x 48.4 in (1,580 x 760 x 1,230 mm) |
| Minimum aisle turn | 69.8 in (177.3 cm) |
| Net weight | 771.6 lb (350 kg) |
| Shipping weight | 959 lb (435 kg) |
| Model Numbers | Viper 50000318 (AS710R, 28 in, 31 gal, pad drivers, 37 in squeegee, onboard charger, 245 Ah AGM) |
Technical specs may include optional equipment that is not included with all units.
Demo unit details
Questions
Viper AS710R: common questions
What comes with this AS710R?
This package includes two 14 in pad drivers, a 37 in squeegee assembly, four 6 V, 245 Ah AGM batteries and a 24 V onboard charger.
Do the batteries need watering?
No. AGM batteries are sealed and maintenance free, so there are no cell caps to open and no water to add.
How much floor can it clean in an hour?
Viper rates the AS710R at up to 47,500 sq ft per hour with its 28 in cleaning path.
Will it fit my aisles and doorways?
The AS710R is 62.2 in long, 29.9 in wide and 48.4 in high, and needs a 69.8 in aisle to turn. The squeegee is 37 in wide. Measure your tightest doorway and aisle before you order.
What is the difference between the AS710R and the AS850R?
The AS850R cleans a 32 in path with up to 80 lb of down pressure and is rated at up to 55,218 sq ft per hour. Both have 31 gal solution and recovery tanks.
