| Cleaning Path | 20" |
| Pad or Brush Size | 20" |
| Solution/Recovery Tank | 16 gal. |
| Water Flow Rates | .25-1 gpm |
| Brush Pressure | 90 lbs. |
| Brush Speed | 150 RPM |
| Brush Motor | 24 V, 400 W |
| Vacuum Motor Power | 24 V, 400 W |
| Noise Level dB(A) | 65 dB(A) |
| Working Capacity (sq. ft./hr.) | 22,000 |
| Weight (Including Batteries) | 393 lb / 424 lb |
| Dimensions (LxWxH) | 57" x 22" x 43" |
Technical specs may include optional equipment that is not included with all units
Demo Nacecare TBG 1620/100 Scrubber
Our Take (from the SES Sales Team)
“The TGB 1620 is a 20 in walk-behind for people who want a bigger tank without a bigger machine. It carries 16 gal of solution with a matching 16 gal recovery tank, which is a lot of capacity for a scrubber that is only 22 in wide, so the operator spends more time cleaning and less time walking to the dump sink. NaceCare rates it at 22,000 sq ft per hour. It runs on two 100 Ah gel batteries that are sealed and maintenance free, for 3 to 3.5 hours of runtime, and a low-voltage shutoff helps protect them from being run down too far. The charger is on board, so it plugs in anywhere. Day-to-day care is simple: the tear-away squeegee uses quick-release blades that change without tools, and a quick-fill hose lets you fill from a tap instead of hauling buckets. Since this is a demo, ask us about the hour meter and condition.”

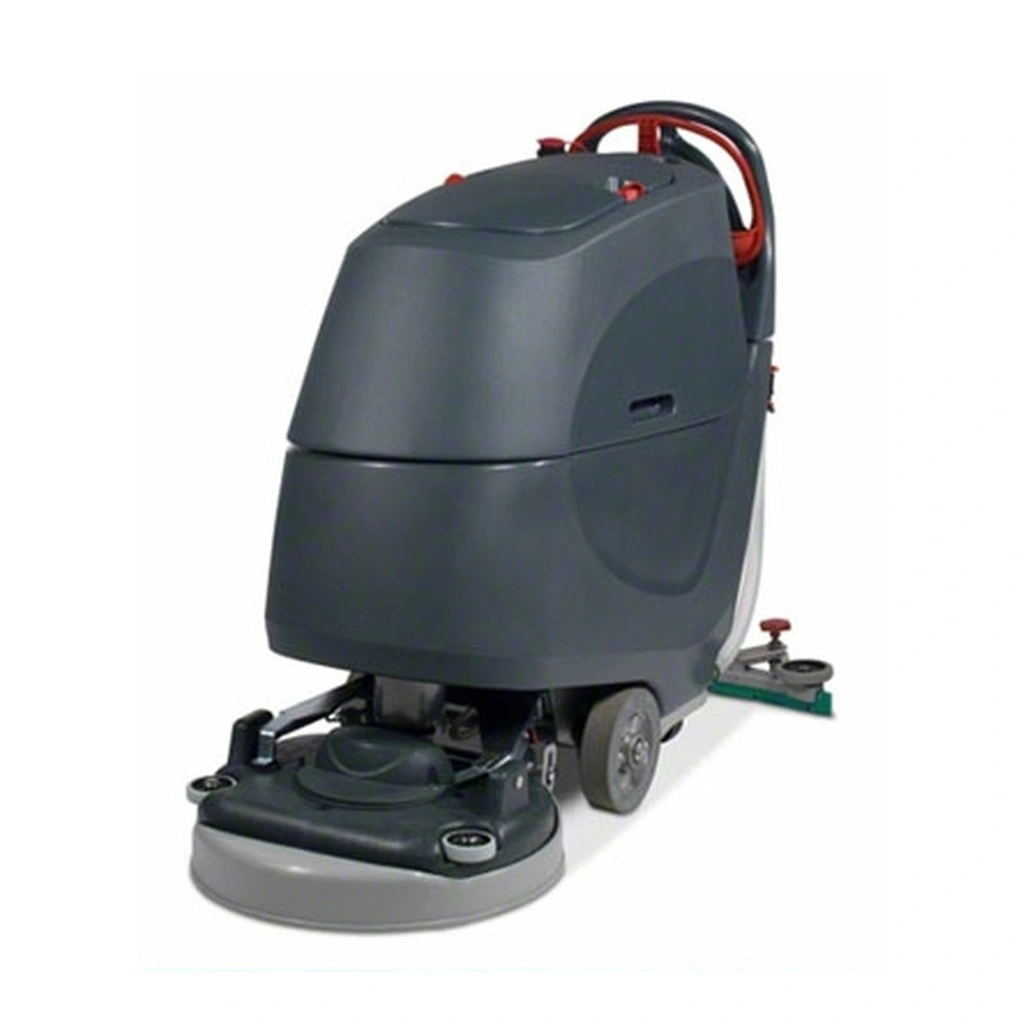

A large-capacity 20 in pad assist scrubber in a compact body
The NaceCare TGB 1620 is a battery walk-behind automatic floor scrubber from the Twintec line. NaceCare describes it as a large-capacity 20 in scrubber built for the most demanding user. A 20 in pad or brush cleans a 20 in path, the 16 gal solution and recovery tanks keep it working between fills, and NaceCare rates it at 22,000 sq ft per hour.
This is the pad assist version (the TGB 1620T is the traction drive version). It runs on two maintenance-free 100 Ah gel batteries with an onboard charger, and the body is just 22 in wide.
Condition: Demo. Light use, priced below new. Ask our team about this unit’s hours and condition.
What you get
Sealed batteries, charger on board
Why gel batteries?
Features
Easy to run, easy to care for
- ✓Fully adjustable solution flow rate from 0.25 to 1 gpm
- ✓Hour meter and battery level indicator
- ✓Tear-away squeegee with quick-release blades that change without tools by pulling out the pins
- ✓Quick-fill hose lets you fill the unit from a tap instead of using buckets
- ✓Easy-to-view solution level
Specifications
NaceCare TGB 1620 at a glance
| Models | TGB 1620/100 pad assist |
|---|---|
| Cleaning path | 20 in (51 cm) |
| Pad or brush size | 20 in (51 cm) |
| Solution / recovery tanks | 16 gal (61 L) / 16 gal (61 L) |
| Water flow rate | 0.25 to 1 gpm (0.9 to 3.8 L/min) |
| Brush pressure | 90 lb max (41 kg) |
| Brush speed | 150 rpm |
| Brush motor | 24 V, 0.54 hp (400 W) |
| Vacuum motor | 24 V, 0.54 hp (400 W) |
| Working capacity | 22,000 sq ft/hr (2,044 m²/hr) |
| Batteries | 2 x 100 Ah gel |
| Runtime | 3 to 3.5 hours |
| Charger | Onboard |
| Noise level | 65 dB(A) |
| Weight with batteries | 393 lb (178 kg) |
| Dimensions (L x W x H) | 57 x 22 x 43 in (145 x 56 x 109 cm) |
| Model Numbers | NaceCare TGB 1620/100 (Numatic TGB 6055/100), pad assist |
Technical specs may include optional equipment that is not included with all units.
Demo unit details
Questions
NaceCare TGB 1620: common questions
How long does the TGB 1620 run on a charge?
NaceCare rates it at 3 to 3.5 hours on its two 100 Ah gel batteries. Actual runtime depends on the floor, the brush pressure and how the machine is used.
Do the batteries need watering?
No. Gel batteries are sealed and maintenance free, and they are spill-proof, so they can be charged anywhere with the onboard charger.
How much floor can it clean in an hour?
NaceCare lists a working capacity of 22,000 sq ft per hour.
How do I change the squeegee blades?
No tools needed. The tear-away squeegee uses quick-release blades that come off by pulling out the pins.
What is the difference between the TGB 1620 and the TGB 1620T?
The TGB 1620 is the pad assist version. The TGB 1620T adds a 250 W traction drive motor that moves the machine at speeds up to 4.3 mph.
Not sure the TGB 1620 fits your floors?
Tell our team about the floor, the building and the shift, and we will help you decide if this is the right machine. Service and support
