| Cleaning Path | 26", 30", 34" |
| Pad or Brush Size | 3" x 12" |
| Solution/Recovery Tank | 32 gal. |
| Chemical Capacity | 1 gal. |
| Chemical Mixture Rates | 32:1, 64:1, 96:1, 128:1 |
| Water Flow Rate | 0.25, 0.5, 0.8, 1.0 gpm |
| Brush Pressure | 160 lb max |
| Brush Speed | 125-200 rpm |
| Brush Motor | 3 x 24 V, 400 W |
| Traction Motor | 600 W |
| Maximum Gradient | 11 |
| Working Speed | 0.3-4.3 mph |
| Vacuum Motor Power | 24 V, 400 W |
| Noise Level dB(A) | 69 dB(A) |
| Working Capacity (sq. ft./hr.) | 40,200 - 52,500 |
| | |
| Weight (Including Batteries) | 1,100 lb |
| Dimensions (LxWxH) | 66" x 26" x 56" |

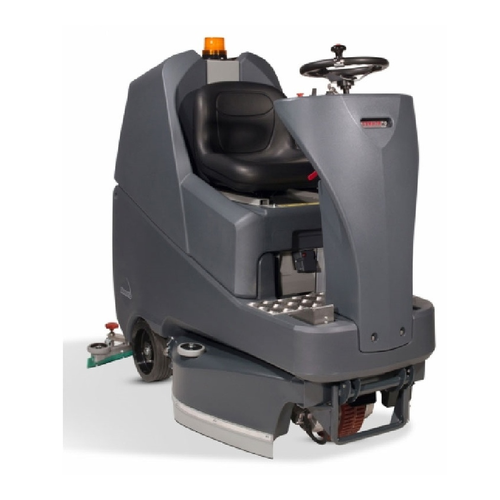

Demo Nacecare TTV 678 Adjustable Disk Floor Scrubber
Our Take (from the SES Sales Team)
“The TTV 678 solves a common problem: one building, several very different floors. Pull a pin and the brush deck adjusts to a 26, 30 or 34 in cleaning path, and the machine stores both a 30 in and a 40 in squeegee on board, so the same rider can work a narrow corridor and then open up for a lobby or gym. NaceCare says it fits through almost any door. Productivity scales with the width, from 40,200 sq ft per hour at 26 in up to 52,500 at 34 in. The 32 gal tank, onboard chemical dispensing at 32:1 to 128:1 and flow you can set from 0.25 to 1 gpm help operators put down the right amount of water and chemical, and the LED panel keeps chemical, water flow, brush pressure and battery status in view. Six maintenance-free 100 Ah gel batteries give it up to 4 hours of runtime. Since this is a demo, ask us about the hour meter and condition.”
A compact ride-on scrubber that changes width with the job
The NaceCare TTV 678 is a battery ride-on automatic floor scrubber from the Vario line. Three 12 in brushes make up a deck that adjusts to a 26, 30 or 34 in cleaning path: pull a pin and the deck moves in or out to the right width. The machine carries both a 30 in and a 40 in squeegee on board.
A 32 gal tank, onboard chemical dispensing and adjustable flow from 0.25 to 1 gpm cover the cleaning side. Six maintenance-free 100 Ah gel batteries give up to 4 hours of runtime, and NaceCare rates working capacity at 40,200 to 52,500 sq ft per hour depending on width.
Condition: Demo. Light use, priced below new. Ask our team about this unit’s hours and condition.
What you get
Sealed power and dosing on board
Three sizes in one machine
Choosing a width
Working capacity by cleaning path
| Cleaning path | Working capacity |
|---|---|
| 26 in (650 mm) | 40,200 sq ft/hr (3,735 m²) |
| 30 in (750 mm) | 46,000 sq ft/hr (4,274 m²) |
| 34 in (850 mm) | 52,500 sq ft/hr (4,877 m²) |
Features
Control in the operator’s hands
- ✓Adjustable brush pressure and speed, with patented pop-on/pop-off brushes and pad drivers
- ✓LED control panel shows chemical, water flow, brush pressure and battery status
- ✓Tear-away squeegee with quick-release blades for easy cleaning
- ✓Low-voltage shutoff helps prolong battery life
- ✓Optional off-aisle kit that can be stored on the machine
Specifications
NaceCare TTV 678 at a glance
| Models | TTV 678 |
|---|---|
| Cleaning path | 26, 30 or 34 in (650, 750 or 850 mm) |
| Pad or brush size | 3 x 12 in (30 cm) |
| Solution / recovery tank | 32 gal (121 L) |
| Chemical capacity | 1 gal (3.8 L) |
| Chemical mixture rates | 32:1, 64:1, 96:1, 128:1 |
| Water flow rate | 0.25, 0.5, 0.8, 1.0 gpm (0.9, 1.9, 3.0, 3.8 L/min) |
| Brush pressure | 160 lb max (73 kg) |
| Brush speed | 125 to 200 rpm |
| Brush motors | 3 x 24 V, 0.54 hp (400 W) |
| Traction motor | 0.8 hp (600 W) |
| Vacuum motor | 24 V, 0.54 hp (400 W) |
| Working speed | 0.3 to 4.3 mph (0.5 to 6.9 km/h) |
| Maximum gradient | 11 degrees |
| Working capacity | 40,200 to 52,500 sq ft/hr (3,735 to 4,877 m²) |
| Batteries | 6 x 12 V, 100 Ah gel |
| Runtime | Up to 4 hours |
| Charger | Onboard |
| Noise level | 69 dB(A) |
| Weight with batteries | 1,100 lb (499 kg) |
| Dimensions (L x W x H) | 66 x 26 x 56 in (168 x 66 x 142 cm) |
| Model Numbers | NaceCare TTV 678 (Numatic TTV 678G/300T) |
Technical specs may include optional equipment that is not included with all units.
Demo unit details
Questions
NaceCare TTV 678: common questions
How do I change the cleaning width?
Pull a pin and the brush deck adjusts in or out to 26, 30 or 34 in. The machine has onboard storage for a 30 in and a 40 in squeegee.
How long does it run on a charge?
NaceCare rates it at up to 4 hours on six 100 Ah gel batteries. Runtime depends on the width, brush pressure and floor.
Do the batteries need watering?
No. Gel batteries are sealed and maintenance free, spill-proof and can be charged anywhere.
How does the chemical dispensing work?
A 1 gal onboard chemical tank dispenses at 32:1, 64:1, 96:1 or 128:1, and the LED panel shows the chemical setting along with water flow, brush pressure and battery status.
Will it fit through my doors?
NaceCare says the TTV 678 fits through almost any door. It is 66 in long, 26 in wide and 56 in high, so measure your tightest doorway before you order.
