| Body Construction/Dimensions | |
| Tank Material | Poly (3/8" thick) |
| Frame Construction | 7-guage (3/16" steel) |
| Rear wheels (diameter x width) | 14" x 5" |
| Drive wheel | 12" x 4" |
| Size (LxWxH) | 69" x 36" x 56" |
| Weight | 1,230 lbs |
| Weight (w/ standard batteries) | 1,950 lbs |
| CYLINDRICAL | |
| Brush Size | (2) 44 x 7 |
| Brush speed | 750 rpm |
| Motor power | (2) 1.5 hp |
| Battery System | |
| Battery AH rating | (qty 6) 6-volt/325 ah |
| Battery run time | Up to 6 hours |
| Charger (110 v/60 hz, auto) | 36-v / 36 amp |
| Solution System | |
| Solution tank capacity | 68 gallons |
| Solution flow rate | 0-1.5 gpm |
| Solution filter | Inline stainless |
| Recovery System | |
| Recovery tank capacity | 68 gallons |
| Vacuum power | 1.6 hp |
| Vacuum (lift / airflow) | 68"/ 140 cfm |
| Demisting chamber | 2.5 gallons |
| Drive System | |
| Power | 3.0 hp sealed |
| Type | All gear |
| Speed control | 0-4 mph |
| General | |
| Sound levels | 71 dBA |
| Side broom path | 45" |
| Cleaning width / productivity | 40"/ 43,200 sq ft/hr |
Technical specs may include optional equipment that is not included with all units.

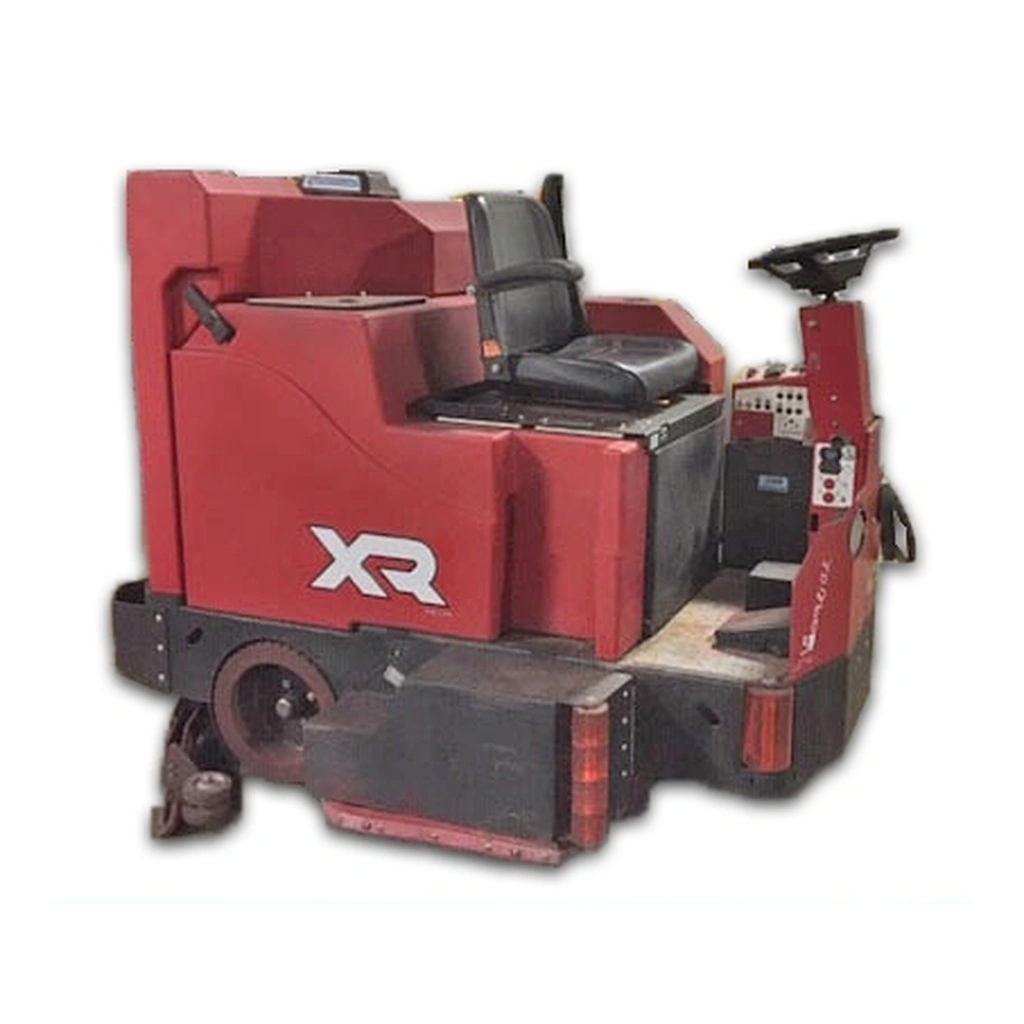

Reconditioned Factory Cat XR 46 Cylindrical Rider Floor Scrubber
These rugged and high performance scrubbers offer the productivity of the industry's largest equipment, but in a more maneuverable package. With two specialized cleaning systems and five deck sizes to choose from, FACTORY CATS XRs offer the results and capacity required to clean your unique application. The "Disk" XRs offer gimbaled brush drive and 45% more scrubbing power than competitive brands. The "Cylindrical" units reduce or eliminate dust mopping, by sweeping and scrubbing in a single pass. The scrub decks include adjustable wipers and curtains, for unmatched water control. All components are made of heavy gauge steel for durability and accessibility is designed in to simplify service work.
Condition: Refurbished (Reconditioned). Learn more about Our Reconditioning Process Here.
Features
- Constructed of thick steel, and powder-painted to prevent corrosion.
- Tanks have extra-thick walls and brass inserts for strength.
- High down pressure means less double scrubbing forces without leaving marks on your walls.
- Big battery allows it to be run a full shift
- FACTORY CATS use only stainless fasteners.
