| Specification | 28 in / 700 mm | 32 in / 800 mm | 36 in / 900 mm |
|---|---|---|---|
| Scrubbing System | |||
| Theoretical Max Productivity (per hour) | 33,320 ft / 3,095 m | 38,080 ft / 3,540 m | 42,840 ft / 3,980 m |
| Estimated Coverage - Conventional | 20,800 ft / 1,930 m | 24,000 ft / 2,230 m | 27,200 ft / 2,530 m |
| Estimated Coverage - ec-H2O NanoClean | 23,400 ft / 2,175 m | 27,000 ft / 2,510 m | 30,600 ft / 2,845 m |
| Brush Drive System | |||
| Brush Motor | (2) 0.75 hp motors | ||
| Brush/Pad Speed - Disc | 200 rpm | ||
| Brush/Pad Speed - Cylindrical | 750 rpm | ||
| Brush/Pad Pressure - Disc | 100 lbs & 200 lbs | ||
| Brush/Pad Pressure - Cylindrical | 85 lbs | ||
| Solution Delivery System | |||
| Solution Tank Capacity | 30 gal / 114 L | ||
| Solution Flow Rate - Conventional | 0-1.5 gpm / 5.7 lpm | ||
| Solution Flow Rate - FaST | 0.22 gpm / 0.8 lpm | ||
| Solution Flow Rate - ec-H2O NanoClean | 0.22 gpm / 0.83 lpm | 0.33 gpm / 1.25 lpm | 0.44 gpm / 1.66 lpm |
| Recovery System | |||
| Recovery Tank Capacity | 40 gal / 151 L | ||
| Vacuum Motor | 0.8 hp - three stage | ||
| Vac Motor CFM | 65 cfm / 1.84 cmm | ||
| Vac Motor Sealed Waterlift | 73 in / 1,854 mm | ||
| Power System | |||
| System Voltage | 36 volt | ||
| Battery Amp Hour Rating - Standard | 240 AHr | ||
| Battery Amp Hour Rating - Optional | 360 AH | ||
| Machine Specifications | |||
| Product Length - Disc | 64 in / 1,625 mm | ||
| Product Length - Cylindrical | 63 in / 1,600 mm | ||
| Product Width - Without Squeegee | 30 in / 762 mm | 34 in / 864 mm | 38 in / 965 mm |
| Product Width - With Squeegee | 37.5 in / 950 mm | 42 in / 1,070 mm | 45.5 in / 1,160 mm |
| Product Height | 43 in / 1,090 mm | ||
| Product Weight (with batteries) | 805 lbs / 365 kg | ||
| Sound Level (operator's ear) | 75 dBA | ||

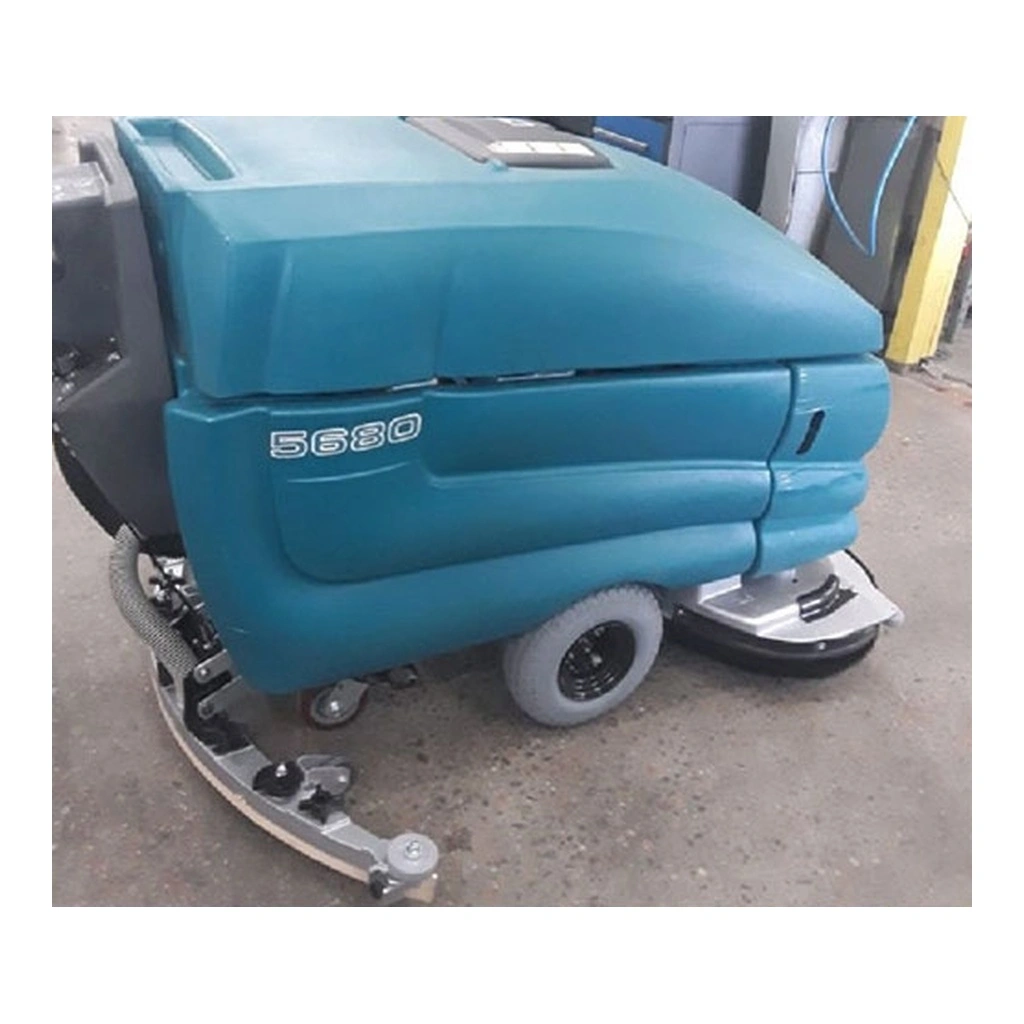

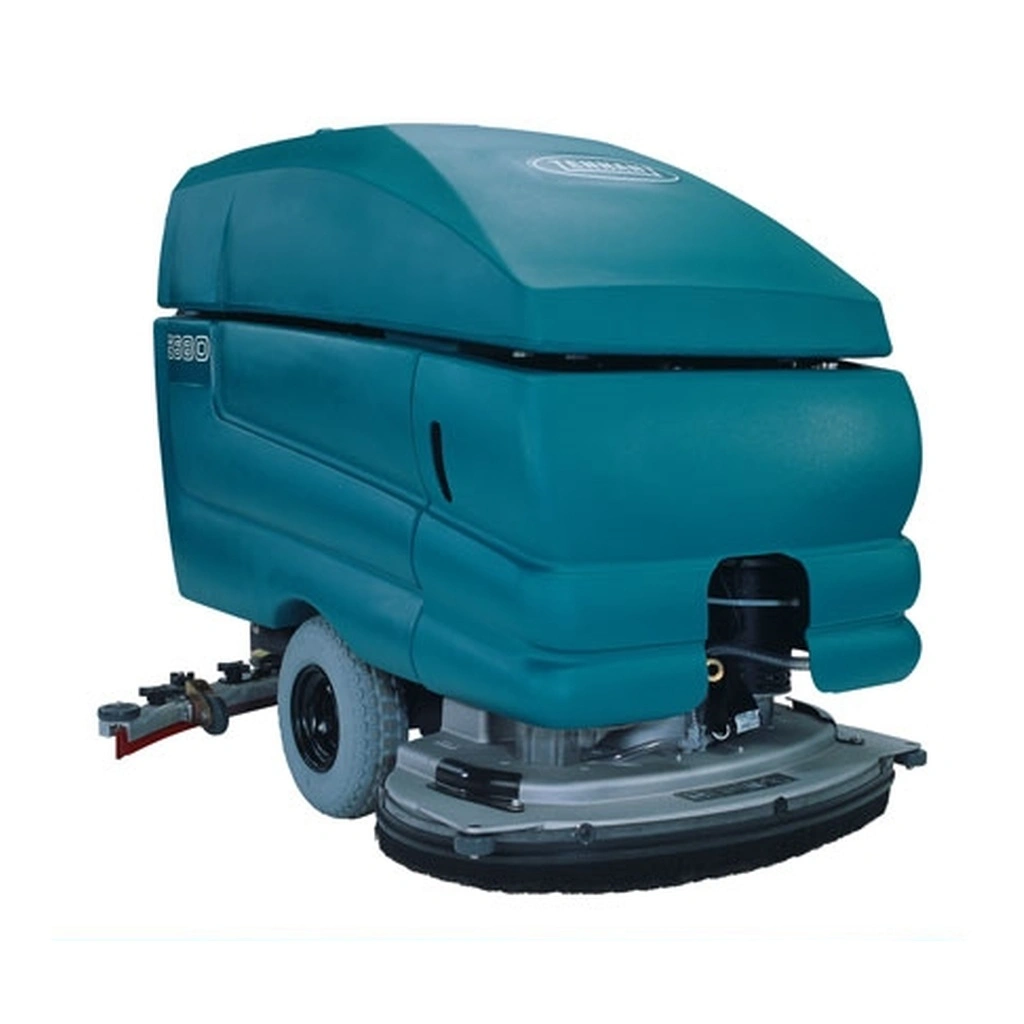

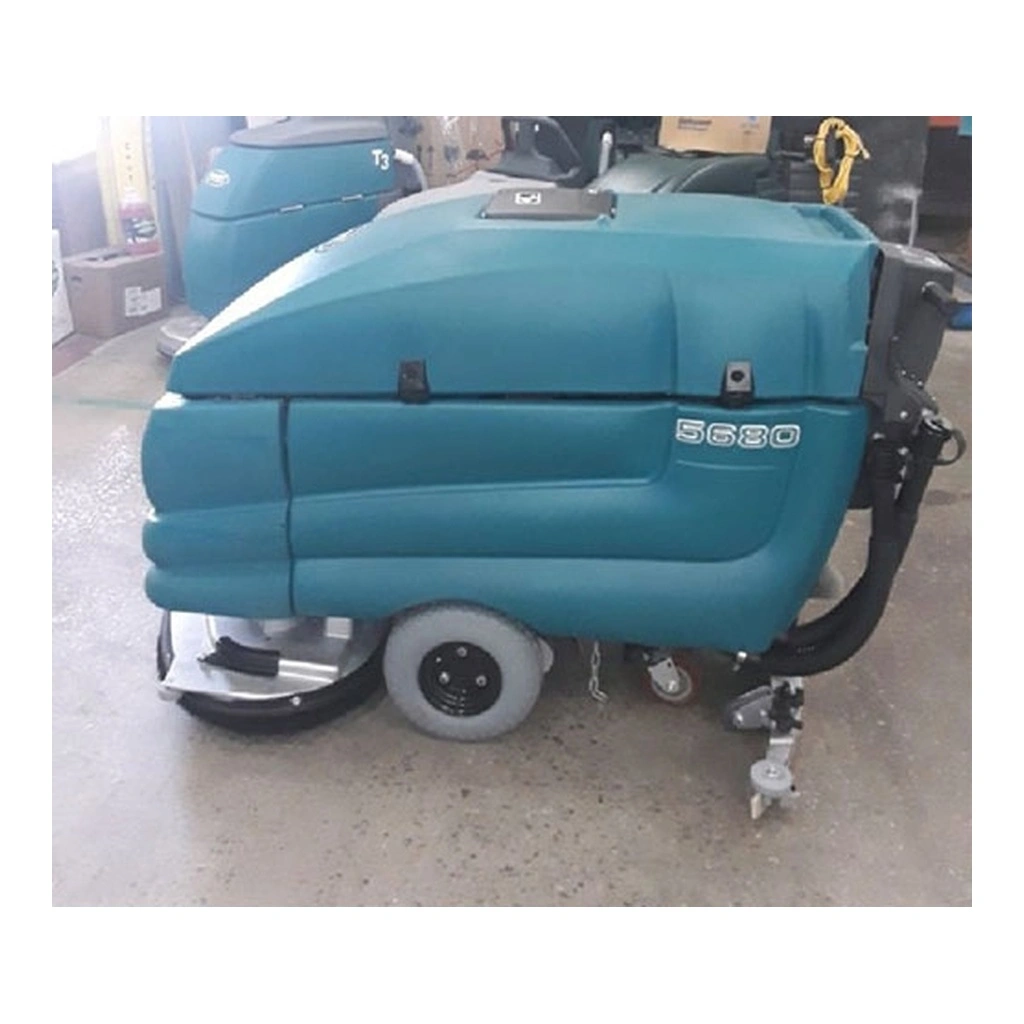

Reconditioned Tennant 5680 Walk-Behind Floor Scrubber
Our Take (from the SES Sales Team)
"If you are looking for a floor scrubber that can take anything that you are willing to throw at it, the Tennant 5680 is it. Known by contractors as the "workhorse" of the Tennant fleet, the 5680 is known for its simple design and reliable operation. With one switch to engage the scrubbing system and a choice of 2 brush pressure settings, the 5680 offers heavy-duty capabilities with a streamlined operation. When using the 5680 you'll quickly realize that Tennant had the end user in mind, as most areas of maintenance on the machine are easily accessible."Create a cleaner, healthier, safer world.
With a heritage of outstanding design and engineering, the Tennant Floor Scrubber 5680 for sale delivers the consistent performance, reliable operation, and quality assurance cleaning professionals need along with the success they desire.
This single disc floor scrubbing machine features extremely easy to use controls and a single switch lowers the brush and activates the scrubbing system. Very easy to run with minimal training. Increase safety and cleanliness with chemical-free ec-H2O NanoClean technology.
Completely Rebuilt Units Include:
- New Batteries
- New Casters
- Rebuilt Squeegee Assembly
- New Vac Motor
- Brush and Drive Motors Rebuilt
- New Hoses, Gaskets, Skirts and Filters
- Each Unit has $1700.00+ in NEW PARTS!
NOTE: Non-Marking Tires Shown on Unit are OPTIONAL
>Condition: Refurbished (Reconditioned). Learn more about Our Reconditioning Process Here.- Tennant 5680 Brochure Tennant 5680 Brochure
