| Vacuum System | |
| Vacuum motor HP | 1.8 hp / 1.34 kW |
| Vacuum motor stages | 3 stage |
| Water lift at sealed orifice | 136 in / 3500 mm |
| Airflow through 2 in / 50 mm orifice | 95 cfm / 2.7 m3/min |
| Vacuum shoe size | 20 in / 510 mm |
| Recovery System | |
| Recovery tank capacity | 14.5 gallon/ 55 L |
| Recovery tank description | Integrated bladder tank |
| Brush Drive System | |
| Brush motor amp | 1.5 A |
| Brush RPM | 1200 |
| Brush motor RPM | 1800 |
| Brush width | 17 in / 431 mm |
| Brush bristle type | Offset rows of nylon bristles in a chevron pattern |
| Brush diameter | 3.31 in / 84 mm |
| Solution System | |
| Solution pump amps | 1 A |
| Solution pump pressure | 100 psi / 6.9 Bar |
| Solution pump voltage | 120 V |
| Solution capacity | 10 gal / 38 L |
| Solution pump pressure | 100 psi / 6.9 Bar |
| Solution flow | 1 gpm / 3.78 L / min |
| Solenoid valve | Electric |
| Spray jets | 2 - quarter turn, quick disconnect |
| Total Power Consumption | 14.5 Amps / 1740 Watts |
| Power Cord | |
| Power cord length | 50 ft / 15.24 m (detachable) |
| Power cord type | 16 gauge, safety yellow |
| Optional Accessories | Wands, hand tools, solution and recovery hoses, etc. |
| Dimensions/Weight/Sound Level | 78 dBA |
| Length/Width/Height/Weight/Sound | L: 43 in / 1092 mm, W: 20 in / 508 mm, H: 34 in / 863 mm, Wt: 106 lb / 48.2 kg, 78 dBA |
Technical specs may include optional equipment that is not included with all units.

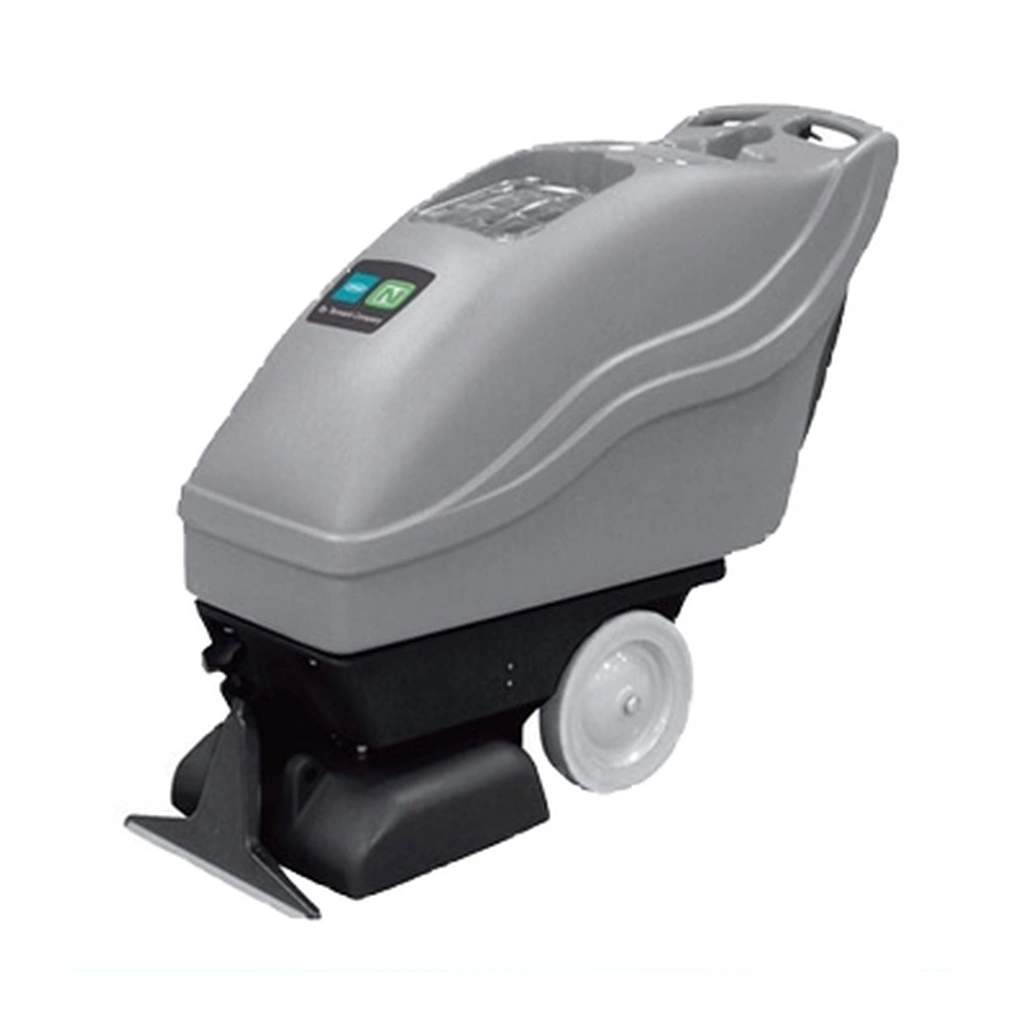

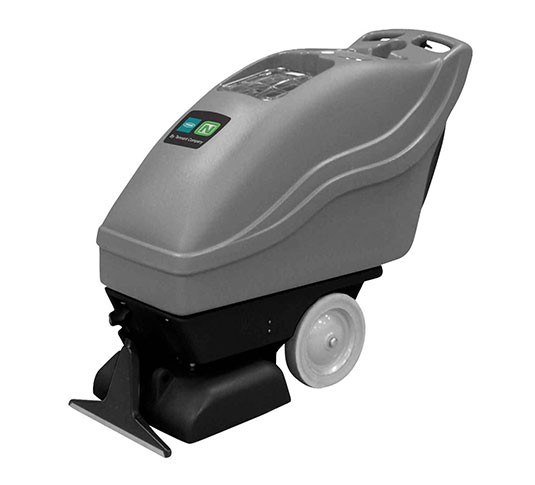

Demo Tennant EX-SC-1020 Self-Contained Carpet Extractor
Our Take (from the SES Sales Team)
“The EX-SC-1020 is a mid-size, self-contained extractor, which makes it a practical choice for schools, offices, hospitals, hotels and restaurants that deep clean their own carpet. Everything is on one machine: a 10 gal solution tank, a 14.5 gal recovery tank, a 100 psi pump, dual spray nozzles and a brush deck with a stiff brush, all cleaning a 17 in path. That means one operator can walk in, plug into the 50 ft cord and start cleaning with no hoses or wands to set up. Tennant built it to be agile, with a low-center-of-gravity bladder system that keeps it easy to steer in classrooms and offices but still lets it work through open areas. The handle grip and trigger solution control keep hand movement down over a long job. It is certified Bronze by the Carpet and Rug Institute. As a demo, it gives you a proven extractor with light use behind it, so ask us about the condition of this unit. If most of your carpet is large open space, a wider extractor will cover more floor per pass.”
A mid-size self-contained carpet extractor

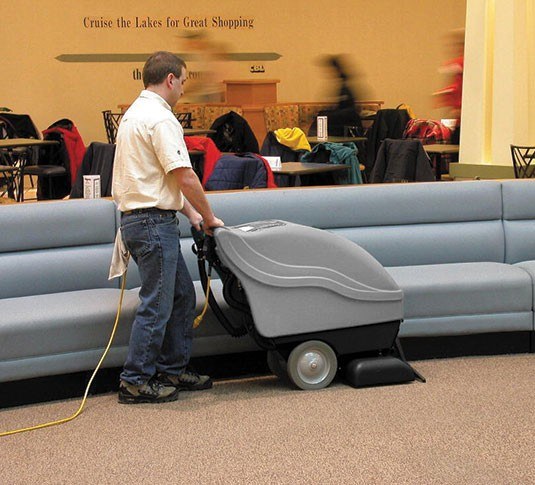

The Tennant EX-SC-1020 is a walk-behind, self-contained carpet extractor for classrooms, office buildings, hospitals, restaurants and other carpeted areas, small or open. It sprays, scrubs and recovers in one pass across a 17 in path, with a 10 gal solution tank and a 14.5 gal recovery tank.
Dual spray nozzles and a brush deck with a large motor and stiff brush give it the agitation for deep cleaning, while the controlled agitation is designed to remove tough soil without damaging the carpet.

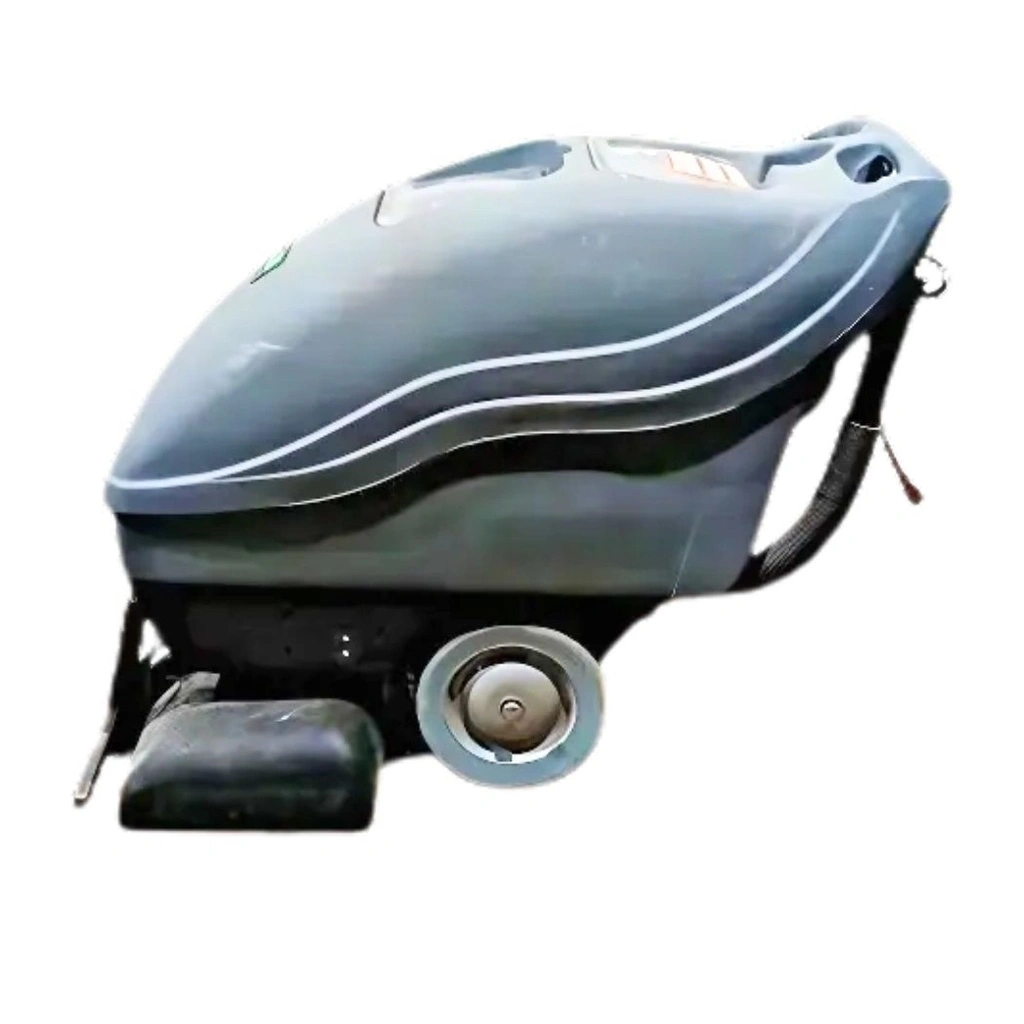

Condition: Demo. Light use and priced below new. Ask us about the condition of this unit.
What you get
Deep cleaning in one pass
Controlled agitation protects the carpet
Features
Built for everyday extraction
- ✓Brush scrub deck with a large motor and stiff brush, paired with dual spray nozzles
- ✓Ergonomic handle grip and trigger solution control for comfortable operation
- ✓Lightweight, maneuverable design with a low-center-of-gravity bladder system
- ✓Durable polyethylene construction that resists dents and cracks
- ✓Certified Bronze by the Carpet and Rug Institute
Specifications
Tennant EX-SC-1020 at a glance
| Models | EX-SC-1020 mid-size deep cleaning carpet extractor |
|---|---|
| Machine type | Self-contained walk-behind, corded |
| Cleaning path | 17 in (430 mm) |
| Solution tank | 10 gal (38 L) |
| Recovery tank | 14.5 gal (55 L) |
| Pump pressure | 100 psi |
| Heated | No |
| Power cord | 50 ft (15 m) |
| Length x width x height | 43 x 20 x 34 in (1,092 x 510 x 860 mm) |
| Weight | 106 lb (48 kg) |
| Sound level | As low as 78 dBA |
| CRI Seal of Approval | Bronze |
| Model Numbers | Tennant 9007486 (EX-SC-1020) |
Technical specs may include optional equipment that is not included with all units.
Demo unit details
Questions
Tennant EX-SC-1020: common questions
What does self-contained mean?
The solution tank, recovery tank, pump, vacuum and brush are all on one walk-behind machine. The operator sprays, scrubs and extracts in a single pass, with no separate wand or hose setup for open carpet.
How big are the tanks?
The solution tank holds 10 gal and the recovery tank holds 14.5 gal.
Does it heat the water?
No. The EX-SC-1020 is not heated. It runs on a 120 V cord with 100 psi of solution pressure.
Will it fit in classrooms and offices?
Yes. Tennant designed it to be maneuverable in confined areas like classrooms, offices, hospitals and restaurants. It is 43 in long, 20 in wide and 34 in high.
Not sure the EX-SC-1020 fits your carpet?
Tell our team about the carpet, the building and the schedule, and we will help you decide if this is the right machine.
