| Sweeping System | |
| Cleaning path | |
| Single side brush | 50 in |
| Dual side brush | 62 in |
| Brush Drive System | |
| Main brush | |
| Main brush length (tubular) | 36 in |
| Main brush lift | Mechanical lever |
| Main brush drive | Belt |
| Side brush diameter (disk) | 23 in |
| Debris hopper | |
| Volume capacity (polyethylene) | 11 ft3 |
| Weight capacity | 650 lbs |
| Dump height (variable to) | 60 in |
| Dump reach | 14 in |
| Power System | |
| Engine-gasoline/LPG | 23 hp |
| Propelling System | |
| Propel speed forward (variable to) | 5.0 mph |
| Propel speed reverse (variable to) | 3.0 mph |
| Gradeability | |
| Full hopper | 8.0 deg |
| Empty hopper | 10.0 deg |
| Dust Control System | |
| Filter system (triple stage) | |
| Stage 1 | Perma-filter |
| Stage 2 | Cyclonic pre-filter |
| Stage 3 (canister filled) | 80 ft 2 |
| Filtration level (up to) | 0.5 microns @ 99% efficiency |
| Vacuum fan | 1.0 hp |
| Vacuum fan speed | 6,100 rpm |
| Vacuum diameter | 9 in |
| Machine Specifications | |
| Length | 82.3 in |
| Width | 48.5 in |
| Height | |
| With overhead guard | 82.1 in |
| Without overhead guard | 48.5 in |
| Weight (net) without battery | 2,300 lbs |
| Weight (net) with standard battery | 2,975 lbs |
| Minimum aisle turn | 95 in |
Technical specs may include optional equipment that is not included with all units.

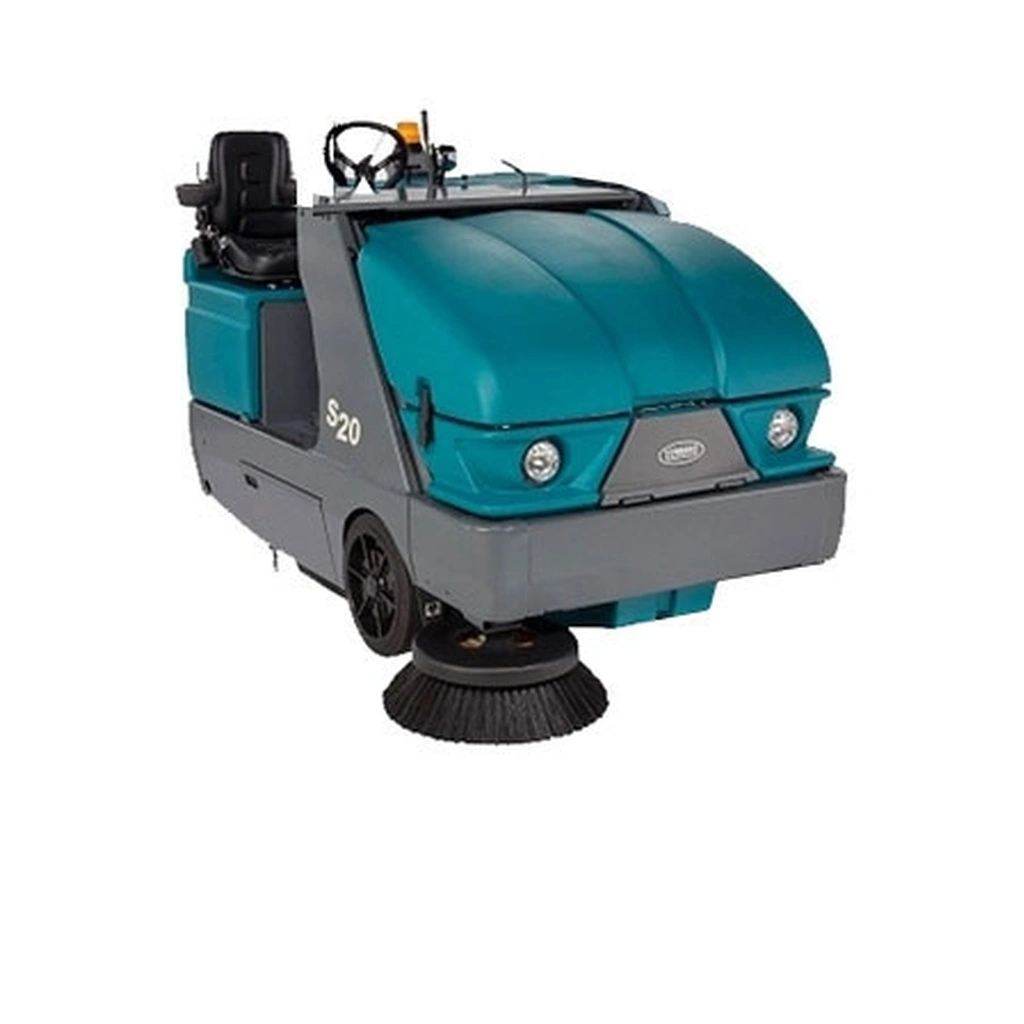

Demo Tennant S20 Gas Powered Rider Sweeper
Our Take (from the SES Sales Team)
“The S20 is built for buildings that are hard on equipment: foundries, manufacturing plants, warehouses, parking structures and outdoor yards. It sweeps a 50 in path with one side brush, or 62 in with dual side brushes, and the 11 cu ft hopper dumps at heights up to 60 in, so debris can go straight into a dumpster. This unit is gasoline powered, so there is no charging downtime, and it has the power for outdoor work and ramps. Tennant governs the gasoline engine at 24.8 hp. Dust control is where the S20 stands out. The three-stage SweepMax system pairs a Perma-Filter and a cyclonic pre-filter with a nanofiber canister filter rated to 0.5 microns at 99% efficiency, and the ShakeMax 360 shaker cleans the filter from the inside out. As a demo, it gives you a proven industrial rider with light use behind it, so ask us about the hours and condition on this unit. If you sweep only indoors with limited ventilation, a battery sweeper may be the better fit.”
A compact industrial rider sweeper with mid-size performance

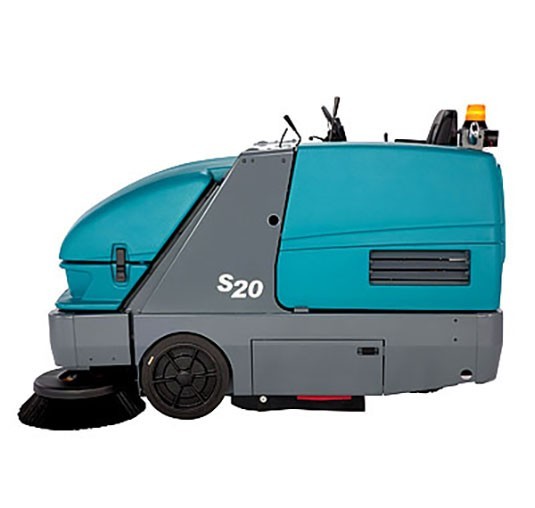

The Tennant S20 is a ride-on sweeper for manufacturing plants, foundries, warehouses, parking structures, airports and outdoor work areas. A 36 in main brush and a 23 in side brush sweep a 50 in path in one pass, the 11 cu ft hopper empties at heights up to 60 in, and Tennant estimates coverage of up to 163,680 sq ft per hour.
This unit has the gasoline engine, governed at 24.8 hp, with variable travel speed up to 8 mph. The three-stage SweepMax dust control system and ShakeMax 360 filter shaker keep dust in the hopper instead of in the air.
Condition: Demo. Light use and priced below new. Ask us about the hours and condition.
What you get
Heavy-duty sweeping in a compact rider
SweepMax and ShakeMax 360: dust stays in the hopper
Features
Built for tough environments
- ✓All-levers-forward operator controls make the S20 simple to learn and run
- ✓Thermo-Sentry alerts the operator and shuts down airflow if it senses heat in the hopper
- ✓Seat occupancy switch shuts the engine off within seconds of the operator leaving the seat

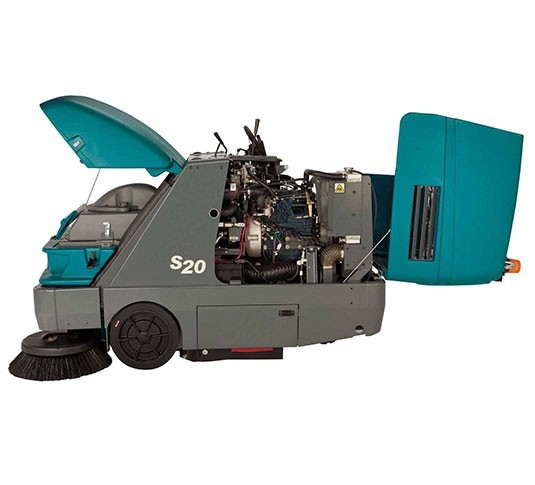

- ✓No-tool, easy-open covers give quick access to the engine and common service points
- ✓Corrosion-proof Duramer hopper and shrouds on a steel T-beam superstructure with a wrap-around steel bumper
Choosing a power source
Gasoline, LPG, diesel or battery
| Gasoline (this unit) | LPG | Diesel | Battery | |
|---|---|---|---|---|
| Governed power | 24.8 hp | 24.5 hp | 18.5 hp | Electric |
| Forward speed, up to | 8.0 mph | 8.0 mph | 8.0 mph | 5.0 mph |
| Gradeability, full hopper | 10 degrees | 10 degrees | 10 degrees | 7 degrees |
Engine models suit outdoor work and long shifts with no charging. The battery S20 is quieter and fume-free for indoor-only buildings.
Specifications
Tennant S20 at a glance
| Models | S20 Compact Ride-On Sweeper, gasoline |
|---|---|
| Sweeping path | 50 in (1,270 mm) single side brush; 62 in (1,575 mm) dual side brush |
| Main brush | 36 in (910 mm) tubular, belt drive, mechanical lever lift |
| Side brush | 23 in (580 mm) |
| Estimated coverage | Up to 163,680 sq ft per hour |
| Hopper volume | 11 cu ft (310 L) polyethylene; 11.25 cu ft (319 L) steel |
| Hopper weight capacity | 750 lb (340 kg) polyethylene; 700 lb (318 kg) steel |
| Dump height / reach | Variable to 60 in (1,525 mm) / 14 in (355 mm) |
| Engine, gasoline | 32.5 hp (24.2 kW) gross at 3,600 rpm; 24.8 hp (18.5 kW) governed at 2,500 rpm |
| Travel speed | Up to 8 mph forward (12.9 km/h), 3 mph reverse (4.8 km/h) |
| Gradeability | 10 degrees (17.6%) full hopper; 14 degrees (25%) empty |
| Dust control | 3-stage SweepMax: Perma-Filter, cyclonic pre-filter, 80 sq ft (7.4 m²) canister filter |
| Dust filtration | 0.5 microns at 99% efficiency (seasoned filter) |
| Vacuum fan | 1.5 hp (1.12 kW), 9 in (230 mm), 6,480 rpm |
| Length x width | 82.3 x 48.5 in (2,090 x 1,230 mm) |
| Height | 49.5 in (1,260 mm); 82.1 in (2,085 mm) with overhead guard |
| Minimum aisle turn | 95 in (2,415 mm) |
| Weight, net | 2,450 lb (1,110 kg) |
| Sound level | As low as 81 dBA |
| Model Numbers | Tennant S20 compact ride-on sweeper, gasoline engine |
Technical specs may include optional equipment that is not included with all units.
Demo unit details
Questions
Tennant S20: common questions
Can the S20 dump into a dumpster?

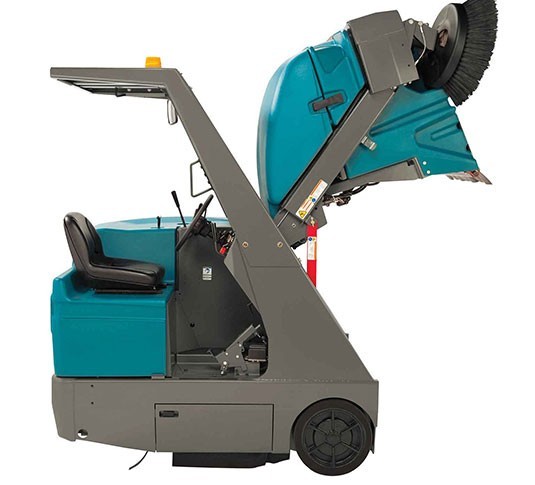

Yes. The hopper is a high-dump design that empties at variable heights up to 60 in, with 14 in of dump reach.
Can it be used indoors and outdoors?
Yes. Tennant lists the S20 for indoor and outdoor use. For indoor-only areas with limited ventilation, Tennant also builds a battery version of the S20.
How well does it control dust?
The three-stage SweepMax system ends with a nanofiber canister filter rated to 0.5 microns at 99% efficiency, and the ShakeMax 360 shaker cleans the filter from the inside out. Tennant also offers an optional HEPA filtration system.
How wide a path does it sweep?
50 in with the standard single side brush, or 62 in with optional dual side brushes.
Will it fit my aisles?
The S20 is 82.3 in long and 48.5 in wide and needs a 95 in aisle to turn around. It stands 49.5 in high, or 82.1 in with the overhead guard. Measure your tightest aisle and doorway first.
Not sure the S20 fits your floors?
Tell our team about the floor, the building and the shift, and we will help you decide if this is the right machine.
